Miller Bobcat 250 AC/DC Engine Driven Welder (Kohler) #907500001

Part Number: 907500001

This Item Has Been Discontinued and has been replaced by MillerBobcat™ 265 (Kohler) Engine-Driven Welder w/ Remote Start/Stop #907826 - Level up today!

Features
Specs
Documents
Videos
Accessories
Consumables
FAQS

Multiprocess Welding
11,000W Peak Power
Engine Driven

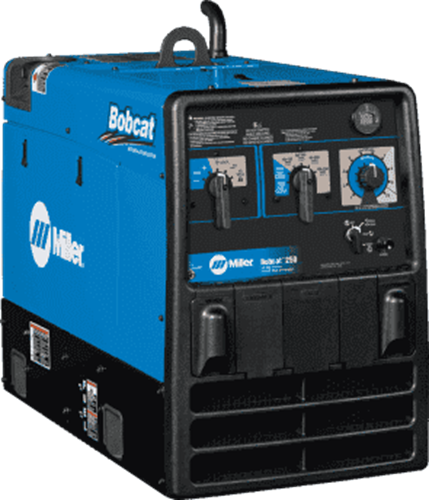

Miller Bobcat 250 AC/DC Engine Drive Welder #907500001 (DISCONTINUED)

Miller Bobcat 250 AC/DC Engine Drive Welder Generator (Kohler)

Free shipping Miller Bobcat 250
(some restrictions may apply)

Bobcat 250 Millermatic welding machine The Miller Bobcat 250 welder generator is the most popular in the industry and for good reason. The redesigned Miller Bobcat 250 Welder Generator provides a lot of power and is quieter to operate. It's easier to maintain and is smaller and lighter.

AC/DC Welder Generator

This welder generator has a versatile AC and DC weld output, providing quality welds for all types of metals. DC runs smooth and easy while AC Stick is there for when Arc blow occurs. With Accu-Rated 11,000 watts of usable peak power, the Miller Bobcat 250 Welder Generator is perfect for jobs with maximum loads like plasma cutting, Millermatic MIG welders and motor starting. The Accu-rated peak power creates smooth power, not spike power. It beats the competition’s very short duration peak for surge power. It boasts a large 12-gallon fuel tank allowing it to run for a long time before needing to refuel.

Quiet & Compact Enough for Any Job Site

The Miller Bobcat 250 Welder Generator runs very quietly. The significant improvements in sound level allow for better communication on job sites. This welder generator has improved the design by shifting the engine towards the front to create better airflow, allowing a significant reduction in noise levels. With quieter operation, you can start earlier and work later especially around residential or business areas.

The new design is also smaller and lighter. Having a smaller design will reduce the amount of space taken on trucks and trailers, leaving much more room for your other equipment.

The Miller Bobcat 250 Welder Generator is perfect for a large variety of maintenance and repair operations in construction, farm, and ranch. It is designed for long runtimes, reliability, convenience, and maximum performance.

Try these accessories with your new Miller Bobcat 250 AC/DC Engine Drive Welder

Miller Bobcat 250 AC/DC Engine Drive Welder Generator (Kohler) Processes:

MIG (GMAW)
Stick (SMAW)
Flux Cored (FCAW)
DC TIG (DC GTAW)
Air Plasma Cutting and Gouging (PAC) with Optional Spectrum Models

Miller Bobcat 250 AC/DC Engine Drive Welder Generator (Kohler) Applications:

Miller Bobcat 250 welding machine

Construction
Farm and Ranch
Field Maintenance and Repair

View all of our engine drive welding machines or check out our full selection of quality welding machines, welding helmets, and plasma cutting machines.

Other Miller Bobcat 250 Options:

Miller Bobcat 250 ##907500001 Specifications
Rated Output	CC/AC Stick/TIG: 225 Amps at 25 Volts CC/DC Stick/TIG: 250 Amps at 25 Volts CV/DC MIG/FCAW: 200 Amps at 20 Volts
Welding Amperage Range	CC/AC Stick/TIG: 40 - 250 Amps CC/DC Stick/TIG: 40- 250 Amps CV/DC MIG/FCAW: 17-28 Volts
Net Weight	32 lbs (12 oz)
Generator Power 104DegF	Accu-Rated Power 11,000 Watts Peak, 9,500 Watts Continuous EFI Models 12,000 Watts Peak, 10,500 Watts Continuous
Engine	Gas Kohler CH 23, 23 HP at 3,600 RPM - 3 year warranty Subaru EH 65, 23 HP at 3,600 RPM - 5 year warranty Note: Engines warranted separately by engine manufacturer
Fuel Capacity	Fuel Capacity 12 gal (45L)
RunTime	Welding with an 1/8 inch Stick electrode, 20% Duty Cycle, expect about 20 hours of operation. Under a continuous 4,000 watt generator load, expect approximately 14 hours of run time.

SHIPPING DIMENSIONS
Height:	20.00 Inches
Width:	33.00 Inches
Length:	41.00 Inches
Weight:	501 Lb(s) 0 Oz

Accessories

Consumables

Bobcat™ / Trailblazer® / Big Blue® Full KVA Adaptor Cord #300517

Product Questions and Answers

Q - Will this power a Multimatic 200? A - Yes, no problem.

Q - What oil do you recommend and how much does it take? A - 10w30, and it holds about 1.5 quarts.

Q - Can this be used to TIG weld? A - It can be set up to TIG weld aluminum, but because you won' have remote amperage control it should only be used for non-critical TIG welding.

Q - How loud is this? A - At maximum output, it has a 73.5 db rating.

How to start and stop engine:

Engine control switch.
This switch is used to start engine, select speed, and stop engine. In Run/Idle position, engine runs at idle speed at no load, and weld/power speed under load. In Run position, engine runs at weld/power speed.
To start engine.
Pull out choke and turn Engine Control switch to Start position. Release switch when engine starts. Slowly push in choke. If the engine does not start, let engine come to a complete stop before attempting restart.
To stop engine.
Turn Engine Control switch to Off position.
