Miller Bobcat 250 EFI #907502

Part Number: 907502

DISCONTINUED - replaced by Bobcat 260 EFI w/ Remote Start #907793.

$5,383.00
$6,823.54* Save $1,440.54
Out of Stock

Call 1-844-682-0205 or CHAT for more options

Welding type:

Mig

Mig

Stick

Stick

Tig

Tig

Engine Driven

Engine Driven

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

  •  Multi-Process
  •  Engine Driven
  •  Financing Available

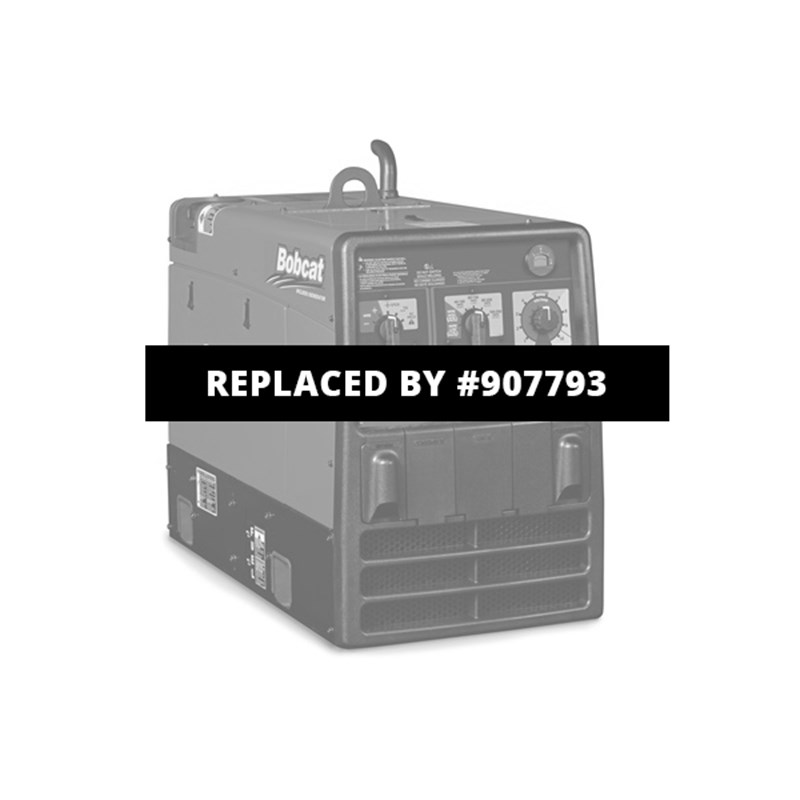

This product has been replaced by the Miller Bobcat 260 EFI w/ Remote Start 907793.

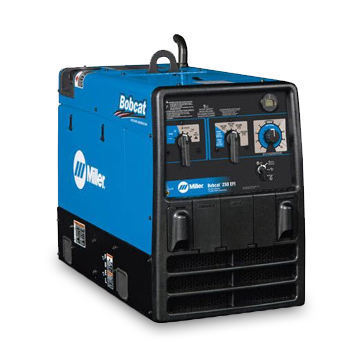

Miller Bobcat 250 Gas Welder with EFI AC/DC Engine Drive Welder #907502

Miller Bobcat 250 EFI Gas Wlder

The Miller Bobcat 250 gas welder with EFI AC/DC Engine Drive Welder (Kohler) With EFI features Electronic Fuel Injection. Similar to the technology found in cars, EFI optimizes the air/fuel ratio for better performance and greater efficiency. Starts in all climates with no choke required. At 27% better fuel economy, it reduces operational costs and lowers emissions.

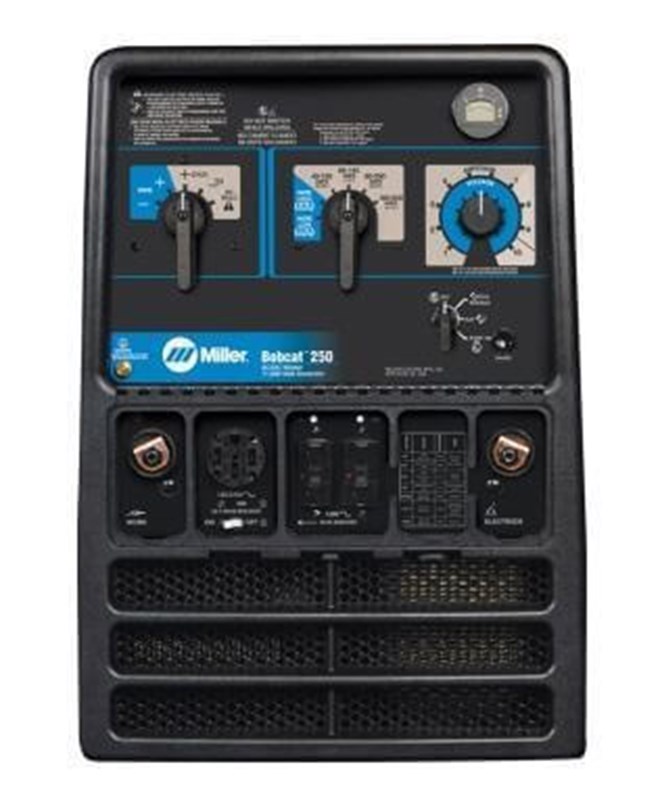

The front panel features an intuitive display with convenient maintenance notifications. This welder/generator is ideal for maximum generator loads like plasma cutting, especially with a whopping Accu-Rated 11,000 watts of usable peak power.

The Miller Bobcat 250 gas welder with EFI was designed lighter and smaller to save space and convenience. With a smaller, lighter design you can fit more things in your truck or trailer. The Miller Bobcat 250 is ideal for Stick and Flux-Cored welding and maintenance repair jobs. Perfect for working on the farm, ranch, or construction jobs. The welding generator combo is designed for long run times, reliability, and maximum performance.

Miller Bobcat 250 Gas Welder with EFI AC/DC Engine Drive Welder (Kohler) Processes:

  • Miller Welding EquipmentMIG (GMAW)
  • Stick (SMAW)
  • Flux Cored (FCAW)
  • DC TIG (DC GTAW)
  • Air Plasma Cutting and Gouging (PAC) with Optional Spectrum Models
Miller Protective Cover #300919Miller Spoolmatic 30A Part#130831 with a 30 ft cable assembly

Miller Bobcat Gas Welder For Sale

Miller Bobcat 250 EFI Applications:

  • Construction
  • Farm and Ranch
  • Field and Maintenance Repair
See our line of quality welding equipment or view our full selection of quality welding machines. Check out our selection of safety equipment.

Miller Bobcat 250 EFI Specifications:

Rated Output CC/AC Stick/TIG: 225 Amps at 25 Volts
CC/DC Stick/TIG: 250 Amps at 25 Volts
CV/DC MIG/FCAW: 200 Amps at 20 Volts
Welding Amperage Range CC/AC Stick/TIG: 40 - 250 Amps
CC/DC Stick/TIG: 40- 250 Amps
CV/DC MIG/FCAW: 17-28 Volts
Net Weight 501 lb (227 kg)
Generator Power 104DegF Accu-Rated Power
11,000 Watts Peak, 9,500 Watts Continuous
EFI Models
12,000 Watts Peak, 10,500 Watts Continuous
Engine Gas Kohler
CH 23, 23 HP at 3,600 RPM - 3 year warranty
Subaru
EH 65, 23 HP at 3,600 RPM - 5 year warranty
Note: Engines warranted separately by engine manufacturer
Fuel RunTime Capacity

Fuel Capacity

Gasoline
12 gal (45L)
Run Time

  • Welding with an 1/8 inch Stick electrode, 20% Duty Cycle, expect about 20 hours of operation.
  • Under a continuous 4,000 watt generator load, expect approximately 14 hours of run time.



See all engine driven welding machines

SHIPPING DIMENSIONS

Height: 20.00 Inches
Width: 33.00 Inches
Length: 41.00 Inches
Weight: 501 Lb(s) 0 Oz

Product Questions and Answers


Q - Where is this made? A - Made in USA!
Q - How much more efficient is the EFI version of the 250? A - Miller's testing showed it to have 27% better fuel economy, but there's also the benefit of fast and easy starts in all types of climates .
Q - How much power does it put out? A - 12,000 watts with EFI of usable peak power for a minimum of 30 seconds.
Q - What does it weigh? A - 501 lbs.
Q - Does this have enough juice to run a plasma cutter? A - If your plasma cutter doesn't draw more than 12,000 watts at peak and 10,500 watts continuous, it will power it.

How to Check an Egnine Before Starting:

  1. Check Fuel.

    Check fuel level and fill as necessary. Stop fueling once the fuel has reached the neck tube.

  2. Open Service Door.

    Open top service door.

  3. Check Oil.

    Check oil with the unit on a level surface. Use the full mark on the dipstick as a guide.

  4. Fill Oil.

    Fill the oil in the oil fill tube. The unit has a low oil pressure shutdown switch but you should still check the oil.

  5. Check Battery.

    Keep the battery in good condition. Store the battery in a warm area.

Have a question about this product? Submit your question using the form below

Related Products

Bobcat™ / Trailblazer® 275 Hose & LP Tank Mounting Assembly #300917
Bobcat™ / Trailblazer® 275 Hose & LP Tank Mounting Assembly #300917
$924.00
Bobcat™ / Trailblazer® Electronic Fuel Pump #300976
Bobcat™ / Trailblazer® Electronic Fuel Pump (gas only) #300976
$274.00
Bobcat™ / Trailblazer® Gas Cylinder Mounting Assembly #300918
Bobcat™ / Trailblazer® Gas Cylinder Mounting Assembly #300918
$706.00
Bobcat™ / Trailblazer® GFCI Receptacles #300975
Bobcat™ / Trailblazer® GFCI Receptacles #300975
$200.00
Bobcat™ / Trailblazer® Multi-Terrain Running Gear with Inner Tubes #300913
Bobcat™ / Trailblazer® Multi-Terrain Running Gear with Inner Tubes #300913
$1,129.00
Bobcat™ / Trailblazer® Off-Road Running Gear with Inner Tubes #300909
Bobcat™ / Trailblazer® Off-Road Running Gear with Inner Tubes #300909
$1,118.00

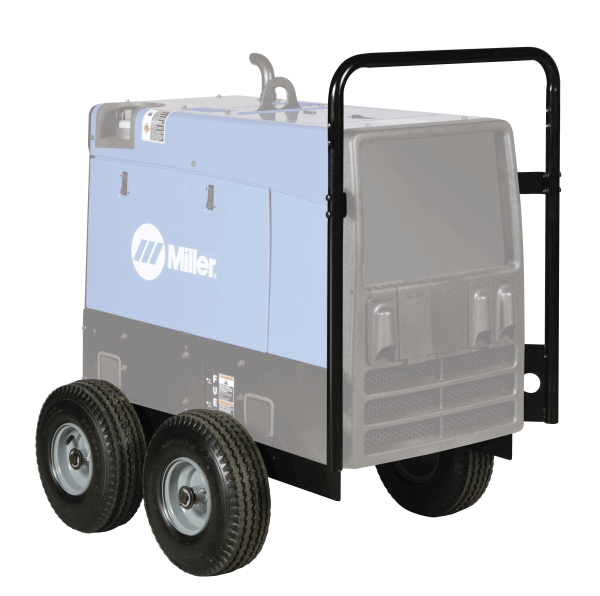

Bobcat™ / Trailblazer® Off-Road Running Gear with Never Flat™ Tires
Bobcat™ / Trailblazer® Off-Road Running Gear with Never Flat™ Tires #300910
$1,658.00
Bobcat™ / Trailblazer® Off-Road Running Gear with Protective Cage and Never Flat™ Tires #300912
Bobcat™ / Trailblazer® Off-Road Running Gear with Protective Cage and Never Flat…
$2,115.00
cover

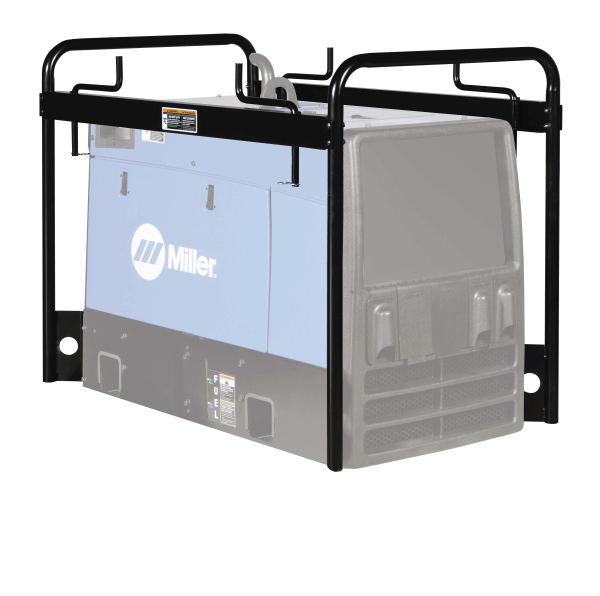

Bobcat™ / Trailblazer® Protective Cage with Cable Holders #300921
$873.00
Bobcat™ / Trailblazer® Protective Cover #300920
Bobcat™ / Trailblazer® Protective Cover #300920
$330.00

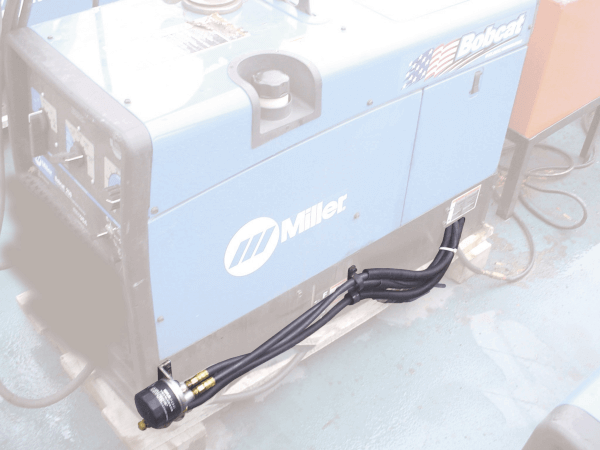

Bobcat™ / Trailblazer® Remote Oil and Drain Kit #300923
Bobcat™ / Trailblazer® Remote Oil and Drain Kit #300923
$634.00

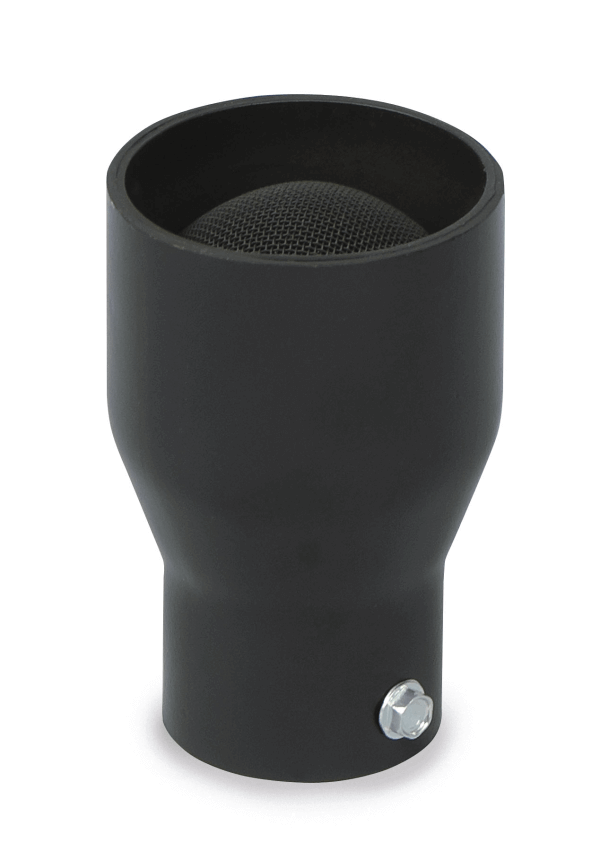

Bobcat™ / Trailblazer® Spark Arrestor #300924
Bobcat™ / Trailblazer® Spark Arrestor #300924
$149.00
Get the lowest price on  Miller 50 ft. 2/0 Welding Cables #173851 at Welders Supply
Miller 2/0 50ft Electrode & 50ft work cables
$1,118.00
Bobcat™ / Trailblazer® / Big Blue® Full KVA Adaptor Cord #300517
Miller Bobcat™ / Trailblazer® / Big Blue® Full KVA Adaptor Cord #300517
$161.00

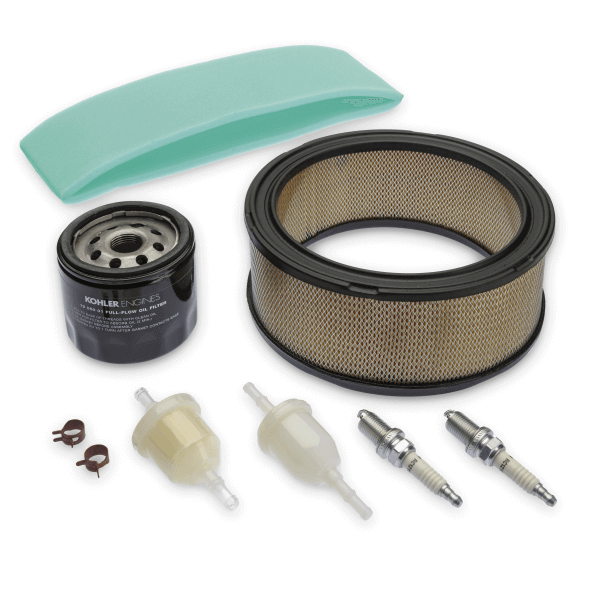

EFI Only Tune Up Kit for Miller Bobcat or Trailblazer Welding Machines
Miller Bobcat™ / Trailblazer® Engine Tune-Up Kits (EFI only) #246115
$107.15
$108.49
Bobcat™ / Trailblazer® Multi-Terrain Running Gear with Never Flat™ Tires #300914
Miller Bobcat™ / Trailblazer® Multi-Terrain Running Gear with Never Flat™ Tires …
$1,578.00
Miller
Miller Classic Cloth
$27.00
$33.86
Miller Classic Series Auto Darkening Welding Helmet Black Variable Shade #251292
Miller Classic Series Auto Darkening Welding Helmet Black Variable Shade
$89.00
$104.50
Out of Stock

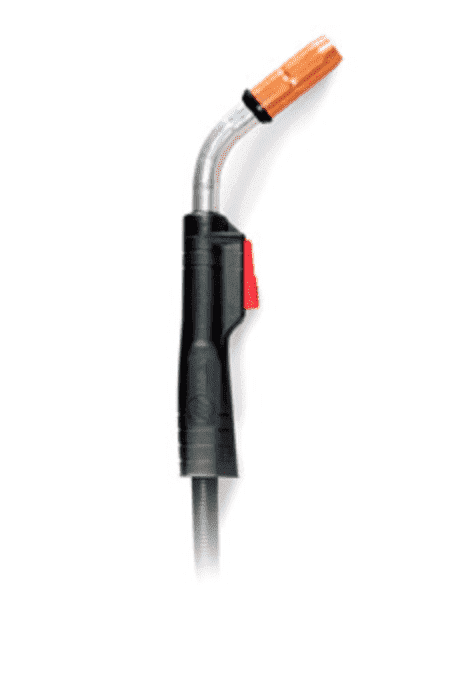

Miller M-25 MIG Gun #169599
Miller M-25 MIG Gun (250A) for .030-.045 wire — 15-ft
$250.00
$432.81
Out of Stock
Miller Protective Cover #300919
Miller Protective Cover
$311.00

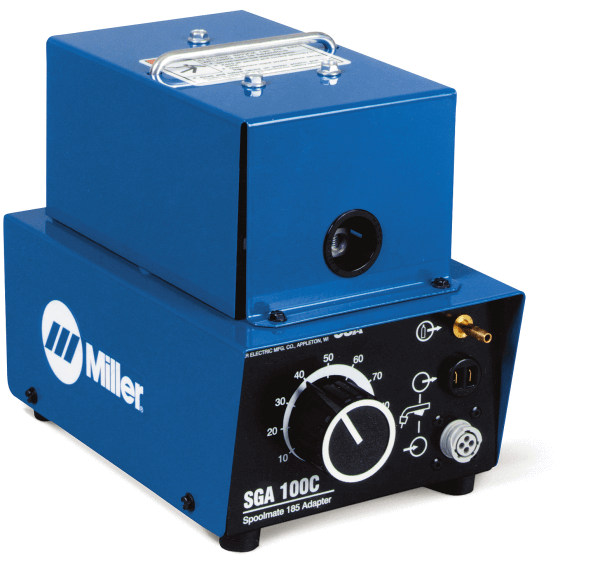

Miller SGA 100C Control with Contactor #043857
Miller SGA 100C Control with Control #043857
$906.55
$1,106.00
Miller Spectrum 375 X-Treme 907529 Build with Blue Holiday Promo Miller Spectrum 375 X-TREME 12FT XT30 Torch w/ X-case
Miller Spectrum 375 X-TREME 12FT XT30 Torch w/ X-case
$1,829.00
$2,314.00
Spoolmate 3035 #195016
Miller Spoolmate 3035 Spool Gun (20 ft)
$1,389.00
$1,604.00

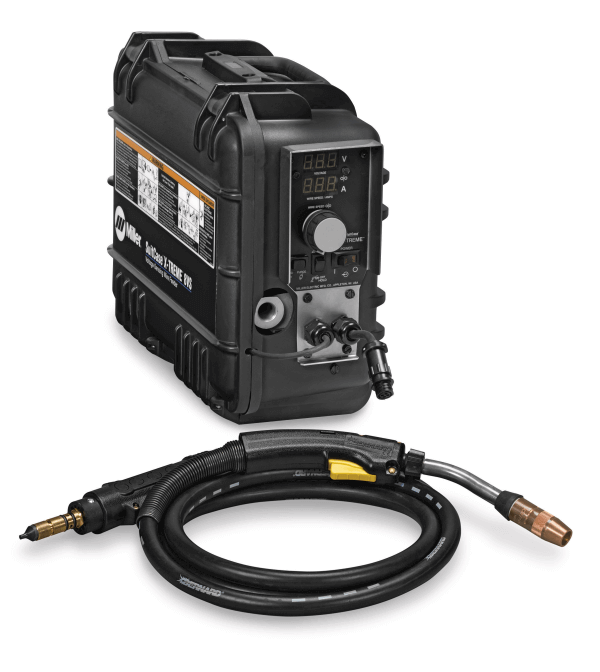

Miller SuitCase® X-TREME™ 8VS, Bernard™ BTB 300 A Gun #951583
Miller SuitCase® X-TREME™ 8VS, Bernard™ BTB 300 A Gun #951583
$2,100.00
$2,720.00
Out of Stock
SuitCase® X-TREME™ 8VS, Meters, Bernard™ BTB 300 A Gun Pkg #951582
Miller SuitCase® X-TREME™ 8VS, Meters, Bernard™ BTB 300 A Gun Pkg #951582
$2,099.99
$2,720.00
Out of Stock

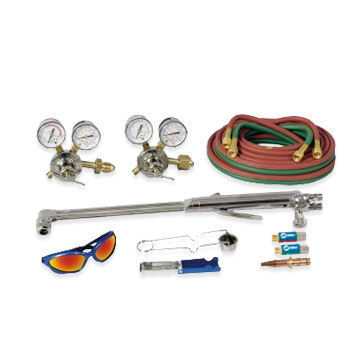

HEAVY DUTY TORCH KIT
Miller/Smith Heavy Duty Torch Outfit
$577.80
$1,078.46
Millermatic 141 W/Auto Set 110 Volt Mig Welder Part# 907612 Millermatic 141 w/Auto Set 110 Volt Mig Welder
Millermatic 141 w/Auto Set 110 Volt Mig Welder
$1,055.00
$1,326.00
Out of Stock
Millermatic 190 angled drive system 907613 Millermatic 190 Auto-Set 220 Volt Wire Welder DISCONTINUED
Millermatic 190 Auto-Set 220 Volt Wire Welder DISCONTINUED
$965.00
$1,228.00
Out of Stock
Millermatic 212 Auto-Set 220 Volt Wire Welder #907405 Millermatic 212 Auto-Set 220 Volt Wire Welder DISCONTINUED
Millermatic 212 Auto-Set 220 Volt Wire Welder DISCONTINUED
$2,315.00
$2,933.00
Out of Stock

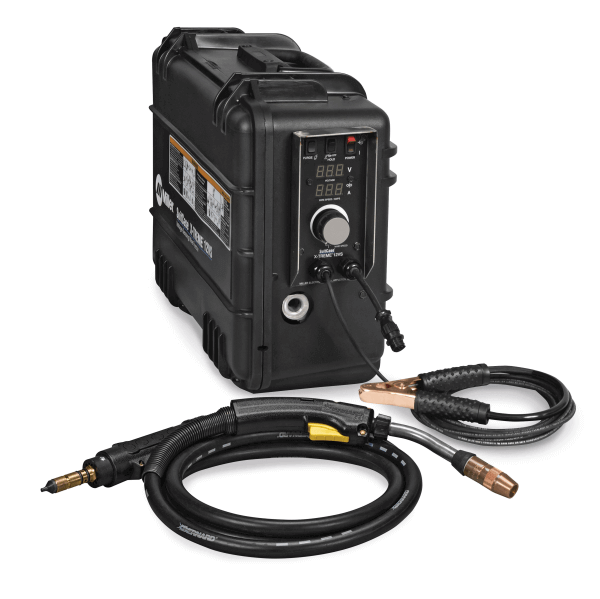

SuitCase X-TREME 12VS, Bernard BTB 300 A Gun #951543
$2,300.00
$3,011.00
Out of Stock

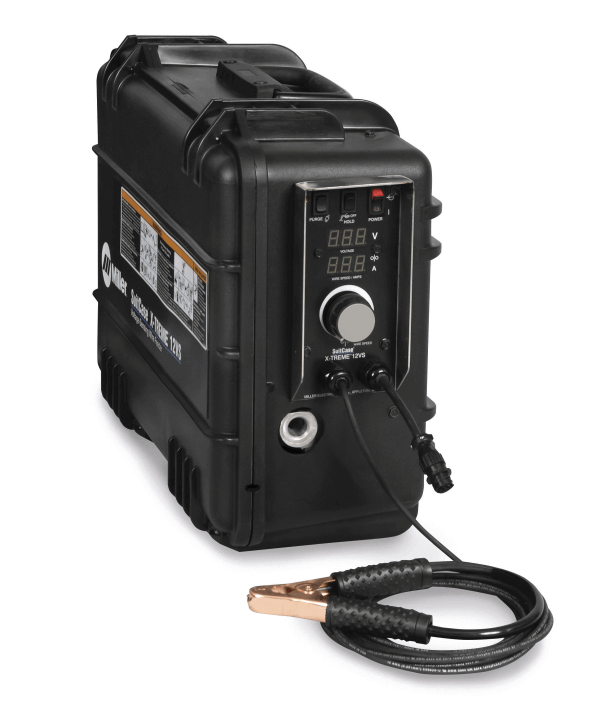

SuitCase® X-TREME™ 12VS, Bernard™ Dura-Flux Gun #951544
$2,300.00
$2,998.00
Out of Stock

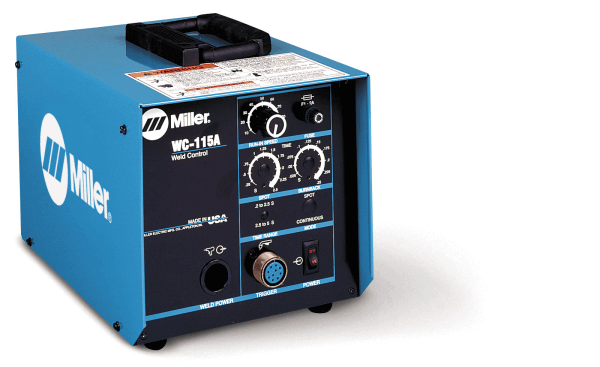

WC-115A Welding Control Unit #137546
WC-115A Weld Control without Contactor #137546
$1,346.75
$1,509.00

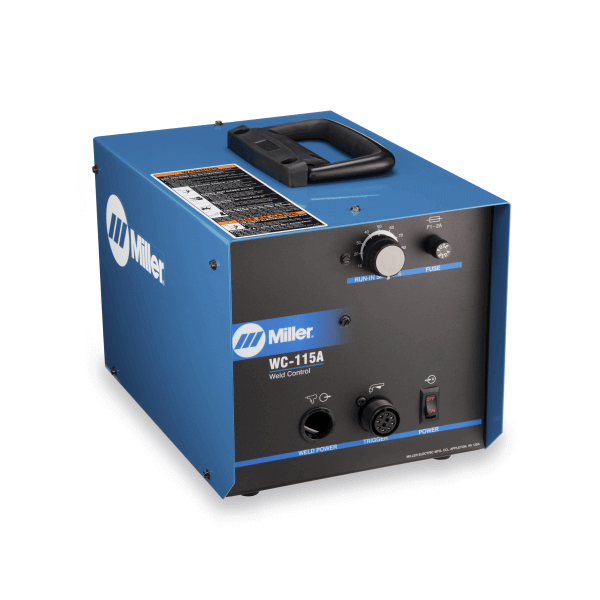

WC-115A with Contactor #137546011
