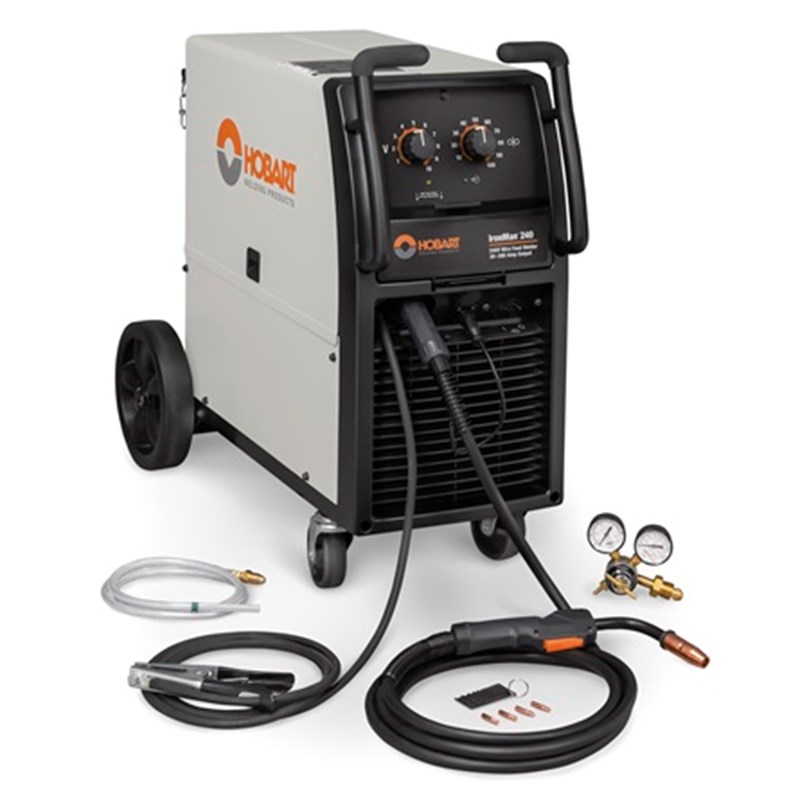

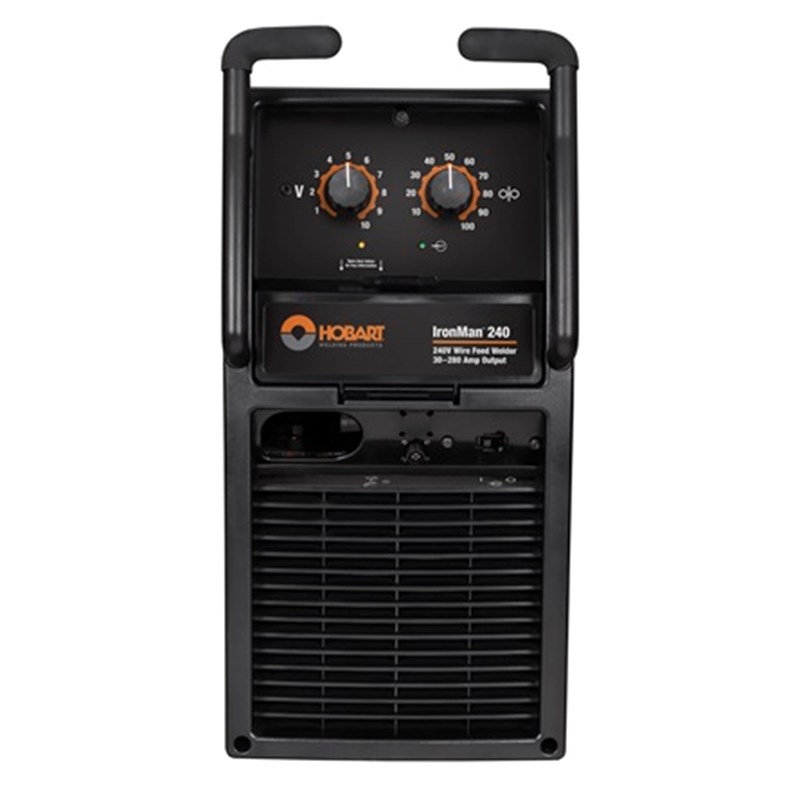

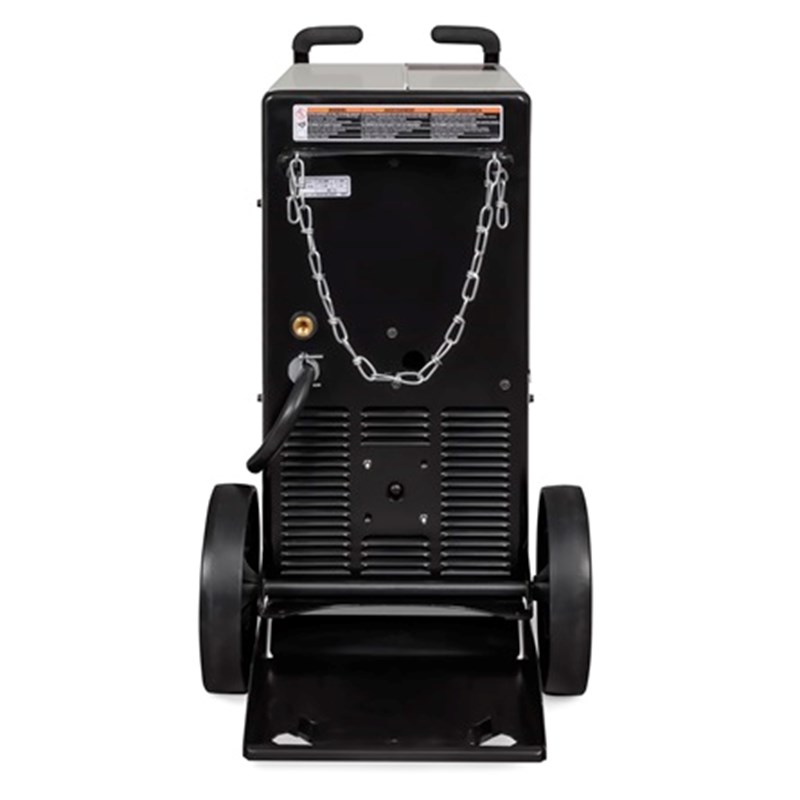

IronMan™ 240 - Complete Single-Phase MIG Welding Package #500574
A powerful, heavy-duty wire feed MIG welder that delivers professional results with superior arc quality. Runs on 240V input power, welds up to 1/2 in. mild steel, and is spool gun ready for aluminum. Produced by Hobart, a subsidiary of Miller Electric.
Outperforms the competition on arc quality, voltage control and value.
Whether you’re a professional or just want to weld like one, the IronMan 240 is unmatched in its class. It delivers 30 to 280 amps of pure power with an arc optimized to deliver a flawless weld, making spatter and post-weld cleanup almost nonexistent. Weld as thin as 24 gauge up to 1/2 inch (13 mm) mild steel. The dual-geared wire drive system with aluminum housing delivers 50 to 700 ipm wire feed speed. Reversible drive roll (two grooves for two wire sizes on one drive roll) decreases spare parts and changeover time. Easy to set and adjust for different materials and thicknesses — features infinite voltage and wire feed for finer control, less spatter and cleaner welds.
What's Included
- 15 ft. (4.6 m) MIG gun
- 10 ft. (3 m) work cable with clamp
- Power cord with plug
- Regulator/flow gauge with
- 5 ft. (1.5 m) gas hose
- .030 and .035 in. contact tips
- Dual-groove .030/.035 in. drive roll
- Built-in running gear/cylinder rack
Not included: Shielding gas, safety equipment.
Welding Applications
- Maintenance/repair
- Auto body
- Manufacturing
- Construction
- Farm/ranch
- Metal art
Features of the IronMan™ 240
Infinite wire feed control
- Allows you to precisely adjust penetration and weld bead shape.
Spool gun ready
- Easy setup for welding aluminum with no additional interface.
Run in Technology
- Experience smooth, spatter-free starts. The run-in feature automatically slows the wire feed speed to a pre-set speed prior to arc initiation, improving arc starts.
Reversible drive rolls: two grooves for two wire sizes on one drive roll
- Decreases your amount of spare parts, changeover time, and overall costs. 50% less stocking, one-piece drive roll.
Spool hub assembly accommodates 4- or 8-inch spools
- Offers you flexibility to use small or large spools of wire to better suit your welding needs.
Hinged feeder panel
- Increases your productivity and is more appealing. Gives you more access to wire feeder panel for spool and feed roll changes.
Hobart 5/3/1 industrial warranty
- Five-year warranty on transformers, stabilizers and main rectifiers; three years on generators, PC boards and drive systems; and one year on guns (MIG, Plasma and TIG torches).
Fan-On-Demand™
- Cooling system operates only when needed reducing power consumption and contaminants drawn into the machine.
Shop all Hobart and Miller welding equipment at the best prices online, from Welders Supply.
IronMan™ 240 MIG Welder - Specifications | |
---|---|
Processes | Flux Cored (FCAW) MIG (GMAW) |
Industries Interests | Racing Farm and Ranch Manufacturing |
Material Thickness | Mild Steel 24 ga. (0.5 mm) - 1/2 in. (12.7 mm) |
Weldable Metals | Aluminum Stainless Steel Steel |
Input Voltage | 220/230/240 V |
Input Phase | 1-Phase |
Input Hz | 60 Hz |
Current Type | DC |
Rated Output | 200 A @ 60% duty cycle |
Max Open Circuit Voltage | 40 VDC |
Wire Feed Speed | 50 IPM - 700 IPM |
Wire Diameter | Stainless 0.023 in. - 0.045 in. Stainless 0.6 mm. - 1.2 mm. Solid Steel 0.6 mm. - 1.2 mm. Solid Steel 0.023 in. - 0.045 in. Flux Cored 0.03 in. - 0.045 in. Flux Cored 0.8 mm. - 1.2 mm. |
Spool Size | 12 in. |
Portability | Running Gear / Cart (Standard) |
Applications | Welding Projects |
SHIPPING DIMENSIONS |
|
Height: | 30.00 Inches |
Width: | 19.00 Inches |
Length: | 40.00 Inches |
Weight: | 196 Lb(s) 8 Oz |
