Hobart IronMan 230 Wire Feed Welder Part #500536

Part Number: 500536

Discontinued - Check out other Hobart Welders

Out of Stock

Welding type:

Mig

Mig

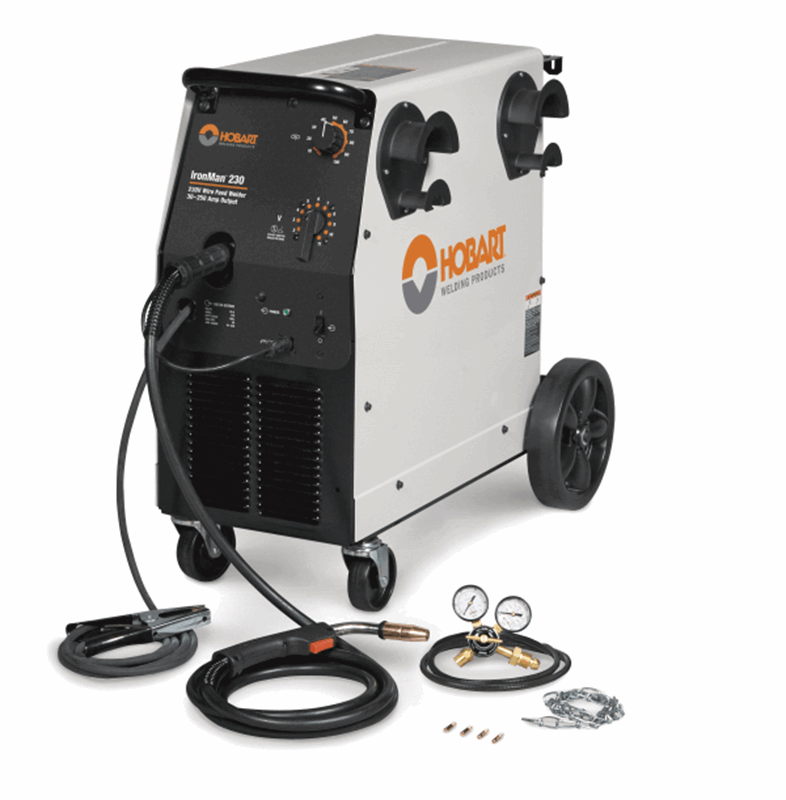

Hobart IronMan 230 MIG Welder #500536

If you need a MIG welder able to do nearly anything, you need the Hobart IronMan 203 MIG Welder. It outperforms the competition in arc quality, voltage control, duty cycle and value. Housed in a heavy-duty cabinet, this MIG welding marvel delivers 30 to 250 amps of pure power and flawless welds. Spatter and post-weld cleanup is almost non-existent. Want to weld aluminum? It's super easy with the IronMan 230 Welder. Just add the optional Hobart DP-3545-20 spool gun and you're ready to weld. This spool gun comes with a 20 foot cable and will weld aluminum from 18 gauge to 1/2".

Hobart IronMan 230 MIG Welder Applications:

  • Maintenance
  • Construction
  • Auto Body
  • Farm/Ranch
  • Rental
  • Home
For the lowest prices on MIG, TIG, Stick and Gas welders, shop Welders Supply online.

Other Versions:

500495 Hobart Handler 125 115V Wire Feed Mig Welder

500559 Hobart Handler 140 115V Wire Feed Mig Welder

500554 Hobart Handler 190 230V Wire Feed Mig Welder

500553 Hobart Handler 210MVP 115/230V Mig Welder with MultiVoltage Plug



Hobart Iron Man 230 Wire Feed Welder Part #500536

Hobart IronMan 230 MIG Welder Comes complete with:

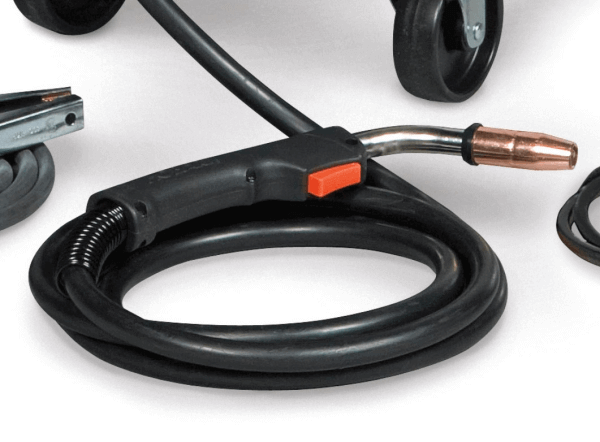

  • 15 ft. (4.6 m), 200 amp MIG gun

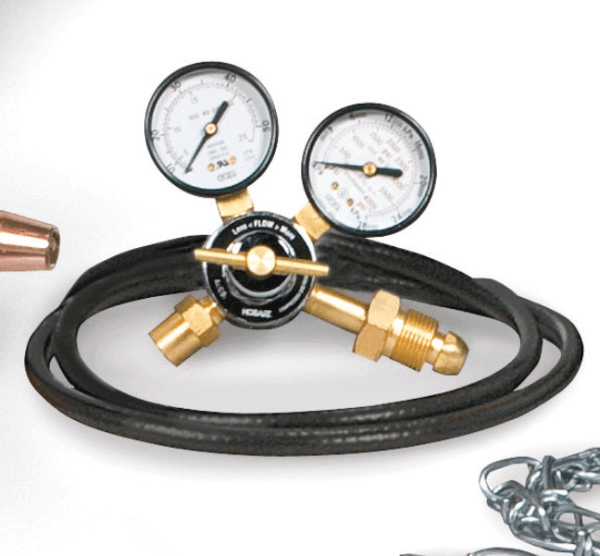

  • Regulator/flowmeter
  • 5 ft. (1.5 m) gas hose with fitting
  • 10 ft. (3 m) primary input cable with plug
  • 10 ft. (3 m) work cable with clamp
  • .030/.035 in. dual groove drive roll
  • Extra contact tips
  • Built-in running gear/cylinder rack

Hobart IronMan 230 MIG Welder Power:

  • CV
  • DC
  • 1 Phase

Hobart IronMan 230 MIG Welder Processes:

  • MIG (GMAW)
  • Flux Cored (FCAW)

Hobart IronMan 230 MIG Welder Material Thickness:

  • Welds 24 gauge up to 1/2 inch

Hobart IronMan 230 MIG Welder Skill Level:

  • Low

Product Questions and Answers


Q - What circuit breaker amperage do I need for this? A - You need a 50 amp breaker on 230v, a 60 amp breaker on 200c.
Q - Will a push-pull gun work with this? A - No.

How to Install Wire Spool ad Adjust Hub Tension:

  1. Prepare Parts.

    Collect Parts: Keyed Washer, Wire Spool, Keyed Washer, Compression Spring, Washer, Nut.

  2. Assemble Parts.

    Assemble Parts in the order listed above.

  3. Adjust Tension.

    Tighten or loosen hub tension until it reaches the desired level. Overtightening may cause slippage.
