Miller Deltaweld 500 575V W/14 Pin 907786001

Part Numbers: 907786001
UPCs: 715959679060

Included with your purchase ():

Miller Deltaweld 500 575V W/14 Pin 90778...
Miller Classic Series, VS Black with Cle...
Welders Supply cup holder
Welders Supply Magnetic Cup Holder
Black Stallion Split Cowhide Gloves
Black Stallion Split Cowhide Stick Glove...
Choose Options
American Welder T-Shirt - Back
Welders Supply T-Shirt & Stickers
$7,995.00 + Free Shipping $7,995.00*
SAVE $0.00
$7,995.00 + Free Shipping $7,995.00*
SAVE $0.00

Call 844-682-0205 or CHAT for more options

Welding type:



Power supply:

220V 3 Phase

220V 3 Phase



Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

  •  Multi-Voltage
  •  Three Phase
  •  3/8" Cut
  •  3-Year Power Warranty

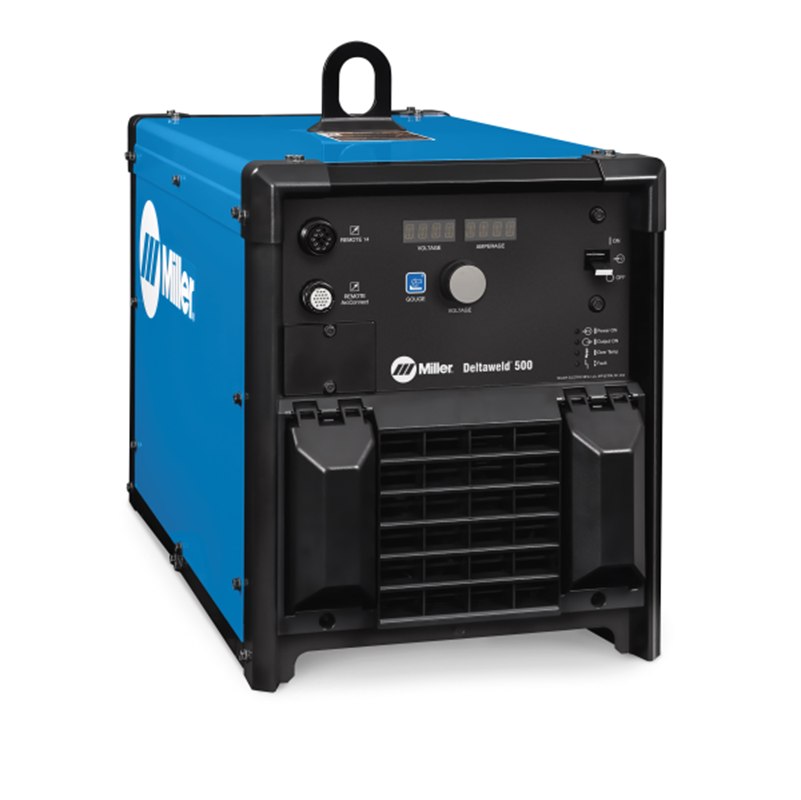

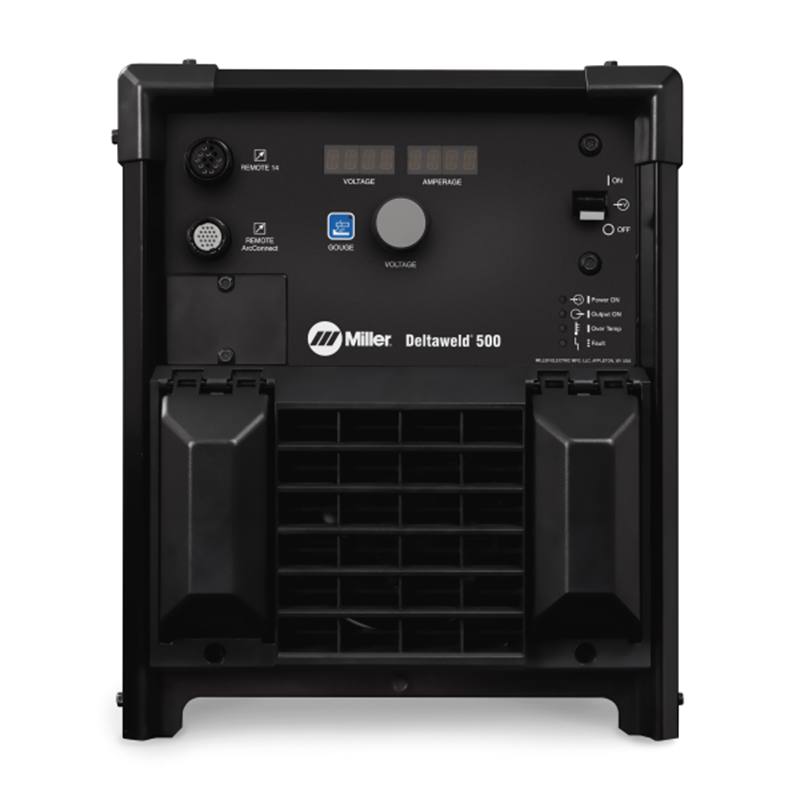

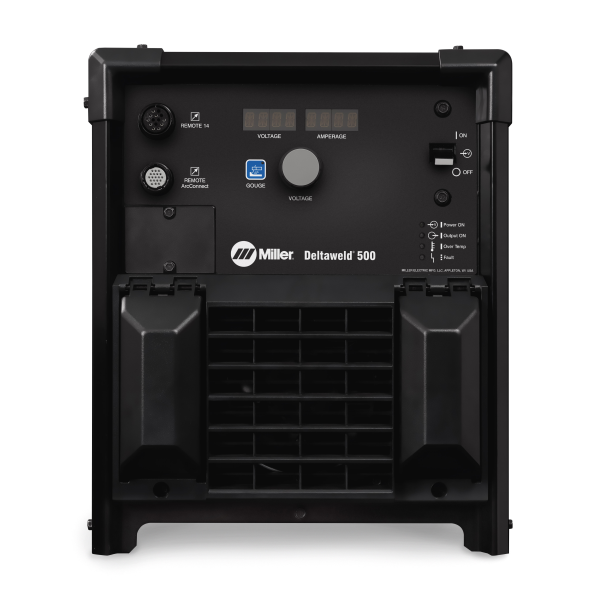

Miller Deltaweld 500 575V W/14 Pin

The manufacturing solution for welders of all skill levels, now offering pulse capabilities in an integrated package.

What's Included:

  •  Deltaweld 500 With ArcConnect™ and 14 Pin


Easy to Use

  •  EZ-Set simplifies parameter setup based on material thickness, removing complexity and reducing welder training time.

Legacy Meets Pulse

  •  Pulsed MIG-capable Deltaweld with Intellx Pro feeder provides a 28-percent wider operating window and a more forgiving arc, compensating for variations in operator technique. Welders of any skill level can get into production quicker. Make your move.


  •  Next generation communication to improve weld performance and allow point-of-use controls to be located at the feeder.


  •  Operates only when needed reducing noise, power consumption, and the amount of airborne contaminants going through the machine.

Dedicated Wire feeder options

  • Intellx feeder — New arc control feature means welders can produce better welds with minimal parameter adjustments.
  • Intellx Pro feeder — Adds Accu-Pulse®, EZ-Set, steel weld programs, and memory buttons.

Gouge Mode

  •  Deltaweld 500 has a dedicated constant current carbon arc gouge mode specifically designed to gouge up to 3/8" carbons.

Backwards Compatibility

  •  A model is available with both ArcConnect and the standard Miller 14 Pin for use with older Miller wirefeeders.

Wind Tunnel Technology

  •  Internal air flow that protects electrical components and PC boards from dirt, dust, debris— greatly improving reliability.

Ready to Weld

  •  The Deltaweld System is shipped as a complete package with everything you need to get welding sooner. Just hook up your primary power, add gas, wire and a welding gun, and you're ready to weld.
Check out the wide selection of MIG, TIG, Stick, and Gas welders for sale at Welders Supply.


  • Flux Cored (FCAW)
  • MIG (GMAW)
  • Accu-Pulse MIG (GMAW-P)
  • Air Carbon Arc (CAC-A)

Miller Detatweld 500 Specifications:

Industries Interests General Manufacturing
Heavy Equipment Manufacturing
Commercial Truck and Trailer
Carbon Diameter 3/8 in (9.925 mm)
Current Type DC
Input Voltage 208/230/460V or 575 V
Input Phase 3-Phase
Input Hz 60 Hz
Portability Lift Eye (Standard)
Running Gear / Cart (Optional)
Net Height 22.34 in
Net Length 31.65 in
Net Weight 145 lbs
Weldable Metals Stainless Steel
Net Width 15.35 in
Max Open Circuit Voltage
90 VDC
Weld Ouput CC / CV
Warranty 3 Years
Miller's True Blue Warranty


Height: 22.34 Inches
Width: 15.35 Inches
Length: 31.65 Inches
Weight: 145 Lb(s) 0 Oz
