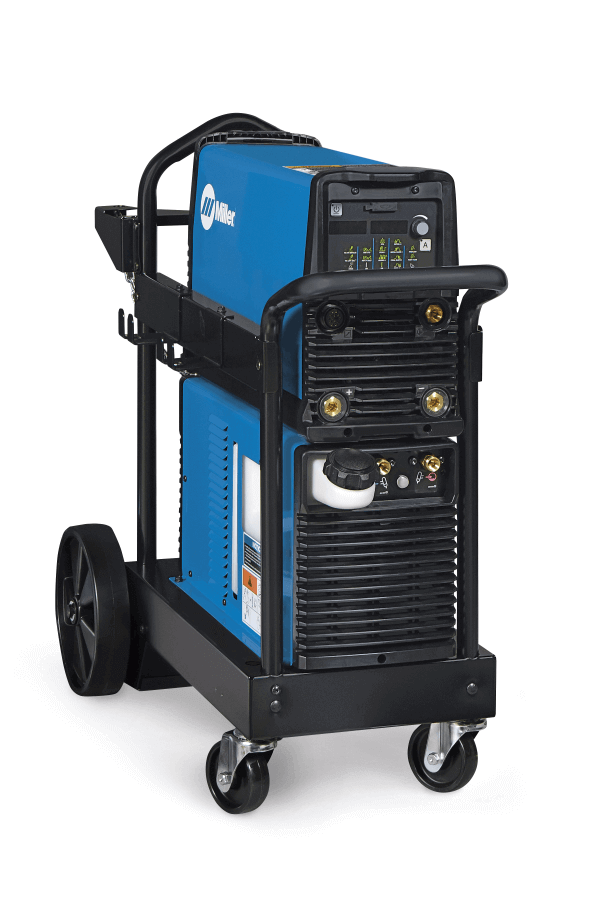

Miller Maxstar 280 DX W/CPS TIGRunner 907539001

Miller Maxstar 280 DX W/CPS TIGRunner 907539001

The Miller Maxstar 280 DX with Cooler Power Supply and TIG Cart Runner is a powerful combination of capability, portability, and efficiency. With a max steel weld capability of 3/8" (9.5mm) and a minimum of .004" (.1mm), it's also quite versatile. The DC TIG/Stick power sources feature an energy-efficient inverter design and Auto-Line™ technology. The Miller Coolmate 1.3 further water cools your TIG torch to weld at higher temperatures, faster paces, and for longer periods of time, all while prolonging the life of your welding unit.

Included with the Maxstar 208 Dx is the Miller Weldcraft™ W-280 (WP-280) TIG Torch with Super Cool™ Technology to further maximize your cooling efficiency and capacity in your welding. The Miller Maxstar 208 DX, the Miller Coolmate, can be easily transported with the Miller Runner cart to provide flexibility and mobility in your manufacturing environment.

Industrial Applications:

• Precision fabrication
• Petro chemical
• Aerospace
• Food/beverage industry
• Dairy
• Shipboard

Processes:

• DC TIG (GTAW)
• Pulsed TIG (GTAW-P)
• Stick (SMAW)
• Air carbon arc (CAC-A)



Miller Maxstar 280 DX (Machine Only)

Features and Benefits:
Update and Expand	Front panel memory card data port provides the ability to easily update software and expand product features.
Pro-Set™	Eliminate the guesswork when setting weld parameters by simply selecting the features desired. Use Pro-Set when you want the speed, convenience, and confidence of preset controls.
Sleep Timer	Conserve energy and electricity, by selecting this setting to power down the machine when idle.
Autoline™ Power Management Technology	Allows for any input voltage hookup (208–575 V) with no manual linking, providing convenience in any job setting. The ideal solution for dirty or unreliable power.
Cooler Power Supply	An integrated 120-volt dedicated-use receptacle to power the Coolmate™ 1.3. The power switch on the Maxstar also activates the receptacle to help prevent torch failure.
Blue Lightning™	A high-frequency (HF) arc starter for non-contact arc initiation. Provides more consistent arc starts and greater reliability compared to traditional HF arc starters.
Meter Calibration	allows digital meters to be calibrated for certification.
Wind Tunnel Technology™	protects internal electrical components from airborne contaminates, extending the product life.
Fan-On-Demand™	power source cooling system operates only when needed, reducing noise, energy use and the number of contaminants pulled through the machine.

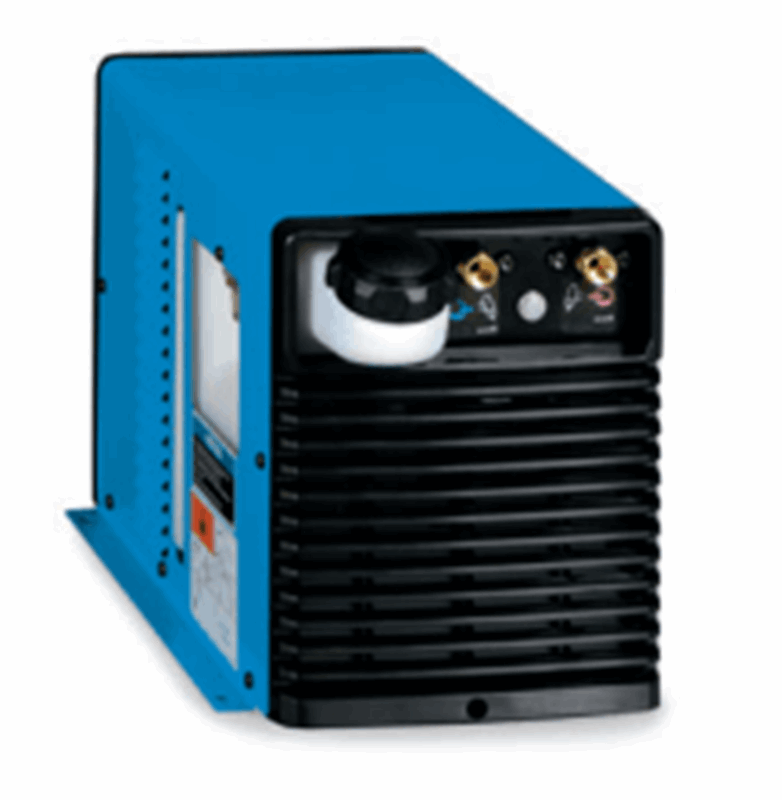

Coolmate™ 1.3 Cooler

Features and Benefits:
Closed-loop design with radiator	Reduces coolant temperatures and prevents the system from overheating. The closed-loop design also recirculates the coolant through a fan-cooled heat exchanger.
Rustproof coolant reservoir	Molded of polyethylene for durability and corrosion resistance.
Standard inlet/outlet torch fittings	Compatible with TIG and MIG torches having standard 5/8-18 left-hand fittings.
Brass-body positive-displacement rotary vane pump	Provides consistent coolant flow and pressure rating with long pump-life expectancy.
Thermally protected 1/4 hp motor	Guards against overheating.

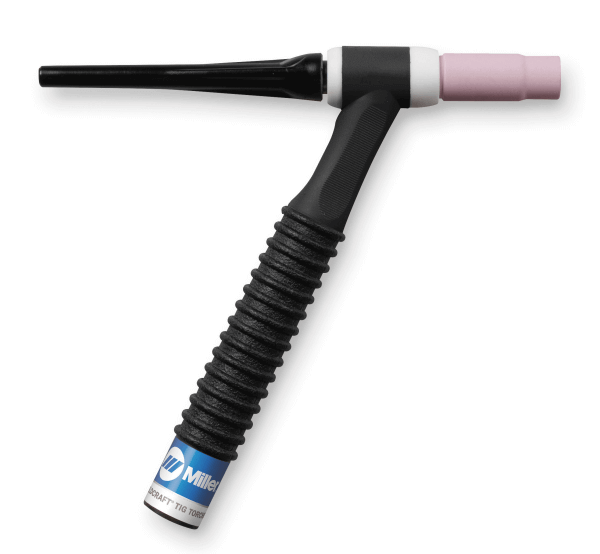

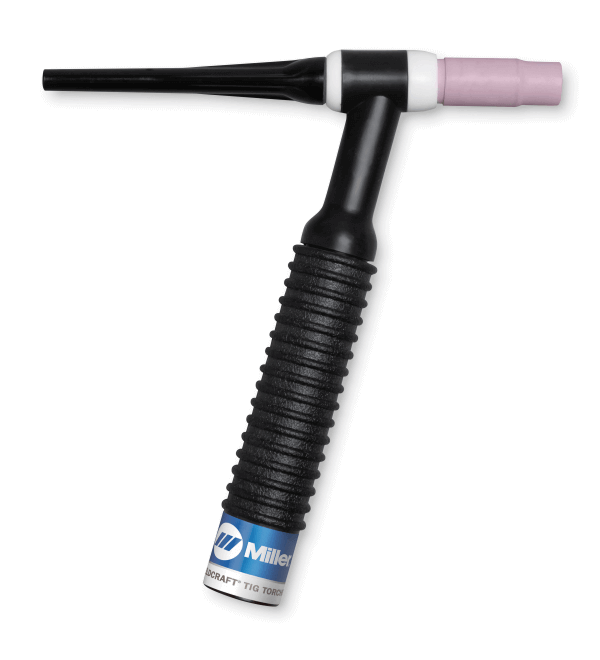

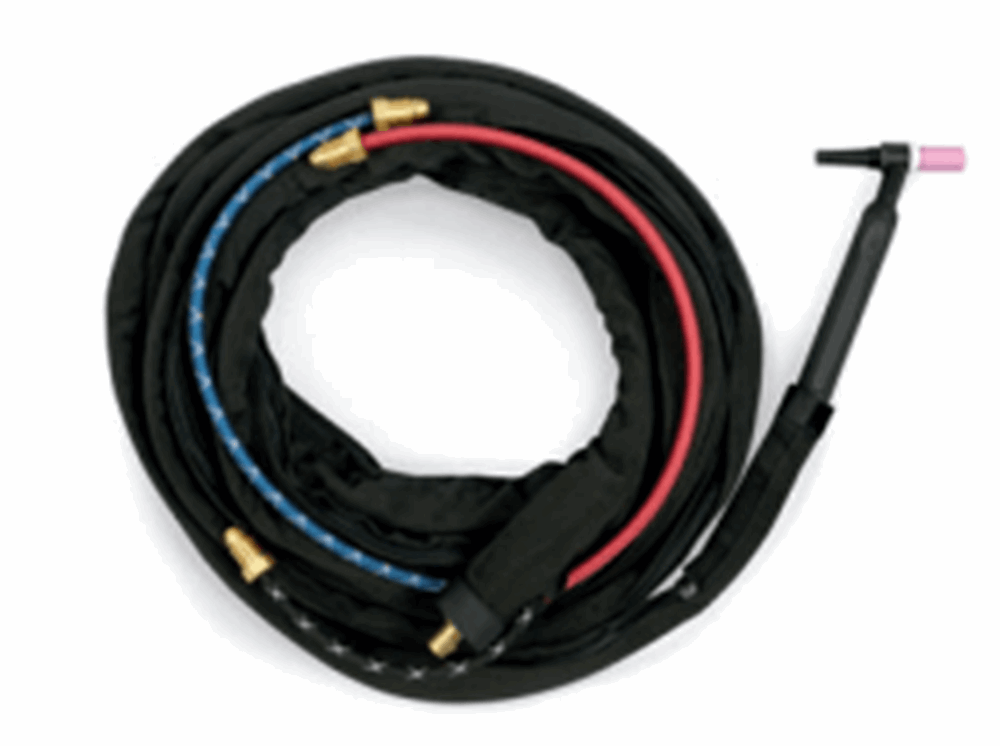

Weldcraft™ W-280 (WP-280) TIG Torch

Features and Benefits:
Super Cool™ Technology	Provides additional surface area to increase cooling efficiency and capacity.
Secure connections	Reduce leakage of gas and water through secure connections in the mechanical fittings.
Prevent handle movement during welding	Torch body includes an anti-rotation feature and multi-position locking to prevent handle movement during welding and improve operator control



Miller Small RunnerTM Cart #300988

Single cylinder rack Foot pedal holder Two cable/torch holders Two TIG filler holders



Free Shipping on Orders Over $300

All purchases over $300 ship free within the continental U.S.

View our large selection of TIG welding machines, Miller welders, and used welders with the best prices online.

Input power	208-575 V, o-or 1-phase power
Rated output	TIG: 235 A at 19.4 V, 60% Duty Cycle (1 or 3-phase) Stick: 180 A at 27.2 V, 60% Duty Cycle (1-Phase) 200A at 28 V, 60% Duty Cycle (3-Phase)
Welding Amperage Range	1 - 280 Amps
Net Weight	47 lb (21.3 kg)



NOTE: This is a DC only machine. It cannot TIG weld aluminum.
