Miller Deltaweld 500 575V W/Insight CO 907786001

Part Numbers: 907786002
UPCs: 715959684606
1 Review

Included with your purchase ( ) :

Miller Deltaweld 500 575V W/Insight CO 9...
FREE!
Miller Classic Series, VS Black with Cle...
Welders Supply cup holder
FREE!
Welders Supply Magnetic Cup Holder
Black Stallion Split Cowhide Gloves
FREE!
Black Stallion Split Cowhide Stick Glove...
Welders Supply Spray n Weld anti spatter spray
FREE!
Spray n Weld Anti-Spatter Welding Spray
Choose Options
American Welder T-Shirt - Back
FREE!
Welders Supply T-Shirt & Stickers
$9,243.00 + Free Shipping $9,243.00*
SAVE $0.00
$9,243.00 + Free Shipping $9,243.00*
SAVE $0.00
Starts at $1,540.50/month with

Call 844-682-0205 or CHAT for more options

Welding type:

Mig

Mig

Power supply:

220V 3 Phase

220V 3 Phase

460V

460V

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

  •  Multi-Voltage
  •  Three Phase
  •  3-Year Power Warranty

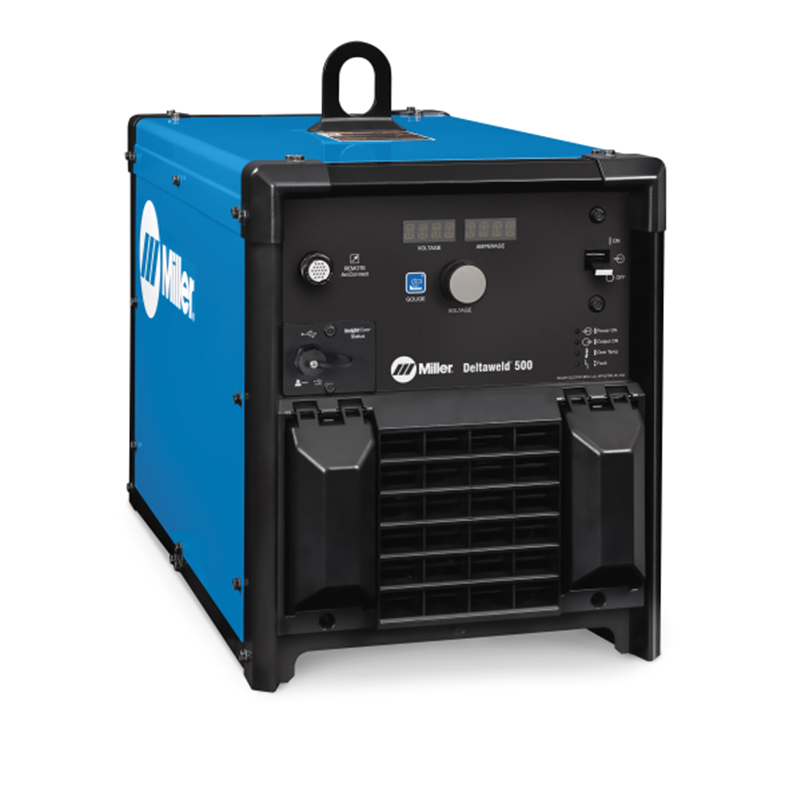

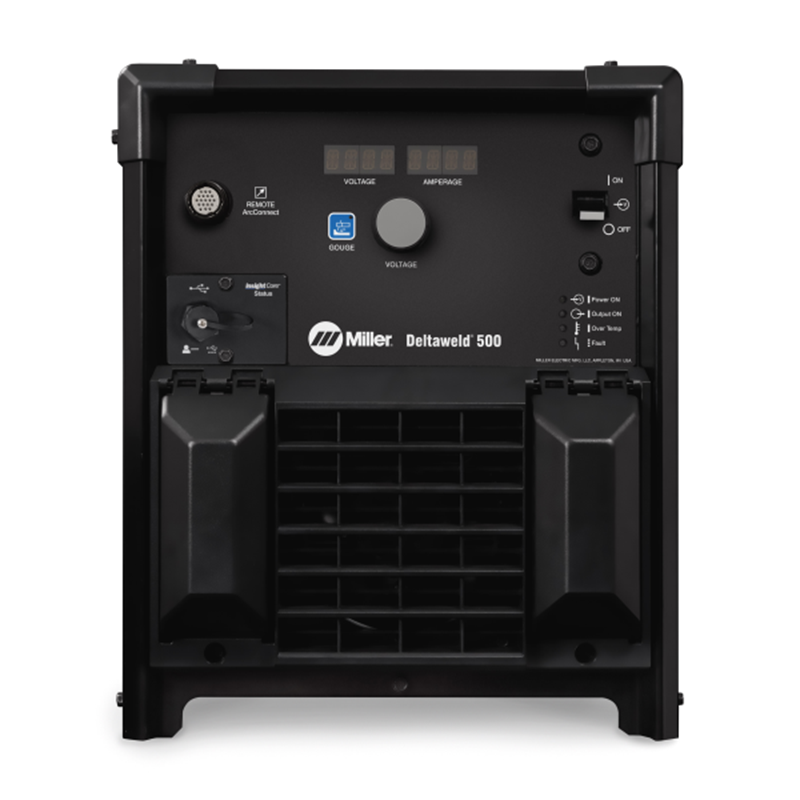

Miller Deltaweld 500 575V W/Insight CO 90778600

The manufacturing solution for welders of all skill levels, now offering pulse capabilities in an integrated package.

What's Included:

  •  Deltaweld 500 With ArcConnect™ and Insight Core™

Features:

Easy to Use

  •  EZ-Set simplifies parameter setup based on material thickness, removing complexity and reducing welder training time.

Legacy Meets Pulse

  •  Pulsed MIG-capable Deltaweld with Intellx Pro feeder provides a 28-percent wider operating window and a more forgiving arc, compensating for variations in operator technique. Welders of any skill level can get into production quicker. Make your move.

ArcConnect™

  •  Next generation communication to improve weld performance and allow point-of-use controls to be located at the feeder.

Fan-On-Demand™

  •  Operates only when needed reducing noise, power consumption, and the amount of airborne contaminants going through the machine.

Dedicated Wire feeder options

  • Intellx feeder — New arc control feature means welders can produce better welds with minimal parameter adjustments.
  • Intellx Pro feeder — Adds Accu-Pulse®, EZ-Set, steel weld programs, and memory buttons.

Gouge Mode

  •  Deltaweld 500 has a dedicated constant current carbon arc gouge mode specifically designed to gouge up to 3/8" carbons.

Backwards Compatibility

  •  A model is available with both ArcConnect and the standard Miller 14 Pin for use with older Miller wirefeeders.

Wind Tunnel Technology

  •  Internal air flow that protects electrical components and PC boards from dirt, dust, debris— greatly improving reliability.

Ready to Weld

  •  The Deltaweld System is shipped as a complete package with everything you need to get welding sooner. Just hook up your primary power, add gas, wire and a welding gun, and you're ready to weld.
Check out a full selection of MIG, TIG, Stick, and Gas welders for sale at Welders Supply Company.

Processes

  • Flux Cored (FCAW)
  • MIG (GMAW)
  • Accu-Pulse MIG (GMAW-P)
  • Air Carbon Arc (CAC-A)

Miller Detatweld 500 Specifications:

Industries Interests General Manufacturing
Heavy Equipment Manufacturing
Railcar
Commercial Truck and Trailer
Carbon Diameter 3/8 in (9.925 mm)
Current Type DC
Input Voltage 208/230/460V or 575 V
Input Phase 3-Phase
Input Hz 60 Hz
Portability Lift Eye (Standard)
Running Gear / Cart (Optional)
Net Height 22.34 in
Net Length 32.25 in
Net Weight 145 lbs
Weldable Metals Stainless Steel
Steel
Net Width 15.35 in
Max Open Circuit Voltage
90 VDC
Weld Ouput CC / CV
Warranty 3 Years
Miller's True Blue Warranty

SHIPPING DIMENSIONS

Height: 22.34 Inches
Width: 15.35 Inches
Length: 32.25 Inches
Weight: 145 Lb(s) 0 Oz

Manufacturer Reviews

By: Kyle
This machine was purchased to replace an old Deltaweld 451 in a large manufacturing shop. We were able to demo this unit first before the purchase was made and the demo machine was set up as a portable unit with the new Intellx Pro feeder head all on the Miller running gear. Our guys were super impressed with how stable the arc was and loved the built in gouge feature. Once we got our machine all installed and in place with the feeder mounted on a swing boom with 35 foot cables connecting it all together we had some difficulties. The machine was not performing the way the demo unit did. We had tried to just reuse the 2.0 cables that were running the old machine but were having trouble with too much spatter and unstable arc. After replacing the ground clamp and the cable with new 4.0 as well as the positive cable to a 4.0 it performs to what it should now. So the con to this machine is how sensitive it is to everything but on the flip side of that is how the machine can be dialed in to make perfect welds.
