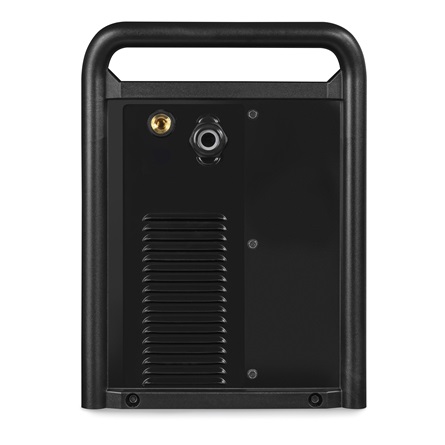

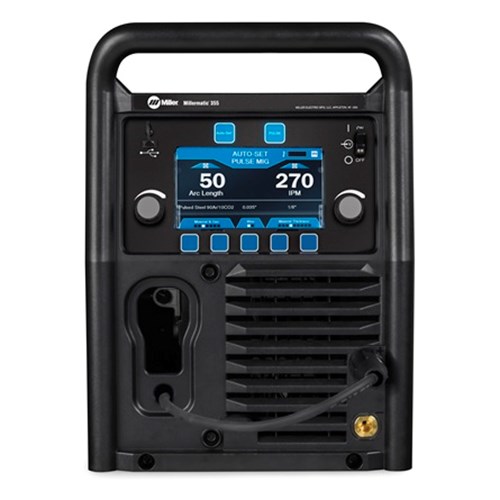

Millermatic® 355 MIG/Pulsed MIG Welder 951927

Part Number: 951927
UPC: 715959695671
$11,129.00 + Free Shipping $11,129.00*
SAVE $0.00

Call 844-682-0205 or CHAT for more options

Welding type:

Mig

Mig

Power supply:

220V Single Phase

220V Single Phase

220V 3 Phase

220V 3 Phase

460V

460V

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

  • Lightweight and Portable
  • MIG & Pulsed MIG Supported
  • Multi-phase Input
  • 3-Year Miller Warranty

Millermatic® 355 MIG/Pulsed MIG Welder - 208/240/575V #951927

Easy to use machine to increase efficiency and productivity for manufacturing and fabrication users. 7" Color LCD screen featuring Auto-Set™ Elite, Electronic Parameter chart, and Trigger Program Select. This all-in-one welder connects to any North American input power. Welds up to 1/2” aluminum, stainless and mild steel.


Millermatic Miller MIG welder #951927Processes:

  • MIG (GMAW)
  • Pulsed MIG (GMAW-P)
  • Flux Cored (FCAW)

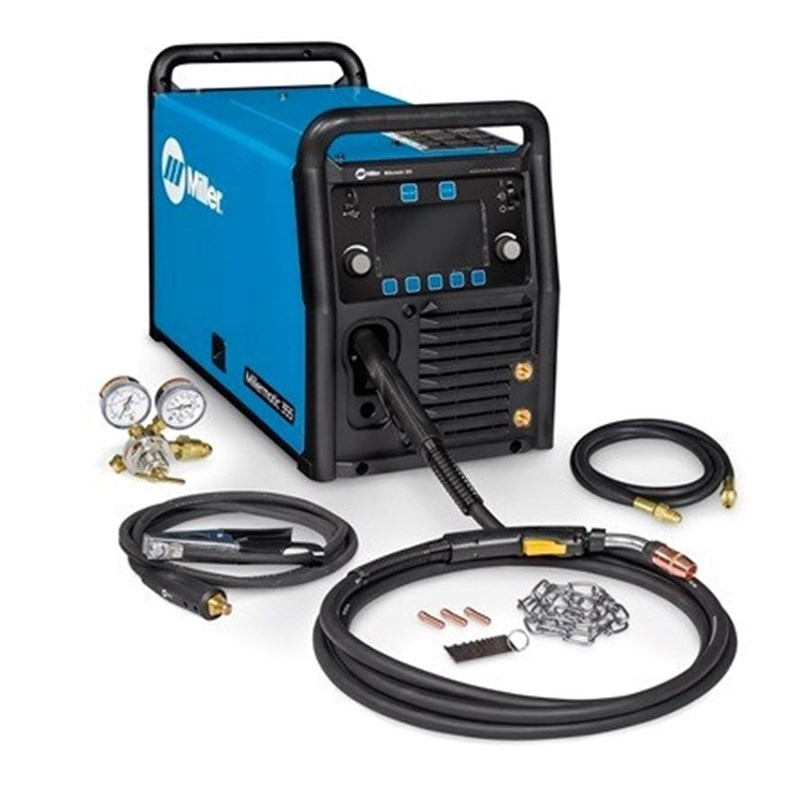

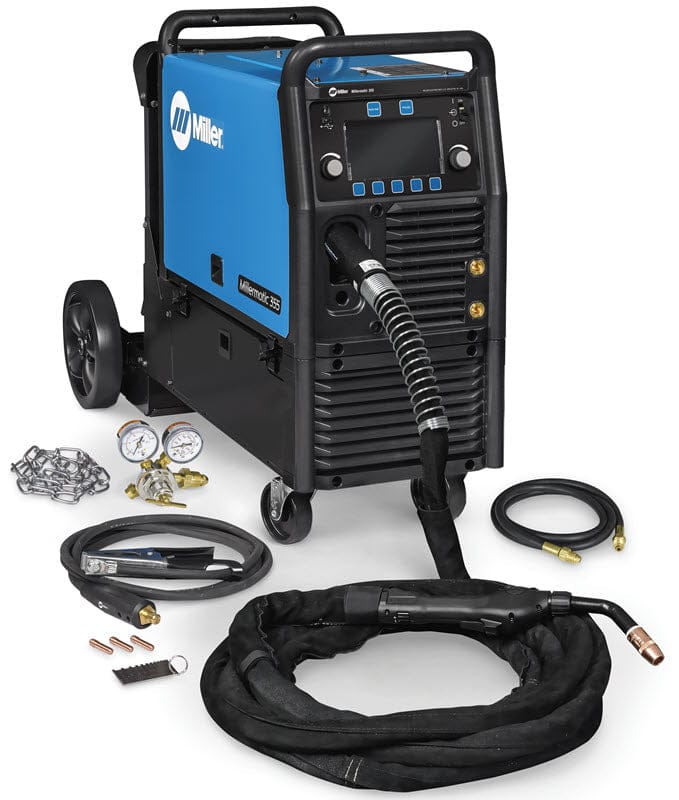

What's Included:

  • Power source with 9 ft. (2.7 m) industrial power cord
  • 15 ft. (4.5 m) 300-amp Bernard BTB MIG gun with Bernard AccuLock S consumables for .035/.045 in. (0.9/1.2 mm) wire
  • 10 ft. (3 m) work cable with clamp and 50 mm Dinse-style connector
  • Flow gauge regulator and gas hose for argon or AR/CO2 mix
  • .035/.045 in. (0.9/1.2 mm) reversible drive rolls
  • Extra .035 and .045 in. (0.9 and 1.2 mm) contact tips
  • Material Thickness Gauge

Applications:

  • Commercial Truck and Trailer
  • Construction / Fabrication
  • Education / Training
  • Fabrication
  • Maintenance and Repair - In Plant
  • Manufacturing
  • Transportation




Features:

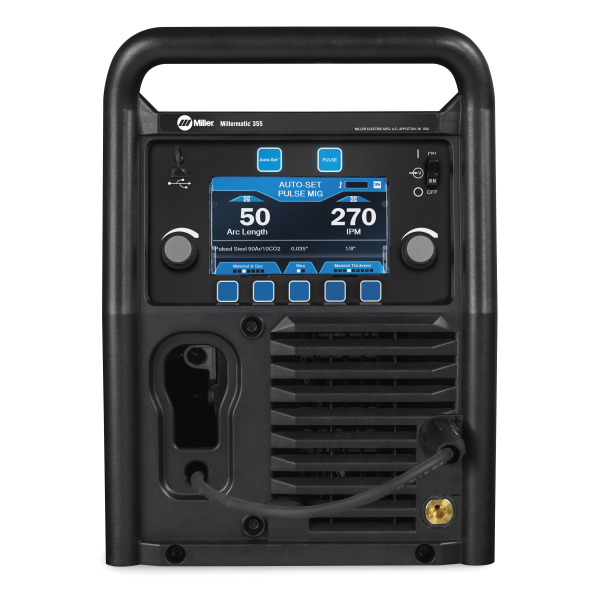

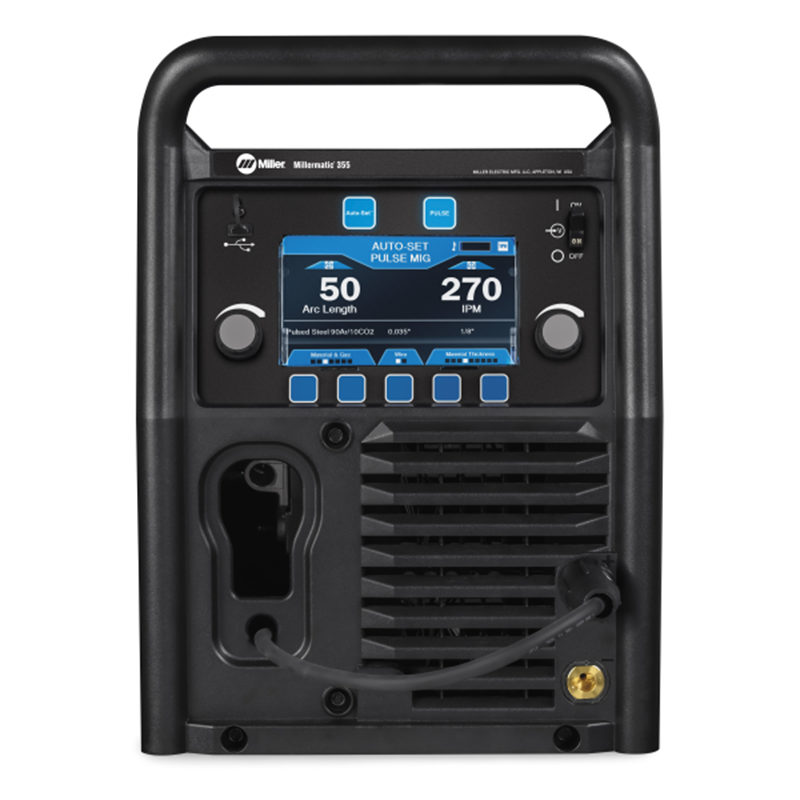

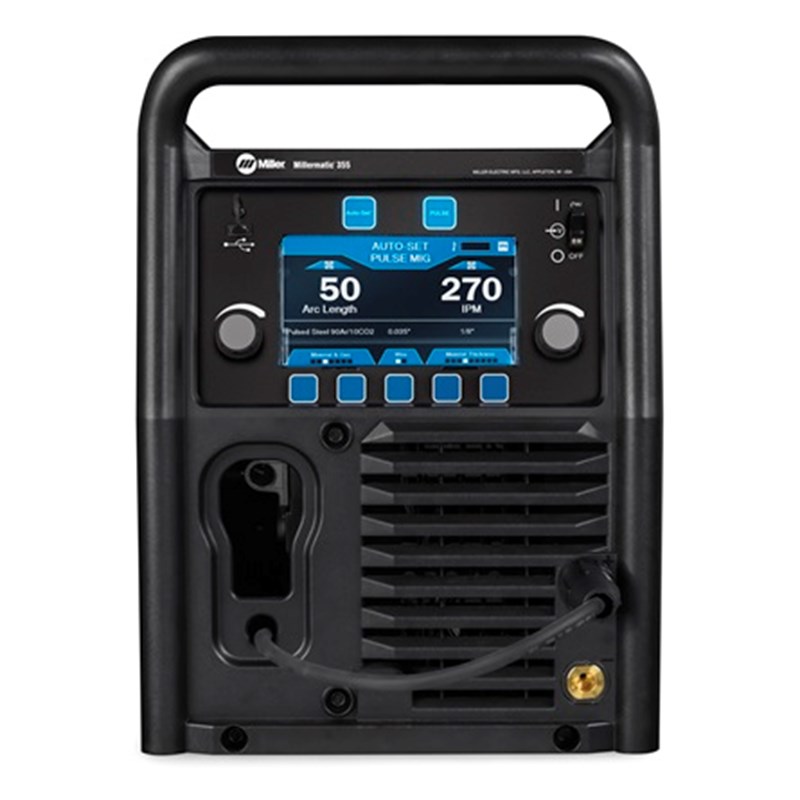

  • 7-inch color LCD display ensures proper machine setup and parameter selection, reducing setup time and increasing weld time
  • AccuLock liner loads from the front and locks at the front and back to insure proper alignment for flawless wire feed path. New rubber overmold and ball -and-socket handle design improves grip and reduces welder fatigue. New Industrial Bernard AccuLock™ S contact tips provide superior Spray and Pulsed MIG arc performance.
  • Lower heat input for less distortion on thin materials, less spatter minimizes post weld grinding and rework allowing more welding time. Perform welding applications that couldn’t be done in the past.
  • Weight is reduced by more than 40 percent compared to the Millermatic 350P.
  • Offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels.
  • Operators no longer need to use lift truck to load machine and running gear into the truck. Latches secure machine to running gear. Simply loosen the latch retaining knob and rotate latches to disengage machine from running gear for easy portability
  • Deliver more productivity, consistent quality by welders of all skill levels by using prequalified weld settings. Minimize supervisor need to intervene.
  • The Millermatic 355 will be able to operate and provide full output when powered by generators with 19000 Watt (19K) output or higher. Limited output will occur when used with smaller generators.

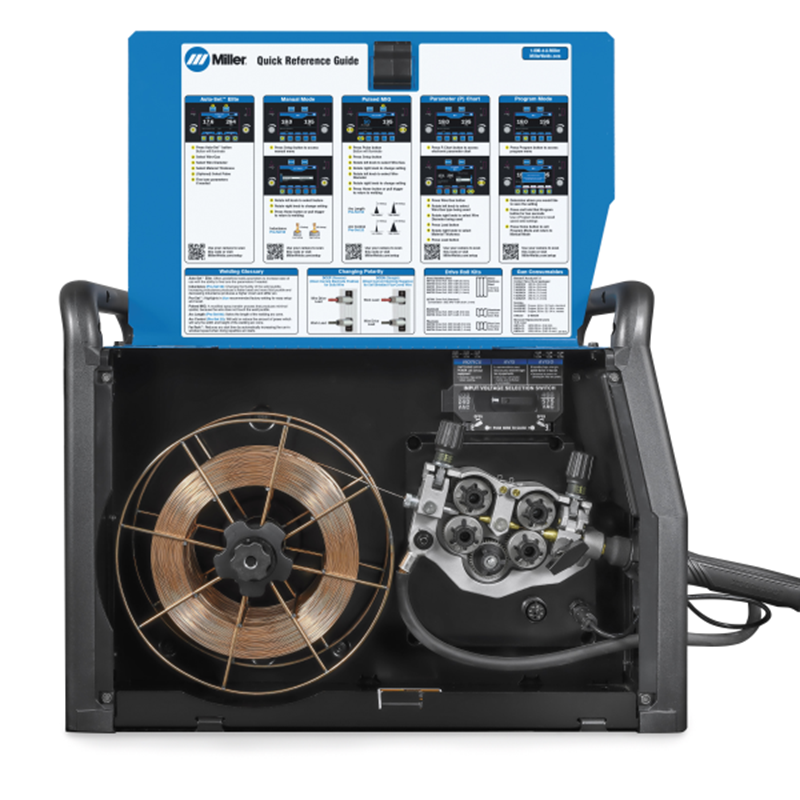

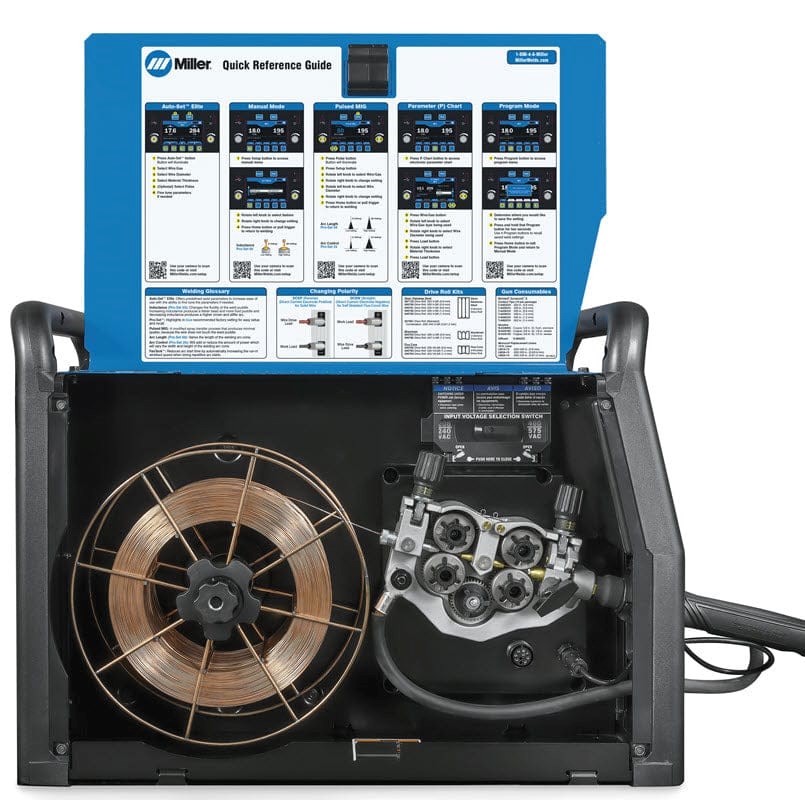

  • Provides versatility to utilize any single- or three-phase North American power (208, 240, 460, 575 V). Location in the wire drive compartment provides the ability to manually switch input voltage. An error will display if wrong input
View all MIG, TIG and Stick Welders available at Welders Supply Company.

Millermatic 355 #951927 Specifications

Current Type DC
Input Voltage 208 V
220/230/240 V
460 V
575 V
Input Phase 1- and 3-Phase
Welding Amperage Range Amperage Min Max 25 A - 400 A
Max Open Circuit Voltage 90 VDC
Material Thickness Mild Steel 22 ga - 0.5 in
Aluminum 18 ga - 0.5 in
Wire Feed Speed IPM Range 50 IPM - 800 IPM
MMin Range 1.3 m/min - 20 m/min
Wire Diameter Solid Steel 0.035 in - 0.045 in
Stainless Steel 0.023 in - 1.2 mm
Flux Cored 0.035 in - 0.045 in
Aluminum 0.035 in - 0.047 in
Metal Cored 0.045 in
Solid Steel 0.9 mm - 1.2 mm
Stainless Steel 0.6 mm - 1.2 mm
Flux Cored 0.9 mm - 1.2
Metal Cored 1.2 mm - 1.3 mm
Aluminum 0.9 mm - 1.2 mm
Max Spool Size Capacity 12 in (305 mm)
Portability Running Gear / Cart (Standard)
Industries Interests Commercial Truck and Trailer
Construction / Fabrication
Education / Training
Fabrication
Maintenance and Repair - In Plant
Manufacturing
Transportation
Weldable Metals Mild Steel
Specialty Metals
Stainless Steel
Aluminum
Net Height 19.25 in
Net Length 26.25 in
Net Width 19 in. / 483 mm
Net Weight 99 lbs
Warranty 3 Years - Miller's True Blue Warranty
