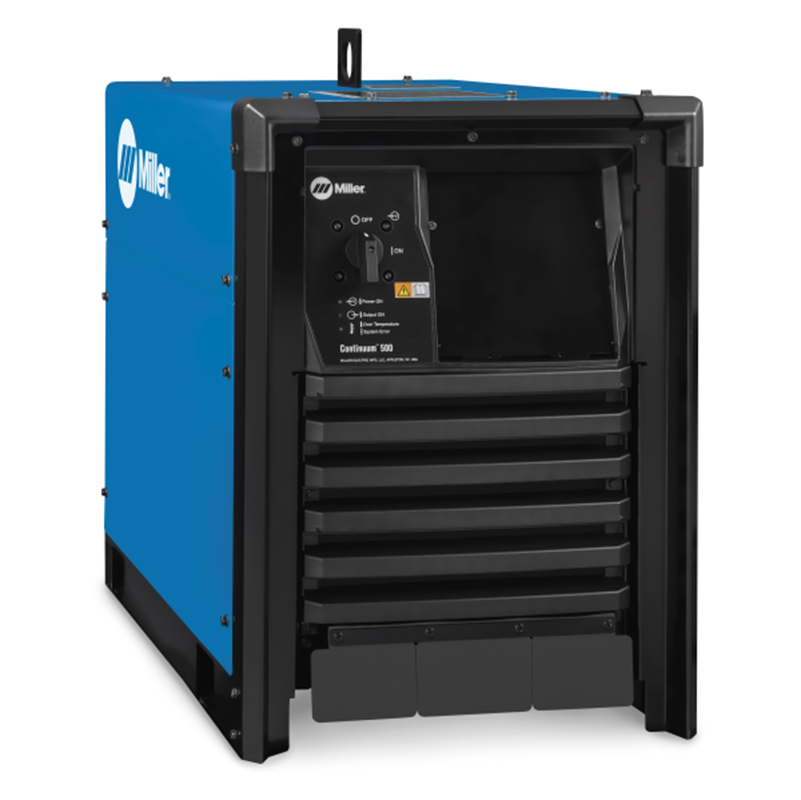

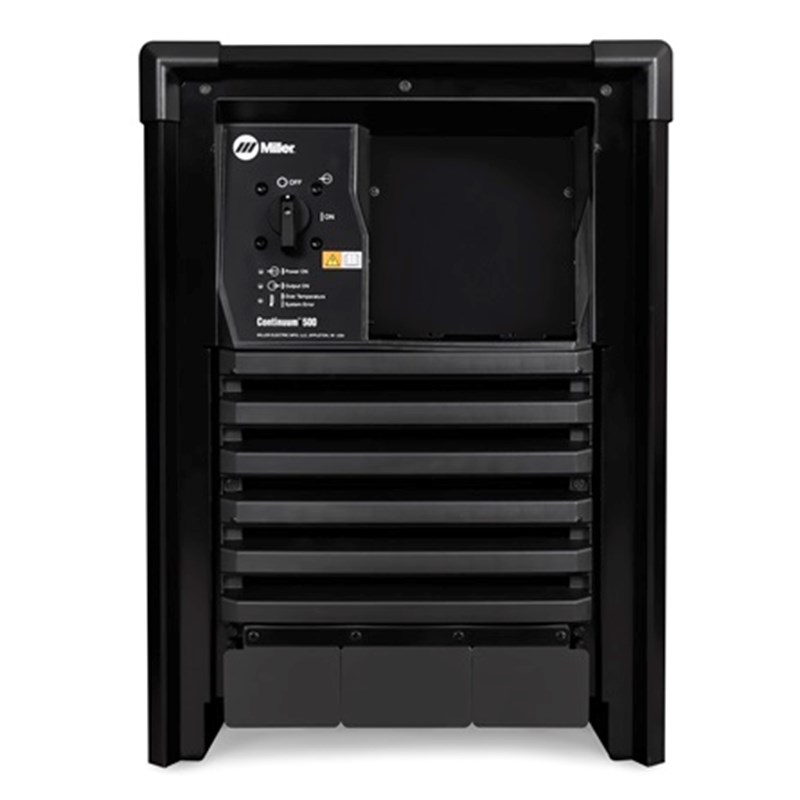

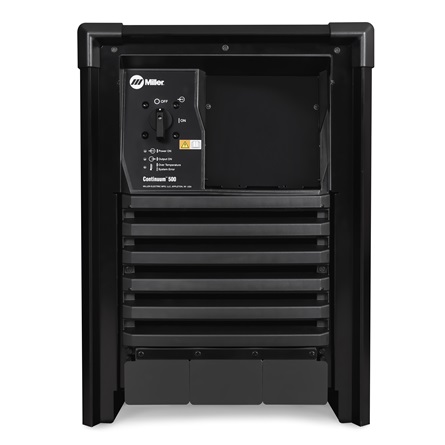

Miller Continuum 500 Industrial MIG Welder w/ Auxiliary Power #907641

Part Numbers: 907641
UPCs: 715959633413

Included with your purchase: ()

Miller Continuum 500 Industrial MIG Welder w/ Auxiliary Power #907641
Miller Continuum 500 Industrial MIG Weld...
Miller Classic Series Welding Helmet with ClearLight™ Lens Technology, VS Black #287803
FREE!
Miller Classic Series Welding Helmet wit...
Welders Supply cup holder
FREE!
Welders Supply Magnetic Cup Holder
Black Stallion Split Cowhide Gloves
FREE!
Black Stallion Split Cowhide Stick Glove...
Choose Options
American Welder T-Shirt - Back
FREE!
Welders Supply T-Shirt & Stickers
$17,491.00 + Free Shipping $17,491.00*
SAVE $0.00
$17,491.00 + Free Shipping $17,491.00*
SAVE $0.00

Call 844-682-0205 or CHAT for more options

Welding type:

MIG

MIG

Power supply:

220V 3 Phase

220V 3 Phase

460V

460V

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

  • MIG Welding
  • 3-Phase Input
  • 3-Year Power Warranty

Miller Continuum 500 W/Auxiliary Power #907641

Features:

All-new power source design - Smart and powerful digital design has the fast response needed to deliver the most stable welding performance for better welding results. Developed as a platform to meet current and future needs with integrated expansion capabilities.

Superior Arc Performance -Improved Accu-Pulse provides less spatter, better arc control and less heat input. Very forgiving with changes in stick-out Improved MIG performance. Consistently smooth arc starts reduce spatter Improved RMD, designed for thin materials and gap filling with very low spatter New High-Deposition MIG process typically used for thicker material and larger welds. Provides lower heat input and higher deposition rates than standard spray transfer

Balanced-pressure drive-roll design and tensioners - Feed wire in its truest and straightest form for better feedability and to extend consumable life

Easy to set up and adjust with minimal training - 8 program/memory buttons USB functionality for updates, cloning and more Browser-based connection to view and adjust machine parameters, configure machine settings and ability to set locks and limits

Tool-less lockable rotatable drive - Allows operator to rotate the drive, eliminate severe bends in the wire feeding path Extends gun-liner life Aids in feeding difficult wires

LCD Display - New user interface makes the system easy to set up and adjust with minimal training. Shows complete words, graphics and numeric values.

Adaptable to a variety of weld cell configurations

  • Flexible user interface location (power source, feeder, remote operator interface)Information management systems: Insight Core (standard) and Insight
  • Centerpoint (optional)Easily add process and programs
  • Wire feeder is easily configurable for standard spool sizes, 60-pound spools or bulk-feeding systems
See our line of quality welding equipment or view our full selection of quality welding machines and welding machine accessories.

Specifications

Processes

Air Carbon Arc Cutting and Gouging (CAC-A)
Flux Cored (FCAW)
MIG (GMAW)

General Specifications

Title Continuum™ 500 w/auxiliary power
Weldable Metals Stainless Steel
Steel
Input Voltage 220/230/240 V
380/400 V
460/480 V
575 V
Rated Carbon Diameter 1/2 in (12.7 mm)
Input Phase 3-Phase
Input Hz 50/60 Hz
Max Open Circuit Voltage 75 VDC
Portability Lift Eye (Standard)
Running Gear / Cart (Optional)
Fork Pockets
Handle(s)
Weld Output CC/CV
Net Width 17.5 in
Net Height 27.19 in
Net Length 28.13 in
Net Weight 148 lbs
Warranty 3 Years
Miller's True Blue Warranty


SHIPPING DIMENSIONS

Height: 27.19 Inches
Width: 17.50 Inches
Length: 28.13 Inches
Weight: 148 Lb(s) 0 Oz
