Miller PipeWorx 400 240/460 V #907382

Part Numbers: 907382
$11,536.00
$13,325.00* Save $1,789.00

Included with your purchase:

Select your Bundle!
Edit

    Call 1-844-682-0205 or CHAT for more options

    Welding type:

    Mig

    Mig

    Stick

    Stick

    Tig

    Tig

    Material type:

    Mild Steel

    Mild Steel

    Stainless Steel

    Stainless Steel

    Power supply:

    220V 3 Phase

    220V 3 Phase

    460V

    460V

    • 50/60 Input Hz
    • Choice of Power Source
    • Cable Hangers
    • Three Phase Input
    • 3-Year Miller Warranty

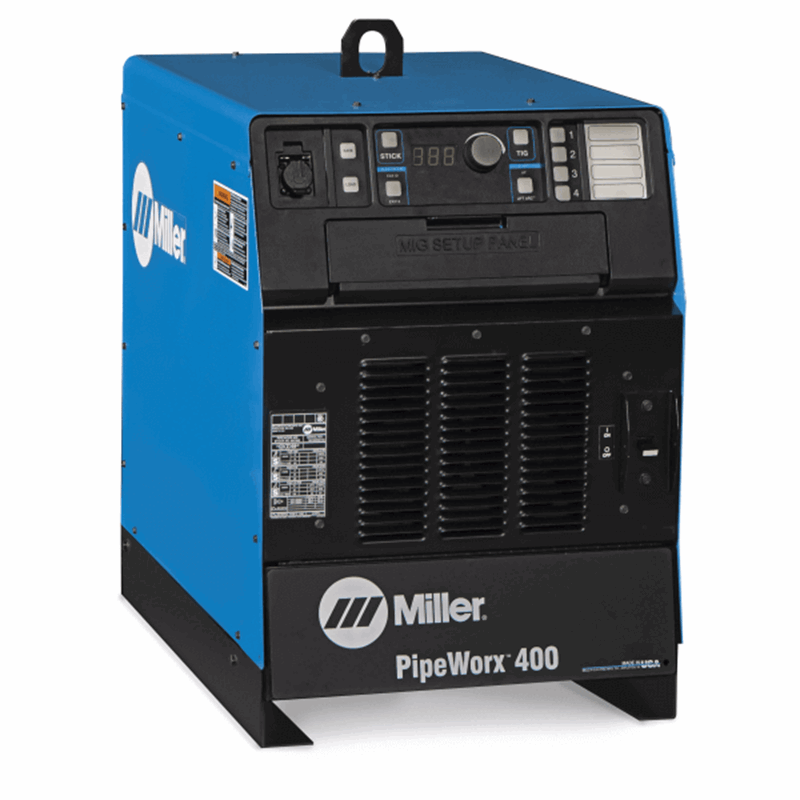

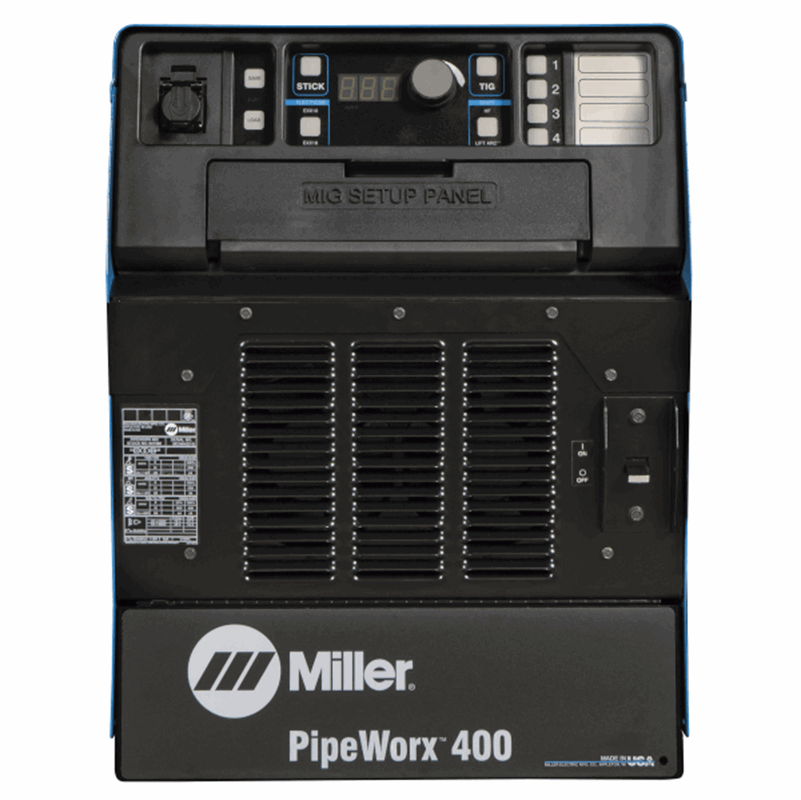

    Miller PipeWorx 400 240/460 V #907382

    Multiprocess pipe welding system designed exclusively for pipe fab shops. The PipeWorx system delivers more arc-on time, fewer weld defects or rework, superior weld quality and less training. Configure a custom PipeWorx System -- Select a power source, wire feeder and cable package for a complete system.

    What's Included:

    • Cable Hangers
    • Short gas hose for connecting output gas connection on power source to TIG block
    • One blank memory card (#301080)
    Check out the wide selection of MIG, TIG, Stick and Gas welders available at Welders Supply Company.

    Processes:

    • Flux Cored (FCAW)
    • MIG (GMAW)
    • Pulsed MIG (GMAW-P)
    • RMD
    • Stick (SMAW)
    • TIG DC (GTAW-DC)
    • Air Carbon Arc Cutting and Gouging (CAC-A)

    Miller PipeWorx 400 Specifications:

    Industries Interests Construction
    Shipbuilding
    High Purity Processing
    Fabrication
    Mechanical Contracting
    Pipe Fabrication / Construction
    Pressure Vessel
    Carbon Diameter 5/16 in (7.9 mm)
    Current Type DC
    Input Voltage 220/230/240 V
    460/480 V
    Input Phase 3-Phase
    Input Hz 50 / 60 Hz
    Portability Lift Eye (Standard)
    Running Gear / Cart (Optional)
    Net Height 28 in
    Net Length 31.75 in
    Net Weight 225 lbs
    Weldable Metals Specialty Metals
    Stainless Steel
    Steel
    Net Width 23 in
    Max Open Circuit Voltage 90 VDC
    Warranty 3 Years
    Miller's True Blue Warranty

    SHIPPING DIMENSIONS

    Height: 23.00 Inches
    Width: 33.00 Inches
    Length: 40.00 Inches
    Weight: 265 Lb(s) 0 Oz

    Product Questions and Answers


    Q - This is just the power source, right? A - Yes, plus the cable hangers, a hose for connecting the output gas connection to TIG block and one blank memory card.
    Q - What's a good MIG torch for this? A - The Miller PipeWorx 250 MIG gun, part #195399
