Miller Digital Elite™ Welding Helmet w/ ClearLight 4x, Gear Box #296771

Part Numbers: 296771
UPCs: 715959711036

Included with your purchase ():

Miller Digital Elite™ Welding Helmet, Gear Box, ClearLight 4x #296771
Miller Digital Elite™ Welding Helmet w/ ...
Choose Options
American Welder T-Shirt - Back
FREE!
Welders Supply T-Shirt & Stickers
$344.50 + Free Shipping $465.38*
SAVE $120.88
$344.50 + Free Shipping $465.38*
SAVE $120.88

Helmet Viewing Area:

6-9.9 in²

  • Auto-darkening welding helmetAuto-Darkening
  • Auto-darkening helmet for weldingWelding
    (Shades 8-13)
  • Auto-darkening helmet for plasma cuttingCutting
    (Shades 5-8)
  • Auto-darkening helmet for grindingGrinding
    (Shade 2.5)
  • Miller welding helmets - True Blue WarrantyMiller True Blue Warranty

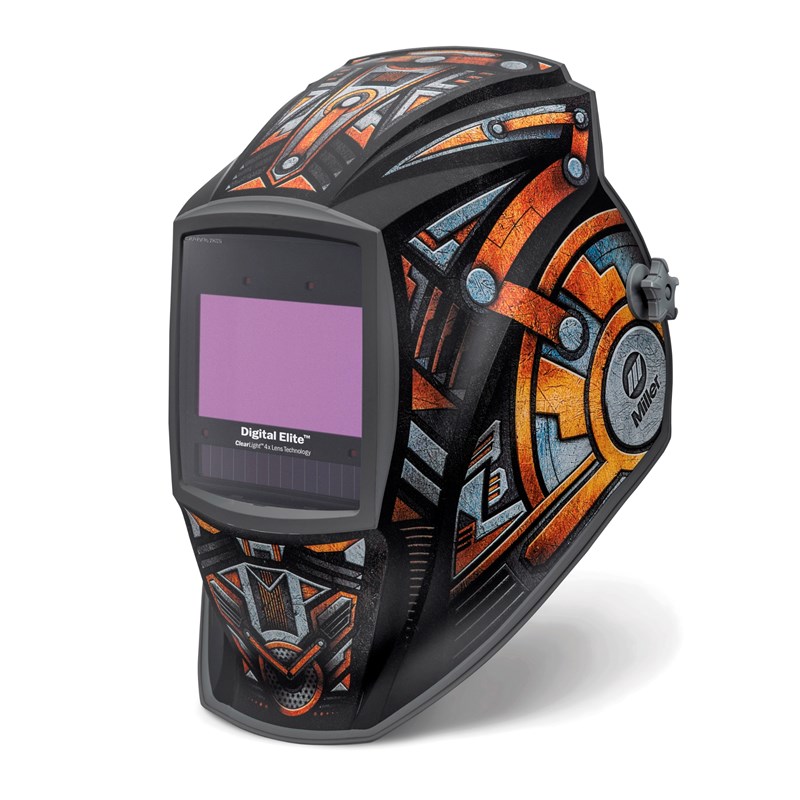

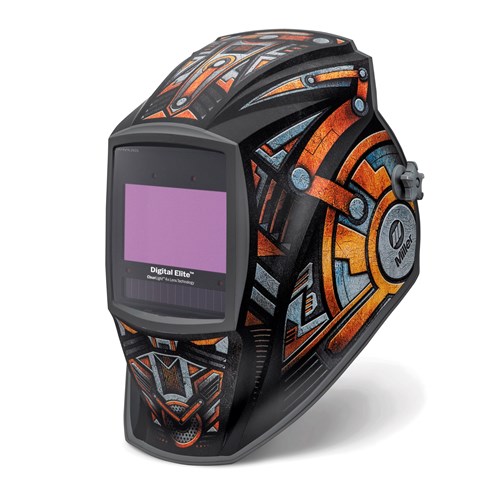

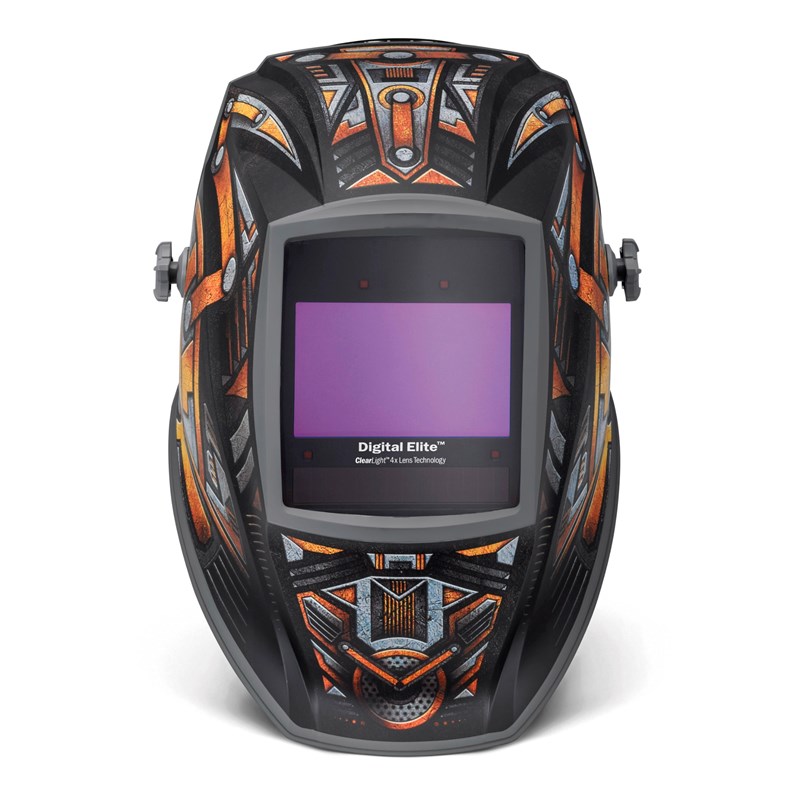

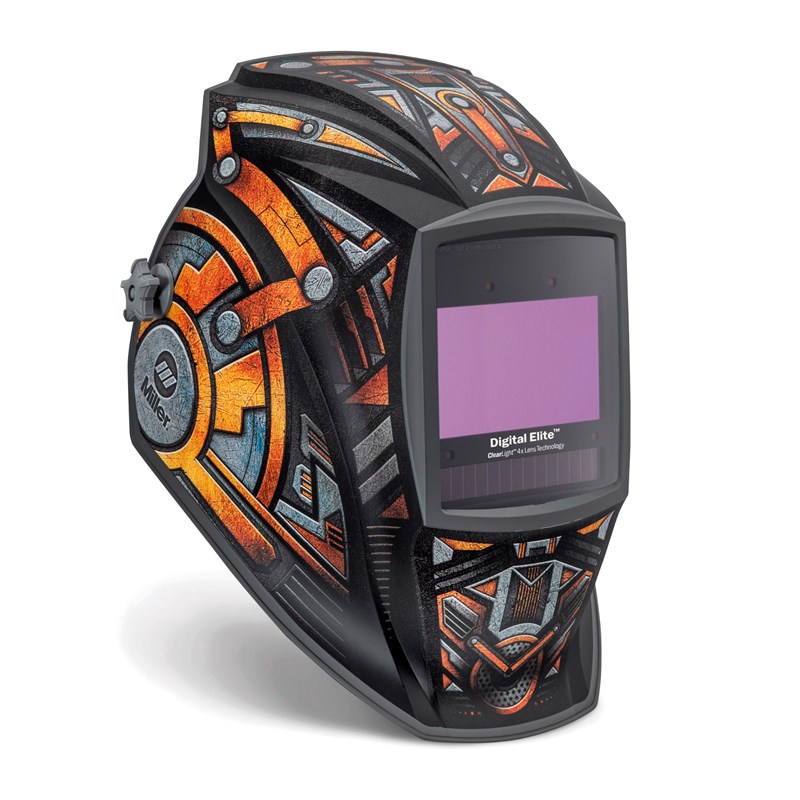

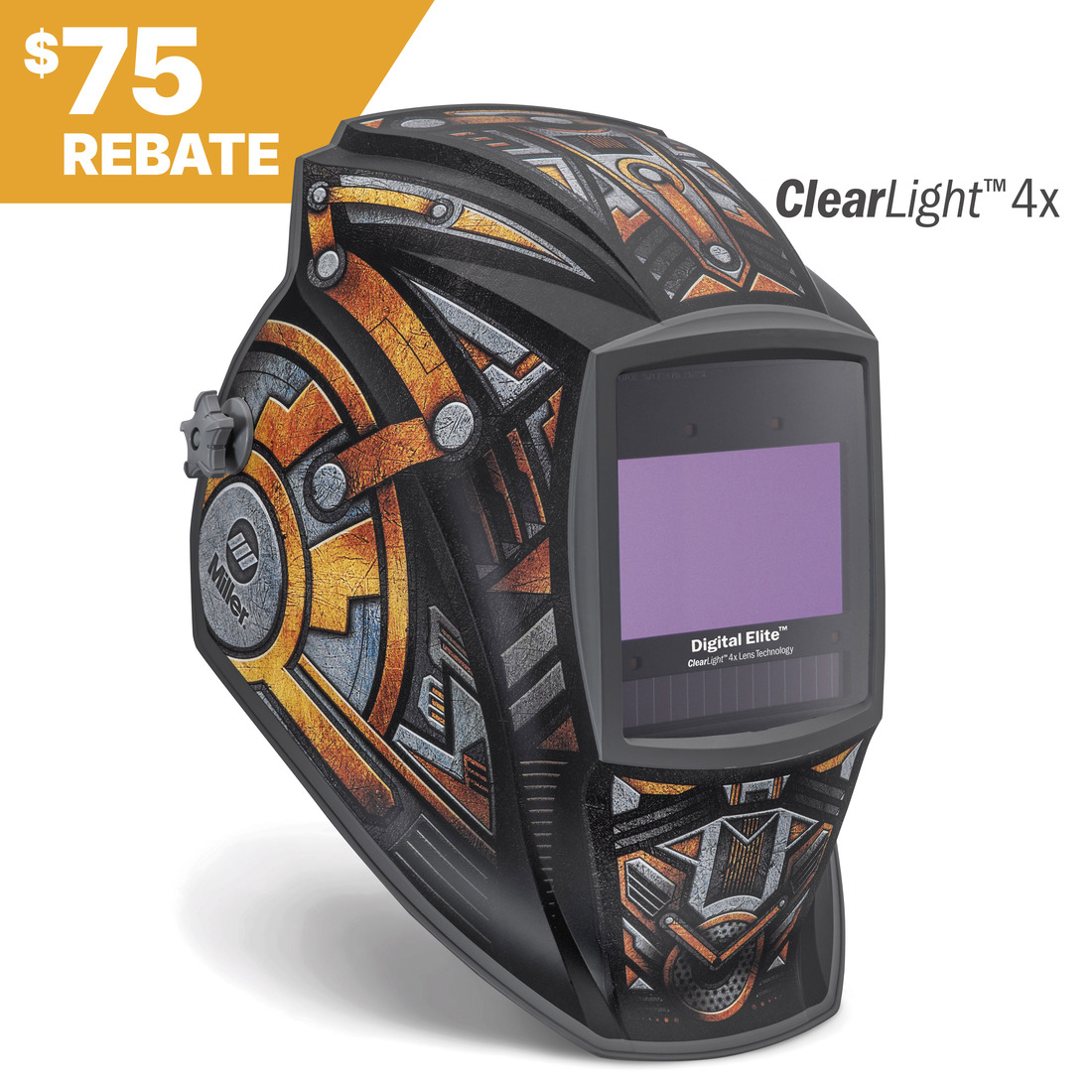

Miller Digital Elite™ Auto-Darkening Welding Helmet, Gear Box, ClearLight 4x #296771

The Miller Digital Elite™ Auto-Darkening Welding Helmet offers a high-quality user experience with a 9.2-square-inch viewing area, four operating modes and ClearLight™ 4x Lens Technology for superior quality. The helmet’s digital controls, memory function and half-shade settings allow easy, precise adjustments to shade, delay and sensitivity. AutoSense™ reduces helmet sensitivity issues, while the new legacy headgear with comfort cushion allows for unsurpassed comfort and stability.

Crystal Vision Welding - 4X Clearer Than Standard

ClearLight™ 4x Lens Technology is up to four times clearer than standard 1/1/1/1 welding helmets thanks to its superior high-definition optics. Advanced technology enhances color visibility and features a brighter light state, ensuring exceptional optical clarity and detail. With ClearLight™ 4x Lens Technology, welders can work with increased confidence and precision, easily discerning fine details and achieving outstanding results.

Miller ClearLight 4x welding lens vs competitors

The ClearLight Advantage in Lens Technology

In a blind helmet comparison between Miller’s ClearLight™ 4x and competitors’ 1/1/1/1 lenses, 100% of welding experts preferred ClearLight™. Take advantage of advanced high-definition optics that produce a clearer, brighter and more realistic view at each stage of the welding process.

Three-in-One Protection for Weld, Cut, Grind

Weld, cut and grind with optimal safety and lens shading with four equipped operating modes and multiple shades.

  • Weld Mode: Provides tailored shading and protection for welding tasks.
  • Cut Mode: Adjusted settings for optimal safety and visibility during cutting.
  • Grind Mode: Enhanced clarity and protection for grinding operations.
  • X-Mode: Electromagnetically senses the weld to reduce sunlight interference and continuously detects the arc even if sensors are blocked.

Each mode delivers the best level of darkening and clarity for safe and effective work. The helmet allows for easy switching between these modes, giving you the best protection and visibility for every task.

Fatigue-Fighting Design in Our Most Comfortable Helmet

This helmet weighs just 17.5 ounces (495 grams) maximizing comfort and safety. The lightweight design reduces neck and shoulder strain, fighting fatigue to help you perform comfortably for longer periods. The NEW Legacy headgear, featuring a comfort cushion, is engineered for superior comfort and stability for all-day wearability.

Satisfaction Assured - Swift Delivery & Returns

Your in-stock items ship same or next day from our five distribution hubs in WI and IL via fast UPS Ground. Need special shipping? Just call 1-844-682-0205 - we accommodate any request, including using your shipping accounts. Enjoy hassle-free 14-day returns on new, sealed products. Count on exceptional service backed by industry-leading shipping and return policies. Experience the advantage on your Miller Digital Elite™ Auto-Darkening Welding Helmet, Gear Box, ClearLight 4x order!

Shop all welding helmets and safety supplies at the best prices online, from Welders Supply.

Miller Digital Elite™ w/ ClearLight 4x - Welding Helmet Specifications

Viewing Area
  • 9.2 sq. in. (59.48 sq. cm)
Operating Modes & Shades
  • Weld (8 – 13)
  • Cut (5 – 8)
  • Grind (2.5)
  • X-Mode™ (8 – 13)
Light State
  •  2.5
Sensors
  •  4
Optical Clarity
  •  1/1/1/2
TIG Rating
  •  5 amps
Switching Speed
  • 1/25,000 second
Certifications
  •  ANSI Z87.1+, CSA
Features
  • Auto-Darkening
  • ClearLignt 4x
  • AutoSense
  • 4 Arc Sensors
  • Digital Controls
  • Memory function
  • Half-Shade Settings
  • Lightweight, Comfortable Headgear w/ Comfort Cushion
Warranty
  • 4 Years (Miller True Blue Warranty)



SHIPPING DIMENSIONS

Height: 1.00 Inches
Width: 1.00 Inches
Length: 1.00 Inches
Weight: 1 Lb(s) 2 Oz
