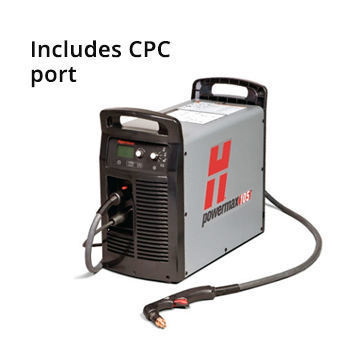

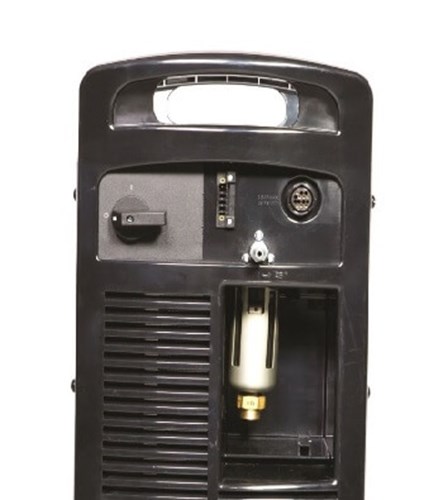

Powermax 105 #059376 With CPC port

$5,605.00 $6,305.00 Reduced Price You Save $700.00
Product Number: 059376

CALL or CHAT for more options

Add consumables

Bundle Options (check all that apply):

CALL or CHAT for more options

Add consumables

QTY:
Financing AVAILABLE!

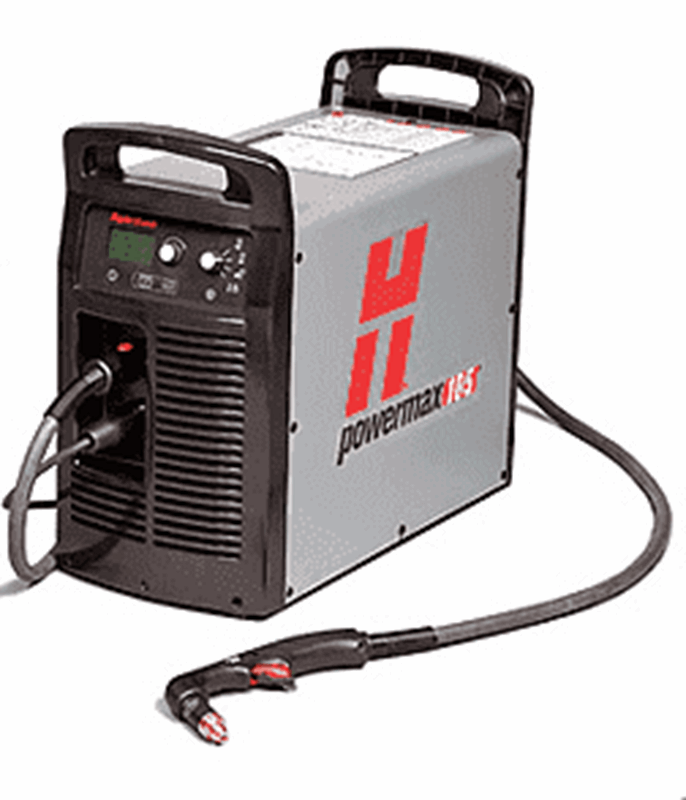

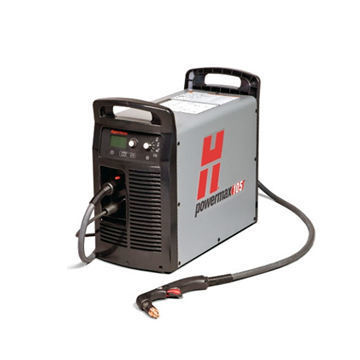

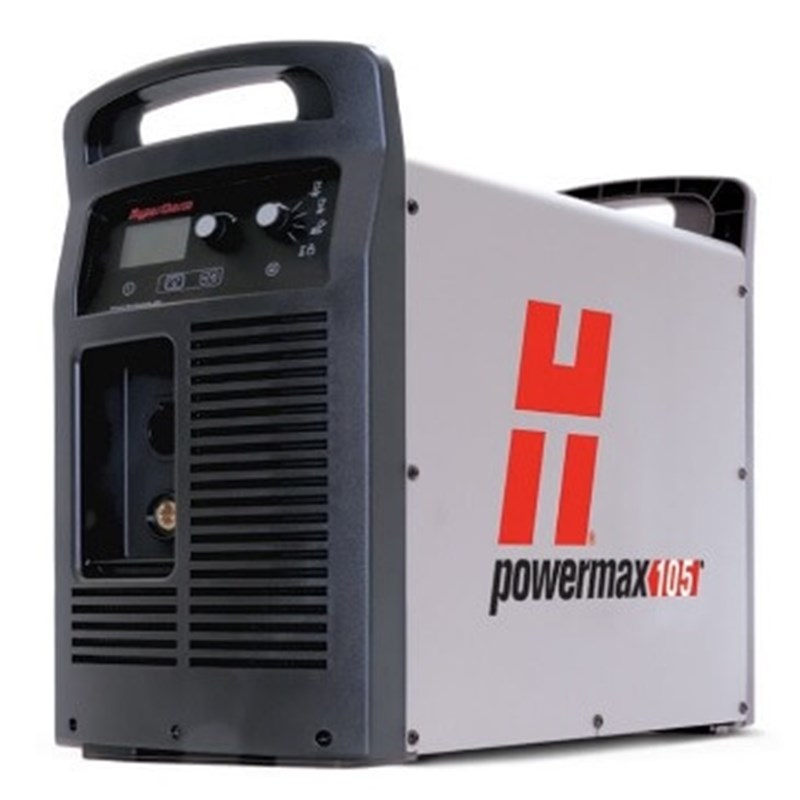

Powermax 105 with Hand Torch (#059376)

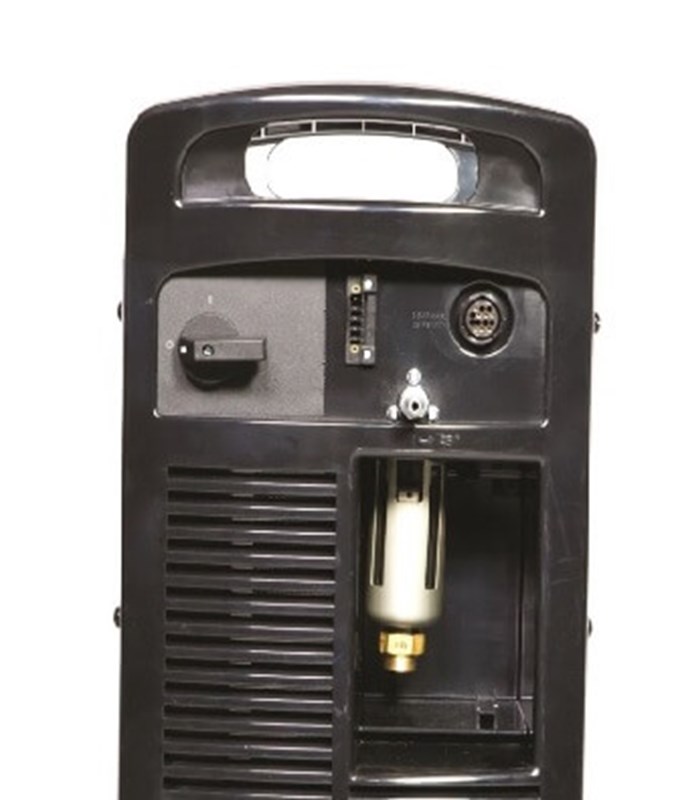

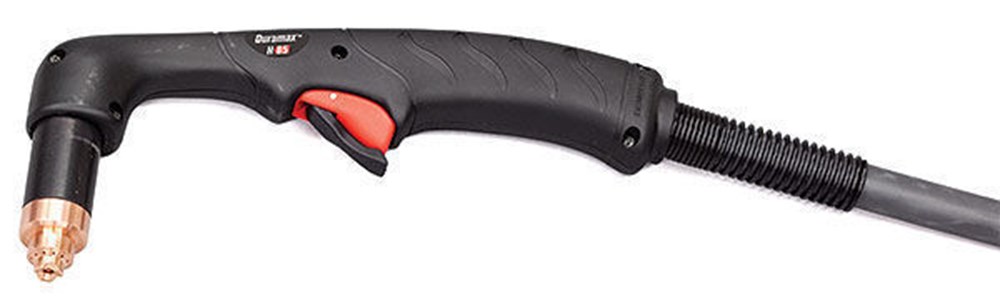

The Hypertherm Powermax 105 is a professional-level plasma cutting and gouging system with handheld cutting capacity of 1 1/4" and a mechanized piercing capacity of 7/8". The package includes the Powermax 105 power supply with CPC port and voltage divider, a 75-degree Duramax hand torch, and a 25' lead. If you don't anticipate ever wanting to use this with a CNC table, you may want to consider the Hypertherm Powermax 105 without CPC Port (#059374).

Duramax torches are engineered for superior cuts that require less time grinding and prepping edges. Hand cutting with a Duramax torch is not only faster and cleaner than working with an oxy fuel torch, but the torch handle is designed to withstand high temperatures (as well as impacts). Hypertherm's Smart Sense technology makes plasma cutting easier by automatically setting the correct air pressure based on operating mode and torch length. What's more, electrode end-of-life detection prevents damage to the Powermax torch and work piece by cutting off power when the electrode is overused. It all adds up to a powerful, energy-efficient, long-lasting torch.

Maximum productivity

  • Fast cut speeds: three times faster than oxyfuel on 12 mm (½") mild steel.
  • Superior cut and gouge quality means less time spent on grinding and edge preparation.

Easy-to-use for cutting and gouging

  • Smart Sense™ technology automatically sets correct air pressure based on torch length and operating mode.
  • Handheld, straight machine and robotic torches for greater versatility and ease-of-use.
  • Wide voltage tolerance improves performance on motor generators and in low-line conditions.
  • Improved shield reduces dross buildup and enables smoother drag cutting for a better cut.

Built and tested to withstand the harshest conditions

  • Duramax™ torches are designed for high impact and heat-resistance.
  • SpringStart™ technology ensures consistent starting and a more reliable torch.
  • Low maintenance for maximum uptime – it keeps ongoing.

Low operating cost

  • Long consumable life for lower cost and more uptime.
  • Exclusive electrode end-of-life detection protects the torch and workpiece from damage by automatically stopping power when the electrode is overused.
  • High power efficiency lowers energy consumption.

Compare Powermax 105 plasma cutter by Hypertherm vs 30xp, 45, 65, 85 and 125.

Shop all plasma cutters and Hypertherm machine torches at Welders Supply.

GENERAL SPECIFICATIONS

Input Voltages 200-600 V, 3-PH, 50/60 Hz
Kilowatt output 16.8 kW
Input current @ 16.8 kW 200/208/240/480/600 V, 3-PH 58/56/49/25/22 A
Output current 30-105 A
Rated output voltage 160 VDC
Duty cycle @ 104° (40° C)
70% @ 105 A, 240 V, 3-PH
80% @ 105 A, 480-600 V, 3-PH
100% @ 95 a, 480-600 v, 3-PH
100% @ 88 a, 240 v, 3-PH
Open circuit voltage 300 VDC
Dimensions with handles 23.3" d; 10.8" W; 20.0" H
Weight w/ 25' torch 100 lbs
Gas supply Clean, dry, oil-free air or nitrogen
Recommended gas inlet flow rate/pressure
Cutting: 460 scfh, 7.7 scfm @ 85 psi
Gouging: 480 scfh, 8.0 scfm @ 70psi
Input power cable length
10'
Power supply type
Inverter- IGBT
Engine drive requirement
30 kW for full 105 A output
Certifications
CSA-certified for use in the Americas and Asia, except China
Warranty
Power supplies have a 3-year warranty and torches a 1-year warranty

Hypertherm Powermax 105 Error Codes and Troubleshooting

Hypertherm Powermax 105 Error Codes

Additional Error Codes and Troubleshooting for the Powermax105

Hypertherm Powermax 85 (setup & operational info also applies to 105)

Product Questions and Answers


Q - How much metal can this remove in gouge mode? A - 21.7 lbs. per hour at a depth of .25" and width of .29"
Q - How big is the Hypertherm Powermax 105? A - The dimensions with handles are 23.3" x 10.8" x 20.0". The system weights 100 lbs with a 25' torch.

Have a question about this product? Submit your question using the form below

* required

Related Products

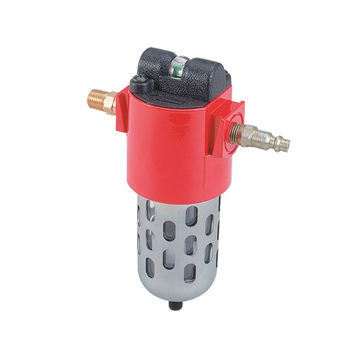

Hypertherm Air Filtration Kit
Hypertherm Air Filtration Kit
$178.09
$210.00* You Save $31.91
Add to Cart
Product Number: 128647
Hypertherm FineCut Nozzle #220930 (pack of 5)
Hypertherm FineCut Nozzle #220930 (pack of 5)
$28.75
$38.50* You Save $9.75
Add to Cart
Product Number: 220930

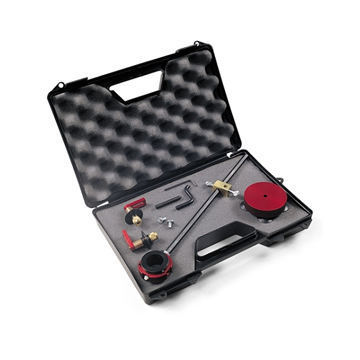

Hypertherm Deluxe Circle Cutting Kit
Hypertherm Deluxe Circle Cutting Kit #027668
$178.55
$201.00* You Save $22.45
Add to Cart
Product Number: 027668

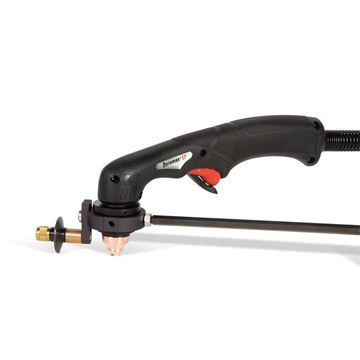

Hypertherm Circle Cutting Guide Basic Package
Hypertherm Circle Cutting Guide Basic Package #127102
$107.65
$122.00* You Save $14.35
Add to Cart
Product Number: 127102

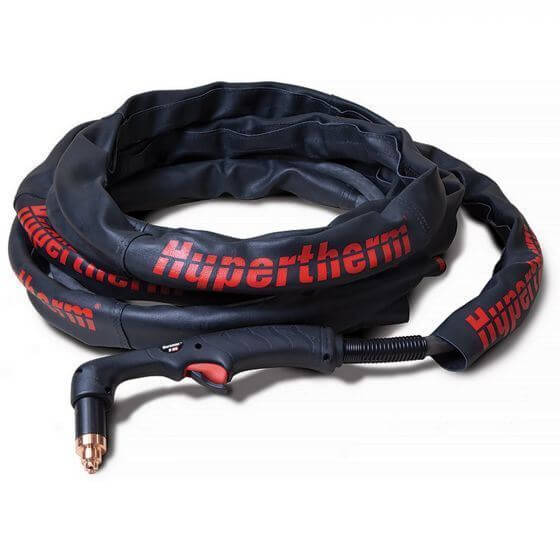

Hypertherm Leather Torch Lead Cover with Velcro Closure 25 FT
