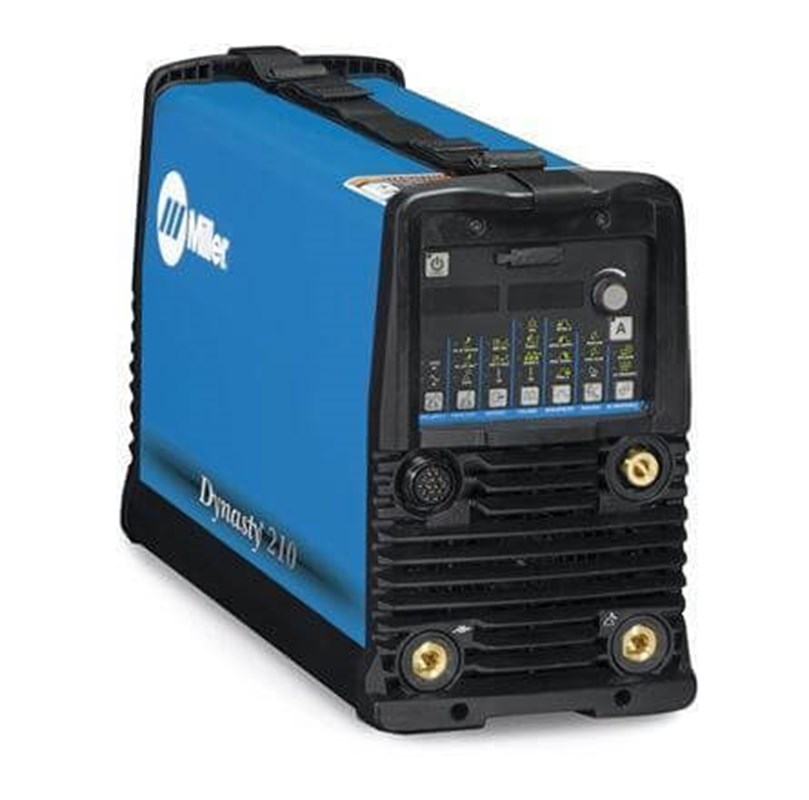

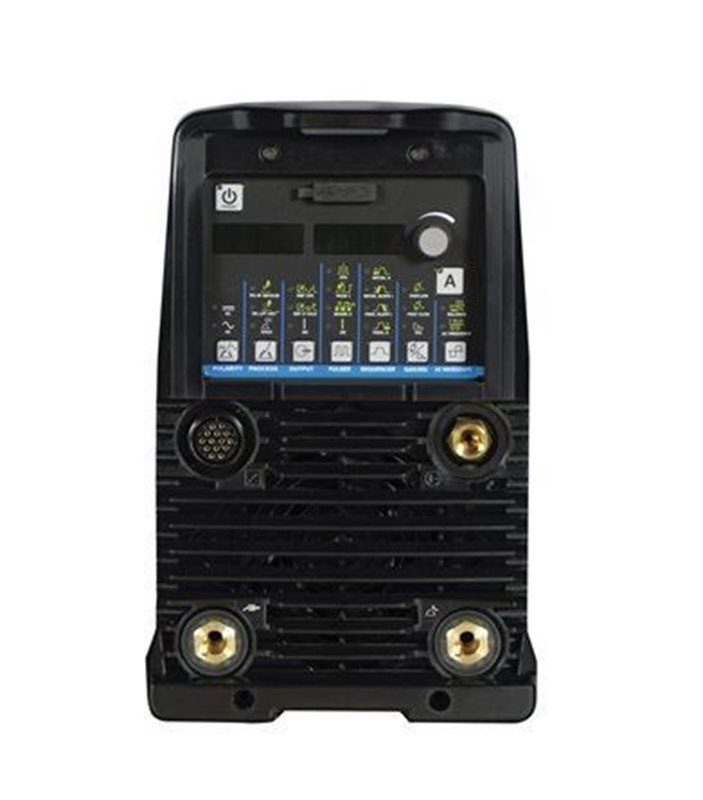

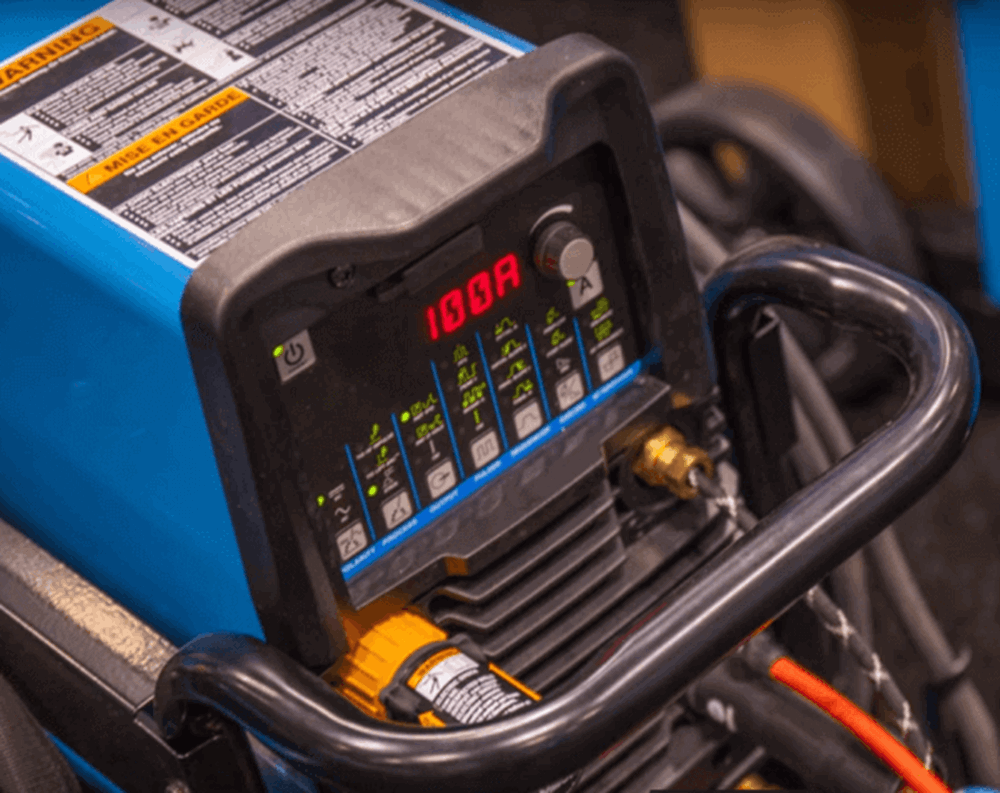

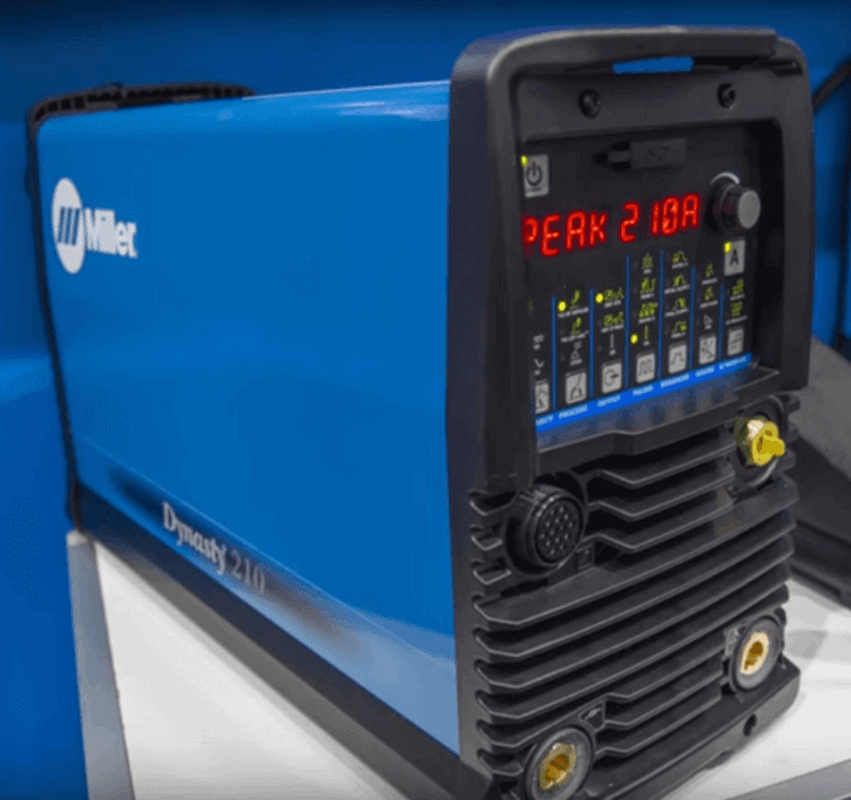

VideoMiller Dynasty 210 DX TIG-Stick Welder Part #907686
The Dynasty 210 DX combines advanced inverter technology with Miller's Auto-Line technology to create the most flexible AC/DC TIG/Stick power supply in the welding industry. Extended AC TIG frequency controls let you choose between four advanced TIG arc waveforms. Although compact and lightweight (just 47 lbs), it can weld up to 1/4" aluminum and 1/4" steel, and with Miller's Autoline you can connect to 120 V to 480 V single phase or three phase input power with no manual linking required. A memory card expansion slot allows for expandability.
WHAT'S INCLUDED
- Dynasty® 210 DX
- 8 ft. (2.4 m) primary cord
- Adjustable shoulder strap
- Quick Reference Guide
- (2) 50 mm Dinse style connectors
Processes
- Pulsed TIG (GTAW-P)
- Stick (SMAW)
- TIG (GTAW)
- TIG AC (GTAW-AC)
- TIG DC (GTAW-DC)
- Aluminum Welding
- Air Carbon Arc Cutting and Gouging (CAC-A)
For the best prices on Miller welding equipment and other MIG, TIG and Stick welders, shop Welders Supply online.
| Welding Mode | TIG (GTAW) | Stick (SMAW) | |||||
| Input Power | 208 - 480 V | 120 V | 208 - 480 V | 120 V | |||
| Welding Amperage Range |
2 - 210 A (AC) 1 - 210 A (DC) |
2 - 210 A (AC) 1 - 210 A (DC) |
5 - 210 A | 5 - 100 A | |||
| Rated Output |
210 A at 18.4 V, 60% duty cycle |
125 A at 15 V, 60% duty cycle |
160 A at 26.4 V, 60% duty cycle |
90 A at 23.6 V, 60% duty cycle |
|||
| Phase | 3-phase | 1-phase | 1-phase | 3-phase | 1-phase | 1-phase | |
|
Amps Input at Rated Load Output, 50/60Hz
|
120 V |
--- | --- | 26 | --- | --- | 28 |
| 208 V | 16 | 28 | --- | 17 | 29 | --- | |
| 240 V | 14 | 24 | --- | 15 | 25 | --- | |
| 400 V | 9 | 14 | --- | 9 | 15 | --- | |
| 480 V | 7 | 12 | --- | 7 | 12 | --- | |
| KVA | 6.0 | 5.8 | 3.2 | 6.1 | 6.0 | 3.3 | |
| KW | 5.8 | 5.8 | 3.1 | 5.8 | 6.0 | 3.3 | |
| Max. Open-Circuit Voltage |
80 VDC (11 VDC) |
||||||
| Dimensions |
H: 13.6 in. (346 mm) W: 8.6 in. (219 mm) D: 22.5 in. (569 mm) |
||||||
| Net Weight |
47 lb. (21.3 kg) 50lb. (22.7 kg) with CPS |
||||||
General Specifications |
|
| Title | Dynasty® 210 DX 120-480 V |
| Industries Interests | Aerospace Auto / Cycle (Racing, Customizing, Restoring) Construction DIY / Home Hobbyist Farm and Ranch Heavy Equipment Manufacturing Infrastructure Manufacturing Metal Art / Sculptures Railcar Shipbuilding Boat / Yacht High Purity Processing |
| Portability | Handle(s) Running Gear / Cart (Optional) Shoulder Strap |
| Input Voltage | 110/115/120 V 208 V 220/230/240 V 380/400 V 460/480 V |
| Weldable Metals | Aluminum Mild Steel Specialty Metals Stainless Steel |
| Warranty | Miller's True Blue Warranty |
| Material Thickness | Steel: 0.002 in. (0.05 mm) - 1/4 in. (6.4 mm) Aluminum: 0.012 in. (0.3 mm) - 1/4 in. (6.4 mm) |
SHIPPING DIMENSIONS |
|
| Height: | 17.00 Inches |
| Width: | 13.00 Inches |
| Length: | 27.00 Inches |
| Weight: | 53 Lb(s) 0 Oz |
Accessories
Consumables
Product Questions and Answers
Q - What is the difference between this and the 210?
A - The 210 is the base model, with essential TIG and Stick functions. The 210 DX offers full AC features like advanced waveforms and wide ranges of balance and frequency.
Q - If I want to run multiple Miller Dynasty 210 DX in the same shop, will the wireless foot petals interfere with one another?
A - No, the wireless foot pedals for the Miller Dynasty 210 DX are synced to each specific machine.
How to access the User Setup Menu:
- Locate menu button.
Press and hold Menu button for approximately 2 seconds to access machine configuration menus.
- Cycle through options.
Use the Menu button to cycle through parameters that can be set.
- Adjust parameters.
Rotate the encoder to adjust parameter settings.
- Exit menu.
Press and hold Menu button until Menu Off is displayed.
Have a question about this product? Submit your question using the form below
Related Products
Extension Cable, 14 Pin 8 Conductor, 25 ft. #242208025
$194.05
$215.00*
You Save $20.95
Product Number: 242208025
Miller Extension Cable, 14 Pin 8 Conductor, 50 ft. #242208050
$270.45
$320.00*
You Save $49.55
Product Number: 242208050
Miller Extension Cable, 14 Pin 8 Conductor, 80 ft. #242208080
$378.00
$450.00*
You Save $72.00
Product Number: 242208080
Miller Foot Control, Heavy Duty, 14-pin plug #194744
$335.00
$394.22*
You Save $59.22
Product Number: 194744
International Tweco® Adapter #042465
$47.99
$57.00*
You Save $9.01
Product Number: 042465
Miller #042418 Connector Kit - 50 mm
$49.33
$51.00*
You Save $1.67
Product Number: 042418
Miller #042419 Extension Kit for International-Style Cable Connectors ...
$67.07
$71.00*
You Save $3.93
Product Number: 042419
Miller Coolmate 3 (115 V, CE) #043007
$893.90
$1,116.09*
You Save $222.19
Product Number: 043007
Miller Dynasty 210 (120-480 V) # 907685
$3,531.00
$4,605.00*
You Save $1,074.00
Product Number: 907685
Miller International Dinse/Cam-Lok Adapter #042466
$49.99
$62.00*
You Save $12.01
Product Number: 042466
Miller International-Style/Dinse Connector Kit - 70 mm #042533
$50.63
$56.00*
You Save $5.37
Product Number: 042533
Miller RCCS-14 Finger Tip Control #043688
$255.00
$287.45*
You Save $32.45
Product Number: 043688
Miller Universal Cart and Cylinder Rack Part #042934
$649.00
$733.00*
You Save $84.00
Product Number: 042934
Miller Weldcraft W-250, 25 ft. (7.6 m.), Accessories, TIG Welding Torc...
$658.00
$816.99*
You Save $158.99
Product Number: 300185
Miller Wireless Hand Control System Part #300430
$958.00
$1,235.60*
You Save $277.60
Product Number: 300430
Miller Pushbutton Fingertip Control, Single, 14-pin plug #187208
$197.00
$222.06*
You Save $25.06
Product Number: 187208
Miller Remote Hand Control RHC-14, 100ft #242211100
$503.34
$535.00*
You Save $31.66
Product Number: 242211100
RHC-14 Remote Hand Control w/ Cable 20 ft #242211020
$294.65
$332.00*
You Save $37.35
Product Number: 242211020
Miller Rocker Switch Fingertip Control, Single, 14-pin plug #129337
$201.00
$227.24*
You Save $26.24
Product Number: 129337
Miller Rotary Fingertip Control, East/West, 14-pin plug #151086
$230.00
$264.71*
You Save $34.71
Product Number: 151086
Weldcraft A-150, Rubber, 12.5 ft., Accessories, Torch Package #WP1712R...
$80.55
$182.12*
You Save $101.57
Product Number: WP1712RM
Weldcraft A-150, Rubber, 25 ft., Accessories, Torch Package #WP1725RM
$139.00
$240.29*
You Save $101.29
Product Number: WP1725RM
Weldcraft™ A-200, Rubber, 12.5 ft., Accessories, Torch Package #WP2612...
$119.00
$237.89*
You Save $118.89
Product Number: WP2612RM
Weldcraft™ A-200, Rubber, 25 ft., Accessories, Torch Package #WP2625RM
$155.00
$340.74*
You Save $185.74
Product Number: WP2625RM

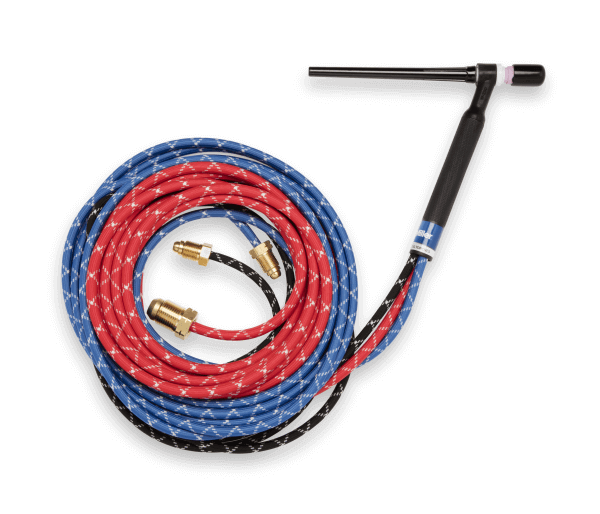

Weldcraft™ W-250, Braided Rubber, 12.5ft. Torch Package #WP2012RM
