VideoDynasty 210 DX 120-480 V, Wireless Foot Control Complete Package #951669
Get better control over your work with this Miller Dynasty 210 DX with wireless foot controller. Welders Supply has this complete package for sale at the lowest price possible. For a limited time, we'll include a free helmet and gloves with this purchase.

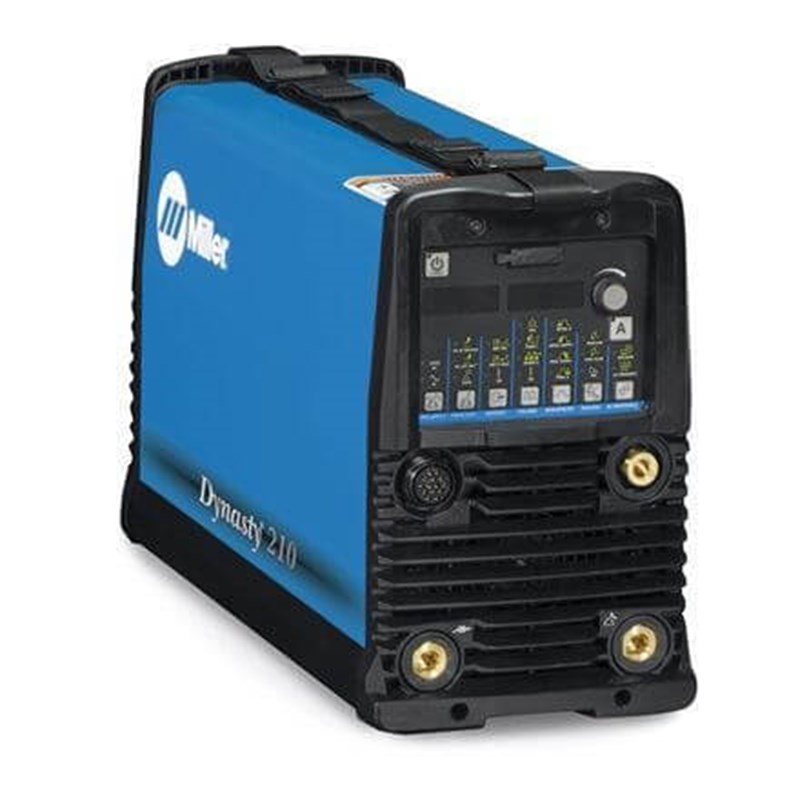

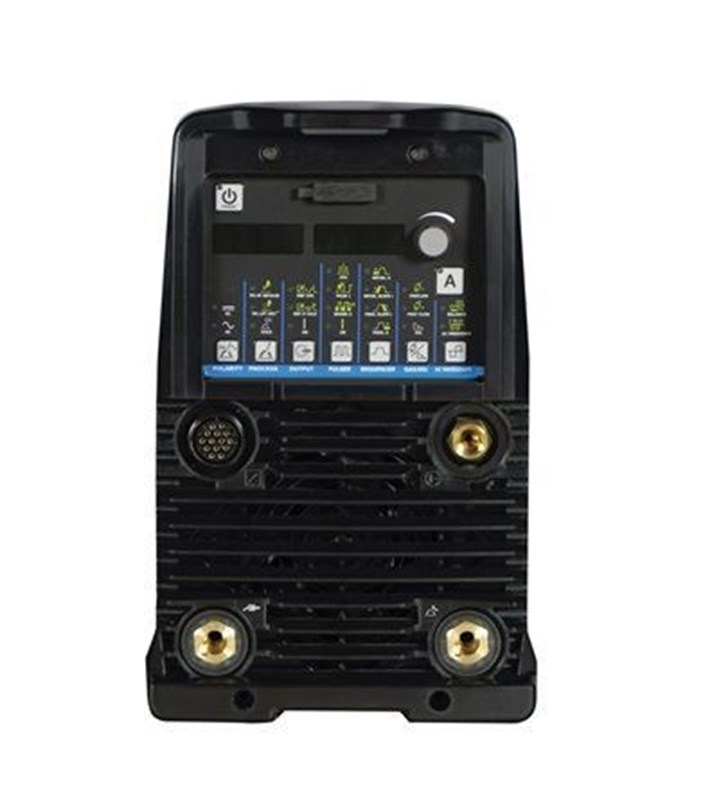

The 210 DX is an advanced, compact (50 lbs.) welding machine capable of AC and DC pulsed TIG welding. AC TIG frequency controls let you choose between four advanced TIG arc waveforms. A memory card expansion slot allows for expanded capabilities. For maximum flexibility, Miller's Auto-Line automatic input voltage sensing technology lets you connect to 120 volt through 460 volt single phase or three phase input power without manual linking, and their Line Voltage Compensation keeps output of the power source constant regardless of any fluctuation in input power.
CAPABILITIES
- Aluminum Min. 0.020 in (0.5 mm)
- Aluminum Max. 1/4 in (6.4 mm)
- Steel Min. 0.004 in (0.1 mm)
- Steel Max. 1/4 in (6.4 mm)

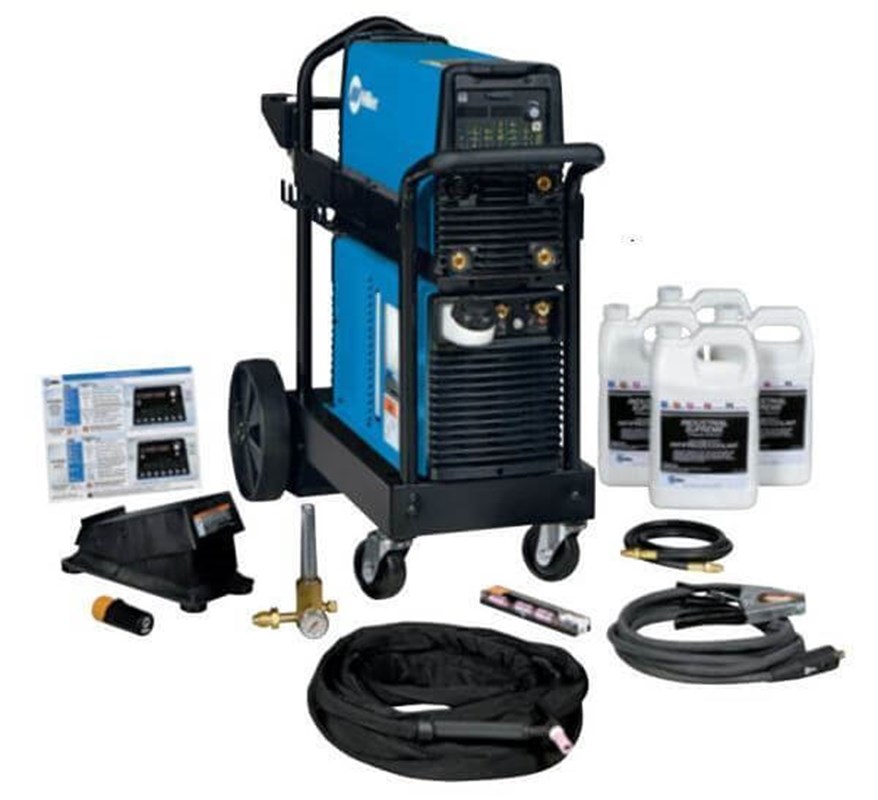

WHAT'S INCLUDED
- Dynasty® 210 DX

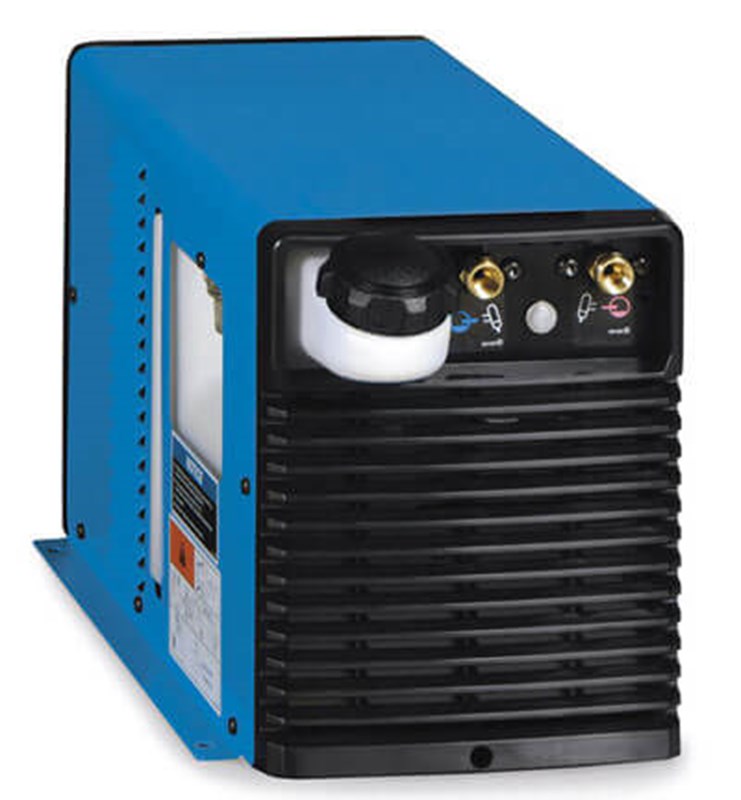

- Coolmate™ 1.3
- Small Runner Cart

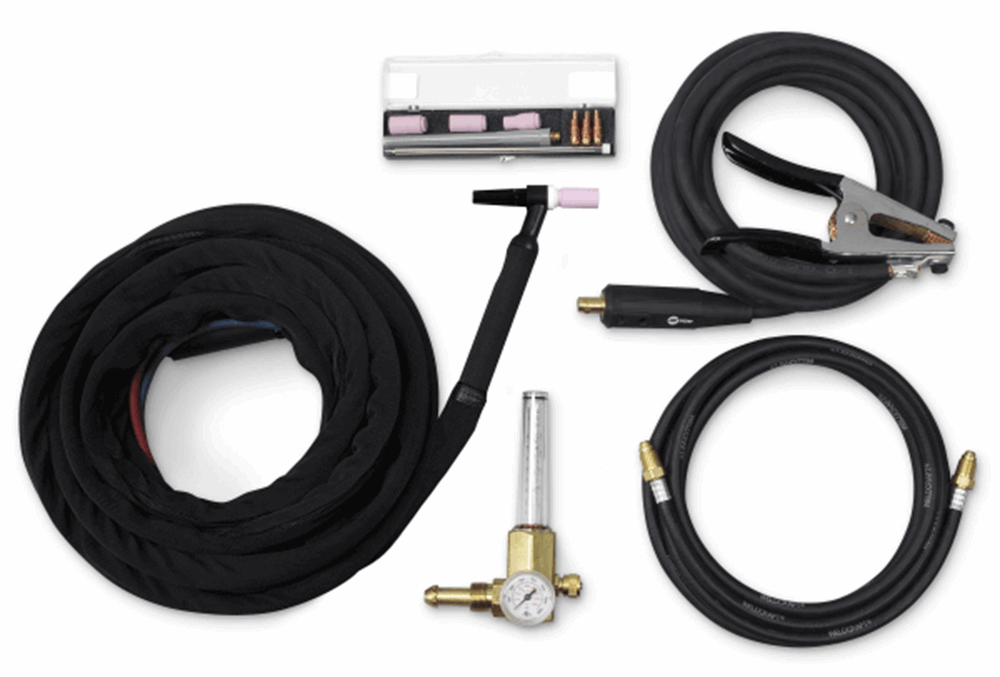

- Weldcraft™ W-375 torch kit and accessories (301268)
- Coolant (4 one-gallon bottles of 043810)
- Wireless remote foot control and receiver (300429)
- Quick Reference Guide
PROCESSES
- Pulsed TIG (GTAW-P)
- Stick (SMAW)
- TIG (GTAW)
- TIG AC (GTAW-AC)
- TIG DC (GTAW-DC)
- Aluminum Welding
- Air Carbon Arc Cutting and Gouging (CAC-A)
Browse all Miller welding machines, TIG welders, and welding safety equipment.
GENERAL SPECIFICATIONS |
|
| Title | Dynasty® 210 DX 120-480 V, Wireless Foot Control Complete Package |
| Industries Interests | Aerospace Boat / Yacht Construction DIY / Home Hobbyist Farm and Ranch Heavy Equipment Manufacturing High Purity Processing Infrastructure Manufacturing Metal Art / Sculptures Auto / Cycle (Racing, Customizing, Restoring) Railcar Shipbuilding |
| Current Type | AC / DC |
| Input Hz | 50 / 60 Hz |
| Input Phase | 1- and 3-Phase |
| Portability | Running Gear / Cart (Standard) |
| Input Voltage | 110/115/120 V 208 V 220/230/240 V 380/400 V 460/480 V |
| Max Open Circuit Voltage | 80 VDC |
| Weldable Metals | Aluminum Mild Steel Specialty Metals Stainless Steel |
| Warranty | Miller's True Blue Warranty |
| Amperage Min | 1 A |
| Amperage Max | 210 A |
| Material Thickness | Steel: 0.002 in. (0.05 mm) - 1/4 in. (6.4 mm) Aluminum: 0.012 in. (0.3 mm) - 1/4 in. (6.4 mm) |
SHIPPING DIMENSIONS |
|
| Height: | 50.00 Inches |
| Width: | 20.00 Inches |
| Length: | 44.00 Inches |
| Weight: | 237 Lb(s) 0 Oz |
Accessories
Product Questions and Answers
Q - What power does it require?
A - You can run it on anything from 120 V to 480 V, single phase or three phase, without manual linking.
Q - What sets the DX apart from the 210?
A - The 210 DX has full AC features, including advanced waveforms and wide ranges of balance and frequency controls.
Have a question about this product? Submit your question using the form below
