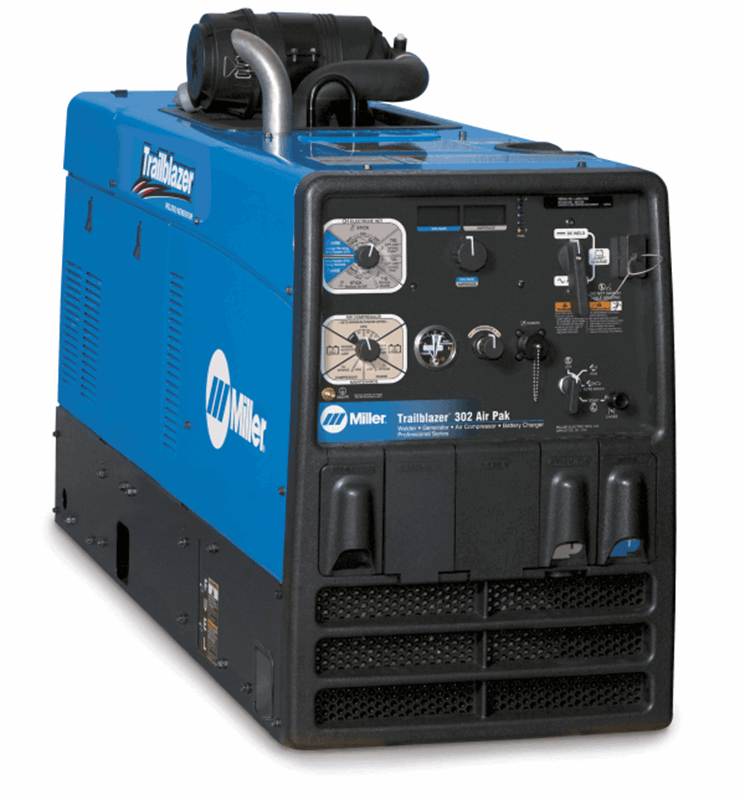

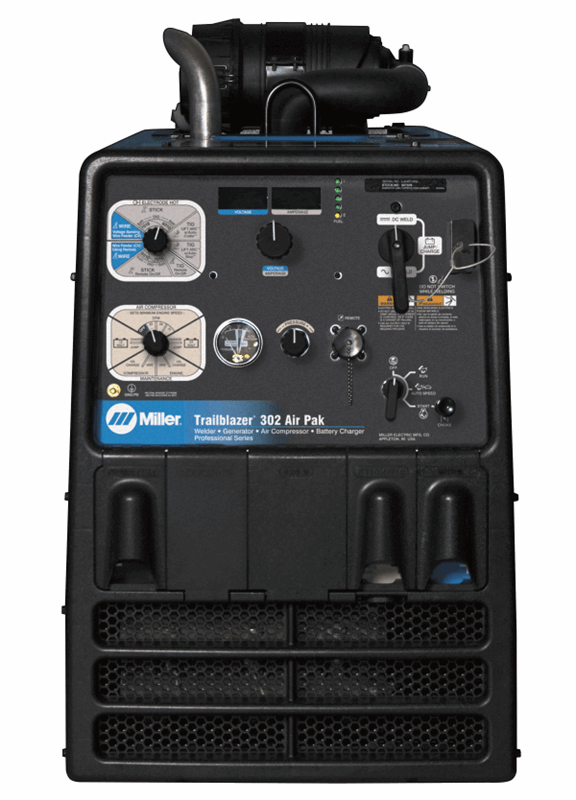

Miller Trailblazer 302 Air Pak w/GFCI, Electric Fuel Pump #907549
This powerful all-in-one tool is designed for repair and construction with unbeatable multi-process weld quality, integrated rotary screw air compressor, and 13,000 watts of generator power for job site equipment.
- Rotary Screw Air Compressor 31 CFM free air delivery at 3600 RPM, 28 CFM free air delivery at 3000 RPM, 22 CFM free air delivery at 2400 RPM. Battery Charge: 12/24 V, 10 - 75 A Battery Jump Start: 12/24 V, 450 A / 350
Four Tools In One
Professional welding performance in all processes with the best welding arc in its class. 13,000-watt generator, 31 CFM rotary screw air compressor, and 12-24-volt battery charger/ jump starter.
Superior Arc Performance
The best arc performance and multi-process versatility: Four preset DIG settings (Stick) to make the arc softer or stiffer depending on electrode and operator preference. Adaptive Hot Start (Stick) ensures easy arc starts regardless of operator technique. Excellent MIG/FCAW arc performance to run smoothly with solid and flux-cored wires. Lif Arc, TIG with Auto-Crater and Auto-Stop. Lift Arc minimizes/eliminates contamination when starting, Auto-Stop prevents arc flare at the arc end and Auto-Crater eliminates the need for a remote control by automatically ramping down amperage at the end of a weld to fill in the crater. DC Stick: 25-300 A DC TIG: 10-300 A AC TIG/Stick: 10-225 A MIG/FCAW: 13-35 V, 350 A

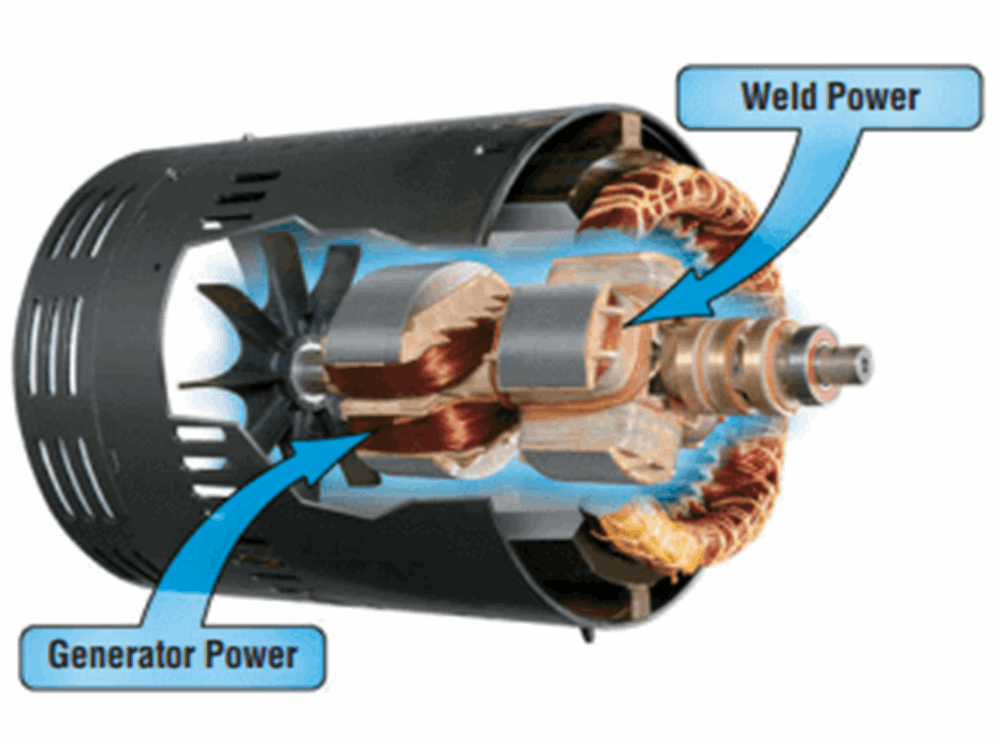

Independent Weld/Generator Power
Delivers an industry-leading 13,000 watts of peak generator power independent of weld settings—enough to power a Spectrum® 875 plasma cutter, and provide air for plasma cutting at the same time. (Rated 5/8" mild steel)

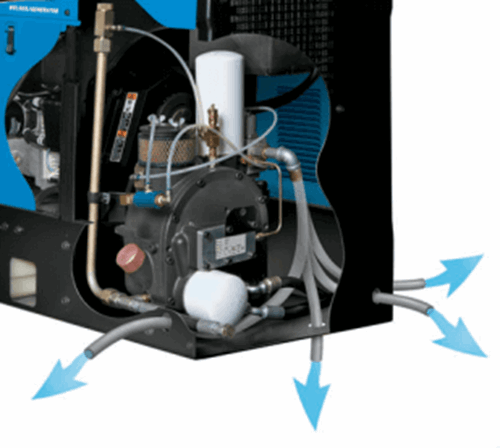

Rotary Screw Compressor
Quiet and durable rotary-screw compressor delivers 31 CFM at 80-160 psi of air at 100% duty cycle while rated at 104° F. It offers an average of three times the service life of traditional reciprocating compressors. Produces air when you need it; no more downtime waiting for an external tank to fill. Airflow can be selected depending on tool requirements. Front panel air pressure adjustment makes it simple to dial in the correct air pressure for specific applications (80-160 psi)
A Battery Charger/Jump Starter
Selectable 12- or 24-volt battery charging capability providing up to 450 amps for jump-starting. Conveniently located on the front panel.
Lower Fuel Consumption and Emissions
Air compressor, welder and generator are all run with one engine, reducing emissions and reducing fuel consumption up to 50%.
Requires Half the Space
Takes only half the bed space of a separate engine-driven air compressor and welder, freeing up 50% more room on your truck for equipment and supplies. The Trailblazer 302 Air Pak offers up to 25% less axle weight for payload advantage.
Easy to Service
Side and top access doors make it fast and easy to reach the engine and air compressor compartments. Digital maintenance meters automatically track hours and service schedules.
Find more welding machines including engine driven welders and multi-process welders, along with welding helmets for sale from Welders Supply.
- Air Carbon Arc Cutting and Gouging (CAC-A)
- Flux Cored (FCAW)
- MIG (GMAW)
- Stick (SMAW)
- TIG (GTAW)
- Plasma (PAC)
|Title||Trailblazer® 302 Air Pak™ w/GFCI, elec fuel pump|
Farm and Ranch
Boat / Yacht
High Purity Processing
|Engine Idle Speed||2400 RPM|
|Engine Weld Speed||3600 RPM|
|Fuel Tank Size||12 Gallon|
|Rated Output||CC/AC 200 A at 25 V, 60% Duty Cycle|
|Single Phase Generator Continuous Power||11000 W|
|Single Phase Generator Peak Power||13000 W|
|Sound Rating||73.4 dB @ idle and 81.2 db @ weld dB|
|Current Type||AC / DC|
|Amperage Range||10 - 300|
|Net Width||20 in|
|Net Height||34.5 in|
|Net Length||59.625 in|
|Net Weight||771 lbs|
Miller's True Blue Warranty
|Portability||Lift Eye (Standard)
Running Gear / Cart (Optional)
|Weld Output||CC / CV|
|Weight:||812 Lb(s) 0 Oz|
