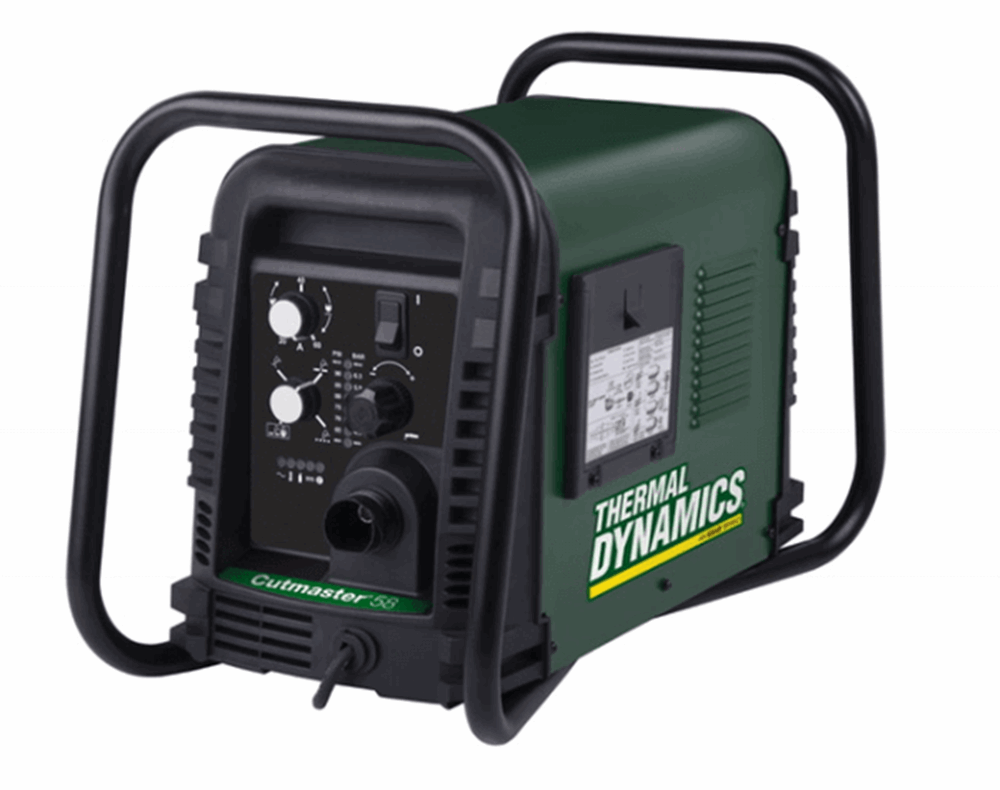

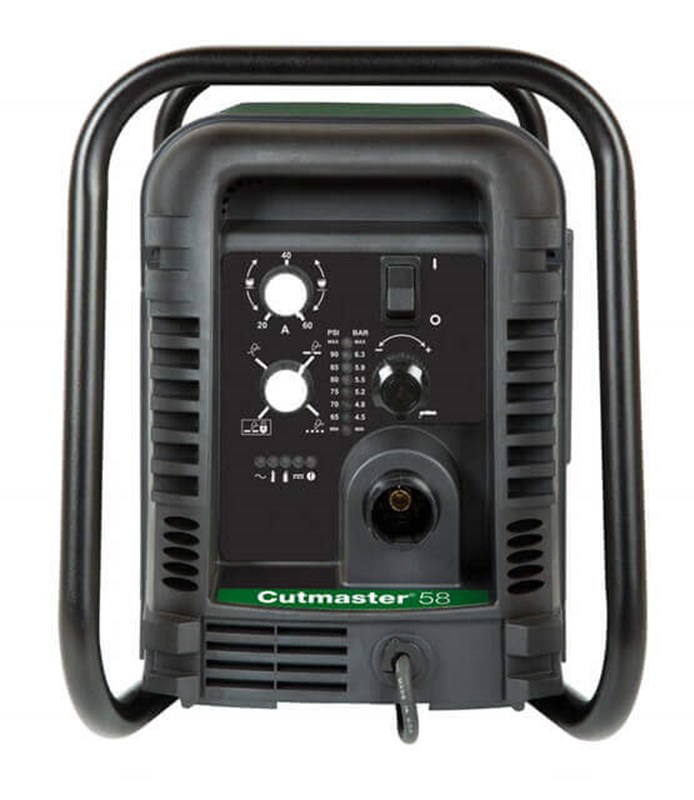

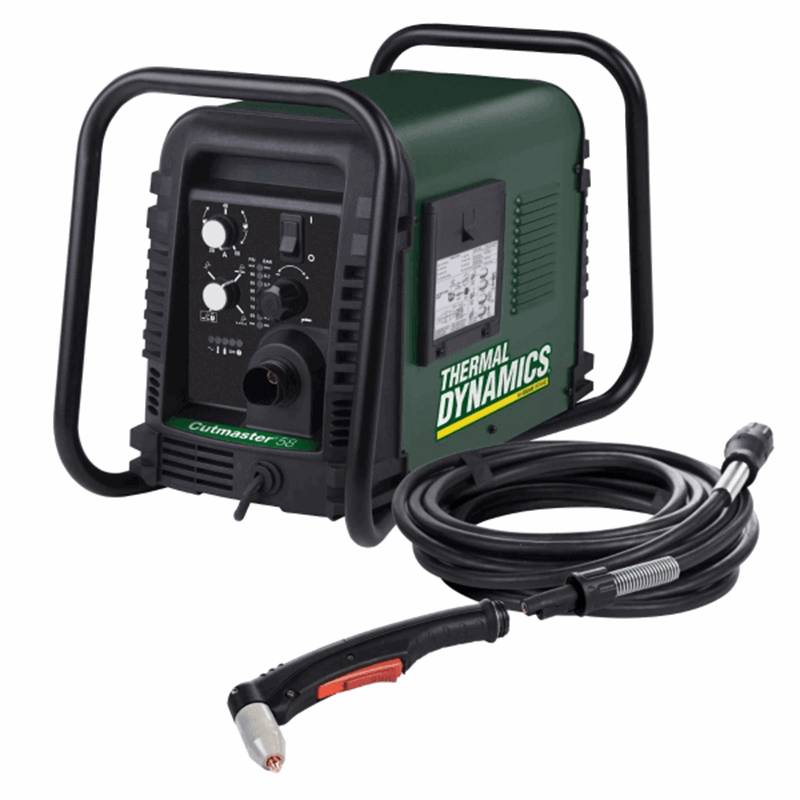

Thermal Dynamics Cutmaster 58, 20 ft. Lead W/SL60QD Torch, 600 VAC #1-5830-5

Part Numbers: 1-5830-5

$2,199.00
$2,799.00* Save $600.00

Included with your purchase:

Select your Bundle!
Edit

    Call 1-844-682-0205 or CHAT for more options

    Victor Technologies

    Material type:

    Mild Steel

    Mild Steel

    Stainless Steel

    Stainless Steel

    Aluminum

    Aluminum

    Power supply:

    220V Single Phase

    220V Single Phase

    220V 3 Phase

    220V 3 Phase

    460V

    460V

    Cut capacity:

    1/2" Capacity

    1/2" Capacity

    • 220V Single Phase
    • 1/2" Cut Capacity
    • MultiPhase Power Supply

    Best Prices on the Thermal Dynamics Cutmaster 58 #1-5830-5

    Powerful, lightweight, and perfectly precise – the Cutmaster 58 is the perfect combination of end-user insight, advanced technology, and intelligent design. Packed with power and offering the highest power-to-weight ratio in its class, the Cutmaster 58 offers best in class cutting arc length and the most empowering and engaging user experience, no matter the application.

    The Thermal Dynamics Cutmaster 58 doesn’t play around when it comes to cut capacity or speed. It can slice through mild steel, aluminum, and stainless steel with ease, and it plows a perfect groove when gouging. From first cut to cleanup, day in and day out, you’ll be able to stare down any challenge with Cutmaster 58 on your side.

    The Cutmaster 58 is the most powerful 1/2 in. (12 mm) machine on the market today. This unit cuts through mild, stainless, or aluminum up to 1-1/8 in. (30 mm) thick. The Cutmaster 58 combines power with the well-known performance and features of the industry-leading 1Torch®.

    Features:

    • 6.2 kW rated output, 50% Duty Cycle at 60A with automatic multi-voltage detection from 230-460V; built for portability and durability with the integral multi-handle design
    • SL60QD 1Torch quick disconnect with ATC® (Advanced Torch Connector) allowing selective replacement of either the torch handle assembly or the torch leads, using the patented SureLok® technology also available as an RPT Torch
    • 1/2 in. (12 mm) recommended cut capacity with greater than 1-1/8 in. (30 mm) maximum cut and 1/2 in. (12 mm) pierce rating
    • Industry leading 4-year warranty on power supply and 1-year warranty on torch
    Shop other Plasma Cutting Machines and Plasma Cutting Consumable Parts and Accessories





    Specifications

    Max Amperage Output - (Amps) 60
    Rated Output Power - (Kw) 6.2
    Recommended Cut - Inches (mm) 1/2 - " (12)
    Max Cut - Inches (mm) 1 1/8 - " (30)
    Pierce Rating - Inches (mm) 1/2 - " (12)
    Input Voltage - (Volts, Phase, Hz) 208-230/460 V, 1/3 ph, 50/60 Hz
    400 V, 3 ph, 50 Hz
    600 V, 3 ph, 50/60 Hz
    Rated Duty Cycle
    40% @ 60A
    60% @ 50A
    100% @ 30A
    Amperage Draw 45 (230V, 1 Phase)
    24 (230V, 3 Phase)
    16 (460V, 3 Phase)
    Dimensions (L x W x H) Inches (mm) 24 x 12 x 15 (610 x 305 x 381)
    Weight - lbs (kg) 43 (19.5)
    Torch Model SL60QD
    Air Pressure - psi (bar) 75 (5.2)
    Flow - Cfm (l/m) 6.7 (190)

    Product Questions and Answers


    Q - Can you gouge cut with this? A - Yes, you'll need these parts: Thermal Dynamics Plasma Shield Cup Maximum Life (#9-8237), Thermal Dynamics Plasma Gouging Shield Cap (#9-8241), Thermal Dynamics Plasma Gouge Tip A (#9-8225) 40amps max output, shallow depth, narrow width OR Thermal Dynamics
    Q - What size breaker do I need with 230V? A - If you're running single phase on 230v, you will need a 50 amp breaker.
