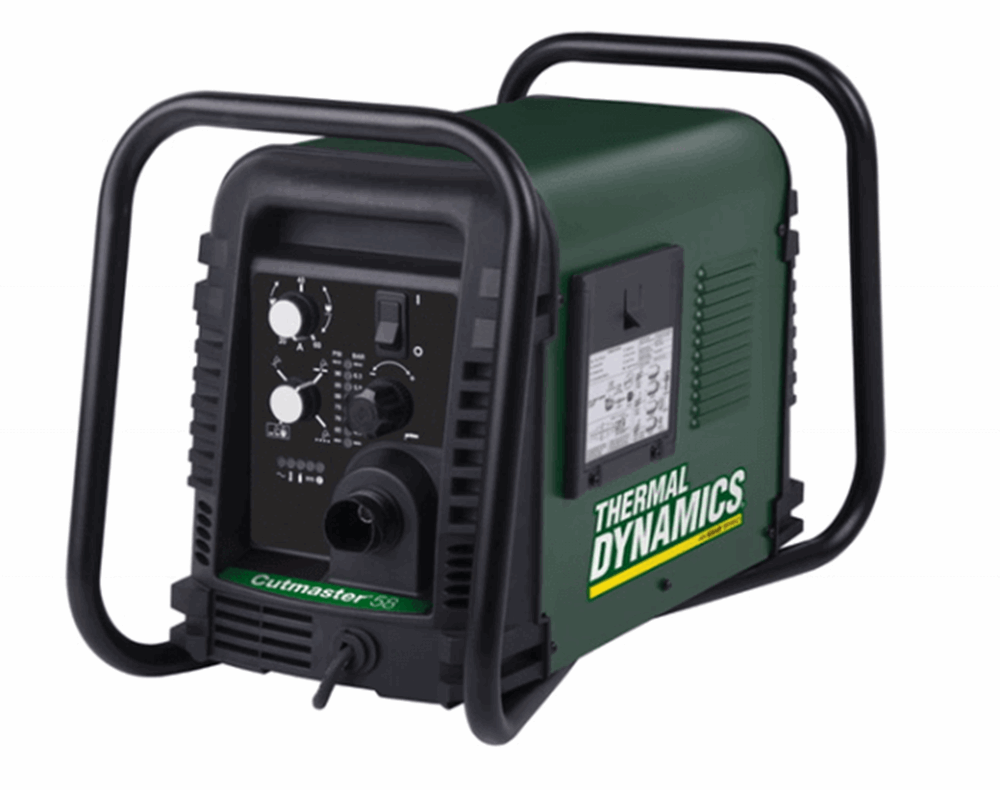

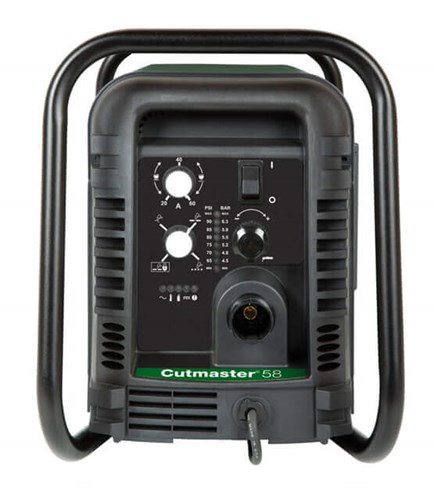

Thermal Dynamics Cutmaster 58 from Welder Supply
The Cutmaster 58 is the most powerful 1/2 in. (12 mm) machine on the market today. This unit cuts through mild, stainless, or aluminum up to 1-1/8 in. (30 mm) thick. The Cutmaster 58 combines power with the well-known performance and features of the industry-leading 1Torch®.
Powerful, lightweight, and perfectly precise – the Cutmaster 58 is the perfect combination of end-user insight, advanced technology, and intelligent design. Packed with power and offering the highest power-to-weight ratio in its class, the Cutmaster 58 offers best in class cutting arc length and the most empowering and engaging user experience, no matter the application.
The Cutmaster 58 doesn’t play around when it comes to cut capacity or speed. It can slice through mild steel, aluminum, and stainless steel with ease, and it plows a perfect groove when gouging. From first cut to cleanup, day in and day out, you’ll be able to stare down any challenge with Cutmaster 58 on your side.
- 6.2 kW rated output, 50% Duty Cycle at 60A with automatic multi-voltage detection from 230-460V; built for portability and durability with the integral multi-handle design
- SL60QD 1Torch quick disconnect with ATC® (Advanced Torch Connector) allowing selective replacement of either the torch handle assembly or the torch leads, using the patented SureLok® technology also available as an RPT Torch
- 1/2 in. (12 mm) recommended cut capacity with greater than 1-1/8 in. (30 mm) maximum cut and 1/2 in. (12 mm) pierce rating
- Industry leading 4-year warranty on power supply and 1-year warranty on torch
|Max Amperage Output - (Amps)||60|
|Rated Output Power - (Kw)||6.2|
|Recommended Cut - Inches (mm)||1/2 - " (12)|
|Max Cut - Inches (mm)||1 1/8 - " (30)|
|Pierce Rating - Inches (mm)||1/2 - " (12)|
|Input Voltage - (Volts, Phase, Hz)||208-230/460 V, 1/3 ph, 50/60 Hz
400 V, 3 ph, 50 Hz
600 V, 3 ph, 50/60 Hz
|Rated Duty Cycle
||40% @ 60A
60% @ 50A
100% @ 30A
|Amperage Draw||45 (230V, 1 Phase)
24 (230V, 3 Phase)
16 (460V, 3 Phase)
|Dimensions (L x W x H) Inches (mm)||24 x 12 x 15 (610 x 305 x 381)|
|Weight - lbs (kg)||43 (19.5)|
|Air Pressure - psi (bar)||75 (5.2)|
|Flow - Cfm (l/m)||6.7 (190)|

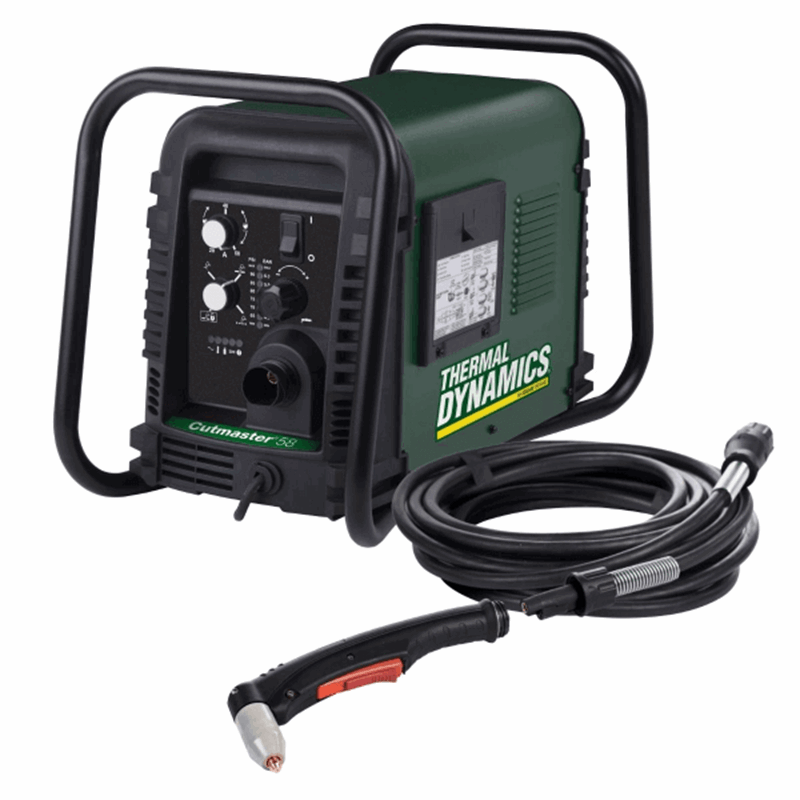

Thermal Dynamics Cutmaster 58 Plasma Cutter, 20 ft. Lead W/SL60QD Torch, 460 VAC 1-5830-2 Cutting and Piercing
Thermal Dynamics Cutmaster 58 Plasma Cutter, 20 ft. Lead W/SL60QD Torch, 460 VAC 1-5830-2 Tips on Piercing
Product Questions and Answers
How to connect a torch:
- Use the right torch.
The Cutmaster 58 is designed to be used with only a Thermal Dynamics model SL60 Manual or SL100 Mechanical Torch. Maximum torch lead length is 100 feet / 30.5 m, including extensions.
- Disconnect power.
Before connecting the torch, disconnect primary power at the source.
- Connect torch.
Align the ATC male connector (on the torch lead) with the female receptacle. Push the male connector into the female receptacle. The connectors should push together with a small amount of pressure.
- Secure the connection.
Turn the locking nut clockwise until it clicks. DO NOT use the locking nut to pull the connection together. Do not use tools to secure the connection. The system is ready for use.
