Brand New: Multimatic® 215 PRO w/ TIG Contractor Kit Package #951000213

The Multimatic ® 215 PRO is a hardworking Multiprocess welder with upgradable software, a higher duty cycle, a 15-foot MIG gun, and an intuitive user interface. Weld up to 3/8-inch steel and aluminum on 240 V power or 3/16-inch steel and 1/8-inch aluminum on 120 V power. Get started TIG welding with the addition of the TIG contractor kit.

Highlights

MVP™ Multi-Voltage Plug: Connects to 120V or 240V power without tools; simply attach the appropriate plug
Angled Cast-Aluminum Drive System: Provides consistent wire feeding with a calibrated tension knob for easy, precise setup
Fan-On-Demand™ Cooling: Reduces noise, energy use, and dust intake by running the fan only when needed
Quick Select™ Drive Roll: Three built-in grooves allow fast wire-type changes between solid and flux-cored options
USB-Upgradeable Software: Keeps your machine current with expandable features and future-proof performance
Gas Detect Feature: Monitors shielding gas flow, alerts you to supply issues, and automatically purges lines on startup
Auto Spool Gun Detect™: Automatically recognizes whether a MIG gun or spool gun is connected—no manual switching required
Flexible Wire Compatibility: Runs 4" or 8" spools and supports .024–.035" solid wire and .030–.045" flux-cored wire for broad application versatility
Smooth-Start™ Technology: Delivers the cleanest, most spatter-free arc starts in its class
Auto-Set™ Presets: Fast, predefined weld settings for multiple materials and processes so you can start welding quickly and confidently

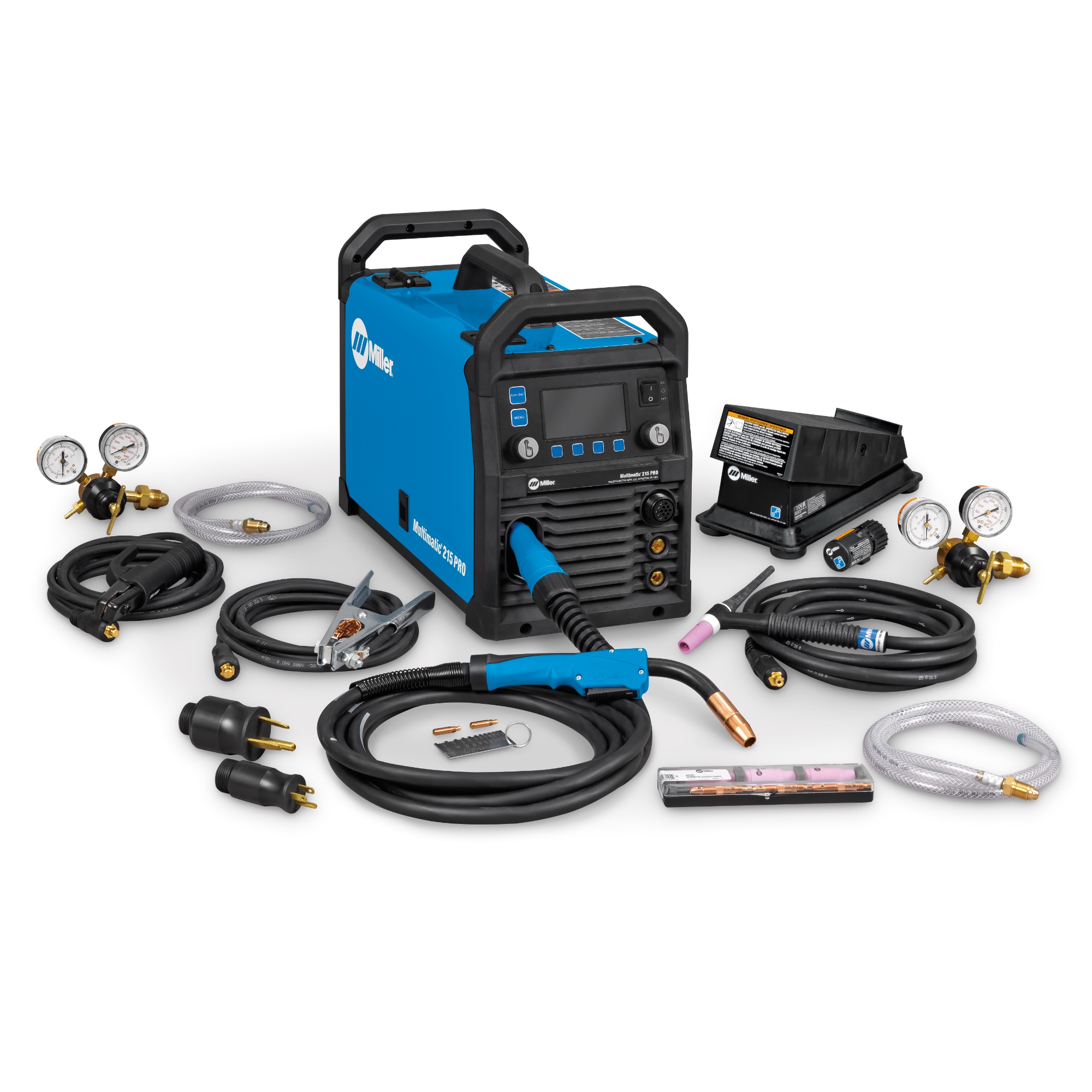

What's Included:

Multimatic 215 PRO
15 ft. (4.6 m) MDX™-100 MIG gun
15 ft. (4.6 m) cable electrode holder and 25 mm Dinse-style connector
15 ft. (4.6 m) work cable with clamp
6.5 ft. (2 m) power cord with MVP™ plugs for 120 V and 240 V
Flow gauge regulator and gas hose for argon or AR/CO2 mix
Two contact tips for .030 in. (0.8 mm) wire
Quick Select™ drive rolls for .024 in. (0.6 mm) or .030/.035 in (0.8/0.9 mm) solid wire, and .030/.035 in. (0.8/0.9 mm) flux-cored wire
Hook-and-loop cord wraps
Material thickness gauge
TIG Contractor Kit with Wireless Foot Pedal - Kit includes:
- 12.5 ft. (3.8 m) Weldcraft™ A-150 TIG torch with flow-through Dinse-style connector
- wireless remote foot pedal
- flow gauge regulator with 12 ft. (3.7 m) gas hose
- AK2C torch accessory kit

Applications:

Light fabrication
Maintenance and repair
Automotive
HVAC
Farm and Ranch
DIY

Multimatic 215 PRO Specs

Welding Mode / Process	Input Power	Amperage Range	Rated Output	Amps Input @ Rated Output 120 V	Amps Input @ Rated Output 240 V	KVA	KW	Wire Feed Speed	Max. Open-Circuit Voltage	Dimensions (H × W × D)	Net Weight
CV: MIG / flux-cored	120 V	30–140 A	110 A at 19.5 VDC, 60% duty cycle	21.7	—	2.6	2.6	60–600 ipm (1.5–15.2 m/min)	57	14.625 in × 9.75 in × 20 in (372 × 248 × 508 mm)	35 lb (15.9 kg)
CV: MIG / flux-cored	240 V	30–230 A	160 A at 22 VDC, 60% duty cycle	—	17	4.1	4.1	60–600 ipm (1.5–15.2 m/min)	57	14.625 in × 9.75 in × 20 in (372 × 248 × 508 mm)	35 lb (15.9 kg)
CV: MIG / flux-cored	240 V	30–230 A	215 A at 24.8 VDC, 30% duty cycle	—	25.7	6.2	6.2	60–600 ipm (1.5–15.2 m/min)	57	14.625 in × 9.75 in × 20 in (372 × 248 × 508 mm)	35 lb (15.9 kg)
CC: TIG	120 V	20–150 A	140 A at 15.6 VDC, 40% duty cycle	22.7	—	2.8	2.8	—	57	14.625 in × 9.75 in × 20 in (372 × 248 × 508 mm)	35 lb (15.9 kg)
CC: TIG	240 V	20–210 A	190 A at 17.6 VDC, 20% duty cycle	—	16.6	4.0	3.9	—	57	14.625 in × 9.75 in × 20 in (372 × 248 × 508 mm)	35 lb (15.9 kg)
CC: Stick*	120 V	30–100 A	95 A at 23.8 VDC, 40% duty cycle	22.5	—	2.7	2.7	—	57	14.625 in × 9.75 in × 20 in (372 × 248 × 508 mm)	35 lb (15.9 kg)
CC: Stick*	240 V	30–200 A	190 A at 27.6 VDC, 20% duty cycle	—	25	6.0	6.0	—	57	14.625 in × 9.75 in × 20 in (372 × 248 × 508 mm)	35 lb (15.9 kg)
