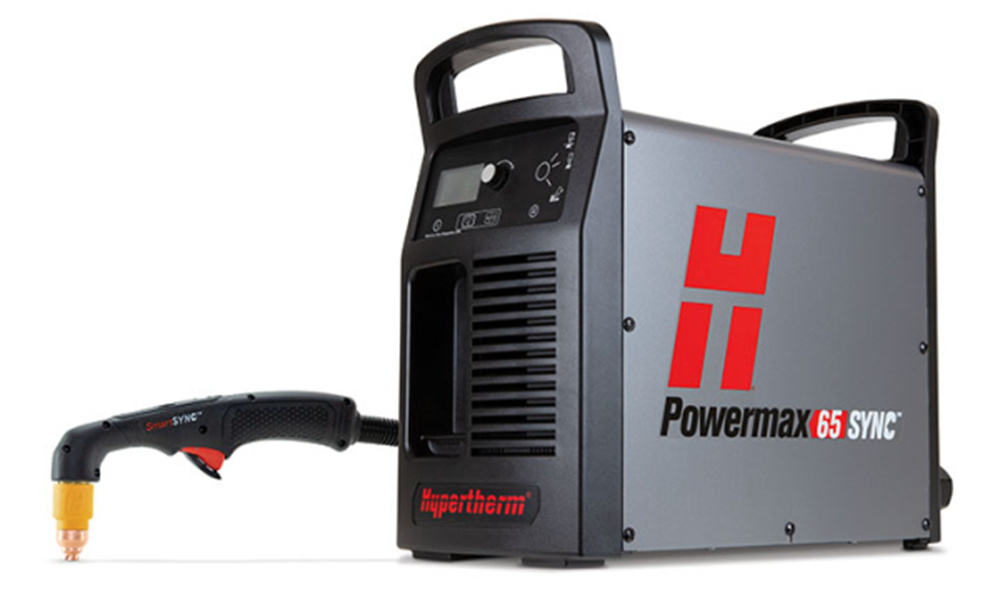

Powermax65 SYNC system, 200-600V 1/3-PH, CSA (75° handheld torch, 25' lead) #083343

Part Number: 083343

Replacing Hypertherm Powermax 65 #083270

$3,600.00 + Free Shipping

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

Power supply:

220V Single Phase

220V Single Phase

220V 3 Phase

220V 3 Phase

460V

460V

Cut capacity:

3/4" Capacity

3/4" Capacity

  • 3/4" Cut Capacity
  • Lightweight and Portable
  • Torch Included
  • 25' Leads
  • 3-Year Power Warranty
  • First Time Student Rebate

Powermax65 SYNC system, 200-600V 1/3-PH, CSA, 75 degree handheld torch, 7.6m (25') lead - 083343Hypertherm Powermax 65 SYNC Plasma Cutter #083371

Replacing Hypertherm Powermax 65 - 083270

The Powermax65 SYNC™ is a next-generation professional-grade air plasma cutter that dramatically simplifies system operation for cutting and gouging up to 20 mm (3/4″). Featuring automated system process set-up via advanced RFID-enabled SmartSYNC™ torches and a revolutionary single-piece cartridge consumable that provides trackable utilization data. The Powermax65 SYNC maximizes productivity through reductions in downtime, optimized cut quality performance and streamlined consumable inventory management.

Shop SmartSYNC cartridges, a revolutionary new way to replace consumable parts with ease.

What's Included

  • The Powermax 65 SYNC Power Supply (no CPC port)
  • 75 degree torch with 25 ft lead

System Information and Applications

  • Drag cutting - For dragging the torch directly across the workpiece
  • Fine feature cutting - For narrow kerf width with minimal dross and heat-affected zone
  • Flush cutting - For cutting closer to base materials using a 45 degree
  • Max control gouging - For precise metal removal, shallower gouge profiles and light metal washing
  • Max removal gouging - For aggressive metal removal, deep gouge profiles, and extreme metal washing
  • Mechanized cutting - For portable automation and table cutting

Benefits of Powermax65 SYNC

Easy to use

  • Cartridges are easy to identify by process with clear laser marking and color coding to eliminate part mix-ups.
  • RFID-enabled SmartSYNC™ torches and cartridges automatically set the correct amperage and operating mode, eliminating setup errors.
  • End-of-life consumable detection eliminates the uncertainty of knowing when to change the cartridge.
  • Less operator fatigue when using hand torches with our new flexible lead. The lead has the same robustness of our previous lead jacket material and will also be used on robotic torches.

Minimize operation costs

  • Simplified system operation minimizes the time and costs spent on training and troubleshooting.
  • Reductions to downtime during consumable change-outs and elimination of costs associated with premature disposal of consumable parts.
  • Cartridge usage data provides valuable insights for improving cutting operations and consumable inventory management.

Maximize performance

  • Tackle a wide range of jobs with easily interchangeable torch styles and application specific cartridges for various types of cutting and gouging.
  • Optimized cartridge consumable design provides up to twice the life for handheld cutting and improved quality over life in mechanized setups compared to standard consumables.
  • Time-saving hand torch controls allow the operator to adjust the amperage on the fly, change cartridges and applications without returning to the power supply.

Industry-leading reliability

  • SmartSYNC™ torches are engineered for rugged, industrial environments.
  • SpringStart™ technology ensures consistent starting and a more reliable torch.
  • Industry-leading reliability reduces production downtime.
Shop all Hypertherm Powermax SYNC plasma cuttersSmartSYNC torches and SmartSYNC consumables online at Welder Supply.

All Hypertherm Powermax 65 SYNC Models

  Power Supply Only With Handheld Torch With Machine Torch
Handheld Only
CPC Port
CPC & Serial Port

Cut Capacity

Capacity Thickness Cut Speed
Recommended 20 mm (3/4") 500 mm/min (20 ipm)
  25 mm (1") 250 mm/min (10 ipm)
Severance (hand cutting) 32 mm (1-1/4") 125 mm/min (5 ipm)
Pierce 16 mm (5/8")



Maximum Removal Gouging

Capacity Metal Removal Rate Groove Profile
Typical gouge 4.0 kg (8.8 Ibs.) per hour 2.9 mm D x 6.4 mm W (0.11" D x 0.25" W)



Specifications

Input voltages 200–480 V, 1-PH, 50/60 Hz
200–600 V, 3-PH, 50/60 Hz
Kilowatt output 9kW
Input Current 200/208/240/480 V,
1-PH 52/50/44/22 A @ 9 kW
200/208/240/480/600 V,
3-PH 32/31/27/13/13 A @ 9 kW
Output current 20 - 65 A
Rated output voltage 139 VDC
Duty cycle @ 40°C (104°F) 50% @ 65 A, 230 – 600 V, 1/3-PH
40% @ 65 A, 200 – 208 V, 1/3-PH
100% @ 46 A, 230 – 600 V, 1/3-PH
Open circuit voltage (OCV) 295 VDC
Gas Supply Clean, dry, oil-free air or nitrogen
Recommended gas inlet
flow rate / pressure
Cutting: 189 l/min (400 scfh; 6.7 scfm) @ 85 psi (5.9 bar)
Gouging: 450 scfh; 212 l/min (7.5 scfm) @ 70 psi (4.8 bar)
Input power cable length 3 m (10')
Power supply type Inverter - IGBT

SHIPPING DIMENSIONS

Height: 17.00 Inches
Width: 7.20 Inches
Length: 19.00 Inches
Weight: 61 Lb(s) 0 Oz

Product Questions and Answers


Q - Will the Powermax65 SYNC #083343 work with the previous generation legacy Powermax 65 cables? A - No. Powermax65 SYNC machines only work with new SmartSYNC torches.
Q - How much does the Powermax 65 SYNC weigh? A - The Hypertherm Powermax 65 SYNC weighs 61 lbs
Q - Which SmartSYNC consumables work with the Powermax 65 SYNC #083343? A - Any 45 A - 65 A drag cutting, FineCut, max removal, max control gouging and FlashCut hand cutting comsumables. This machine will not work with cartridges rated over 65 A.
