Miller Dimension™ 650 380/460 V MIGRunner™ Package 951637

Part Numbers: 951637
$16,420.00
$18,965.00* Save $2,545.00

Included with your purchase:

Select your Bundle!
Edit

    Call 1-844-682-0205 or CHAT for more options

    Welding type:

    Mig

    Mig

    Stick

    Stick

    Tig

    Tig

    Material type:

    Mild Steel

    Mild Steel

    Stainless Steel

    Stainless Steel

    Aluminum

    Aluminum

    Power supply:

    460V

    460V

    • MIG Welding
    • Stick Welding
    • TIG Welding
    • 3-Phase Input
    • 3-Year Warranty

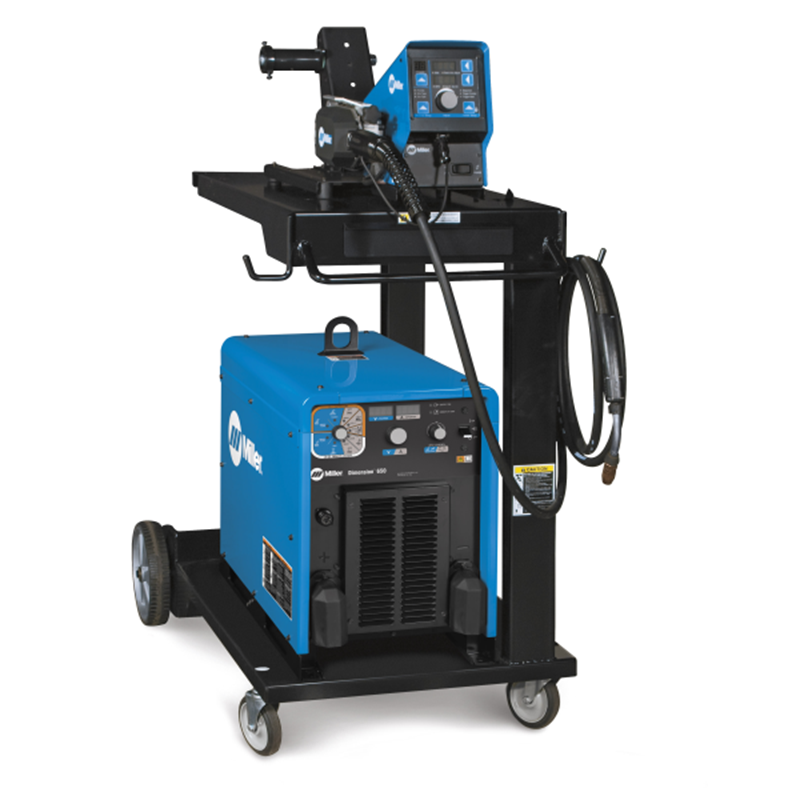

    Miller Dimension™ 650 380/460 V MIGRunner™ Package 951637

    Miller Dimension 650 MIGRunner #951637What's included

    • .035 - .045 reversible dual V drive rolls
    • 15ft 4/0 work cable with 600A C-Clamp
    • 3ft gas hose
    • 6ft 4/0 wire feeder to power source weld cable
    • Bernard™ BTB Gun 400 AMP, 15FT
    • Centerfire contact tips, .035 (QTY 3), .045 (QTY 2)
    • Dimension 650 380/460 V
    • MIGRunner Cart
    • Regulator/flowmeter
    • S-74 MPa Plus

    Rugged and Durable Inside and Out

    • All aluminum construction helps the machine resist corrosion for long life
    • Exclusive protection input inductor protects machines performance and reliability from “dirty” input power
    • Wind Tunnel Technology™
    • Internal air flow that protects electrical components and PC boards from dirt, dust, debris, greatly improving reliability
    • Fan-On-Demand™ operates only when needed reducing noise, power consumption, and the amount of airborne contaminants pulled through the machine

    Smaller and lighter

    • Reduced size and weight results in an easier-to-handle package that exceeds the welding performance of larger, heavier machines
    • The Dimension 650 uses 40 percent less floor space than previous model

    Power efficient

    • High electrical efficiency and excellent power factor mean that you can get more welding done using less power
    • On 460 VAC, the new Dimension 650 draws only 43 amps at rated load and can operate on a 50-amp service
    • Four new machines can work at maximum loads simultaneously on a 200-amp service, drawing less amperage than three previous models

    Improved Arc Performance

    • High-quality performance from power-intensive to precise
    • Gouging mode provides 800 amps of usable power, a full 650 amps of power at 100-percent duty cycle
    • Perfect for heavy gouging with 3/8-inch carbons. Three wire modes (GMAW/FCAW/SAW) for simplified setup and optimized arc performance
    • Solid and flux-cored wires with gas offer exceptional short-arc MIG precision to weld thin metals with less risk of distortion or burn-through, and premium Flux-Cored welding with gas
    • Flux-Cored (self-shielded) welding performance is exceptional, especially with wires commonly found in infrastructure construction
    • Sub Arc mode provides capability to retrofit into nondigital Sub Arc applications
    • Excellent Stick and Lift Arc TIG performance
    • Arc control is beneficial when welding with Stick and solid wires for easier fine-tuning of tough-to-weld materials and out-of-position applications
    View our selection of multi-process Miller welders, welding machines and welding safety equipment.
    Miller Dimension™ 650 380/460 V MIGRunner™ Package 951637 Specifications
    Industries Interests Aerospace
    Heavey Equipment Manufacturing
    Construction
    Infastructure
    Manufacturing
    Railcar
    Shipbuilding
    Boat / Yacht
    High Purity Processing
    Weldable Metals Aluminum
    Specialty Metals
    Stainless Steel
    Steel
    Input Voltage 380/400/440 V
    460/480 V
    Input Phase  3-Phase
    Input Hz  50 / 60 Hz
    Rated Output 10 - 38 V, 5 - 425 A
    Max Open Circuit Voltage 87 VDC
    Portability Lift Eye (Standard)
    Running Gear / Cart (Optional)
    Warranty 3 Years
    Miller's True Blue Warranty
