Miller Dynasty® 280 Multiprocess Fingertip Contractor Package w/ ArcReach® SuitCase® 8 #951796

Part Number: 951796
UPC: 715959673730
1 Review

Miller Dynasty® 280 Multiprocess Fingertip Contractor Package w/ ArcReach® SuitCase® 8 #951796

Part Number: 951796
UPC: 715959673730
1 Review
This Item Has Been Discontinued and has been replaced by Dynasty 300 VS Foot Contractor Pkg. AR12 #951939 - Level up today!

Welding type:

MIG

MIG

TIG

TIG

Stick

Stick

Power supply:

220V Single Phase

220V Single Phase

220V 3 Phase

220V 3 Phase

460V

460V

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

Related Products

  • TIG Welding
  • MIG Welding
  • Stick Welding
  • Multi-Phase
  • 220V
  • 460V
  • 3-Year Miller Warranty

Dynasty® 280 Multiprocess Fingertip Contractor Package with ArcReach® SuitCase® 8 951796

The Dynasty 280 Series has now expanded beyond the industry-leading TIG and Stick performance by the additional CV output which allows for MIG capability - making this multiprocess line the perfect solution for shipbuilding, construction, mechanical contractors, education, and more.

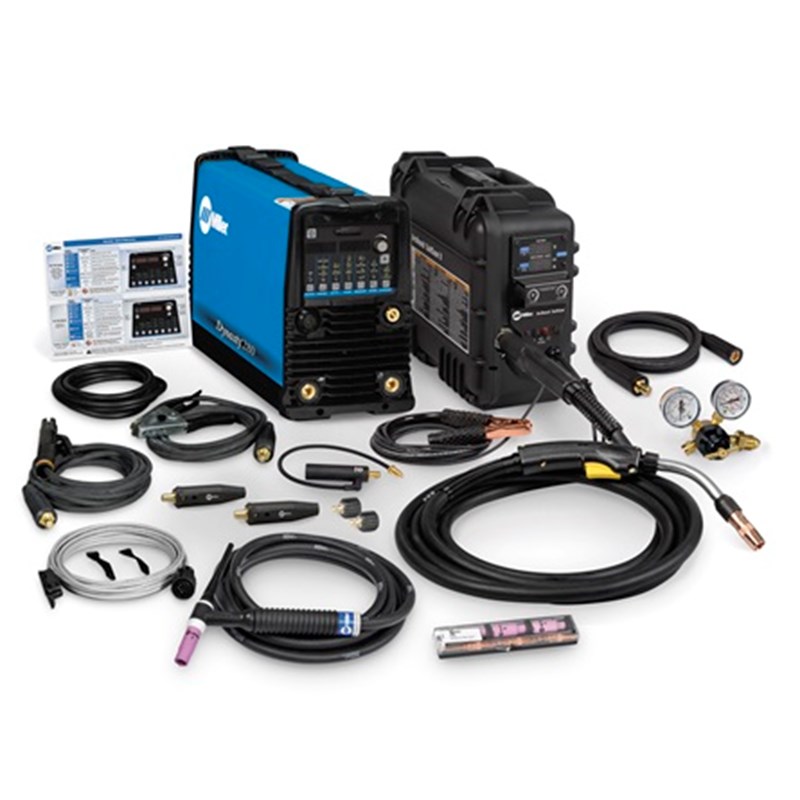

WHAT'S INCLUDED

  • .035"/.045" Contact Tips
  • 8 ft. (2.4 m.) Weld Cable with Tweco®-style connectors to power feeder
  • .035"/.045" Drive Rolls

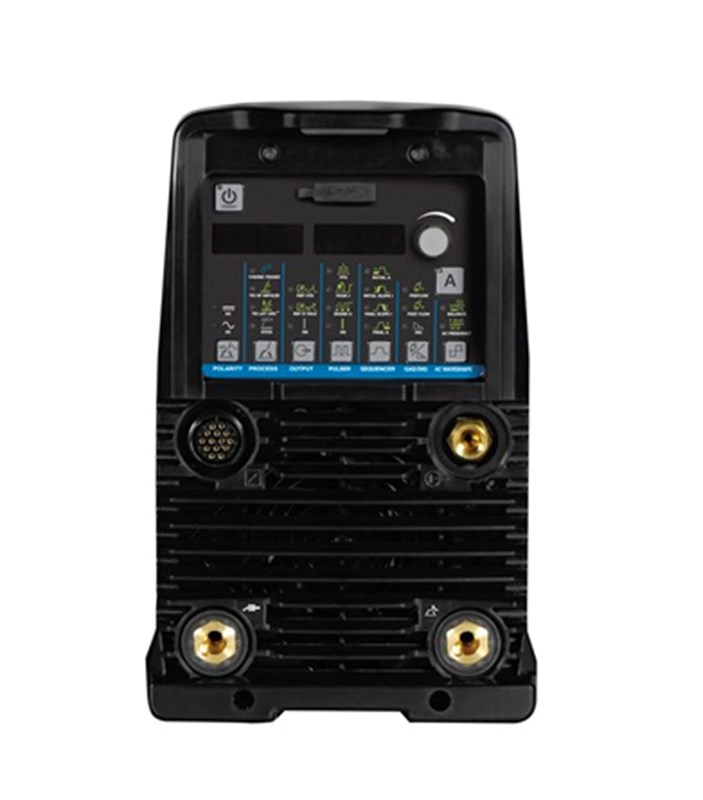

  • Dynasty® 280 DX Multiprocess
  • 15 ft. (4.5M) Bernard™ BTB MIG Gun
  • 8 ft. (2.4 m.) Primary Cord
  • Adjustable Shoulder Strap
  • (2) 50 mm. Dinse-style Connectors
  • Quick Reference Guide
  • (2) Dinse/Tweco® Adapters (042465)

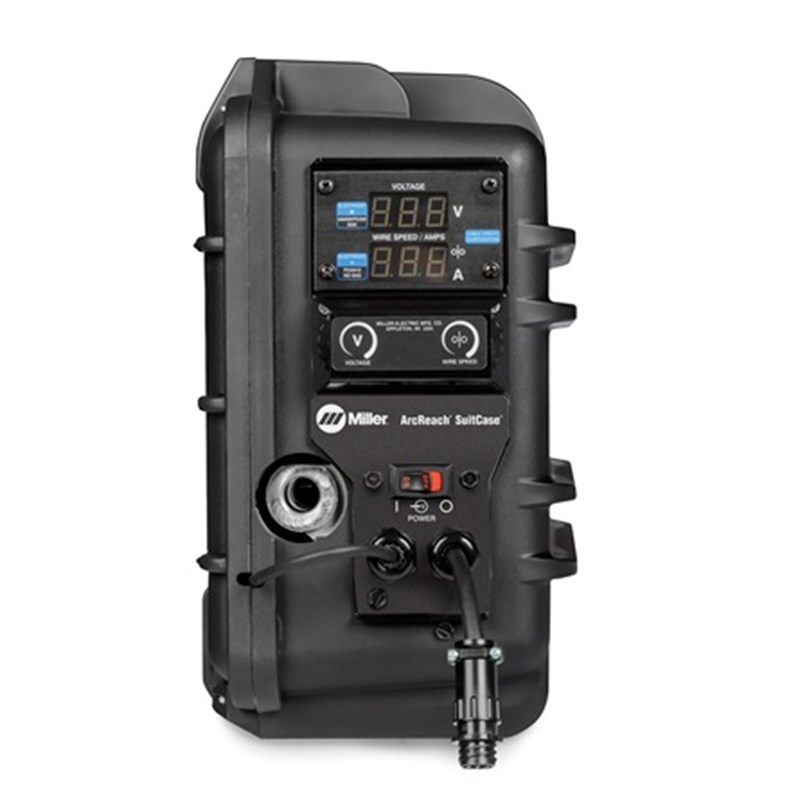

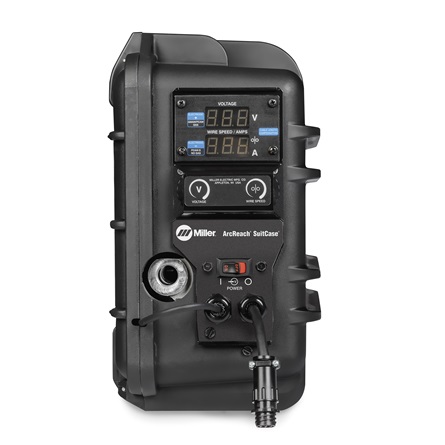

  • ArcReach® SuitCase® 8
  • Contractor Kit, A-200 TIG/Stick, RCCS-14 Fingertip Control
View all welding machines, used welders & equipment, and other welding tools available at Welders Supply.
Dynasty® 280 Multiprocess Fingertip Contractor Package with ArcReach® SuitCase® 8 #951796 Specifications
Industries Interests Construction
Education / Training
Infrastructure
Maintenance and Repair - Field Operations
Maintenance and Repair - In Plant
Mechanical Contracting
Shipbuilding
Work / Service Trucks
Weldable Metals Aluminum
Specialty Metals
Stainless Steel
Steel
Input Voltage 208 V
220/230/240 V
380/400 V
460/480 V
575 V
Rated Carbon Diameter 3/16 in (4.8 mm)
Input Phase 1- and 3-Phase
Input Hz 50/60 Hz
Current Type AC / DC
Max Open Circuit Voltage 60 VDC
Portability Handle(s)
Strap
Running Gear / Cart (Optional)
Weld Output CC / CV
Net Width 8.6 in
Net Height 13.6 in
Net Length 22.5 in
Net Weight 55 lbs
Warranty Miller's True Blue Warranty

SHIPPING DIMENSIONS

Height: 13.60 Inches
Width: 8.60 Inches
Length: 22.50 Inches
Weight: 55 Lb(s) 0 Oz

Manufacturer Reviews

Ty
Even better then the Dynasty 200DX that I'm upgrading from, with the extra option to run a feeder to GMAW with this machine, it's pretty much the best machine to cover all processes
