Hypertherm Powermax 45 XP Hand System w/o CPC - 20' Leads (220V CSA) #088112

Plasma torch:

Handheld
Cut capacity:

1/2" Capacity
Material type:

Mild Steel

Stainless Steel

Aluminum
Power supply:

Hypertherm has improved the legendary Powermax 45 with 70% more power than many competitive systems—enough to easily slice through steel up to 5/8” thick and sever nearly twice that thickness. Hypertherm’s Smart Sense™ technology automatically monitors and adjusts air for maximum performance, making the cuts clean so you won’t have to spend time grinding and prepping edges.
Also new on the Powermax 45 XP is a Duramax® Lock torch with a torch disable switch for fast and easy replacement of consumables. A FastConnect™ torch connection lets you make quick torch change-outs—and with 11 different torch styles available, you have plenty to choose from. The entire system is lighter and easier to work with. The patented drag-cutting technology makes it easy for even novices to use.

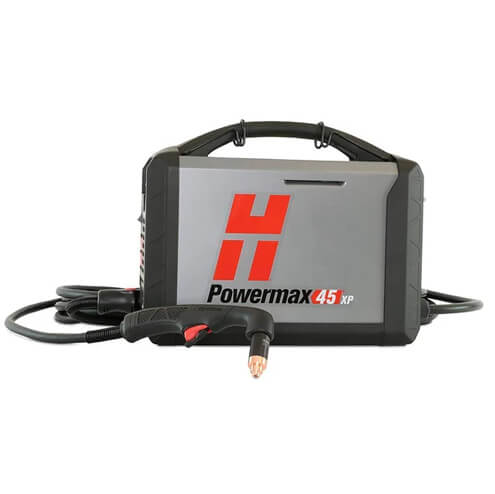

The Hypertherm Powermax 45 XP comes equipped with a Duramax® Lock torch for maximum versatility and ease of use.
This Powermax Kit (#088112) includes:
All components in this package are fully backed by Hypertherm’s 3-year warranty (Powermax) and 1-year coverage on torch and lead.
Powermax 45Output current: 20-45 kW output @max power: 5.95 Cut capacity: ½” (12mm) Severance: 1” (25mm) Auto gas adjustment: no Easily accessed, protected Number of torch options: 2 Consumables styles: 4 Machine interface options: standard CPC port F5 gas operation: no Precision gouging capability: no |
Powermax 45 XPOutput current: 10-45 kW output @max power: 6.5 Cut capacity: 5/8” (16mm) Severance: 1 1/8” (29mm) Auto gas adjustment: yes Easily accessed, protected Number of torch options: 11 Consumables styles: 7 Machine interface options: Optional CPC* F5 gas operation: yes Precision gouging capability: yes |
*5 position selectable voltage divider card or serial port via RS-485 communication
Whether you need to know a small detail or other differences between Hypertherm Powermax 45 vs 45XP, or to learn more about our other mechanized torches, Welders Supply is available to answer any of your questions.
Aside from professional-grade plasma cutters, we have welding helmets, gas cutting equipment, Tig welders, and more. Also, check out our popular gift ideas for welders!
Stock up on consumables with the Powermax 65 handheld consumable kit or Powermax 65 mechanized consumables kit.
Warranty information for Hypertherm products
Register your Hypertherm product on the Hypertherm website
All Hypertherm Powermax 45XP Models | |||
---|---|---|---|
Power Supply Only | Handheld Torch Included | Machine Torch Included | |
Handheld Only |
|
||
CPC Port | |||
CPC & Serial Port |
View all Hypertherm Powermax Plasma Cutters
Hypertherm Powermax 45 XP Specifications | |
---|---|
Output current |
10 - 45 A |
Rated output voltage |
145 VDC |
Open circuit voltage (OCV) |
275 VDC (200-240 V, CSA/CE/CCC and 480 V, CSA), 265 VDC (400 V CE/CCC) |
Dimensions with handles |
442 mm (17.4") D; 173 mm (6.75") W; 357 mm (14.1") H |
Gas Supply |
Cutting & Gouging: air (clean, dry and oil-free), nitrogen, F5 Marking: air (clean, dry and oil-free), argon |
Recommended gas inlet flow rate / pressure |
188 l/min (400 scfh; 6 scfm) @ 90 psi (5.9 bar) |
Input power cable length |
3 m (10') |
Power supply type |
Inverter - IGBT |
Cuttable metals |
Aluminum, Mild Steel, Stainless Steel |
Cut Capacity |
1/2" |
Engine drive requirement |
12.5 kVA (10kW) for full 45 A output |
Electrical efficiency |
88% |
Recyclability |
100% |
Warranty |
Power supply: 3-year Torch: 1-year |
Certifications |
CSA certified for use in Americas and Asia, except China. CCC for use in China. CE, REM, GOST-TR, ukrSEPRO, and Serbian AAA for use in Europe, Austrailia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted |
Hypertherm Powermax 45 XP CSA / CE / CCC Certifications | ||
---|---|---|
Input voltages (± 10%) |
CSA 200 – 240 V, 1-PH, 50-60 Hz 480 V, 3-PH, 50-60 Hz |
CE/CCC 230 V, 1-PH, 50-60 Hz 400 V, 3-PH, 50-60 Hz |
Input Current @ 5.95 kW |
CSA 200/240 V, 1-PH, 39/32 A 480 V, 3-PH, 9.4 A |
CE 230 V, 1-PH, 33 A 400 V, 3-PH, 10 A |
Duty cycle @ 40°C (104°F) |
CSA 50% @ 45 A, 200 – 240 V, 1-PH 60% @ 41 A, 200 – 240 V, 1-PH 100% @ 32 A, 200 – 240 V, 1-PH 50% @ 45 A, 480 V, 3-PH 60% @ 41 A, 480 V, 3-PH 100% @ 32 A, 480 V, 3-PH |
CE/CCC 50% @ 45 A, 230 V, 1-PH 60% @ 41 A, 230 V, 1-PH 100% @ 32 A, 230 V, 1-PH 50 % @ 45 A, 400 V, 3-PH 60% @ 41 A, 400 V, 3-PH 100% @32 A, 400 V, 3-PH |
Weight with 6.1 m (20') torch |
CSA 14 kg (31 lbs) |
CE 15 kg (33 lbs) |
SHIPPING DIMENSIONS |
|
Height: | 14.10 Inches |
Width: | 6.80 Inches |
Length: | 17.40 Inches |
Weight: | 31 Lb(s) 0 Oz |
