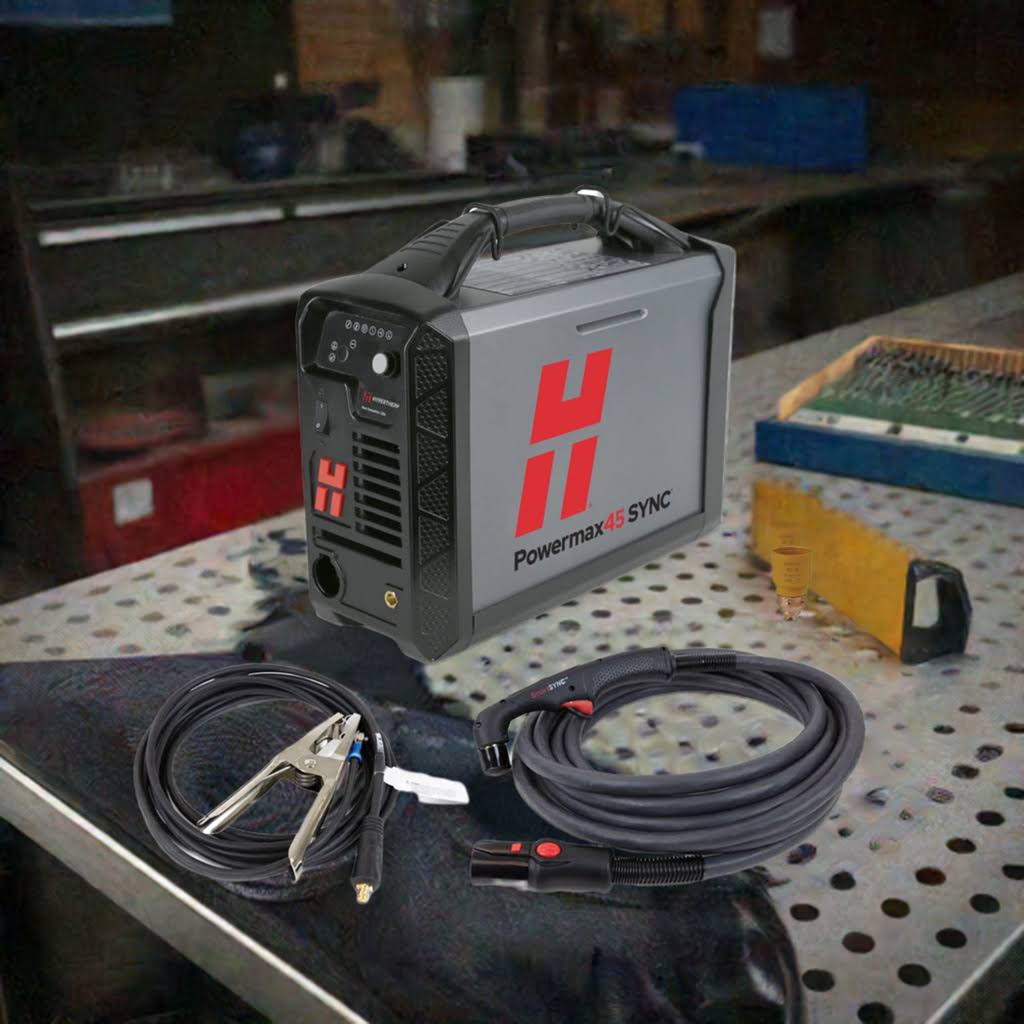

Powermax45 SYNC Portable Plasma Cutting Machine w/ 75° Hand Torch & 50ft Leads (200-240V 1PH) #088561
Unleash the Hypertherm Powermax45 SYNC plasma cutter, your ultimate cutting companion. Powered at 200-240V, this cutter delivers precision and efficiency with every operation. Equipped with a versatile 75 degree handheld torch, it ensures optimal maneuverability for intricate cuts or heavy-duty tasks. With an extended 50ft lead & work clamp, conquer projects of any scale with ease. Experience unmatched performance and reliability with the Powermax45 SYNC.

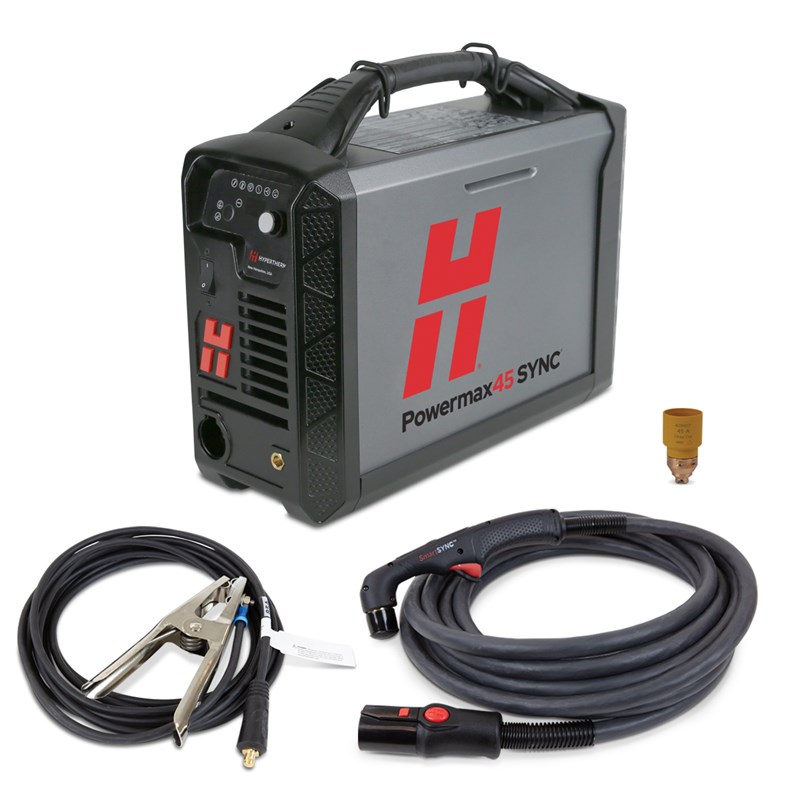

What's Included
- Powermax45 SYNC power supply
- 75° handheld SmartSYNC torch
- 50ft torch lead
- 50ft work clamp
- 10ft power cable
- (1) 45A Drag Cut SmartSYNC Cartridge
- Operator and Safety Manuals
Cut Capacity
- Recommended: 5/8" @ 20 ipm (16mm @ 500 mm/min)
- Severance (hand cutting): 1 1/8" @ 5 ipm (29mm @ 125 mm/min)
- Pierce*: 1/2" (12mm)
Max Removal Gouging - Typical Gouge
- Metal removal rate: 7.5 lbs/hr (3.4kg/hr)
- Groove profile: 0.12" D x 0.26" W (3.2mm D x 6.8mm W)
*Pierce rating for handheld use or with automatic torch height control.
Plasma Cutting Applications:
- Drag Cutting: Most common for general-purpose plasma cutting. Enables direct torch-to-workpiece contact, ideal for straight cuts
- Fine Feature Cutting: Precision cutting with narrow kerf width. Minimizes dross and heat-affected zone (HAZ) for intricate parts and detailed work
- Max Removal Gouging: Aggressive metal removal at 3.4 kg (7.5 lbs) per hour. Creates deep gouge profiles up to 0.12" D x 0.26" W
- Flush Cutting: Specialized 45-degree cutting for trimming and finishing. Allows cutting close to base materials without damage
- Max Control Gouging: Precise metal removal for shallow gouges and light washing. Ideal for controlled material shaping and preparation
Powermax45 SYNC Benefits:
Streamline Operations
- Reduce Training & Troubleshooting Costs: Minimize operator training time and lower troubleshooting expenses.
- Minimize Downtime: Decrease downtime during consumable change-outs, boosting productivity.
- Cut Consumable Costs: Eliminate premature consumable disposal, reducing overall costs.
- Optimize Inventory Management: Cartridge usage data helps manage consumable inventory efficiently.
User-Friendly Design
- Prevent Mix-Ups: Laser-marked and color-coded consumable cartridges reduce part mix-ups.
- Automatic Adjustments: RFID SmartSYNC torches automatically adjust amperage and mode, preventing setup errors.
- Maximize Consumable Lifespan: End-of-life detection extends consumable lifespan up to 5 times longer than previous models.
- Ergonomic Design: Flexible torch leads reduce operator fatigue without sacrificing durability.
Enhance Performance
- Versatile Torch Styles: Easily switch between torch styles for diverse cutting and gouging applications.
- Optimized Cartridge Design: Maximizes consumable lifespan and cut quality.
- On-the-Fly Adjustments: Hand torch controls allow for quick amperage adjustments and cartridge changes without returning to the power supply.
Unmatched Reliability
- Rugged Engineering: SmartSYNC plasma torches are built for industrial environments.
- Consistent Starts: SpringStart™ technology ensures reliable torch starting.
- Reduce Downtime: Industry-leading reliability minimizes production downtime.
Fast, Free Shipping & Easy Returns
Your in-stock items ship same or next day from our five distribution hubs in WI and IL via fast UPS Ground. Need special shipping? Just call 1-844-682-0205 - we accommodate any request, including using your shipping accounts. Enjoy hassle-free 14-day returns on new, sealed products. Count on exceptional service backed by industry-leading shipping and return policies. Experience the advantage on your next order!
All Hypertherm Powermax 45 SYNC Models | |||
---|---|---|---|
Power Supply Only | Handheld Torch Included | Machine Torch Included | |
Handheld Only |
|
||
CPC Port | |||
CPC & Serial Port |
Shop Powermax SYNC plasma cutters and compatible SmartSYNC consumables at the lowest prices online, from Welders Supply.
This product replaces these legacy models:
- Powermax45 XP w/ 50' 75° Hand Torch (220V)
- Powermax45 XP w/ 50' 180° Machine Torch, CPC, Remote (220V)
Powermax45 SYNC Torches & Consumables
Powermax45 SYNC Specs:
Cut Capacity | |
---|---|
Recommended | 5/8" (16 mm) @ 20 ipm (500 mm/min) |
Severance (hand cutting) | 1 1/8" (29 mm) @ 5 ipm (125 mm/min) |
Pierce | 1/2" (12 mm) |
Input, Output & Operation | |
---|---|
Input voltages |
CSA CE |
Kilowatt output | 6.9kW |
Input current | 9-45 A |
Output current | 155 VDC |
Rated output voltage |
CSA CE |
Duty Cycle @ 104° F |
CSA CE |
Open circuit voltage (OCV) |
CSA CE |
Gas supply | Cutting: air (clean, dry and oil-free), nitrogen, F5 Gouging: air (clean, dry and oil-free), nitrogen, F5 Marking: air (clean, dry and oil-free) |
Recommended gas inlet flow rate/pressure | 400 scfh @ 85 psi (188 l/min @ 5.9 bar) |
Input power cable length | 10 ft (3 m) |
Power supply type | Inverter - IGBT |
Engine drive requirement | 12.5 kVA (10 kW) for full 45 A output |
Electrical efficiency | 90% |
Certifications | CSA - certified for use in the Americas and Asia, except China CE - for use in Europe, Australia, New Zealand, Belarus, Kazakhstan, Serbia, Ukraine, and other countries where accepted. Also RCM, Ukraine and Serbian. UKCA - Great Britain |
Warranty | Power supplies have a 3-year warranty and torches a 1-year warranty |
SHIPPING DIMENSIONS |
|
Height: | 14.00 Inches |
Width: | 6.80 Inches |
Length: | 17.40 Inches |
Weight: | 31 Lb(s) 0 Oz |
Powermax45 SYNC PDFs
Powermax SYNC PDFs
- Powermax SYNC Parts Guide
- Powermax SYNC Cut Charts Guide
- Powermax SYNC Mechanized Cutting Guide
- Powermax SYNC Serial Communication Programmer Reference Guide
