Cut capacity:

1/2" Capacity

1/2" Capacity

Plasma torch:

Handheld

Handheld

Power supply:

460V

460V

  • 1/2 inch cut capacity plasma cutter1/2" Cut Capacity
  • 50ft torch leads50' Leads
  • Handheld plasma torch included75° Hand Torch
  • 460V power input460V Three Phase
  • Hypertherm 3 year warranty3-Year Power Warranty
  • Student rebate availableFirst Time Student Rebate

Hypertherm Powermax45 XP replaced by Powermax45 SYNC

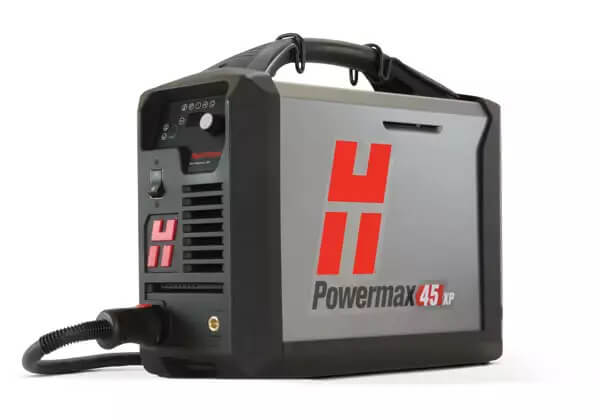

Hypertherm Powermax45 XP #088128 460V Handheld Plasma System w/ 50' 75° Torch (460V 3-PH)

Hypertherm Powermax 45 XP Student RebateHypertherm Powermax 45 XP Trade Ins

Hypertherm's Most Popular Portable Plasma Cutter …Improved!

The Powermax45 XP is the ultimate upgraded version of the beloved Powermax45. Despite being small in size, this machine is incredibly powerful and efficient. Get higher cut capacity and faster cutting speeds in a simple, easy-to-use design. Cut through 5/8” of steel quickly and easily with our #1 best-selling plasma cutter of ALL TIME.

Powermax45 XP (#088128) At A Glance

  • 5/8” (16mm) rated cutting capability (mild steel, stainless steel, aluminum)
  • FastConnect™ torch connection
  • Smart Sense™ automatically monitors and adjusts air pressure for maximum performance
  • Patented drag-cutting technology for ease of use
  • Consumables available for fine feature cutting, extended reach cutting, gouging, precision gouging, marking

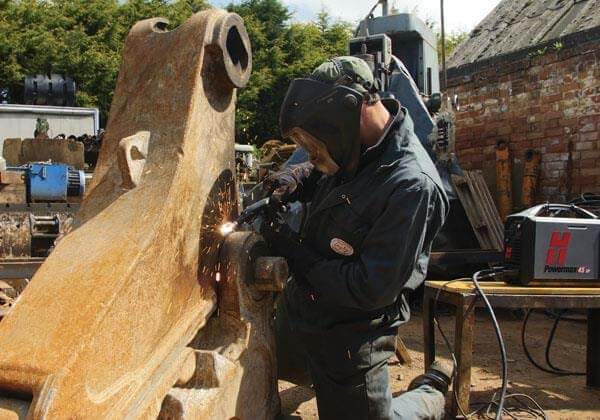

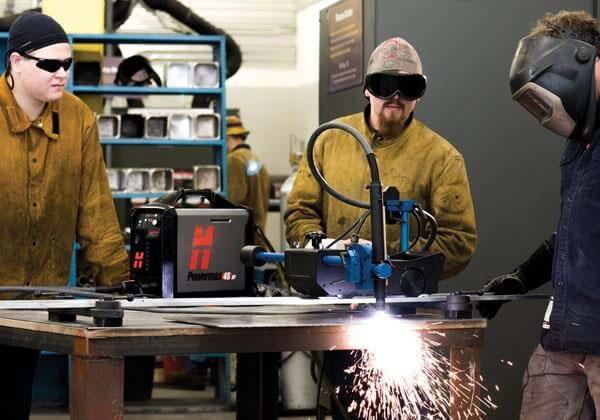

Smooth Handheld Plasma Cutting Performance

Hypertherm provides a selection of torches that are suitable for both oxyfuel and plasma cutting methods; these torches also include specialized consumables for cutting, gouging, and marking. Utilizing plasma cutting, you can expect to cut 1.5 times faster than oxyfuel on ¼” mild steel, and the cuts and gouges you make will be of such a high quality that there will be minimal, if any, grinding and prepping needed.

Included With This Package (#088128):

The Hypertherm Powermax 45XP package 088128 includes the Powermax 45XP hand system, a 75° handheld torch and 50 ft. leads. All components in this package are fully backed by Hypertherm’s 3-year warranty (Powermax) and 1-year coverage on torch and lead. Register your Hypertherm Powermax 45XP package for safety, education and service support.

HYPERTHERM Powermax 45 CONSUMABLES AND KITS

Stock up on consumables with the Powermax 45 handheld CSA consumable kit or Powermax 45 XP essential handheld consumables kit.

View more Hypertherm Powermax Plasma cuttersView all Hypertherm Powermax Plasma Cutter Torches



Warranty information for Hypertherm products

Register your Hypertherm product on the Hypertherm website



Additional Error Codes and Troubleshooting for the Powermax 45 XP

Shop all Hypertherm products and accessories or browse plasma cutting consumables and safety equipment available online at Welders Supply.

Hypertherm Powermax 45 XP #088128 Specifications

Output current

10 - 45 A

Rated output voltage

145 VDC

Open circuit voltage (OCV)

275 VDC (200-240 V, CSA/CE/CCC and 480 V, CSA), 265 VDC (400 V CE/CCC)

Dimensions with handles 442 mm (17.4") D; 173 mm (6.75") W; 357 mm (14.1") H
Gas Supply

Cutting & Gouging: air (clean, dry and oil-free), nitrogen, F5

Marking: air (clean, dry and oil-free), argon

Recommended gas inlet flow rate / pressure 188 l/min (400 scfh; 6 scfm) @ 90 psi (5.9 bar)
Input power cable length 3 m (10')
Power supply type Inverter - IGBT
Cuttable metals

Aluminum, Mild Steel, Stainless Steel

Cut Capacity 1/2"
Engine drive requirement 12.5 kVA (10kW) for full 45 A output
Electrical efficiency 88%
Recyclability 100%
Warranty Power supply: 3-year   Torch: 1-year
Certifications CSA certified for use in Americas and Asia, except  China. CCC for use in China. CE, REM, GOST-TR, ukrSEPRO, and Serbian AAA for use in Europe, Austrailia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted



Hypertherm Powermax 45 XP CSA / CE / CCC Certifications

Input voltages (± 10%)

CSA

200 – 240 V, 1-PH, 50-60 Hz

480 V, 3-PH, 50-60 Hz

CE/CCC

230 V, 1-PH, 50-60 Hz

400 V, 3-PH, 50-60 Hz

Input Current @ 5.95 kW

CSA

200/240 V, 1-PH, 39/32 A

480 V, 3-PH, 9.4 A

CE

230 V, 1-PH, 33 A

400 V, 3-PH, 10 A

Duty cycle @ 40°C (104°F)

CSA

50% @ 45 A, 200 – 240 V, 1-PH

60% @ 41 A, 200 – 240 V, 1-PH

100% @ 32 A, 200 – 240 V, 1-PH

50% @ 45 A, 480 V, 3-PH

60% @ 41 A, 480 V, 3-PH

100% @ 32 A, 480 V, 3-PH

CE/CCC

50% @ 45 A, 230 V, 1-PH

60% @ 41 A, 230 V, 1-PH

100% @ 32 A, 230 V, 1-PH

50 % @ 45 A, 400 V, 3-PH

60% @ 41 A, 400 V, 3-PH

100% @32 A, 400 V, 3-PH

Weight with 6.1 m (20') torch

CSA

14 kg (31 lbs)

CE

15 kg (33 lbs)

SHIPPING DIMENSIONS

Height: 14.10 Inches
Width: 6.80 Inches
Length: 17.40 Inches
Weight: 31 Lb(s) 0 Oz
