Hypertherm Powermax45 SYNC Plasma Cutter w/ CPC Port, 75° Handheld Torch, 50ft Lead (200-240V 1PH) #088563

Part Number: 088563
UPC: 662310523930
$3,325.00 + Free Shipping

Call 844-682-0205 or CHAT for more options

Plasma torch:

Handheld

Handheld

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

  • torch lead length icon50' Leads & Work Cable
  • Handheld plasma torch included75° Hand Torch Included
  • CPC portCPC Port for Mechanized Cutting
  • 230V power input220-240V Input
  • Single phase plasma cutter for sale1-Phase Input
  • Hypertherm 3 year warranty3-Year Hypertherm Warranty

Powermax45 SYNC Portable Plasma Cutting Machine w/ CPC Port, 75° Handheld Torch & 50ft Leads (200-240V 1PH) #088563

Meet the Hypertherm Powermax45 SYNC plasma cutter – your ultimate cutting solution. Powered by 230V, this cutter delivers precision and efficiency with every use. With the added convenience of a CPC port, seamlessly integrate auxiliary equipment for enhanced versatility. Maneuver effortlessly with the 75° handheld torch, ensuring accurate cuts from any angle. Plus, with an impressive 50ft lead, conquer projects of any size with ease. Experience unmatched performance and reliability with the Powermax45 SYNC.

Hypertherm logo

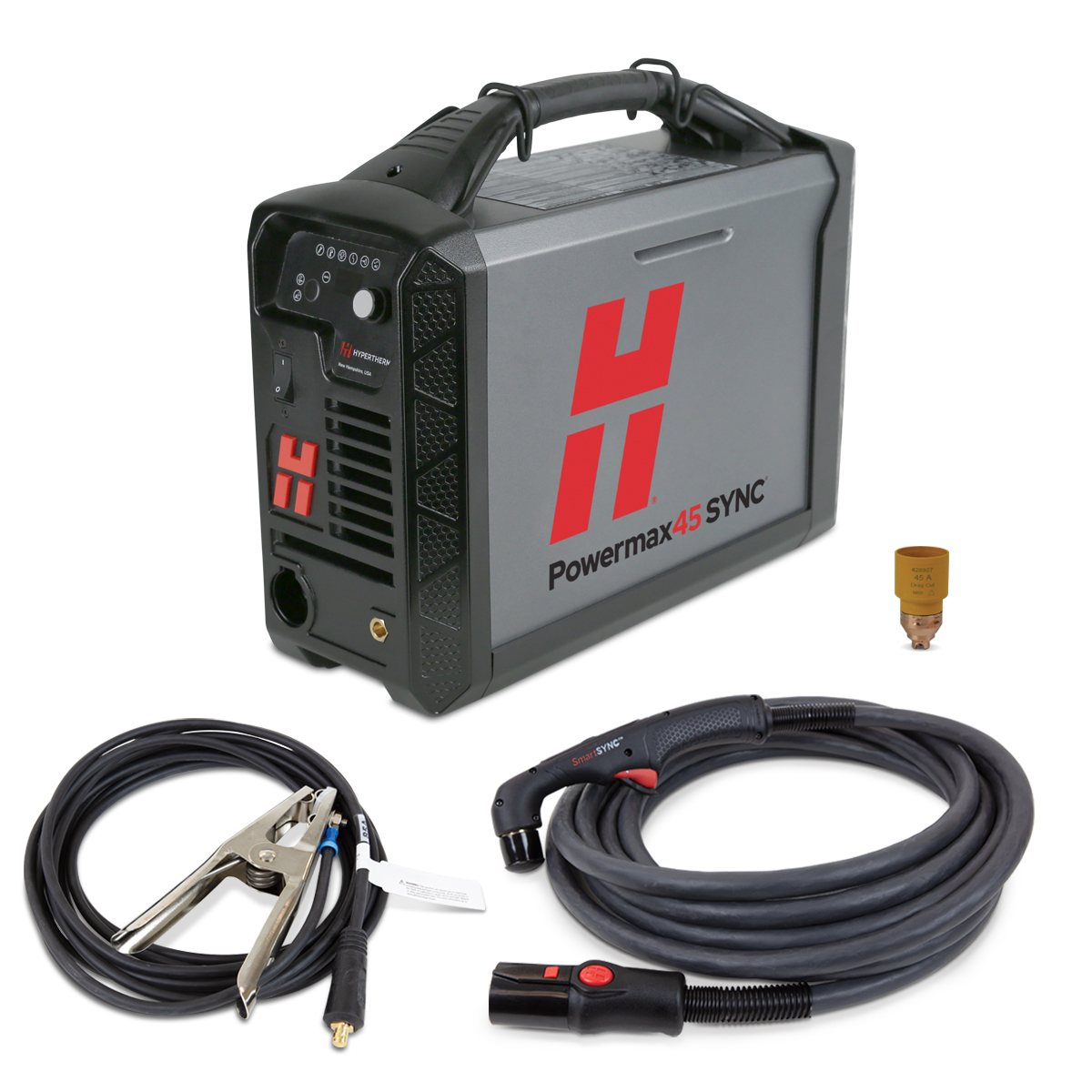

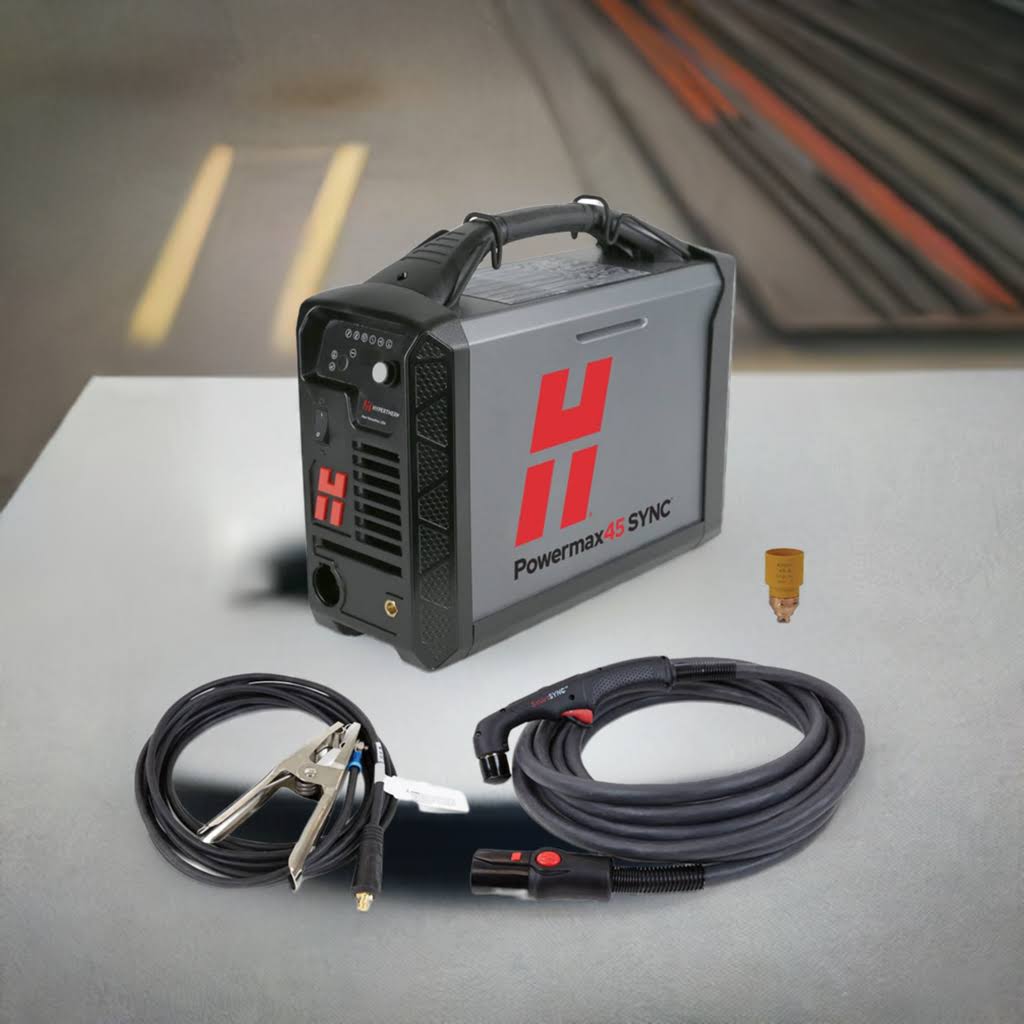

What's Included

  • Powermax45 SYNC power supply w/ CPC port
  • 75° handheld SmartSYNC torch
  • 20ft torch lead
  • 20ft work clamp
  • 10ft power cable
  • (1) 45A Drag Cut SmartSYNC Cartridge
  • Operator and Safety Manuals

Cut Capacity

  • Recommended: 5/8" @ 20 ipm (16mm @ 500 mm/min)
  • Severance (hand cutting): 1 1/8" @ 5 ipm (29mm @ 125 mm/min)
  • Pierce*: 1/2" (12mm)

Max Removal Gouging - Typical Gouge

  • Metal removal rate: 7.5 lbs/hr (3.4kg/hr)
  • Groove profile: 0.12" D x 0.26" W (3.2mm D x 6.8mm W)

*Pierce rating for handheld use or with automatic torch height control.

Powermax45 SYNC 088563 - What's Included

Plasma Cutting Applications:

  • Mechanized Cutting: Automated CNC plasma cutting for up to 50% increased productivity. Suitable for table-based operations and portable automation
  • Drag Cutting: High-speed manual cutting for thick metals. Achieves 80% faster cutting rates compared to oxy-fuel on 6mm mild steel. Ideal for general fabrication and HVAC applications
  • Fine Feature Cutting: Precision plasma cutting with kerf width as narrow as 1.2mm. Reduces heat-affected zone by up to 30% compared to standard cutting. Perfect for intricate metal art and detailed fabrication
  • Max Removal Gouging: Aggressive metal removal at rates up to 3.4 kg/hr. Produces deep gouge profiles up to 5.5mm depth, ideal for weld preparation and heavy-duty material removal
  • Max Control Gouging: Precise metal removal with gouge depth control within 0.5mm accuracy. Suitable for detailed work and light metal washing, removing up to 1.8 kg/hr of material
  • Flush Cutting: Specialized 45-degree cutting for trimming and finishing. Enables cutting within 3mm of base materials, reducing secondary operations by up to 20%
Powermax45 SYNC Cutting Applications

Powermax45 SYNC Benefits:

Enhanced Operational Efficiency

  • 50% reduction in training and troubleshooting time
  • 80% faster consumable changes, minimizing downtime
  • Eliminates up to 95% of premature consumable disposal costs
  • RFID-enabled inventory management for optimized consumable usage

User-Friendly Design

  • Color-coded, laser-marked cartridges reduce mix-ups by 90%
  • SmartSYNC RFID technology prevents setup errors, increasing first-time success rate by 75%
  • Consumable lifespan extended up to 5X compared to previous models
  • Ergonomic torch leads reduce operator fatigue by 30%

Versatile Performance

  • Quick-change cartridge system for diverse cutting and gouging applications
  • Optimized cartridge design improves cut quality by up to 20%
  • On-the-fly amperage adjustments save up to 15 minutes per shift

Industrial-Grade Reliability

  • SmartSYNC torches engineered for 2X durability in harsh environments
  • SpringStart™ technology ensures 99.9% consistent starts
  • Reduces production downtime by up to 60% compared to conventional systems

Fast, Free Shipping & Easy Returns

Your in-stock items ship same or next day from our five distribution hubs in WI and IL via fast UPS Ground. Need special shipping? Just call 1-844-682-0205 - we accommodate any request, including using your shipping accounts. Enjoy hassle-free 14-day returns on new, sealed products. Count on exceptional service backed by industry-leading shipping and return policies. Experience the advantage on your next order!

All Hypertherm Powermax 45 SYNC Models

  Power Supply Only Handheld Torch Included Machine Torch Included
Handheld Only
CPC Port
CPC & Serial Port

Hypertherm Powermax45 SYNC Features

Shop Powermax SYNC plasma cutters and compatible SmartSYNC consumables at the lowest prices online, from Welders Supply.

This product replaces these legacy models:

Powermax45 SYNC Torches & Consumables

Powermax45 SYNC Specs:

Cut Capacity

Recommended 5/8" (16 mm)
@ 20 ipm (500 mm/min)
Severance (hand cutting) 1 1/8" (29 mm)
@ 5 ipm (125 mm/min)
Pierce 1/2" (12 mm)

Input, Output & Operation

Input voltages

CSA
200-440 V, 1-PH, 50/60 Hz
480 V, 3-PH, 50/60 Hz
480 V, 3-PH, 10 A @ 6.9kW

CE
230 V, 1-PH, 33 A
400 V, 3-PH, 10 A

Kilowatt output 6.9kW
Input current 9-45 A
Output current 155 VDC
Rated output voltage

CSA
200-240 V, 1-PH 39/32 A @ 6.5 kW

CE
230 V, 1-PH, 33 A
400 V, 3-PH, 10 A

Duty Cycle @ 104° F

CSA
50% @ 45 A, 200-240 V, 1-PH
60% @ 41 A, 200-240 V, 1-PH
100% @ 32 A, 200-240 V, 1-PH
50% @ 45 A, 480 V, 3-PH
60% @ 41 A, 480 V, 3-PH
100% @ 32 A, 480 V, 3-PH

CE
50% @ 45 A, 230 V, 1-PH
60% @ 41 A, 230 V, 1-PH
100% @ 32 A, 230 V, 1-PH
50% @ 45 A, 400 V, 3-PH
60% @ 41 A, 400 V, 3-PH
100% @ 32 A, 400 V, 3-PH

Open circuit voltage (OCV)

CSA
275 VDC 200-240 V
275 VDC 480 V

CE
265 VDC 400 V

Gas supply Cutting: air (clean, dry and oil-free), nitrogen, F5
Gouging: air (clean, dry and oil-free), nitrogen, F5
Marking: air (clean, dry and oil-free)
Recommended gas inlet flow rate/pressure 400 scfh @ 85 psi (188 l/min @ 5.9 bar)
Input power cable length 10 ft (3 m)
Power supply type Inverter - IGBT
Engine drive requirement 12.5 kVA (10 kW) for full 45 A output
Electrical efficiency 90%
Certifications CSA - certified for use in the Americas and Asia, except China
CE - for use in Europe, Australia, New Zealand, Belarus, Kazakhstan, Serbia, Ukraine, and other countries where accepted.
Also RCM, Ukraine and Serbian. UKCA - Great Britain
Warranty Power supplies have a 3-year warranty and torches a 1-year warranty

SHIPPING DIMENSIONS

Height: 14.00 Inches
Width: 6.80 Inches
Length: 17.40 Inches
Weight: 31 Lb(s) 0 Oz
