Miller Continuum™ Feeder (Single) MIL951631001

Part Numbers: 951631001
UPCs: 715959617338

Included with your purchase: ()

Welding equipment Miller Continuum™ Feeder (Single) only one beginner
Miller Continuum™ Feeder (Single) MIL951...
Choose Options
American Welder T-Shirt - Back
FREE!
Welders Supply T-Shirt & Stickers
$5,595.00 + Free Shipping $5,595.00*
SAVE $0.00
$5,595.00 + Free Shipping $5,595.00*
SAVE $0.00

Call 844-682-0205 or CHAT for more options

Welding type:

MIG

MIG

Power supply:

220V 3 Phase

220V 3 Phase

460V

460V

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

  •  Multi-Voltage
  •  Three Phase
  •  3-Year Power Warranty

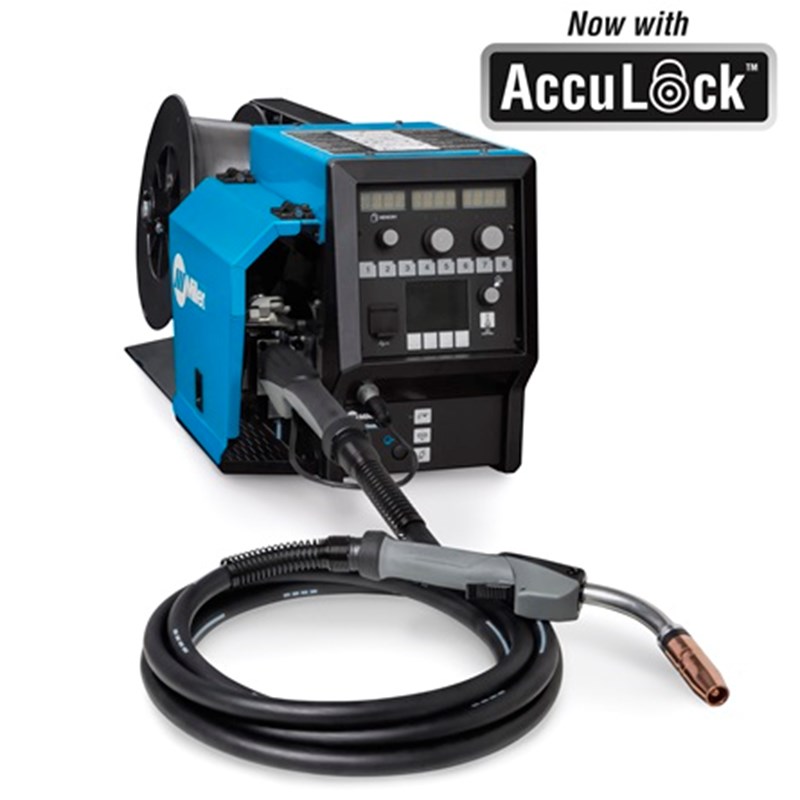

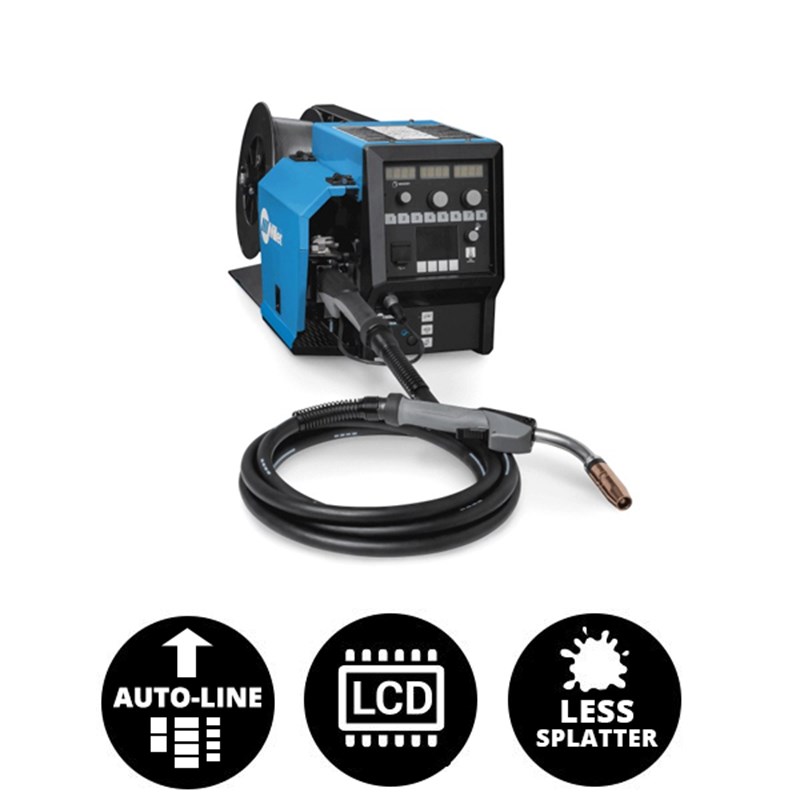

Miller Continuum™ Feeder (Single) MIL951631001

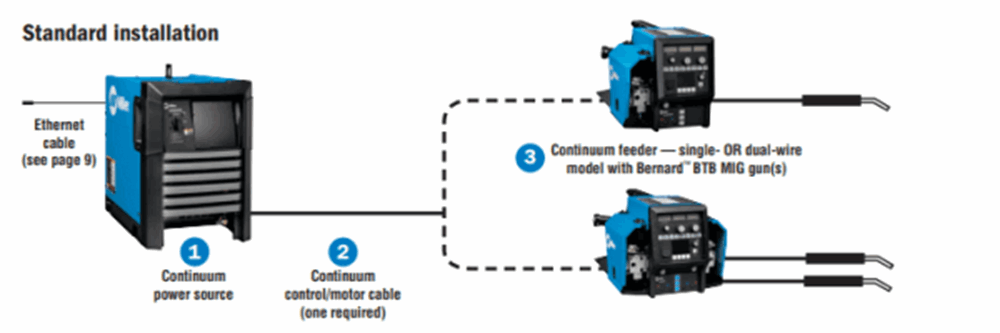

Advanced, industrial wire feeder with Tru-Feed™ technology improves productivity through weld quality, ease of use and system flexibility. Designed for use with a Continuum power source.

Features:

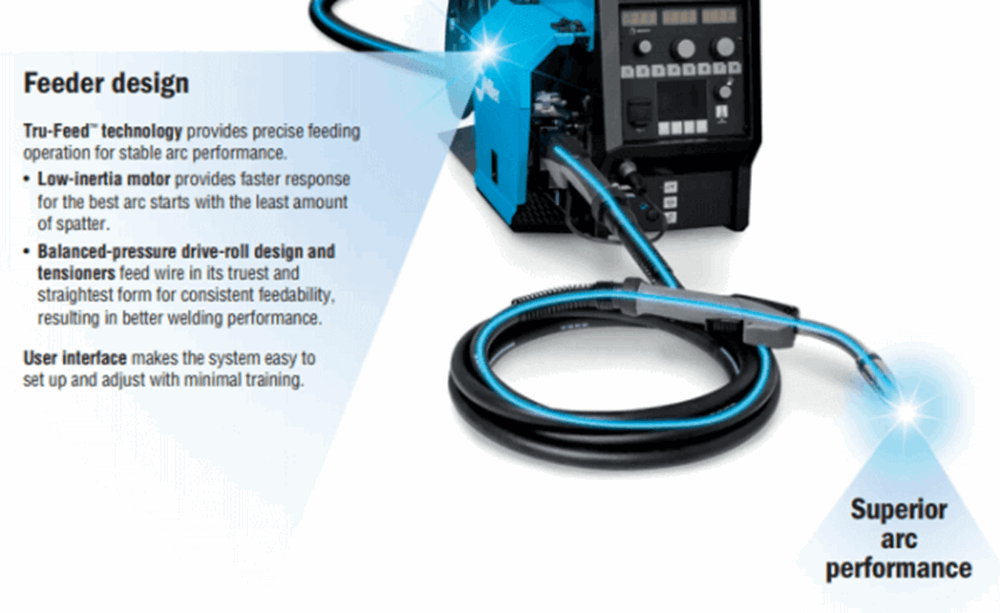

Tru-Feed™ technology provides precise feeding operation for stable arc performance.

Low-inertia motor provides faster response for the best arc starts with the least amount of spatter.

Balanced-pressure drive-roll design and tensioners feed wire in its truest and straightest form for consistent feedability, resulting in better welding performance.

Spring-loaded Accu-Mate™ connection aligns gun perfectly in the drive-roll carrier, preventing the gun from being pulled loose and providing consistent wire feeding.

Quick-change dual-bearing drive rolls give you more consistent wire feeding.

Toolless positive-locking rotatable drive assembly allows operator to rotate the drive, eliminating severe bends in the wire feed path to extend gun-liner life and aid in feeding difficult wires.

Wind Tunnel Technology™ - internal airflow that protects electrical components and PC boards from dirt, dust, debris- greatly improving reliability.

Fan-On-Demand™ - operates only when needed, reducing noise, power consumption and the amount of airborne contaminants pulled through the machine.

Check out the wide selection of MIG, TIG, Stick and Gas welders available at Welders Supply Company.





System Name: Miller Continuum™ Feeder (Single) #951631001

Applications:

Construction equipment

Automotive components

Recreational vehicles

Farm machinery

Office furniture

Mining machinery

Industrial fabrication

Processes:

Accu-Pulse® pulsed MIG (GMAW-P)

Versa-Pulse™

RMD® MIG (GMAW)

High-deposition MIG (GMAW)

Flux-cored (FCAW)

Air carbon arc (CAC-A)

Input Power: Auto-Line™ 230–575 V, 3-phase, 50/60 Hz
Rated Output:

350: 350 A at 100% duty cycle

500: 500 A at 100% duty cycle

Output Range:

350: 20–400 A, 10–44 V

500: 20–600 A, 10–44 V

SHIPPING DIMENSIONS

Height: 23.00 Inches
Width: 25.00 Inches
Length: 30.00 Inches
Weight: 53 Lb(s) 0 Oz

Product Questions and Answers


Q - What does it weigh? A - 43 lbs.
Q - How big a spool can it hold? A - 18", 60 lb.
