Miller Deltaweld® 302 903376
Part Number:
903376
Miller Deltaweld® 302 903376
Part Number:
903376
Power supply:
220V 3 Phase
460V
Material type:
Mild Steel
Stainless Steel
Documents
Videos
Multi-Voltage
Three Phase
3-Year Power Warranty

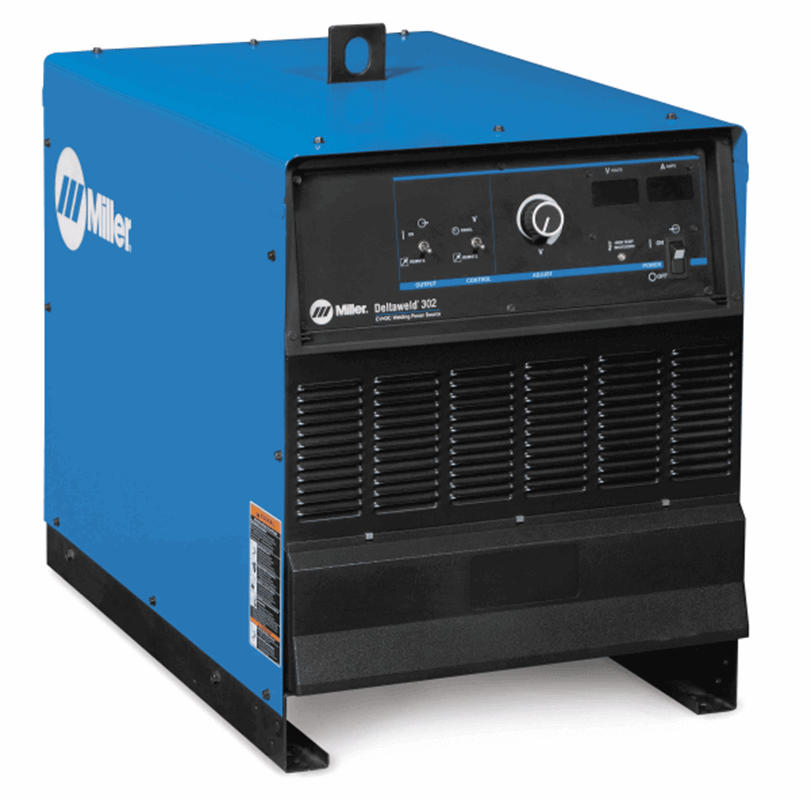

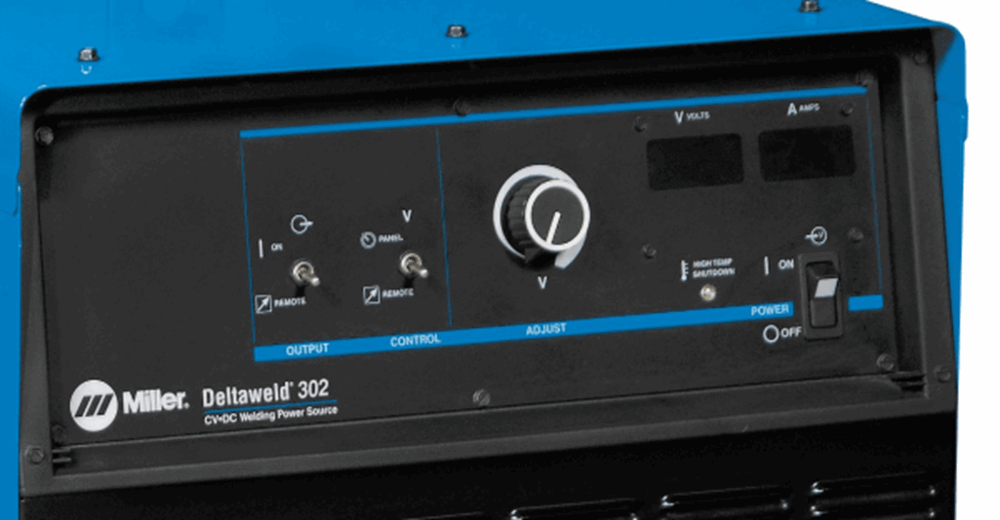

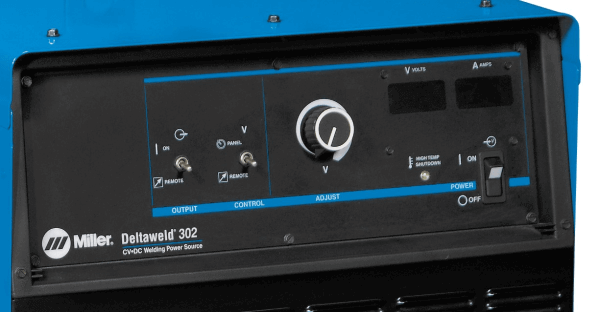

Miller Deltaweld® 302 200-208/230/460 V 903376
Industry standard for industrial MIG welding. Designed for manufacturing operations, with 100 percent duty cycle for extended arc-on time.
Features:
- Line Voltage Compensation
- Fan-On-Demand™
- Easy to Read Digital Meters
- 14-pin Receptacle14-pin Receptacle
- 115-VAC Power
- Thermal Overload Protection
Check out the wide selection of MIG, TIG, Stick and Gas welders available at Welders Supply Company.
Deltaweld® 302 Specifications: |
|
| Industries Interests | Aerospace Construction Heavy Equipment Manufacturing Manufacturing Railcar |
| Current Type | DC |
| Input Voltage | 208 V 220/230/240 V 460/480 V |
| Input Phase | 3-Phase |
| Input Hz | 60 Hz |
| Portability | Lift Eye (Standard) Running Gear / Cart (Optional) |
| Net Height | 30 in |
| Net Length | 30.5 in |
| Net Weight | 323 lbs |
| Weldable Metals | Aluminum Specialty Metals Stainless Steel Steel |
| Net Width | 23 in |
| Rated Output | 300 A at 32 VDC, 100% duty cycle |
| Max Open Circuit Voltage | 42 VDC |
| Warranty | 3 Years Miller's True Blue Warranty |
SHIPPING DIMENSIONS |
|
| Height: | 30.00 Inches |
| Width: | 29.00 Inches |
| Length: | 31.00 Inches |
| Weight: | 341 Lb(s) 0 Oz |
Accessories
Consumables
Product Questions and Answers
Q - Does this come with any accessories?
A - No, this is the power source only.
Q - What running gear works with this?
A - Miller's Standard Running Gear, #042 886
