Miller Dimension™ 452 Stationary Pkg 951273 (Discontinued)

Product Number: 951273

Discontinued - Replaced by Miller Dimension 650 #907617

$9,679.76 + Free Shipping
$12,405.00 You Save $2,725.24
This product is currently out of stock. Please check back later, or call 1-800-236-8825 for assistance.
Out of Stock

Welding type:

Mig

Mig

Stick

Stick

Tig

Tig

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

Power supply:

220V 3 Phase

220V 3 Phase

460V

460V

  • Three Phase Input
  • Bernard BTB MIG Gun
  • CENTERFIRE Contact Tips
  • Multiprocess Welding
  • 3-Year Miller Warranty

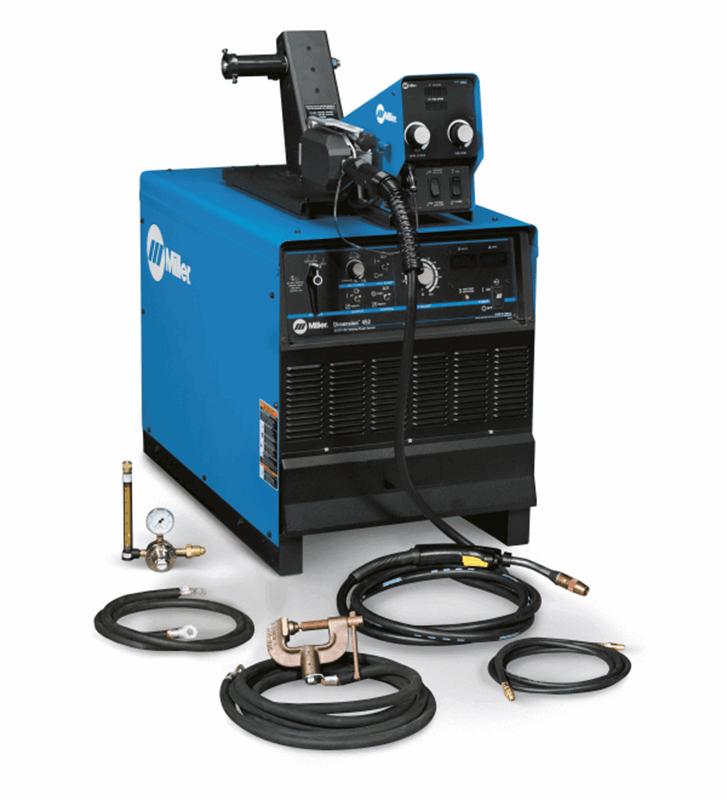

Miller Dimension™ 452 230/460/575 V Stationary Pkg 951273 (Discontinued)

Designed for heavy industrial welding applications, with a 100% duty cycle for extended arc-on time.

What's Included:

  • .035 - .045 reversible dual V drive rolls

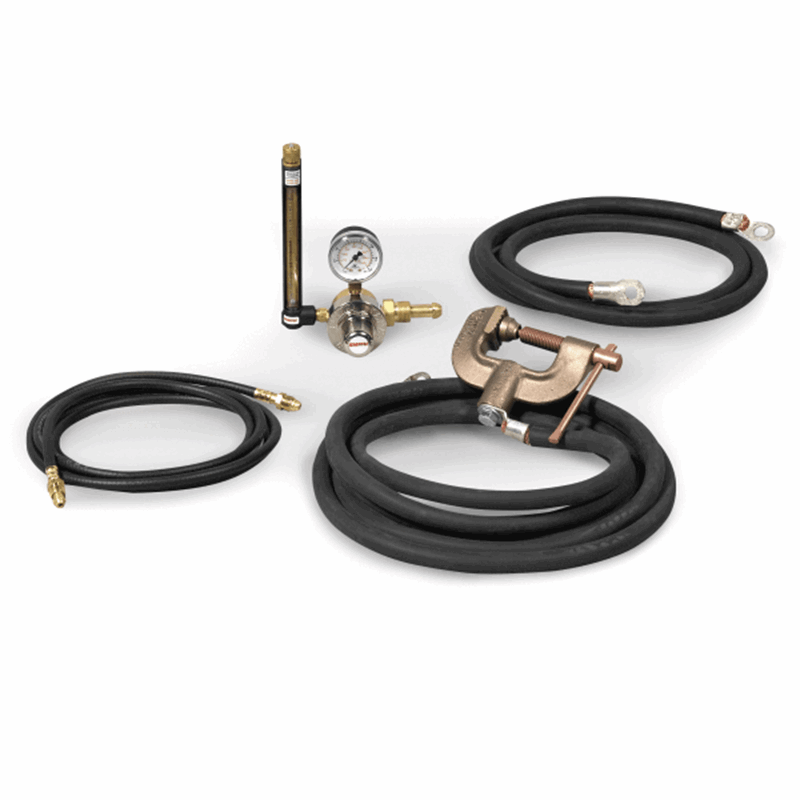

  • 15ft 4/0 work cable with 600A C-Clamp
  • 3ft gas hose
  • 6ft 4/0 wire feeder to power source weld cable

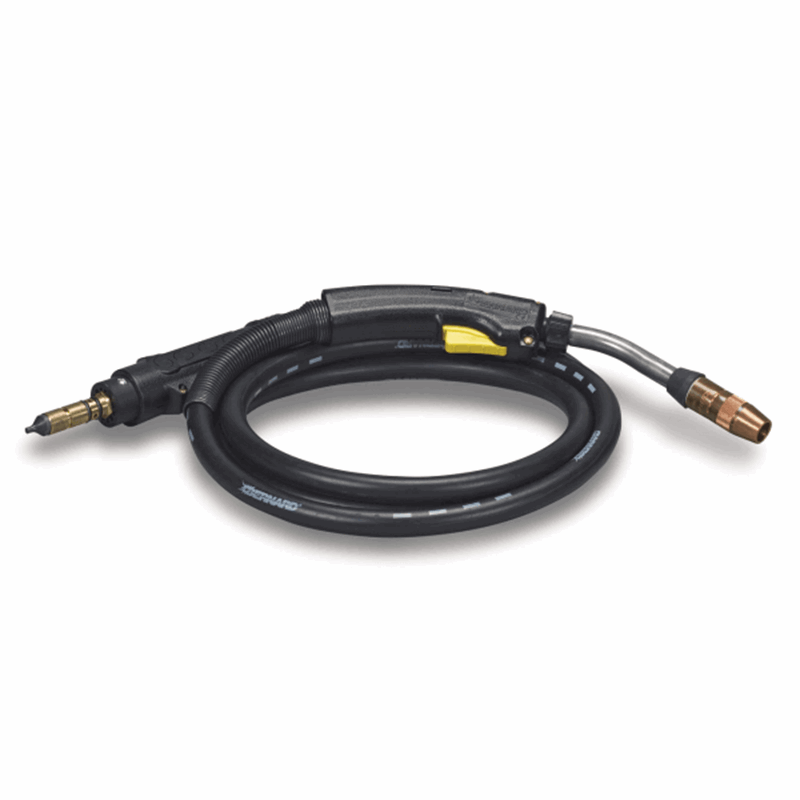

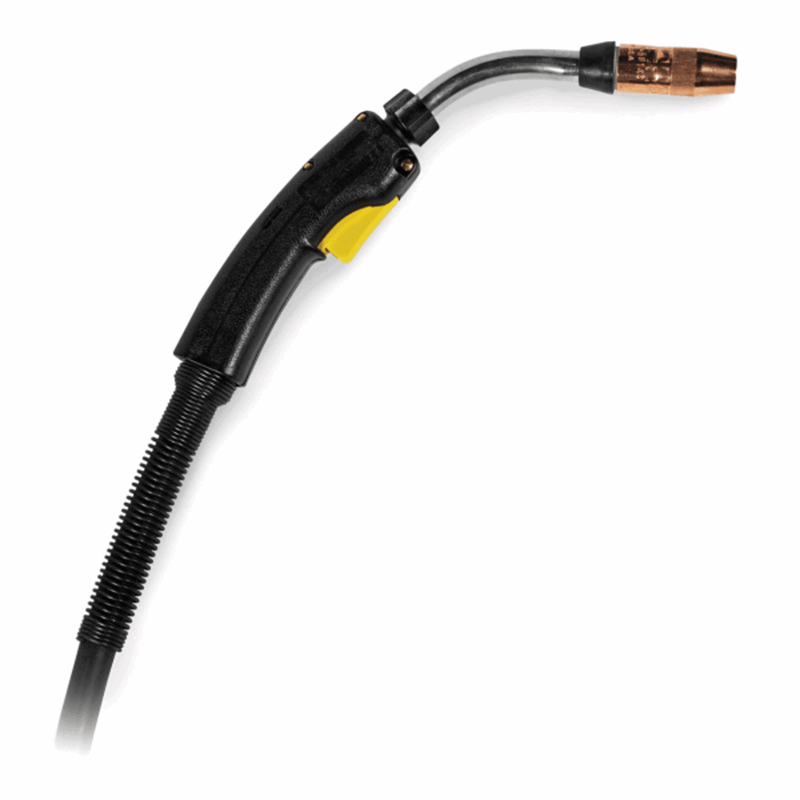

  • Bernard™ BTB Gun 400 AMP, 15FT
  • Centerfire contact tips, .035 (QTY 3), .045 (QTY 2)

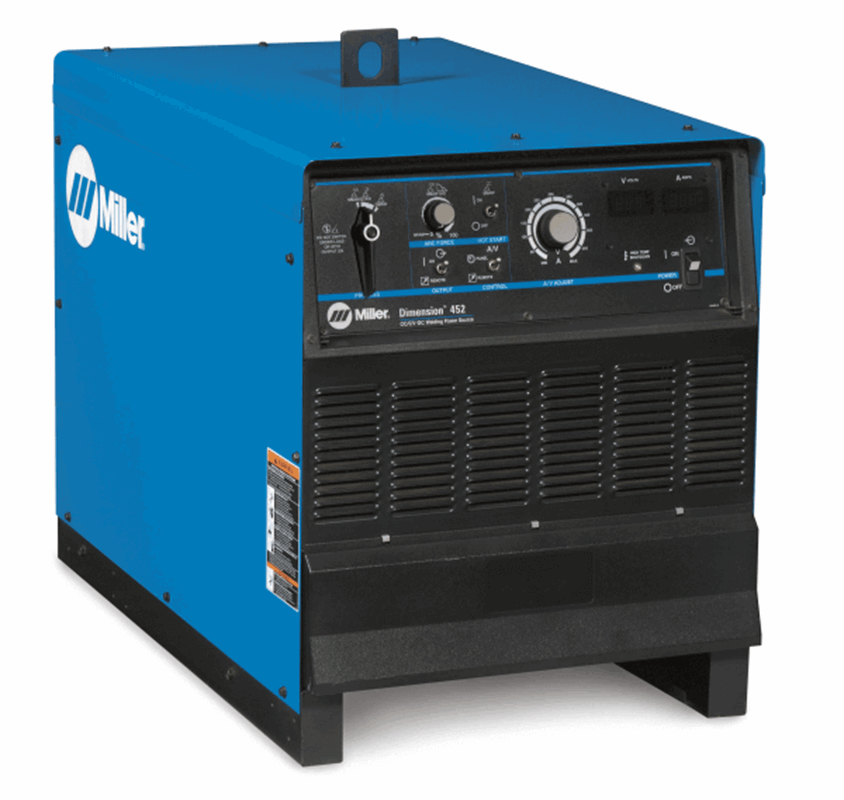

  • Dimension 452 230/460/575 V
  • Regulator/flowmeter
  • S-74D Feeder
Check out the wide selection of welding machines including MIG welders, TIG welders, and Gas welders available at Welders Supply Company.

Miller Dimension™ 452 Processes:

  • Air Carbon Arc Cutting and Gouging (CAC-A)
  • Flux Cored (FCAW)
  • MIG (GMAW)
  • Stick (SMAW)
  • Submerged Arc (SAW)
  • TIG (GTAW)

Miller Dimension™ 452 Specifications:

Industries Interests Aerospace
Construction
Heavy Equipment Manufacturing
Infrastructure
Manufacturing
Railcar
Shipbuilding
Boat / Yacht
High Purity Processing
Carbon Diameter 5/16 in (7.9 mm)
Current Type DC
Input Voltage 208 V
220/230/240 V
460/480 V
Input Phase 3-Phase
Input Hz 60 Hz
Max Open Circuit Voltage 65 VDC
Portability Lift Eye (Standard)
Running Gear / Cart (Optional)
Net Height 30 in
Net Length 38 in
Net Weight 424 lbs
Weldable Metals Aluminum
Specialty Metals
Stainless Steel
Steel
Net Width 23 in
Warranty 3 Years
Miller's True Blue Warranty

SHIPPING DIMENSIONS

Height: 24.00 Inches
Width: 33.00 Inches
Length: 40.00 Inches
Weight: 455 Lb(s) 0 Oz

Miller Dimension™ 452 Stationary Pkg #951273 Welder Fan on Demand™ Feature



Miller Dimension™ 452 Stationary Pkg #951273 Welder Remote Control Feature



Miller Dimension™ 452 Stationary Pkg #951273 Welder Submerged Arc Feature

Product Questions and Answers


Q - Can this be used with a spool gun? A - Yes, but you will need the Miller WC-24 Weld Control (#137549) and a Miller Spoolmatic 30A Spoolgun (#130831).
Q - Will this TIG weld aluminum? A - No, this machine only produced DC power. You need AC power to TIG weld aluminum.

How to restart after short circuit shutdown:

  1. Short circuit shutdown.

    When a contact tip is shorted and sticks to workpiece, the unit output automatically drops to a safe operating level.

  2. Shut down machine.

    Release gun trigger, turn unit off, and remove contact tip from workpiece.

  3. Check contact tip.

    Inspect contact tip and replace if damaged.

  4. Turn unit on.

    Power up unit to continue welding.
