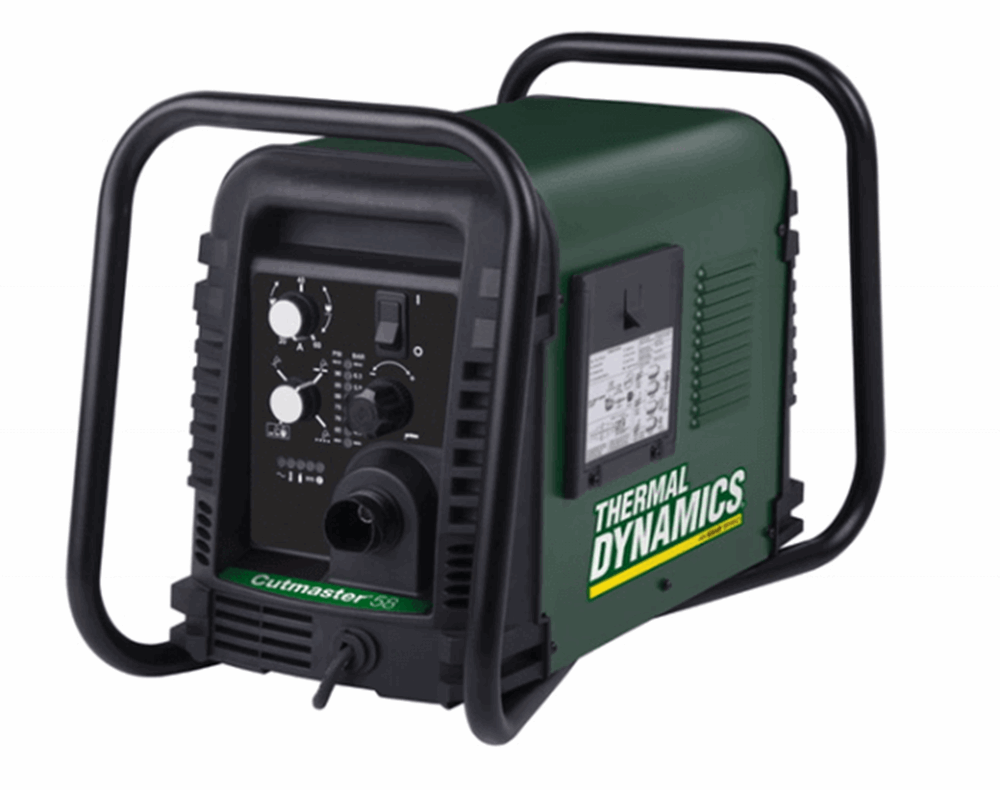

Thermal Dynamics Cutmaster 58, 50 ft. Lead W/SL60QD Torch, 208-230 VAC #1-5831-1

Part Numbers: 1-5831-1

Included with your purchase ( ) :

Thermal Dynamics Cutmaster 58 #1-5831-1
Thermal Dynamics Cutmaster 58, 50 ft. Le...
Welders Supply cup holder
FREE!
Welders Supply Magnetic Cup Holder
Welders Supply Stickers
FREE!
2 x Welders Supply Stickers
Choose Options
Welders Supply T-Shirt
FREE!
Welders Supply T-Shirt
$2,549.00 + Free Shipping $3,149.00*
SAVE $600.00
$2,549.00 + Free Shipping $3,149.00*
SAVE $600.00

Call 844-682-0205 or CHAT for more options

Cut capacity:

1/2" Capacity

1/2" Capacity

Plasma torch:

Handheld

Handheld

Power supply:

220V Single Phase

220V Single Phase

220V 3 Phase

220V 3 Phase

460V

460V

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

  • MultiPhase Power Supply
  • 1/2" Cut Capacity
  • 4 Year Warranty

Best Price on the Thermal Dynamics Cutmaster 58 Plasma System #1-5831-1

The Cutmaster 58 is the most powerful 1/2 in. (12 mm) Thermal Dynamics machine on the market today. This medium-duty unit cuts through mild, stainless, or aluminum up to 1-1/8 in. (30 mm) thick, and combines power with the well-known performance and features of the industry-leading 1Torch®.

The Cutmaster 58 is a classic design known for reliable operation no matter what. You’ll get the fastest turnaround times with the highest-quality cut every time!

FEATURES

  • 6.2 kW rated output, 50% Duty Cycle at 60A with automatic multi-voltage detection from 230-460V; built for portability and durability with the integral multi-handle design
  • SL60QD 1Torch quick disconnect (QD) with ATC® (Advanced Torch Connector) allowing selective replacement of either the torch handle assembly or the torch leads, using the patented SureLok® technology also available as an RPT Torch
  • Purge mode for clearing the gas line and setting gas pressure.
  • Three process modes: standard cutting mode, trigger latch mode, and expanded metal mode
  • 1/2 in. (12 mm) recommended cut capacity with greater than 1-1/8 in. (30 mm) maximum cut and 1/2 in. (12 mm) pierce rating
  • Industry leading 4-year warranty on power supply and 1-year warranty on torch
  • Tubular “roll bar” which protects the front and rear of the power supply and makes the unit easy to carry
  • Color-coded LEDs on the front panel indicate gas pressure status and setup errors
  • On/Off switch on the front panel
  • Accepts 1ph or 3ph, 208 – 480V primary power, offering location flexibility
Shop other Plasma Cutting Machines and Plasma Cutting Consumable Parts and Accessories





Specifications

Max Amperage Output - (Amps) 60
Rated Output Power - (Kw) 6.2
Recommended Cut - Inches (mm) 1/2 - " (12)
Max Cut - Inches (mm) 1 1/8 - " (30)
Pierce Rating - Inches (mm) 1/2 - " (12)
Input Voltage - (Volts, Phase, Hz) 208-230/460 V, 1/3 ph, 50/60 Hz
400 V, 3 ph, 50 Hz
600 V, 3 ph, 50/60 Hz
Rated Duty Cycle
40% @ 60A
60% @ 50A
100% @ 30A
Amperage Draw 45 (230V, 1 Phase)
24 (230V, 3 Phase)
16 (460V, 3 Phase)
Dimensions (L x W x H) Inches (mm) 24 x 12 x 15 (610 x 305 x 381)
Weight - lbs (kg) 43 (19.5)
Torch Model SL60QD
Air Pressure - psi (bar) 75 (5.2)
Flow - Cfm (l/m) 6.7 (190)

SHIPPING DIMENSIONS

Height: 15.00 Inches
Width: 12.00 Inches
Length: 24.00 Inches
Weight: 43 Lb(s) 0 Oz

Product Questions and Answers


Q - What air filter do you need for this? A - Thermal Dynamics® Plasma Air Filter Kit 7-7507 or the Thermal Dynamics® Plasma 2 Stage Air Filter Kit 9-9387
Q - Is this CNC compatible? A - Yes.

How to Change Gouge Depth and Width:

  1. Change speed.

    Increase speed of torch to decrease width and depth, opposite for decrease of speed.

  2. Change standoff.

    Increase the standoff of torch to increase width and decrease depth, opposite for decrease of standoff.

  3. Change angle.

    Increase angle of torch to decrease width and increase depth, opposite for decrease of angle.

  4. Change current.

    Increase current of supply to increase width and increase depth, opposite for decrease of current.
