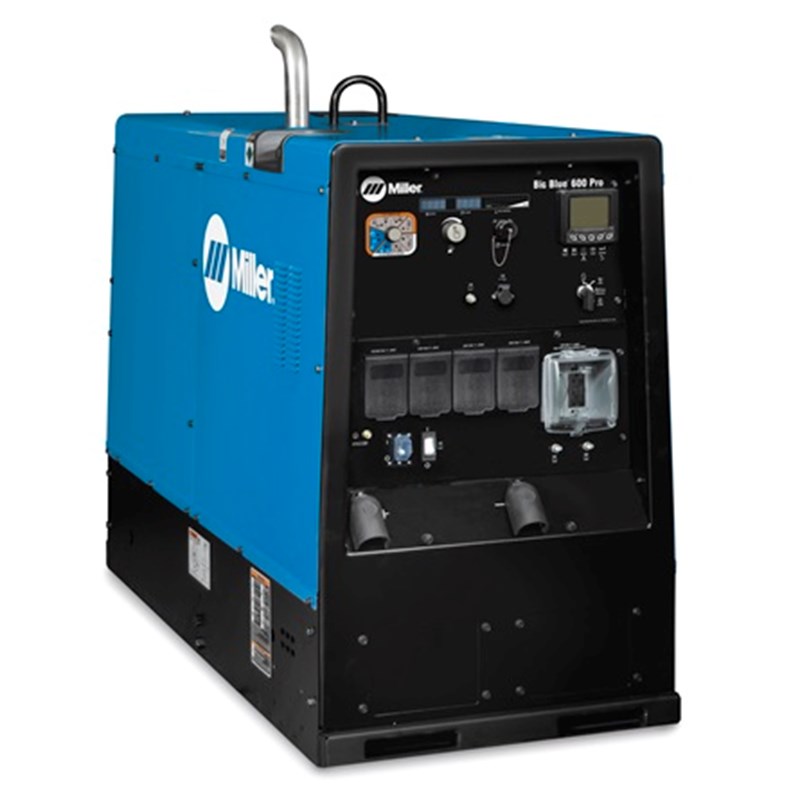

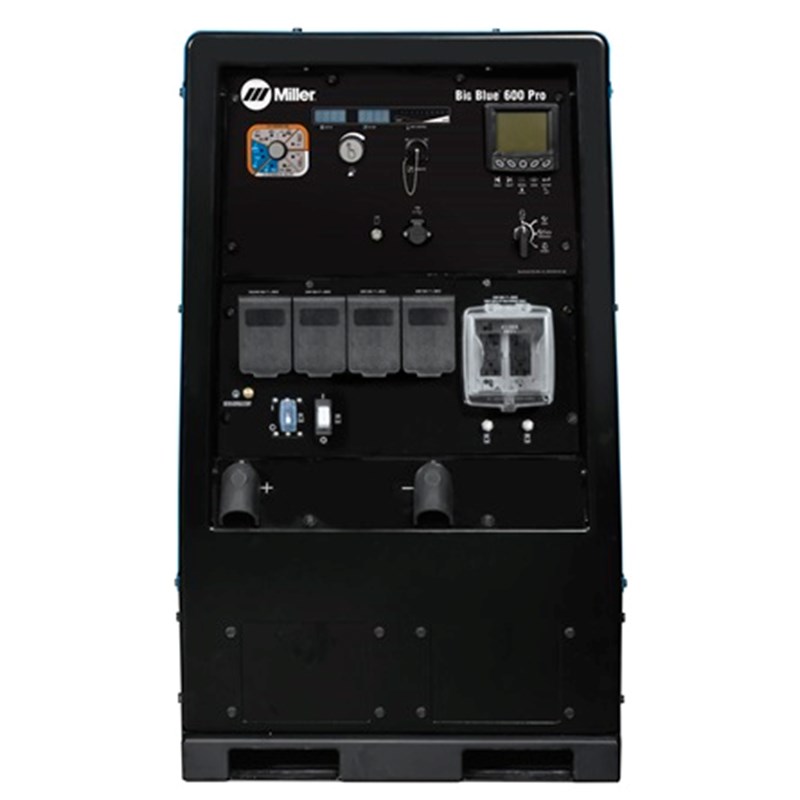

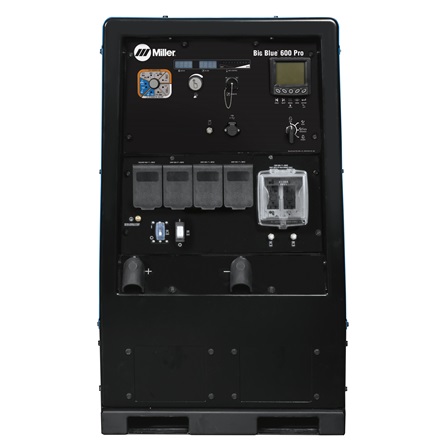

Miller Big Blue® 600 Pro (Kubota) Deluxe w/ ArcReach® 907737001
This EPA Tier 4 Final 600 amp welder/generator tackles tough jobs that require high output for welding, gouging, and auxiliary power.
Heavy-Duty Low-Speed T4F Industrial Diesel Engine - The cleanest, greenest diesel power available. Kubota T4F models utilize diesel oxidation catalyst (DOC) technology to keep the air clean with NO exhaust after-treatment maintenance.
ArcReach® Technology - Exclusive ArcReach technology uses existing weld cables to communicate process adjustment commands back to the welder generator. With an ArcReach system, amperage & voltage are conveniently located at the operator's fingertips - not back at the power source.
Dynamic DIG™ - Unlike conventional DIG that provides a preset amount of short-clearing current, Miller’s proprietary Dynamic DIG works on a time-based algorithm that automatically adjusts the amount of current required to clear a short. What does this mean? A smoother more consistent arc that can be tailored to match application, material, fit-up, and welder technique.
Electronic Engine Display - Electronic engine display simultaneously displays fuel level, engine hours, coolant temperature, oil pressure, battery volts, and engine RPMs. Also tracks oil change intervals and displays engine diagnostics for quick and easy servicing.
Industrial USB Port - Quickly upload the latest software and download machine log files to retrieve in-depth information such as diagnostics and machine statistics.
Advanced Features for the Professional Welder
- Adaptive Hot Start™ makes starting stick electrodes easy without creating an inclusion.
- Infinite arc control available in the Stick and Wire modes for easier fine-tuning of tough-to-weld materials and out-of-position applications.
- Lift-Arc™ TIG provides arc starting that minimizes the risk of electrode/work contamination without the need for high frequency.
Increased Productivity & Safety - More arc-on time, and reduced exposure to slip, trip, and fall hazards can be realized using ArcReach because less time is spent going back to the welding power supply to set process and arc amperage or voltage.
Auto-Process Select™ - Depending on polarity and which ArcReach accessory is connected, the system automatically detects and switches to the correct process - reducing the need to access the power source.
Control Panel Lock Out - While under control of an ArcReach accessory, process and amperage/voltage adjustments are locked out at the power source, preventing accidental changes by personnel other than the welding operator.
- Cross-Platform Compatible. The same ArcReach accessories that work on engine-driven equipment can also be used on select ArcReach-equipped XMT®, Dimension™, and PipeWorx 350 FieldPro™ power sources.
- Reverse Compatible. ArcReach-equipped power sources work with non-ArcReach accessories; however, the complete ArcReach benefit is only realized with the ArcReach system.
Other Standard Features - Output contactor control, automatic idle, thermal overload protection, and 120-volt engine block heater.
View our welding machines, welding machine accessories & safety equipment.
Miller Big Blue 600 Pro (Kubota) deluxe #907737001 Specifications
Maintenance and Repair - Field Operations
|Cold Weather Starting Aids||Engine Block Heater
|Engine Idle Speed||1350 RPM|
|Engine Weld Speed||1800 RPM|
|Fuel Tank Size||25 Gallon|
|Net Height||48.9 in|
|Net Length||69.5 in|
|Max Open Circuit Voltage||85 VDC|
|Net Weight||2095 lbs|
|Weldable Metals||Stainless Steel
|Net Width||28.5 in|
|Rated Output||600 A at 42 V, 40% Duty Cycle,550 A at 42 V, 60% Duty Cycle,500 A at 40 V, 100% Duty Cycle|
Miller's True Blue Warranty
|Sound Rating||Idle: 65.9.3 dB / Weld: 73.3 dB|
|single Phase Generator Continuous Power||12000 W|
|Single Generator Peak Power||15000 W|
|Amperage Range||20 - 600|
