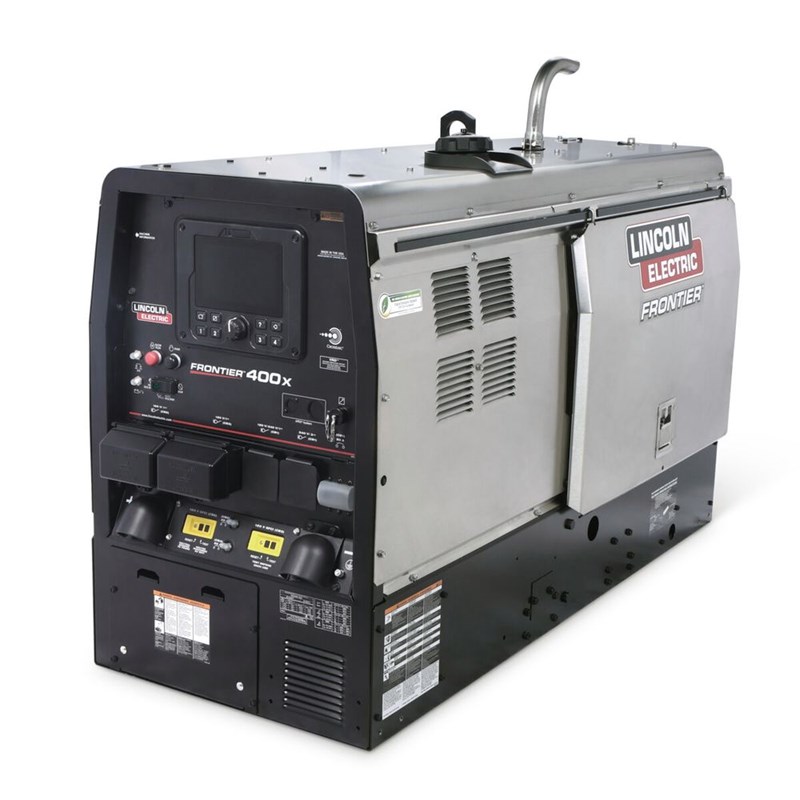

Lincoln Electric Frontier® 400X Engine-Driven Welder (Kubota®) #K3484-2

Part Number: K3484-2
UPC: 15082566764

Ships Free To Lower 48 States

Lincoln Electric Frontier® 400X Engine-Driven Welder (Kubota®) #K3484-2

Part Number: K3484-2
UPC: 15082566764
$28,079.90 + Free Shipping $29,729.79*
SAVE $1,649.89
Login or signup to earn 28080 Welders rewards points.

Welding type:

Engine Driven

Engine Driven

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

Fuel Type:

Diesel

Diesel

  • Engine-driven welder/generator24.8HP 20Gal Diesel Engine
  • 120 and 240 volt generator output120/240V 60Hz Output
  • Multiphase 1-phase or 3-phase generator output1-Phase or 3-Phase Output
  • 12,000 Watts Continuous, 120/240V single-phase output or 20,000 Watts Continuous, 240V three phase output10000W 120/240V 1PH,
    11000W 240V 3PH

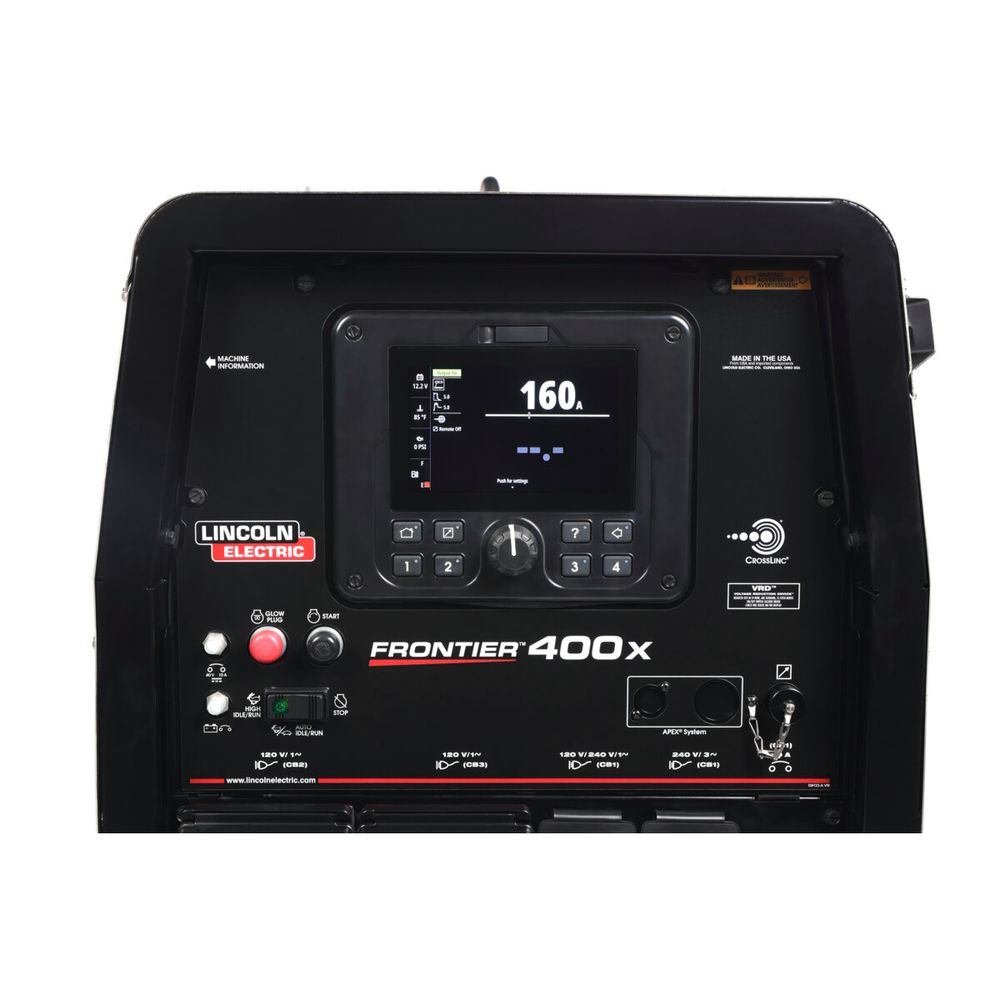

  • 7-inch color display7" Digital User Interface
  • Lincoln Electric 3-Year WarrantyLincoln Electric 3-Year Warranty

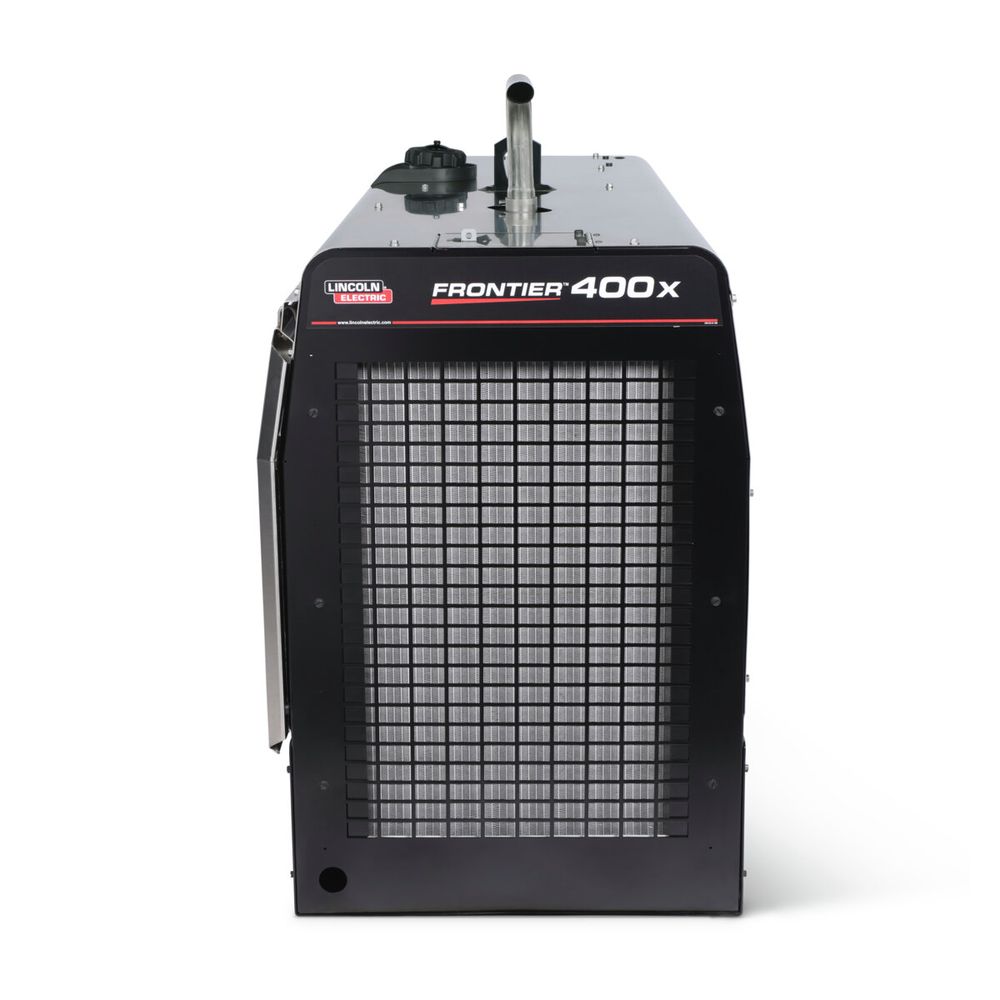

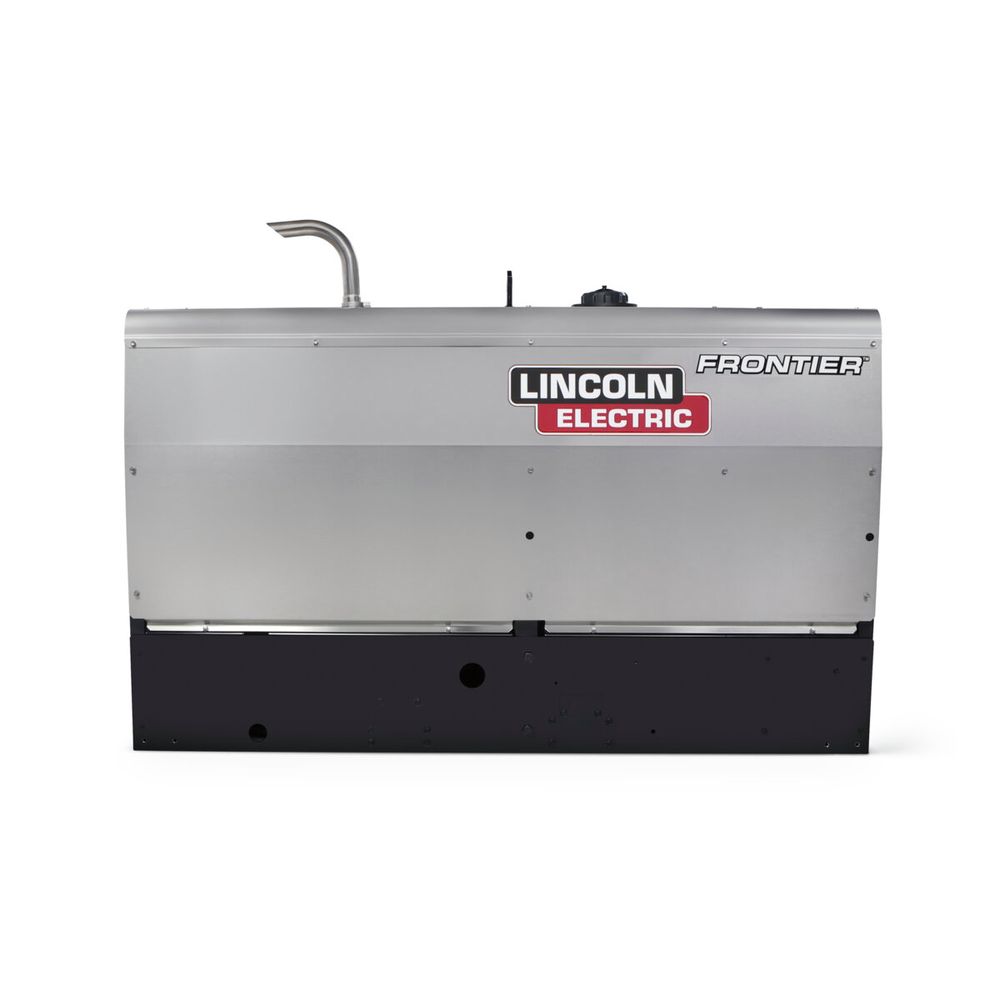

Lincoln Electric Frontier® 400X Welder/Generator with Kubota® Engine #K3484-2

The Lincoln Electric Frontier® 400X is a cutting-edge, engine-driven welder/generator designed to deliver best-in-class arc performance and multi-process welding capability.

Powered by a Kubota® diesel engine, the Frontier 400X provides optimized CC and CV modes for various welding processes, including STT® and pulse welding, making it the ideal choice for a wide range of job site applications.

Lincoln Electric warranty

Highlights

  • Multi-process capability supporting CC, CV, mechanized equipment and advanced GMAW processes
  • Next-gen display with save/recall memories, maintenance reminders and PIN user authorization

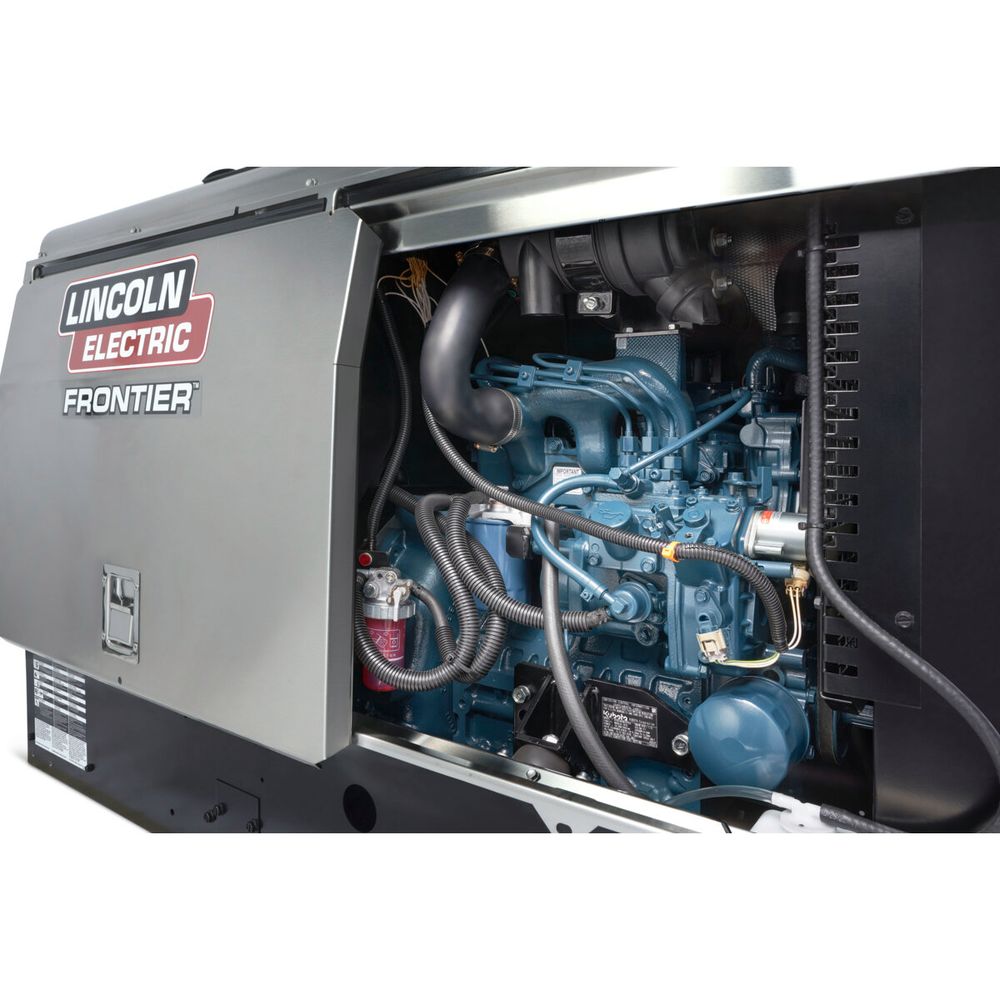

  • Auto-stop/start technology reduces fuel consumption and engine wear

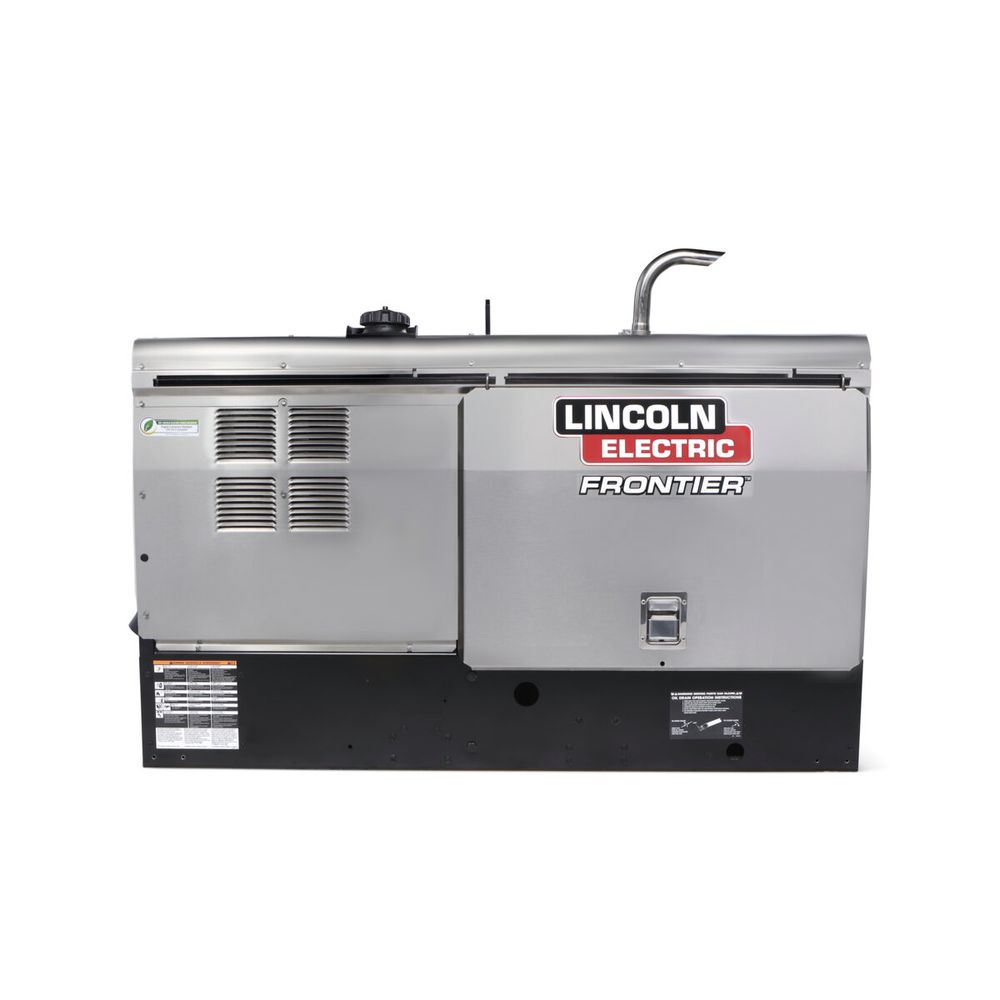

  • CrossLinc® Technology allows for output adjustments at the arc for improved productivity and weld quality
  • Reliable power for demanding welding job sites

Industries

  • Pipeline Welding
  • Heavy Fabrication
  • Construction
  • Maintenance and Repair

What’s Included

  • Lincoln Electric Frontier® 400X machine only

Benefits of the Frontier® 400X (Kubota®)

  • Versatile Welding Performance
  • Advanced Operator Features
  • Cost and Fuel Savings
  • Optimized Control with CrossLinc® Technology

Fast, Free Shipping & Easy Returns

At Welders Supply, we focus on providing quick, dependable shipping and seamless returns. If you're unsatisfied, return the product within 14 days for an exchange, credit, or refund. All returns must be freight prepaid, in the original packaging, with all manuals and accessories. A restocking fee of up to 25% may apply depending on the condition of the returned product. Certain exclusions apply, including custom orders, PPE, and demo items. For more details, contact our customer service team at 1-844-682-0205.

Browse all welder/generators or explore Lincoln Electric welding supplies at the best prices online.

Welding Machine Weights & Dimensions

Dimensions (H x W x D) 35.9 in x 25.3 in x 60 in (913 mm x 643 mm x 1524 mm)
Net Weight 1035 lbs (469 kg)

Machines

Machines Processes Stick (SMAW)
Gouging (CAC-A)
TIG (GTAW)
MIG (GMAW)
Pulsed MIG (GMAW-P)
Flux-Cored Self-Shielded (FCAW-S)
Flux-Cored Gas-Shielded (FCAW-G)
Orbital MIG
IEC Rating 325A / 33V / 100% @ 104°F (40°C)
Max Rating 400A / 26V / 60% @ 104°F (40°C)
Output Range by Mode Stick (SMAW): 30 – 400 Amps
CV-Wire (GMAW, FCAW-S, FCAW-G): 10 – 45 Volts
DC TIG (GTAW): 5 – 400 Amps
Arc Gouging (CAC-A): 60 – 400 Amps
Open Circuit Voltage 71 Peak OCV at 1800 RPM
Rated Gouging Carbon Diameter 5/16" (8.0 mm)
Machines Communication Technology CrossLinc

Engine Driven Welders

Single Phase Auxiliary Output 10,000 Watts Continuous / 11,500 Watts Peak, 120/240V
Three Phase Auxiliary Output 11,000 Watts Continuous / 12,500 Watts Peak, 240V
Auxiliary Output Frequency 60 Hz

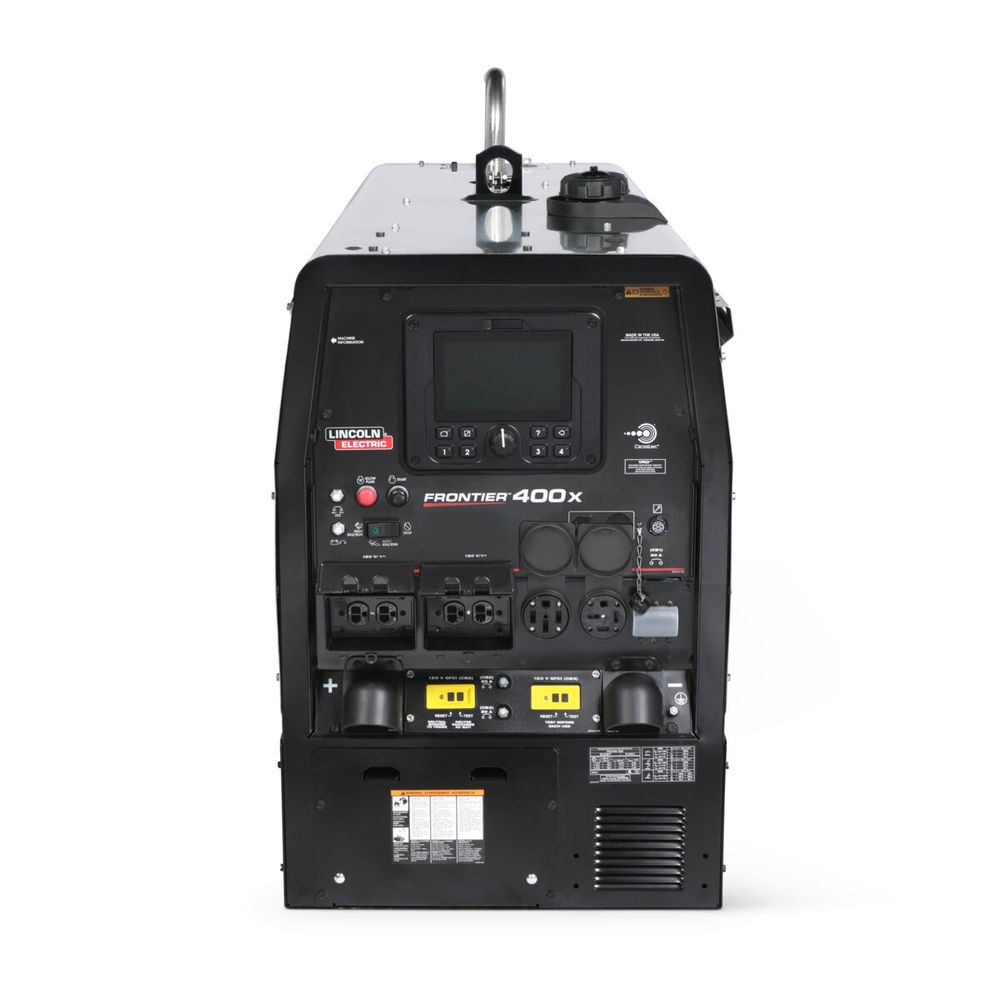

Receptacle Types NEMA 5-20R
NEMA 14-50R
NEMA 15-50R

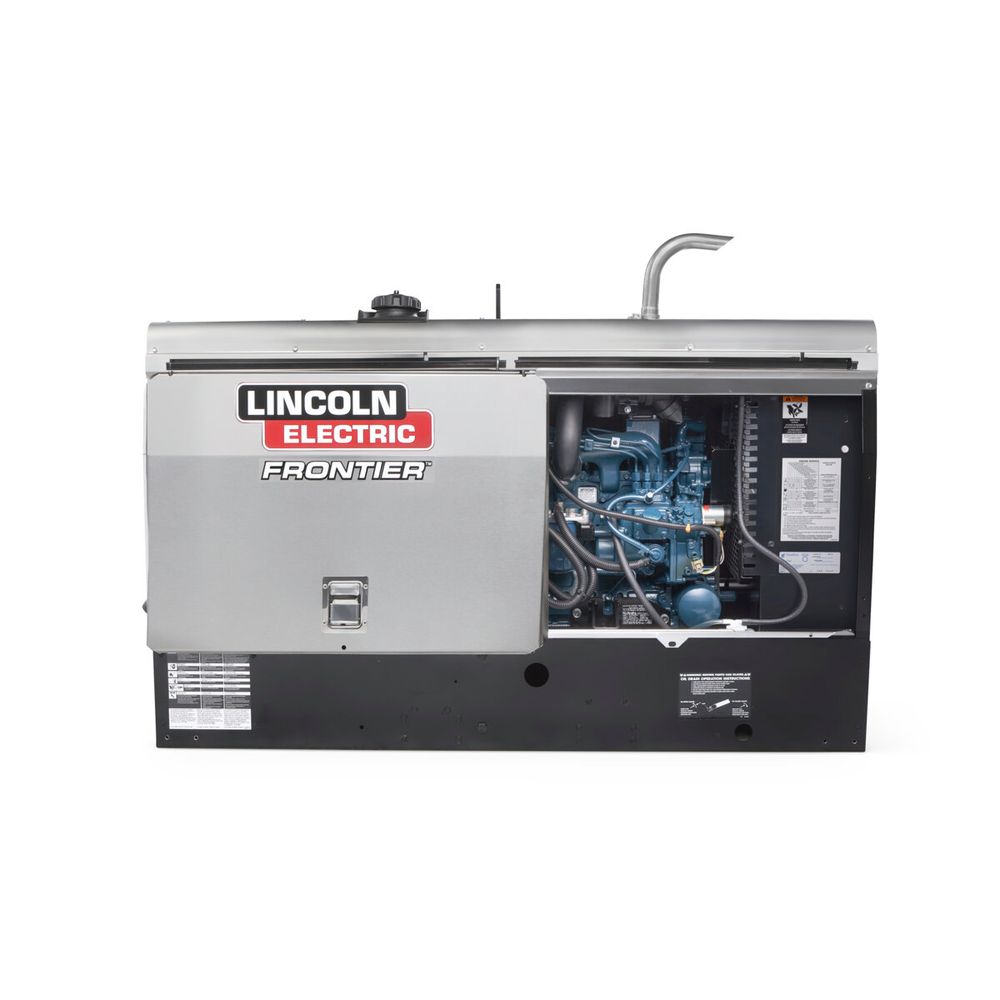

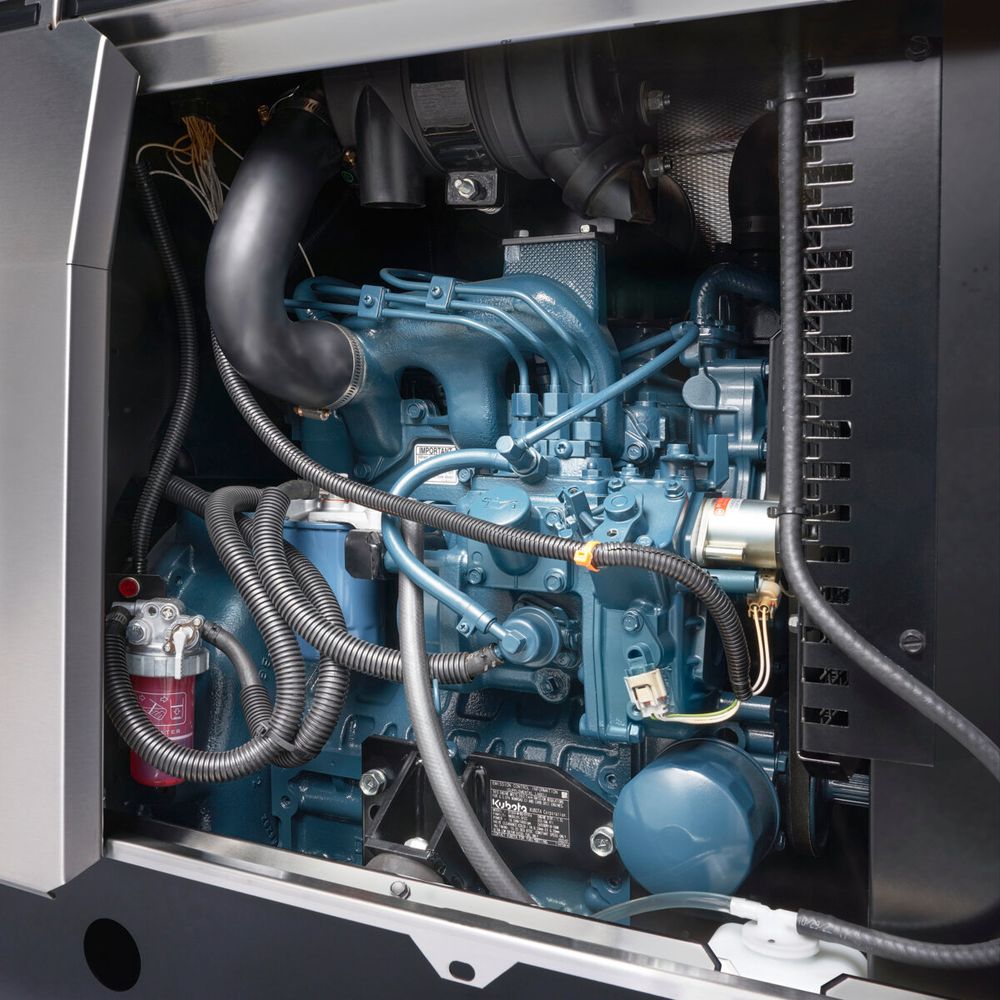

Engine Brand & Model Kubota® D1503-M
Engine Description 3 Cylinder Naturally Aspirated Water Cooled Diesel Engine
Engine Horsepower 24.8 hp (18.5 kW)
Engine Block Size & Displacement 91.4 cu. in (1.5 L)
Bore x Stroke - 3.27 in x 3.64 in (83 mm x 92.4 mm)
Emissions Rating US EPA Tier 4 Final
High Idle Operating Speed @ Rated Output 1800
Low Idle Operating Speed 1400
Sound Rating @23 ft. (7m) 67 dBA at Low Idle
71 dBA at High Idle
Fuel Tank Size (US gal.) 20 US gal.
Fuel Tank Size (L) 75.7 L
Oil Capacity (qts.) 6.4 qts.
Oil Capacity (L) 6.0 L
Coolant Capacity (US gal.) 1.8 US gal.
Coolant Capacity (L) 6.8 L

Application

Typical Application Construction
Mining
Railroad Maintenance
Cross Country Pipeline
Construction & Field Erection
Maintenance & Repair
Offshore
Oil & Gas
Power Generation
Shipbuilding
Structural Fabrication
Structural Welding

Warranty

Warranty 3 Years Parts and Labor - Engine warranted separately by engine manufacturer.

SHIPPING DIMENSIONS

Height: 45.10 Inches
Width: 29.50 Inches
Length: 68.00 Inches
Weight: 1100 Lb(s) 0 Oz
