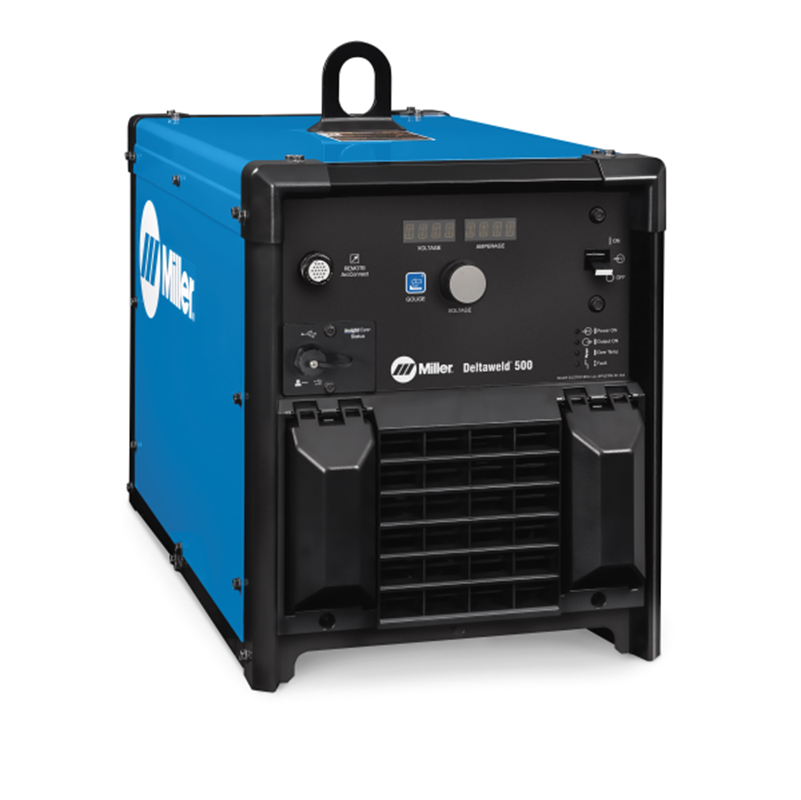

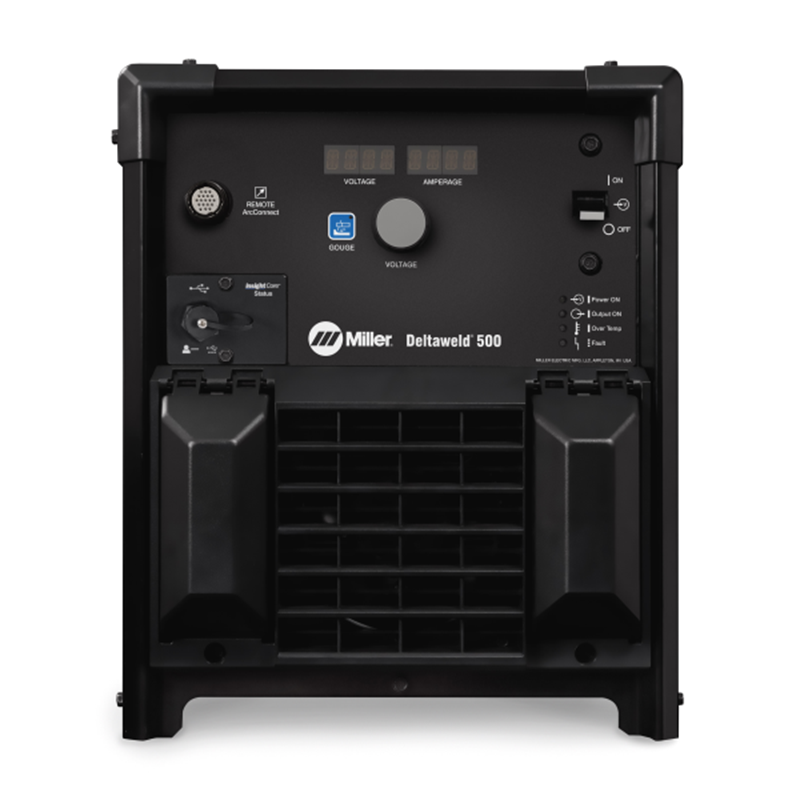

Miller Deltaweld® 500 MIG Welder w/ ArcConnect™ & Insight™ (230/460V) #907785002

Part Numbers: 907785002
UPCs: 715959684590
1 Review

Included with your purchase ():

Miller Deltaweld® 500 MIG Welder w/ ArcConnect™ & Insight™ (230/460V) #907785002 For Sale Online
Miller Deltaweld® 500 MIG Welder w/ ArcC...
Miller Classic Series Welding Helmet with ClearLight™ Lens Technology, VS Black #287803
FREE!
Miller Classic Series Welding Helmet wit...
Welders Supply cup holder
FREE!
Welders Supply Magnetic Cup Holder
Black Stallion Split Cowhide Gloves
FREE!
Black Stallion Split Cowhide Stick Glove...
Choose Options
American Welder T-Shirt - Back
FREE!
Welders Supply T-Shirt & Stickers
$9,243.00 + Free Shipping $9,243.00*
SAVE $0.00
$9,243.00 + Free Shipping $9,243.00*
SAVE $0.00

Call 844-682-0205 or CHAT for more options

Welding type:

Mig

Mig

  •  Three Phase
  •  3-Year Power Warranty
  •  Multi-Voltage

Miller Deltaweld 500 230/460V 907785002

The manufacturing solution for welders of all skill levels, now offering pulse capabilities in an integrated package.

Features:

Easy to Use

  •  EZ-Set simplifies parameter setup based on material thickness, removing complexity and reducing welder training time.

Legacy Meets Pulse

  •  Pulsed MIG-capable Deltaweld with Intellx Pro feeder provides a 28-percent wider operating window and a more forgiving arc, compensating for variations in operator technique. Welders of any skill level can get into production quicker. Make your move.

ArcConnect™

  •  Next generation communication to improve weld performance and allow point-of-use controls to be located at the feeder.

Fan-On-Demand™

  •  Operates only when needed reducing noise, power consumption, and the amount of airborne contaminants going through the machine.

Dedicated Wire feeder options

  • Intellx feeder — New arc control feature means welders can produce better welds with minimal parameter adjustments.
  • Intellx Pro feeder — Adds Accu-Pulse®, EZ-Set, steel weld programs, and memory buttons.

Gouge Mode

  •  Deltaweld 500 has a dedicated constant current carbon arc gouge mode specifically designed to gouge up to 3/8" carbons.

Backwards Compatibility

  •  A model is available with both ArcConnect and the standard Miller 14 Pin for use with older Miller wirefeeders.

Wind Tunnel Technology

  •  Internal air flow that protects electrical components and PC boards from dirt, dust, debris— greatly improving reliability.

Ready to Weld

  •  The Deltaweld System is shipped as a complete package with everything you need to get welding sooner. Just hook up your primary power, add gas, wire and a welding gun, and you're ready to weld.
Check out the wide selection of MIG, TIG, Stick, and Gas welders for sale at Welders Supply.

Processes

  • MIG (GMAW-P)
  • Flux-Cored (FCAW)
  • Accu-Pulse MIG (GMAW-P)
  • Air Carbon Arc (CAC-A)

Miller Deltaweld 500 230/460V Specifications:

Industries Interests Manufacturing
Heavy Equipment Manufacturing
Railcar
Commercial Truck and Trailer
Carbon Diameter 3/8 in (9.525 mm)
Current Type DC
Input Voltage 575 V
Input Phase 3-Phase
Input Hz 60 Hz
Portability Lift Eye (Standard)
Running Gear / Cart (Optional)
Net Height 22.34 in
Net Length 31.65 in
Net Weight 145 lbs
Weldable Metals Stainless Steel
Steel
Net Width 15.35 in
Max Open Circuit Voltage
90 VDC
Weld Ouput CC / CV
Warranty 3 Years
Miller's True Blue Warranty

SHIPPING DIMENSIONS

Height: 22.34 Inches
Width: 15.35 Inches
Length: 31.65 Inches
Weight: 145 Lb(s) 0 Oz

Manufacturer Reviews

Gideon D.
Very user friendly, very professional & uniform weld performance, especially with the accupulse, & the Intelix Pro Dual feeder.
