Hobart EZ-TIG 165i TIG (230 V)Part #500551

Product Number: 500551

DISCONTINUED

See Miller Diversion 180AC/DC Tig Welding Package for replacement, or view all Hobart machines.

$1,481.85
$1,879.00 You Save $397.15
Out of Stock

Welding type:

Tig

Tig

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

Power supply:

220V Single Phase

220V Single Phase

  • 220V Single Phase
  • Tig
  • Financing Availability

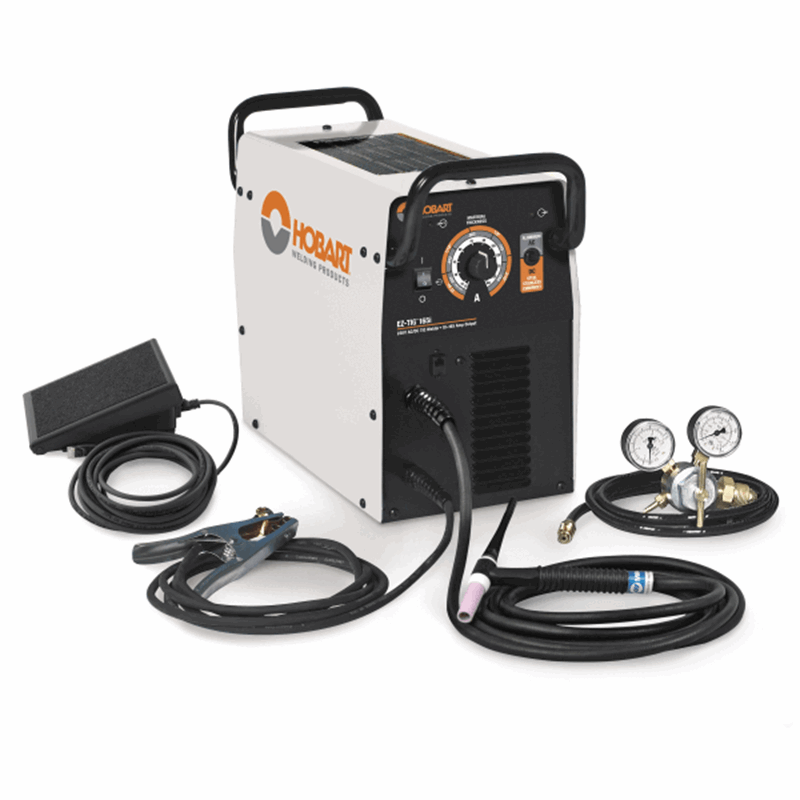

Hobart EZ-TIG 165i Welder #500551

230-Volt Inverter Based AC/DC Welder

The EZ-TIG 165i is a complete 230V AC/DC welder designed for professional welders. Thanks to a convenient single control knob, it's one of the easiest to use AC/DC TIG welders on the market. The knob allows you to select the thickness and voltage, whether you are using AC or DC.

The EZ-TIG 165i welder power supply is specialized for Tungsten Inert Gas (TIG) welding. It is compatible with tungsten electrodes from 22 gauge to 3/16 inch thickness. It was designed to generate a strong arc even at a low power setting, and it consistently delivers strong, reliable welds. Weighing in at just 50 pounds, this TIG welding machine is also highly portable.

Included with this package:

  • Hobart EZ-TIG™ 165i inverter-based power source with primary cord and plug attached
  • 12.5 ft (3.8 m) Legacy 17 Weldcraft TIG torch
  • Foot-operated control using the RFCS-RJ45 Remote Foot Control
  • 12 ft. (3.7 m) work cable with clamp
  • Regulator/flow gauge with hose
  • Gas regulator, flowmeter, and shielding gas hose

Skill Level:

  • High

Applications

  • Auto Body Repair
  • Auto Body Fabrication
  • Home Hobby
  • Metal Art
  • Vocational Training
  • Signs

Features

  • EZ to use interface with one knob and one switch control
  • AC output for superior aluminum welding, DC output for mild and stainless steel
  • Fan-On-Demand to only have the fan run when needed reducing dust/debris being pulled into the unit
  • Infinite amperage control for broader operating range with finer control
  • Inverter-based power source provides a more consistent welding arc while using less power
  • Weighs only 50 lb. (23 kg) so it's EZ to take anywhere
  • HF start to allow for a non-contact arc start to eliminate tungsten and material contamination
  • Auto-postflow to provide optimum shielding based on welding amperage without waste or need for adjustment
  • Automatic high temperature shutdown
For the best prices on MIG, Stick welders, and TIG welders for sale, shop Welders Supply Online.

Product Specifications: Hobart EZ-TIG 165i Part #500551

What are the specs of the Hobart EZ-TIG 165i #500551?

The Hobart EZ-TIG 165i #500551 230-Volt welder comes with a number of impressive features and specs, but what makes this welding machine worth the investment? When delivered, a number of welding parts are including with the welder. This welding machine is a great option for professional welders as well because it performs TIG welding processes and has the ability to weld thick aluminum and stainless steel.

Part included:

  • Inverter based power source with primary cord and plug attached
  • 12.5 ft (3.8 m) Legacy 17 Weldcraft TIG torch
  • Foot-operated control using the RFCS-RJ45 Remote Foot Control
  • 12 ft. (3.7 m) work cable with clamp
  • Regulator/flow gauge with hose
  • Gas regulator, flowmeter and shielding gas hose

Power Specs:

  • CC
  • AC/DC
  • 1 Phase

Processes:

TIG (GTAW)

Material Thickness:

Welds 22 gauge to 3/16 inch in both AC (aluminum) and DC (steel/stainless steel/chromoly).

Contact Welders Supply today for more information on our selection of professional welders!

The Hobart EZ-TIG 165i #500551 Welder Review: Video Gives Feedback from Professional Welder

Product Questions and Answers


Q - Is this machine made by Miller? A - Yes, it's essentially the same as the Miller Diversion 165, but the Miller uses a Weldcraft LS17 TIG torch with finger tip amperage control and the Hobart uses a Weldcraft WP 17 TIG torch with a foot pedal for amperage control.
Q - How long is the power cord? A - 7"

How to Operate Material Thickness Control:

  1. Locate Control Knob.

    Locate the material thickness control knob located at the center of the main panel.

  2. Note Current.

    Note whether the EZ-TIG is switched to DC or AC.

  3. Adjust Output Control.

    Adjust material thickness control using blue for DC and gray for AC.

Have a question about this product? Submit your question using the form below
