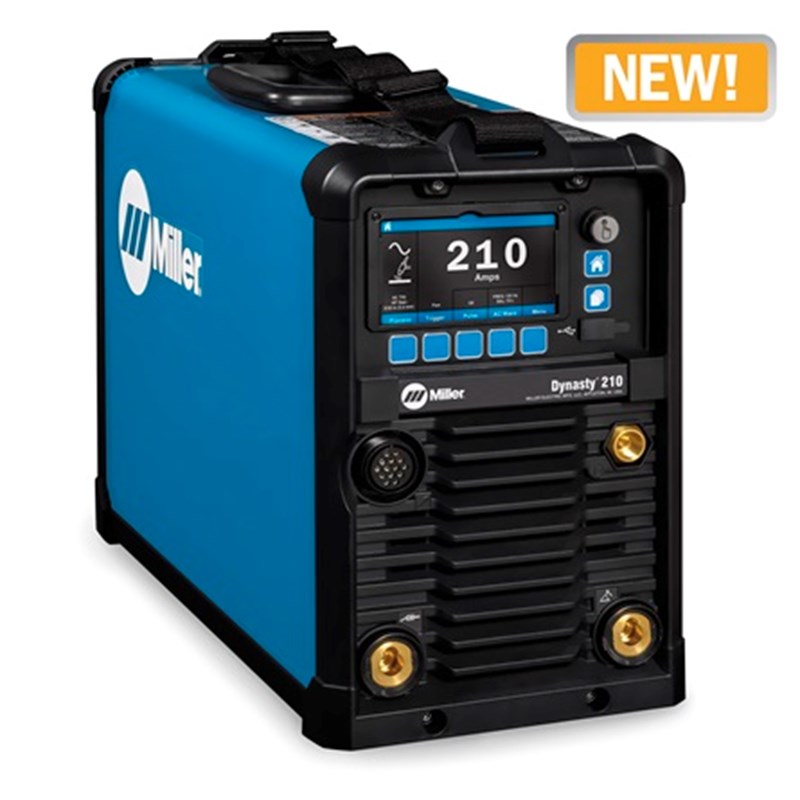

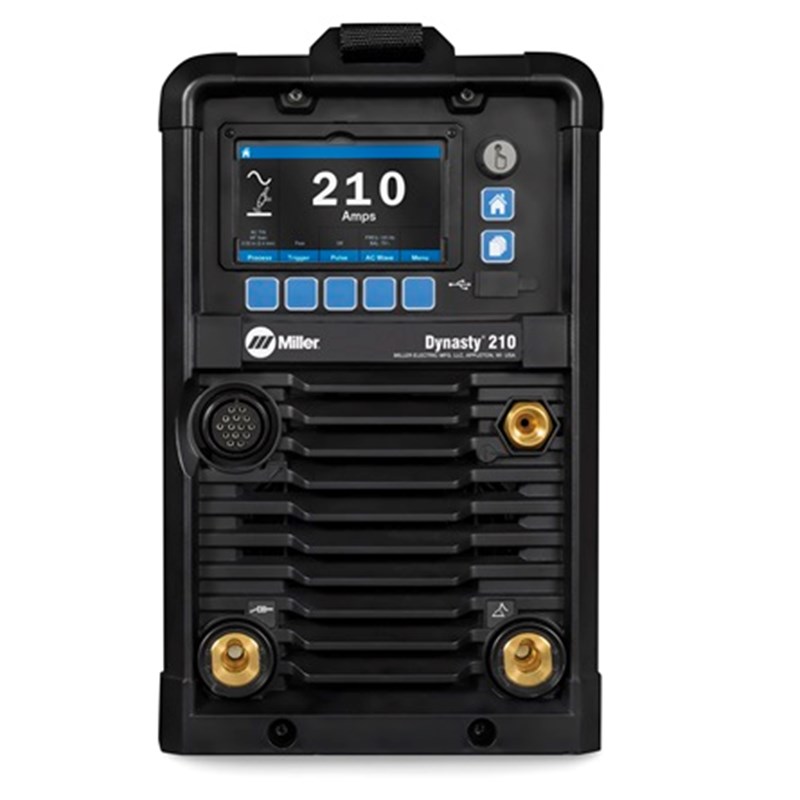

Miller Dynasty® 210 TIG/Stick Welder (120-480 V), CPS #907816001
The Miller Dynasty 210 120-480 V weighs only 47 pounds and can weld up to ¼ inch thick aluminum, mild and stainless steel. This machine comes with an integrated Cooler Power Supply (CPS) and is capable of AC/DC/Pulsed TIG welding and stick welding.
What's Included
- Dynasty® 210
- 8 ft (2.4 m) primary cord
- Adjustable Shoulder Strap
- (2) 50 mm Dinse style connectors
Industries
- Shipbuilding
- Racing
- Farm & Ranch
- Manufacturing
- Heavy Equipment
- Railcar
- Aerospace
- Construction & Fabrication
Features of the Dynasty 210
- Intuitive Interface LCD Display - Ensure proper machine setup and parameter selection with informative on-screen explanations and dynamic images.
- Program Memory - Allows easy naming, saving and recalling of favorite weld settings.
- Pro-Set Feature (professional settings) - This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.
- Locks and Limits - Provides control of the weld parameter ranges minimizing deviations from the welding procedure specifications (WPS).
- QuietPulse™ - QuietPulse is activated by changing the waveshape for DC pulse welding, creating a slower, more fluid transition between the background and peak amperage to create the least possible audible noise.
- USB Port - Provides the ability to easily update software, back-up settings and transfer saved weld programs from one unit to the next.
- Auto-Line™ Technology - For portability and reliability this inverter power supply allows for any single-phase input voltage hookup (208–480 V) with no manual linking, providing convenience in any job setting. Ideal solution for dirty or unreliable power.
- Stick Features - Tailored arc control (DIG) allows the arc characteristics to be changed for specific applications and electrodes. Smooth running 7018 or stiffer, more penetrating 6010. Hot Start™ adaptive control provides positive arc starts without sticking.
- AC Frequency Control - Control the width of the arc cone and can improve directional control of the arc with adjustments between 50-150 Hertz.
Fast, Free Shipping & Easy Returns
Your in-stock items ship same or next day from our five distribution hubs in WI and IL via UPS Ground. Need special shipping? Just call 1-844-682-0205 for accommodations, including our use of your shipping accounts. Enjoy hassle-free 14-day returns on new, sealed products with a pre-approval. Count on exceptional service backed by industry-leading shipping and return policies. Experience the advantage on your next order!
Shop all tig welders and Miller welding machines at the best prices online, from Welders Supply.
This product replaces these legacy models:
Processes
- Stick (SMAW)
- TIG (GTAW)
- TIG AC (GTAW-AC)
- TIG DC (GTAW-DC)
General Specifications
Title | Dynasty® 210 120-480 V, Wireless Foot Control Complete |
Industries Interests | Shipbuilding Racing Farm and Ranch Manufacturing Heavy Equipment Railcar Aerospace Construction and Fabrication |
Material Thickness | Aluminum 0.012 in. (0.3 mm) - 1/4 in. (6.4 mm) Steel 0.002 in. (0.05 mm) - 1/4 in. (6.4 mm) |
Weldable Metals | Aluminum Specialty Metals Stainless Steel Steel |
Input Voltage | 110/115/120 V 208 V 220/230/240 V 380/400 V 460/480 V |
Input Phase | 1- and 3-Phase |
Input Hz | 50/60 Hz |
Current Type | AC / DC |
Max Open Circuit Voltage | 80 VDC |
Amperage Min | 1 A |
Amperage Max | 210 A |
Welding Mode | CC |
Portability | Handle(s) Running Gear / Cart (Standard) Strap |
Weld Output | CC |
Applications | Aluminum Welding Welding Projects |
Warranty | 3 Years Miller's True Blue Warranty |
Certifications
SHIPPING DIMENSIONS |
|
Height: | 13.88 Inches |
Width: | 8.50 Inches |
Length: | 21.88 Inches |
Weight: | 50 Lb(s) 0 Oz |
