Thermal Dynamics® Cutmaster® 60i 3-Phase Plasma Cutter with 50-Foot Torch #1-5631-2

Part Numbers: 1-5631-2
1 Review

$2,649.00
$3,149.00* Save $500.00
Rebate Forms:
ESAB $100 Rebate (USE CODE EP2-RWD)

Included with your purchase:

Select your Bundle!
Edit

    Call 1-844-682-0205 or CHAT for more options

    Material type:

    Mild Steel

    Mild Steel

    Stainless Steel

    Stainless Steel

    Aluminum

    Aluminum

    Cut capacity:

    1/2" Capacity

    1/2" Capacity

    • 3/4" Cut
    • Multi-Phase
    • 220V
    • 460V

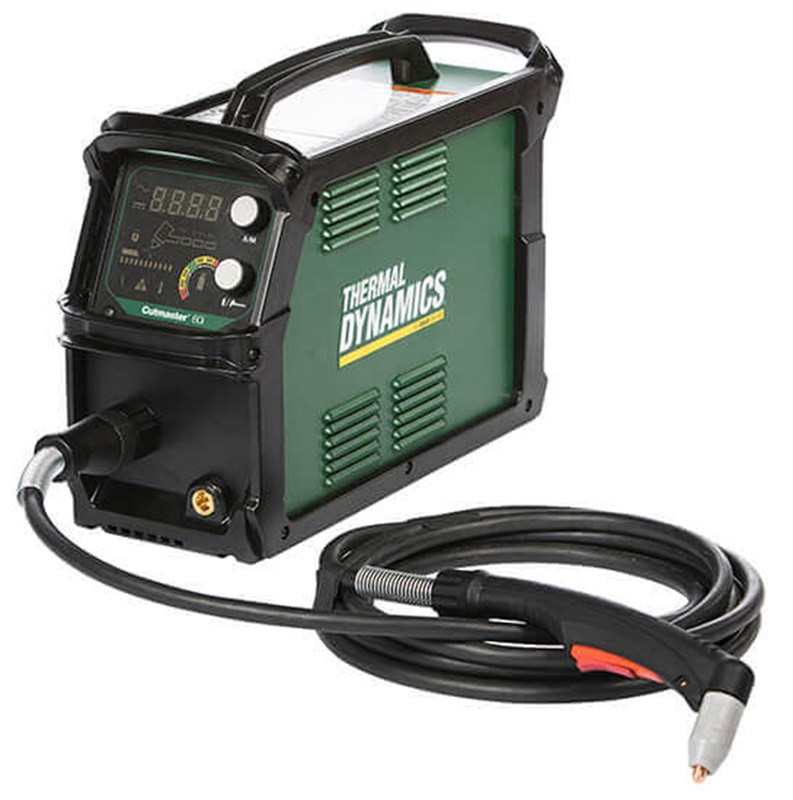

    Thermal Dynamics® Cutmaster® 60i 3-Phase Plasma Cutter with 50-Foot Torch #1-5631-2

    The Thermal Dynamics® Cutmaster® 60i 3 Phase plasma cutter with 50 foot torch operates on smooth, stable and highly efficient 3 phase input power. It produces up to 60 amps of cutting output and automatically detects input voltage from 208V to 480V. It has a recommended cut capacity of 5/8" with maximum sever capacity of 1 1/2". It also pierces up to 5/8". Weighing in at only 37 pounds, the Cutmaster 60i 3 Phase has the highest power-to-weight ratio in its class.

    The Cutmaster 60i 3 Phase has a large digital display with gas optimizer (automatically detects the optimal gas flow for your cutting application) and consumables end-of-life indicator. It comes with the new SL60QD™ 1Torch® which features quick disconnect torch head for convenient, more economical replacement. The SL60QD plasma torch uses standard Thermal Dynamics 1Torch consumables.

    The 60i comes complete with detachable work lead and clamp and features an externally compressed air water separator for easy draining. The Cutmaster 60i carries ESAB's 4-year warranty on the plasma cutter and 1-year warranty on the plasma torch.

    Applications

    • Agricultural Equipment
    • Automotive Bodies
    • Construction
    • Fabrication
    • General Manufacturing
    • HVAC
    • Repair and Maintenance
    • Training Schools

    Features

    • 3 Phase input power provides smooth, stable plasma cutting arc and is more efficient than 1 Phase models
    • Weighs only 37 pounds - highest power-to-weight ratio in its class
    • 7.6 kW rated output, 50% Duty Cycle at 60A with automatic multi-voltage detection from 208-480V; built for portability and durability with the integral multi-handle design
    • SL60QD 1Torch quick disconnect with ATC® (Advanced Torch Connector) allowing selective replacement of either the torch handle assembly or the torch leads, using the patented SureLok® technology also available as an RPT Torch
    • 5/8 in. (16 mm) recommended cut capacity with greater than 1-1/2 in. (38 mm) maximum sever and 5/8 in. (16 mm) pierce
    • Pilot arc "On" setting for cutting expanded metal
    • High-visibility, oversized display with gas optimizer technology and consumables end-of-life indicator
    • Industry leading 4-year warranty on power supply and 1-year warranty on torch

    Comes Complete with:

    • Cutmaster® 60i 3 phase plasma cutter
    • SL60QD™ 1Torch® with ATC Quick Disconnect and 50 Foot Lead
    • Spare Parts Kit
    • 20 Foot Detachable Work Cable and Clamp with Dinse Connector
    • Input Power Cable
    • Operating Manual
    • Filter Wrench
    Shop all plasma cutters for sale online at Welders Supply.

    General Specifications

    Amperage Output 10-60 A
    Rated Output 7.6 kW
    Amperage Draw 43 A @ 208 V 1 ph / 26 A @ 208 V 3 ph
    39 A @ 230 V 1 ph / 23 A @ 230 V 3 ph
    19 A @ 480 V 1 ph / 11 A @ 480 V 3 ph
    OCV 300 V
    Supply Frequency 50/60 Hz
    Rated Duty Cycle 50% @ 60 A
    60% @ 50 A
    100% @ 40 A

    SHIPPING DIMENSIONS

    Height: 22.00 Inches
    Width: 22.00 Inches
    Length: 22.00 Inches
    Weight: 45 Lb(s) 0 Oz

    Customer Reviews

    Thermal Dynamics Cutmaster 60i Review
    By: Froggy372
    on 4/27/2019
    "This is a great machine, great price, I love it." - Review originally posted on weldingsuppliesfromioc.com

    Product Questions and Answers


    Q - Can this work on 1-phase input power? A - No, it's 3-phase only.
    Q - What kind of warranty does this have? A - 4-year warranty on the plasma cutter, 1-year warranty on the SL60QD 1Torch.
