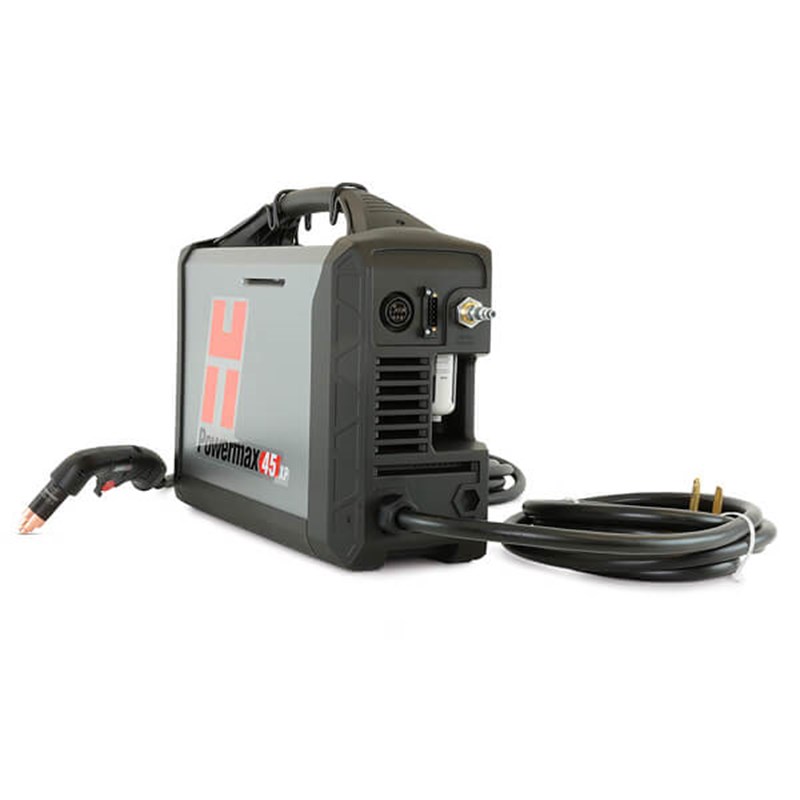

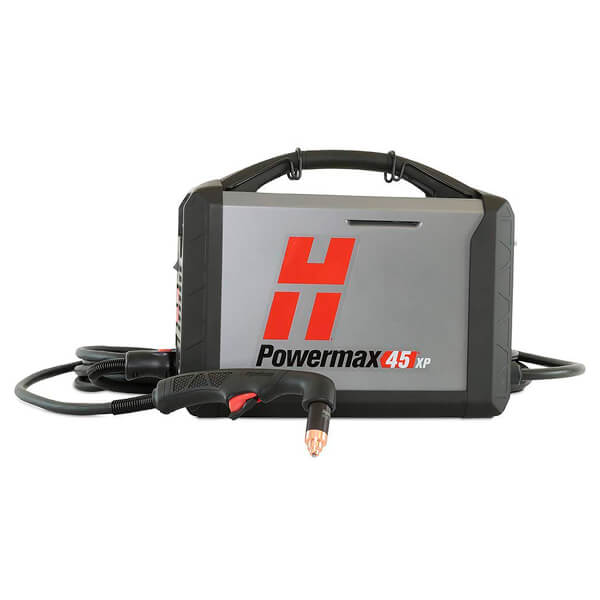

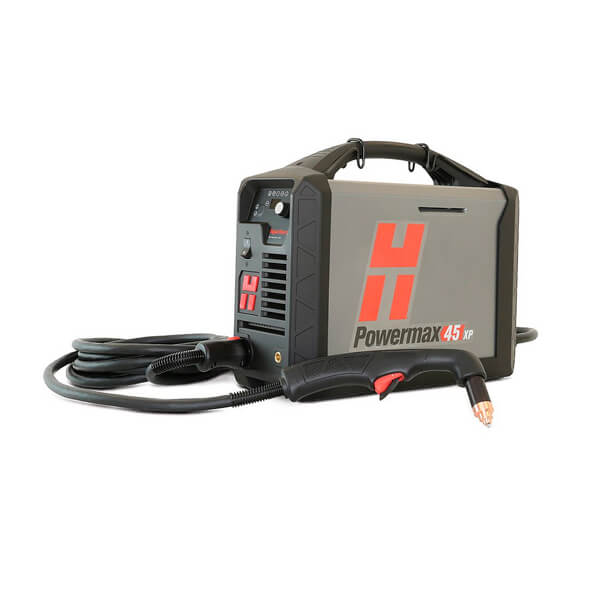

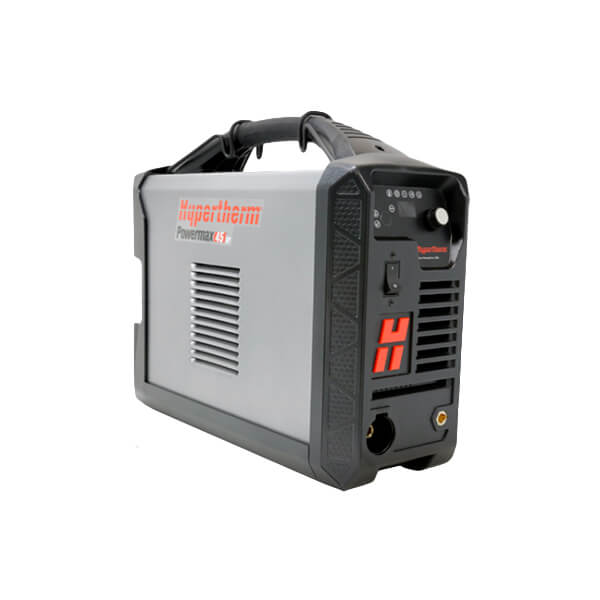

Hypertherm Powermax 45 XP #088124 Hand System w/ CPC 75 & 15 deg Torches - 20'
CALL or CHAT for more options
Select Bundle Options
Material type:
Mild Steel
Stainless Steel
Aluminum
Power supply:
220V Single Phase
Cut capacity:
1/2" Capacity
Documents
Videos
Multi-Phase
Multi-Voltage
DuraMax Lock Torch
Lightweight and Portable
Torch Included
3-Year Warranty
First Time Student Rebate
Which Powermax 45XP is right for me?
Hypertherm Powermax 45XP #088124 Hand System w/ CPC 75 & 15 deg Torches - 20'
Powermax Legendary Plasma Cutters for Professional Welders
If you thought our best-selling Hypertherm Powermax 45 was the pinnacle of metal cutting technology, wait until you see the Powermax 45 XP. Between the 45 XP’s arsenal of new features and Hypertherm’s reputation for exceptional performance, the 45 XP can be best described as the Powermax 45 on steroids.
Powermax 45 XP at a Glance
- 5/8” (16mm) rated cutting capability (mild steel, stainless steel, aluminum)

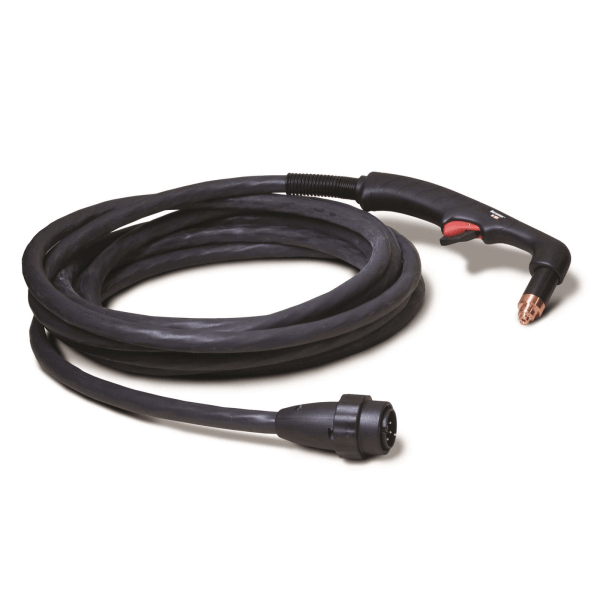

- Duramax® Lock torch with disable switch for fast and easy replacement of consumables.
- CNC interface and FastConnect™ torch connection
- Smart Sense™ automatically monitors and adjusts air pressure for maximum performance
- Patented drag-cutting technology for ease of use
- Consumables available for fine feature cutting, extended reach cutting, gouging, precision gouging, marking
With the addition of new features and technologies, the Powermax 45 XP is the ideal piece of machinery for both novice and professional welders alike. Hypertherm has loaded this cutter with some of their best thinking, including:
- Duramax® Lock torch with disable switch for fast and easy replacement of consumables
- Smart Sense™ technology automatically monitors and adjusts air pressure for maximum performance
- CNC interface and FastConnect™ torch connection
- 5/8” (16mm) rated cutting capability (mild steel, stainless steel, aluminum)
In addition, the Powermax 45 XP effortlessly cuts, gouges, and marks metals, producing work far superior to the competition’s plasma cutters. With up to 11 different torch options and 7 styles of consumables, the 45 XP lets you custom tailor this machine to a wide variety of applications. Whether you’re a pro or a hobbyist, the Powermax 45 XP will serve you well.
HYPERTHERM Powermax 45 CONSUMABLES AND KITS
Stock up on consumables with the Powermax 45 handheld CSA consumable kit or Powermax 45 XP essential handheld consumables kit.
Warranty information for Hypertherm products
Register your Hypertherm product on the Hypertherm website
Torches compatible with the Powermax 45 XP:
- Hypertherm 50ft Duramax Lock Plasma Machine Torch (without Consumables) #088169
- Hypertherm® 45 Amp Duramax™ Lock Plasma Torch With 50' Leads And 75° Head #088165
- Hypertherm Duramax Lock Machine Torch Assembly 180 deg - 25' #088167
- Hypertherm Kit: Duramax Hand Torch Lead Replacement 50' #228960

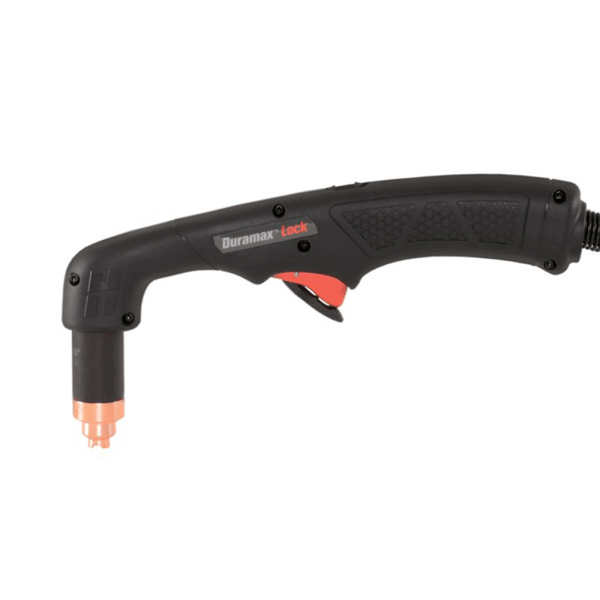

- Hypertherm Duramax Lock Hand Torch Assembly 75 deg - 20' - #088164
- Hypertherm® 45 Amp T45v Plasma Torch With 50' Leads And 75° Torch Head #088009
- Hypertherm Mini Machine Torch Assembly
View all Hypertherm Powermax Plasma Cutter Torches
Shop for Hypertherm products, Hypertherm accessories, and safety apparel at Welders Supply.
Other versions of the Powermax 45 XP:
- 088112 - With 20' Hand Torch
- 088113 - With CPC & 20' Hand Torch
- 088114 - With 50' Hand Torch
- 088115 - With CPC & 50' Hand Torch
- 088123 - With CPC & 20' Machine & Hand Torches
- 088126 - With 3-Phase System & 20' Hand Torch
- With Machine Torch Only Options.
View all Hypertherm Powermax Plasma Cutters
|
Hypertherm Powermax 45 XP #088124 Specifications | |
|---|---|
|
Output current |
10 - 45 A |
|
Rated output voltage |
145 VDC |
|
Open circuit voltage (OCV) |
275 VDC (200-240 V, CSA/CE/CCC and 480 V, CSA), 265 VDC (400 V CE/CCC) |
|
Dimensions with handles |
442 mm (17.4") D; 173 mm (6.75") W; 357 mm (14.1") H |
|
Gas Supply |
Cutting & Gouging: air (clean, dry and oil-free), nitrogen, F5 Marking: air (clean, dry and oil-free), argon |
|
Recommended gas inlet flow rate / pressure |
188 l/min (400 scfh; 6 scfm) @ 90 psi (5.9 bar) |
|
Input power cable length |
3 m (10') |
|
Power supply type |
Inverter - IGBT |
|
Cuttable metals |
Aluminum, Mild Steel, Stainless Steel |
|
Cut Capacity |
1/2" |
|
Engine drive requirement |
12.5 kVA (10kW) for full 45 A output |
|
Electrical efficiency |
88% |
|
Recyclability |
100% |
|
Warranty |
Power supply: 3-year Torch: 1-year |
|
Certifications |
CSA certified for use in Americas and Asia, except China. CCC for use in China. CE, REM, GOST-TR, ukrSEPRO, and Serbian AAA for use in Europe, Austrailia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted |
|
Hypertherm Powermax 45 XP CSA / CE / CCC Certifications | ||
|---|---|---|
|
Input voltages (± 10%) |
CSA 200 – 240 V, 1-PH, 50-60 Hz 480 V, 3-PH, 50-60 Hz |
CE/CCC 230 V, 1-PH, 50-60 Hz 400 V, 3-PH, 50-60 Hz |
|
Input Current @ 5.95 kW |
CSA 200/240 V, 1-PH, 39/32 A 480 V, 3-PH, 9.4 A |
CE 230 V, 1-PH, 33 A 400 V, 3-PH, 10 A |
|
Duty cycle @ 40°C (104°F) |
CSA 50% @ 45 A, 200 – 240 V, 1-PH 60% @ 41 A, 200 – 240 V, 1-PH 100% @ 32 A, 200 – 240 V, 1-PH 50% @ 45 A, 480 V, 3-PH 60% @ 41 A, 480 V, 3-PH 100% @ 32 A, 480 V, 3-PH |
CE/CCC 50% @ 45 A, 230 V, 1-PH 60% @ 41 A, 230 V, 1-PH 100% @ 32 A, 230 V, 1-PH 50 % @ 45 A, 400 V, 3-PH 60% @ 41 A, 400 V, 3-PH 100% @32 A, 400 V, 3-PH |
|
Weight with 6.1 m (20') torch |
CSA 14 kg (31 lbs) |
CE 15 kg (33 lbs) |
Hypertherm Powermax 45 XP Setup
Hypertherm Powermax45: System overview and demonstration
How to Mark & Gouge with the Hypertherm Powermax 45 XP
