Miller Trailblazer 325 (Kohler) EFI w/ CHG/JMP & EXL PWR #907754003

Part Number: 907754003

DISCONTINUED - Replaced by Trailblazer® 325 (Kohler) #907798004

Out of Stock

Call 844-682-0205 or CHAT for more options

Welding type:

Mig

Mig

Stick

Stick

Tig

Tig

Engine Driven

Engine Driven

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

  • 300 amp
  • 25 HP Engine
  • 3-Year Miller Warranty

TRAILBLAZER 325 (KOHLER) EFI W/ CHG/JMP & EXL PWR #907754003

Trailblazer® welder/generators deliver unbeatable arc performance and provide the smoothest, most stable arc in the industry. The Trailblazer exclusive Auto-Speed™ technology delivers superior runtimes, increased fuel efficiency, and improved welder/generator performance. No other compact machine in the 300-amp class delivers more welding power or more auxiliary power with better fuel efficiency and less noise — for productive, profitable, quieter jobsites.

WHAT'S INCLUDED?

Battery Charge/Jump Start Capability
Excel™ power - auxiliary power for jobsite tools at quiet, fuel-saving idle speed.

Unbeatable arc performance

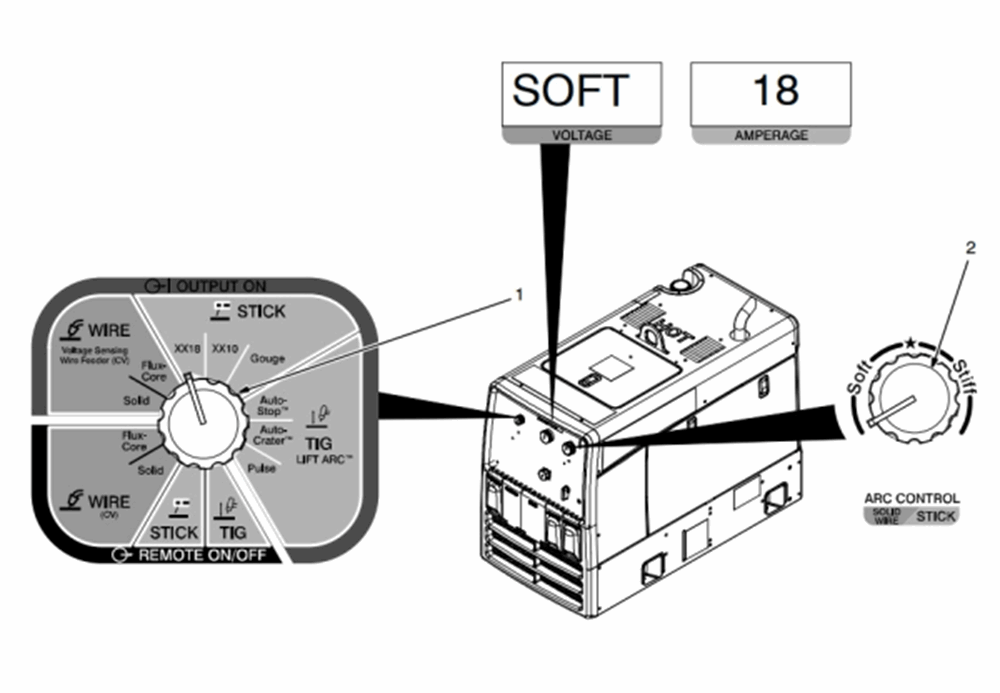

Wide amperage output with better welding deposition rates means you can get jobs done faster, saving time and money. The Trailblazer also has precise arc control, which allows you to fine-tune the arc to match your personal preferences and quickly dial in the perfect parameters to optimize weld quality and maximize productivity across a variety of applications and welding processes.

Auto-Speed™ Technology
Matches engine speed to load — a Miller exclusive. Get the welding power you need — plus reduced fuel consumption and lower noise levels for a more-profitable, safer jobsite. Unlike competitive machines that operate at 3,600 rpm (max) under any load, Miller-exclusive Auto-Speed technology responds to weld requirements by automatically adjusting engine speed to one of four rpm levels so the engine never works harder than necessary. Refueling time and operating costs are reduced, which means more productivity and profitability. Plus everyone on the jobsite gets a better working environment because noise levels and exhaust emissions are lowered.

Electronic fuel injection (EFI) (option)
Improve fuel efficiency for maximum productivity and profitability. Adding EFI to your Trailblazer welder/generator adds multiple benefits. With EFI, you’ll get faster, more-reliable starts in any weather — no choke adjustments needed. EFI-equipped Trailblazer machines are also up to 42 percent more fuel-efficient than standard carbureted models, improving profitability. Plus, refueling less frequently means you’ll spend more of your time welding, improving productivity.

Excel™ power (option)
Power at idle — a Miller exclusive. Unlike competitive machines that provide auxiliary power only at 3,600 rpm (max), Excel power delivers a full 2,400 watts (20 A) of 120-volt inverter-based, pure sine wave power at all speeds, including idle. With Excel power, you can operate jobsite tools like grinders at quiet, fuel-saving speeds. Refueling time and operating costs are reduced with Excel power, which means more productivity and profitability. Plus everyone on the jobsite gets a better working environment because noise levels and exhaust emissions are lowered. Excel power — available only from Miller.

Cleaner and Stronger Generator Power
Combined with a 25-horsepower engine, Trailblazer welder/generators offer up to 12,000 watts of clean, truly usable generator power that is Accu-Rated™, not inflated: tested to deliver uninterrupted peak output for a minimum of 30 seconds for big loads so you can get more jobs done. An independent welder and generator power system ensures no interaction between jobsite tools and the welding arc, while advanced generator technology virtually eliminates power spikes and other electrical imperfections — so welds are cleaner and jobsite tools can run without interruption, maximizing quality, productivity and profit.

Fewer refueling trips
No other gas welder/generator in the 300-amp class lets your crews spend more time working and less time refueling — because only Trailblazer welder/generators provide Auto-Speed™ technology, plus Excel™ power and electronic fuel injection (EFI) options, to deliver maximum runtime.

Maximum cost savings
Less money spent on fuel means more profit for you. Every Miller Trailblazer welder/generator has fuel-saving Auto-Speed technology; add optional Excel power and Electronic Fuel Injection (EFI) to save even more on fuel costs and enjoy a combination of advanced, profit-enhancing features that are only available on a Trailblazer welder/generator.

Safer, more productive jobsites
Quieter jobsites are safer and more productive because work crews can communicate easier, and work can start earlier and end later — even in noise-sensitive areas. If your jobsite needs a welder/generator, it needs a Trailblazer welder/generator — because no other gas-fueled choice is as quiet.

More portable, uses less truck and jobsite space
Trailblazer welder/generators are up to 17 percent smaller and 10 percent lighter then competitive machines — which means moving them is faster and easier, for maximum productivity. And because they take up less space, Trailblazer welder/generators let work trucks carry more equipment and gear — so your work crews can be ready for anything.

Shop online at Welders Supply for great deals on our entire selection of welding machines including generator welders, along with safety equipment, and Miller welding products.

GENERAL SPECIFICATIONS

Title TRAILBLAZER 325 (KOHLER) EFI W/ CHG/JMP & EXL PWR
Industries Interests Construction
Fabrication
Farm and Ranch
Infrastructure
Maintenance and Repair - Field Operations
Mechanical Contracting
Pipe Fabrication / Construction
Work / Service Trucks
Net Width 20 in
Net Height 28 in
Net Length 40.5 in
Net Weight 475 lbs
Warranty 3 Years
Engine Warranties
Miller's True Blue Warranty
Portability Lift Eye (Standard)
Running Gear / Cart (Optional)
Trailer (Optional)

SHIPPING DIMENSIONS

Height: 30.00 Inches
Width: 30.00 Inches
Length: 40.50 Inches
Weight: 475 Lb(s) 0 Oz

Product Questions and Answers


Q - How much power does the generator put out? A - 12,000 watts peak, 10,500 watts continuous
Q - Do I have to get the EFI version in order to get Excel Power? A - Yes, Excel Power is only an option with Electronic Fuel Ignition

Have a question about this product? Submit your question using the form below

Related Products

120 or 240 VAC Single-Phase Full KVA Plug Kits for Miller Power Supplies
Miller Bobcat™ / Trailblazer® / Big Blue® Full Single-Phase Full KVA Plug Kit #1…
$124.15
$129.94
Miller Protective Cover #300919
Miller Protective Cover
$292.00
$327.00

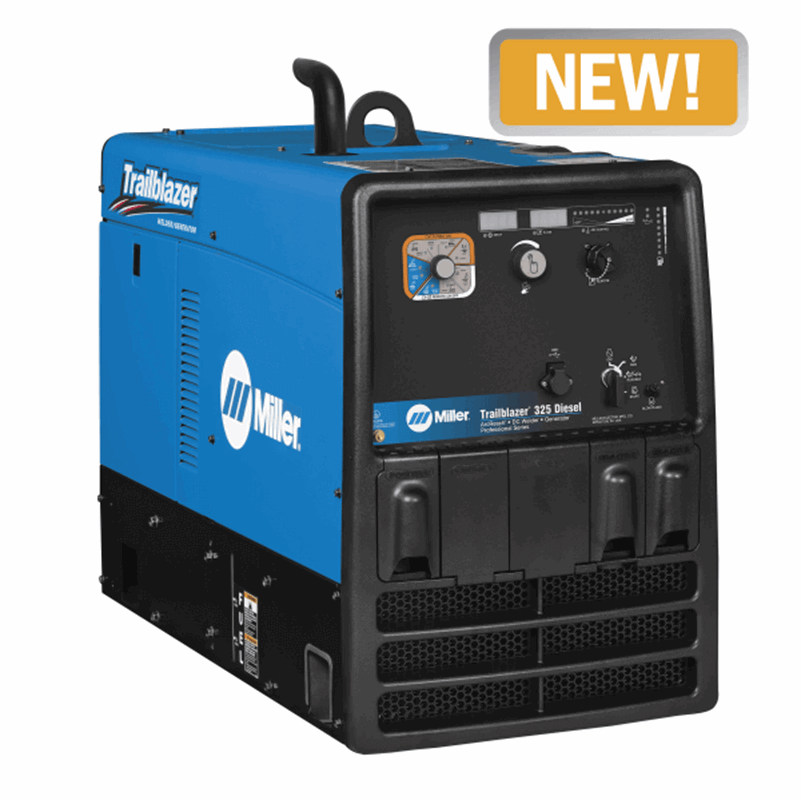

Trailblazer 325 Diesel, GFCI #907566
