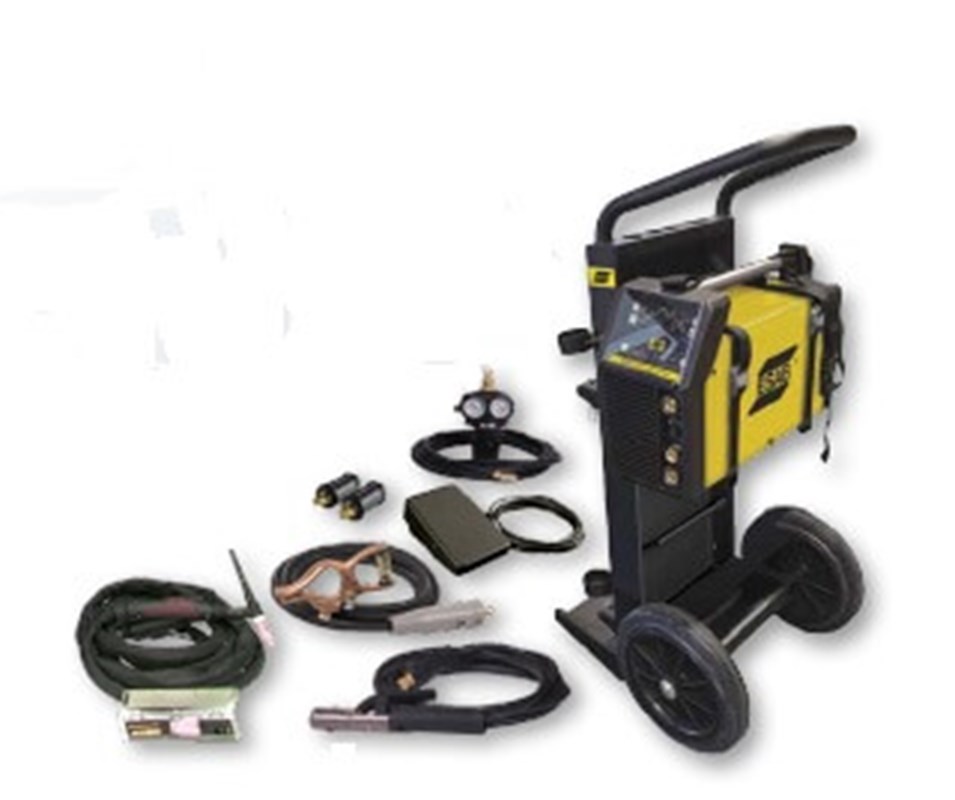

ESAB ET 220i AC/DC HF TIG with Trolley #W1009302

Part Numbers: W1009302
$6,995.30
$8,636.00* Save $1,640.70

Included with your purchase:

Select your Bundle!
Edit

    Call 1-844-682-0205 or CHAT for more options

    Victor Technologies

    Welding type:

    Stick

    Stick

    Tig

    Tig

    Material type:

    Stainless Steel

    Stainless Steel

    Aluminum

    Aluminum

    Power supply:

    220V Single Phase

    220V Single Phase

    220V 3 Phase

    220V 3 Phase

    460V

    460V

    •  Multi-Process
    •  Multi-Phase
    •  Multi-Voltage
    •  Lightweight and Portable

    ESAB ET 220i AC/DC HF TIG with Trolley #W1009302

    This product is the same as the ESAB ET 220i AC/DC HF TIG W1009302 with an extra trolley.

    The ET 220i AC/DC offers

    • full digital control
    • high output
    • AC/DC
    • Stick/Liftarc TIG/HF TIG
    • Inverter power supply with expanded input voltage capabilities
    • Square wave output
    • Advanced balance
    • Cleaning features

    These features extend tungsten life on aluminum and magnesium alloys without the need for continuous high frequency. The ET 220i is designed for precision TIG and Stick welding of all weldable materials.



    Key FEATURES:

    • Embedded microprocessor with digital controls
    • HF TIG and Liftarc TIG start with rapid pulse output
    • Tiptronic memory functions
    • Robust aluminum metal case
    • High-frequency start, Liftarc TIG start, automatic downslope, pulse, repeat (latch) function, memory function and automatic gas management

    INCLUDES:

    • 200 amp air-cooled TIG torch with fingertip control and accessories
    • Power Source
    • Remote foot control
    • Ground cable and clamp
    • Lead cable and electrode holder
    • Gas hose
    • Flowmeter/Regulator
    • Operator’s manual and set-up DVD
    • Primary power cable
    • Dinse plugs
    Power source weight without power cable, lb. (kg) 29.5 (13.4)
    Power source dimensions, L x W x H, in. (mm) 18 x 7.25 x 13 (483 x 185 x 326)
    Standards CSA E60974-1, ANSI/IEC 60974-1
    Number of phases 1/3
    Supply voltage, VAC – 1/3 ph 208-230/460 +/-15%
    Supply frequency, Hz 50/60
    Welding current range (Stick), A – 1 ph 10 – 150
    Welding current range (Stick), A – 3 ph 10 – 170
    Welding current range (TIG), A – 1 ph 5 – 200
    Welding current range (TIG), A – 3 ph 5 – 220
    Effective input current (I1eff), A (V) – 1 ph 37.3 (208) 33.7 (230)
    Effective input current (I1eff), A (V) – 3 ph 16.8 (208) 15.2 (230) 8.2 (460)
    Maximum input current (I1max), A (V) – 1 ph 37.3 (208) 33.7 (230) 18.1 (460)
    Maximum input current (I1max), A (V) – 3 ph 24.5 (208) 22.1 (230) 11.9 (460)
    Generator requirement, kW (kVA @ PF) 13 (16 @ 0.8)
    Stick (SMAW), A @ V (phase) 150 @ 40% 26 (1) 170 @ 40% 26.8 (3)
    Welding output 40ºC (104ºF), 10 min. A @ V (phase) 140 @ 60% 25.6 (1/3)
    TIG (GTAW), A @ V (phase) 200 @ 45% 18.8 (1) 220 @ 40% 18.8 (3)
    Welding output 40ºC (104ºF), 10 min. A @ V (phase) 180 @ 60% 17.2 (1) 160 @ 100% 16.4 (3)
    Open circuit voltage, (VRD active), V <113

    Product Questions and Answers


    Q - 1-phase or 3-phase? A - It will work with both.
    Q - Can it MIG weld? A - No, it's designed for precision TIG and Stick welding only.
