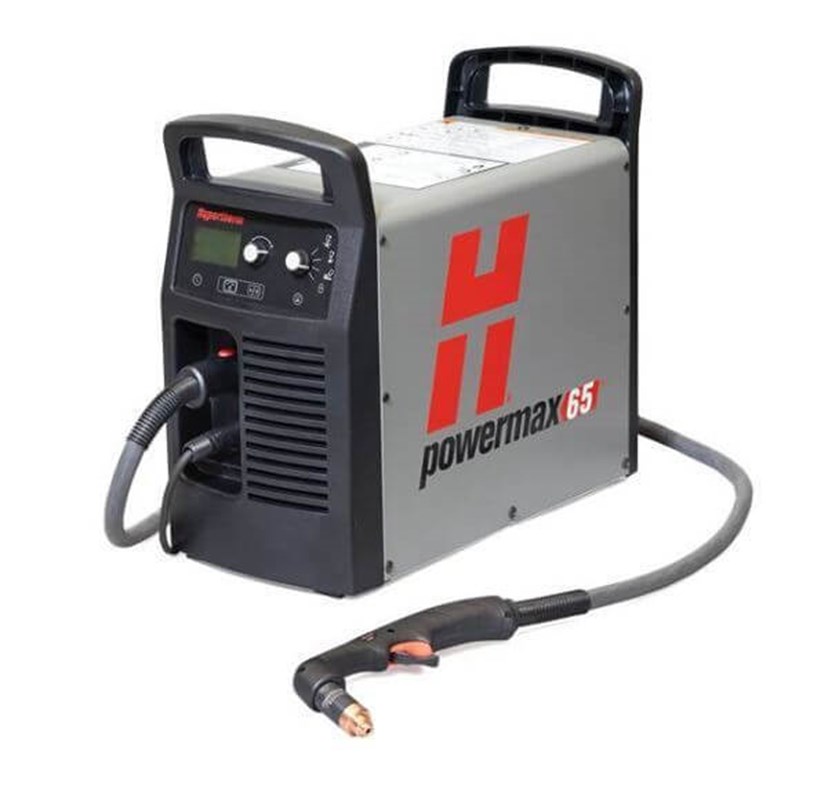

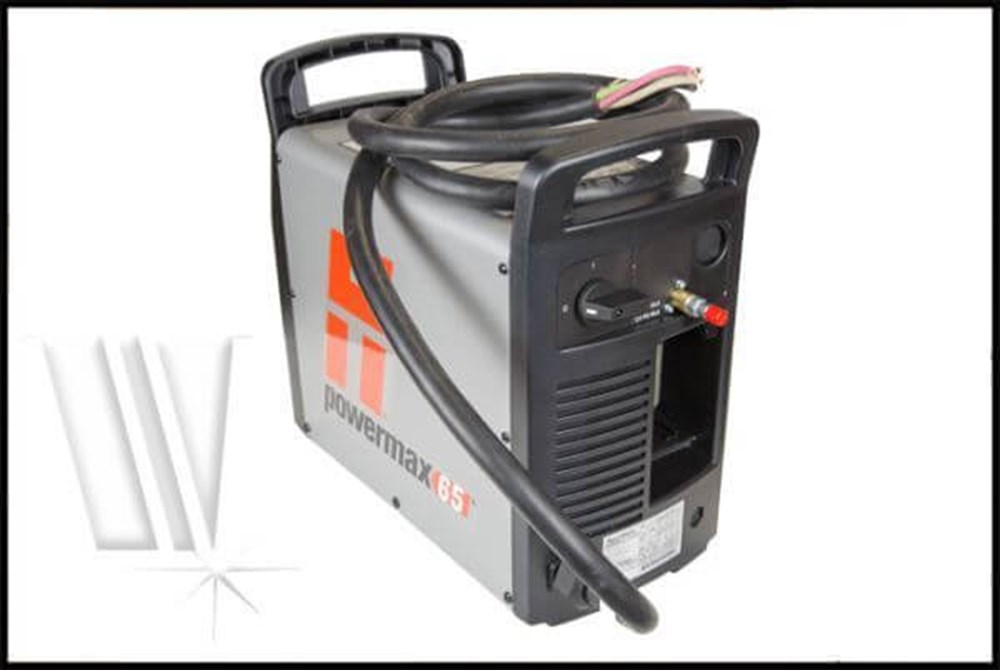

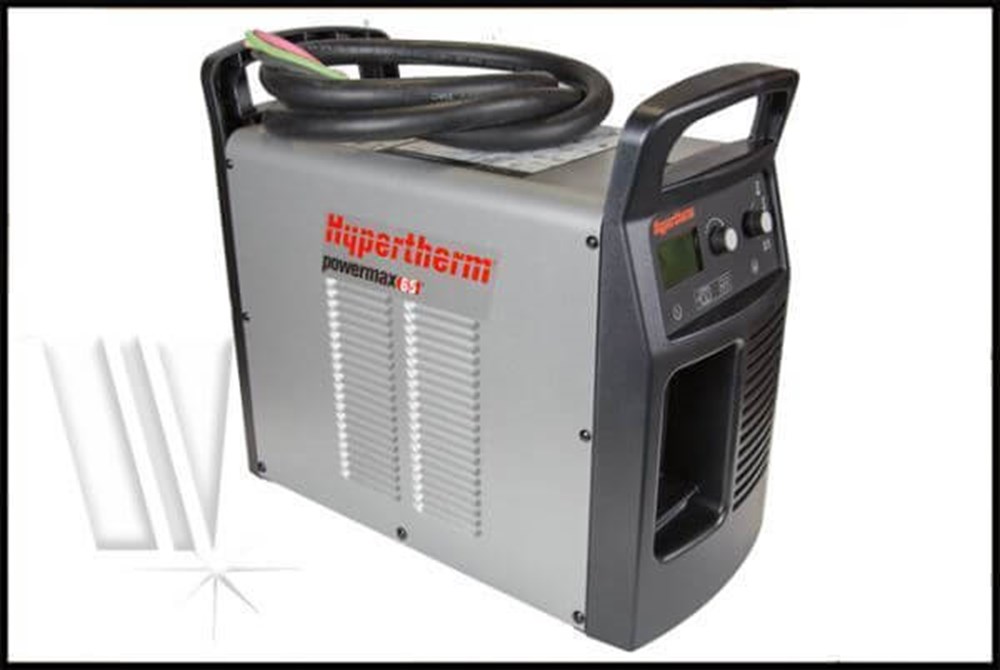

Hypertherm Powermax 65 Plasma Torch 50ft Hand Torch #083271

Product Number: 083271

DISCONTINUED - Replaced by Powermax 65 SYNC #083344

$3,496.50

CALL or CHAT for more options

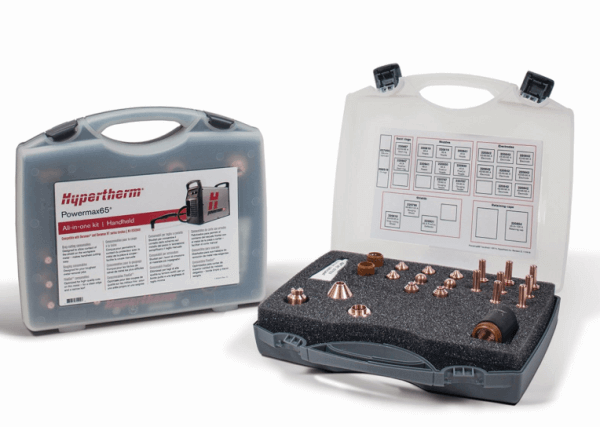

Add consumables

This product is currently out of stock. Please check back later, or call 1-800-236-8825 for assistance.
Out of Stock

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

Power supply:

220V Single Phase

220V Single Phase

220V 3 Phase

220V 3 Phase

460V

460V

Cut capacity:

3/4" Capacity

3/4" Capacity

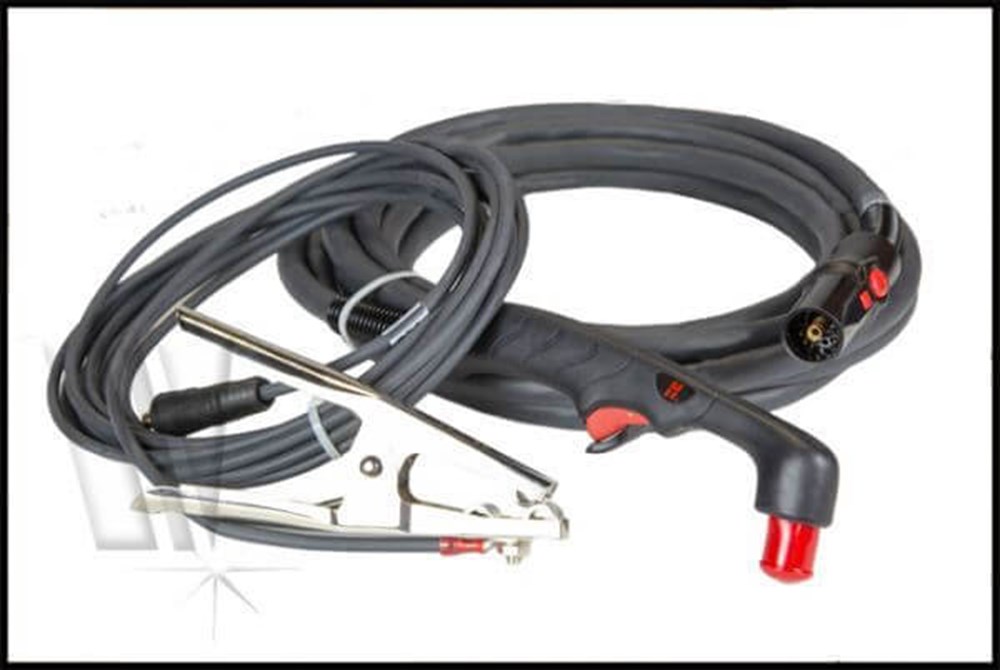

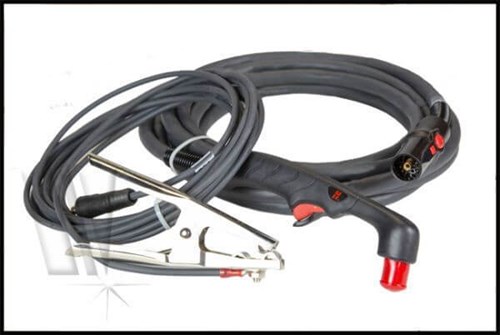

Hypertherm Powermax 65 50ft Hand Torch #083271

Hypertherm's latest plasma cutting mechanized machine

Hypertherm Powermax 65 #083271 product overview videoOffering the latest technological innovations, like Smart Sense technology to automatically adjust the gas pressure, the Powermax 65 helps you do more than ever before. Four Duramax™ torch styles provide greater versatility and enable operators to select the right tool for the job.

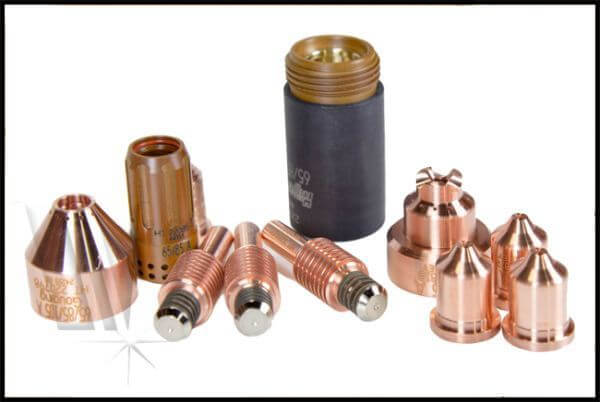

View the Hypertherm Powermax 65 accessories: replacement torchretaining cap, swirl ring, electrode, shield deflector, parts kit and more!

Recommended Cut Capacity 3/4"

Key power supply advantages of Hypertherm Powermax 65

  • Smart Sense technology automatically adjusts the gas pressure according to cutting mode and torch lead length for optimal performance.
  • Boost Conditioner™ circuit (on CSA models) improves performance on low-line voltage, motor generators, and fluctuating input power.
  • FastConnect™ torches, optional CNC interface, and four work lead styles increase versatility for handheld and mechanized use.

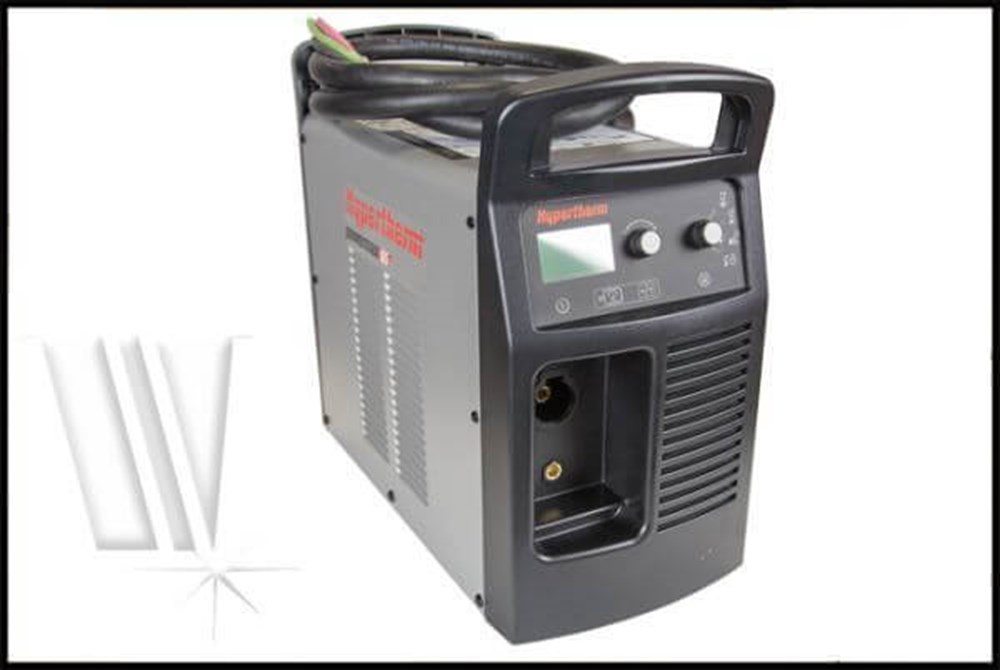

  • Simplified control panel with LCD screen for easy operation.

Key torch advantages of Hypertherm Powermax 65

  • Available 15° and 75° Duramax series hand torches enable operators to easily select the right tool for the job. The handle is more heat resistant and performs at least five times longer in high impact tests than previous torches.
  • Standard and short-barreled Duramax series machine torches allow a wide variety of mechanized applications with X-Y tables, track systems, pipe, and robotic cutting systems.
  • Conical Flow nozzle increases arc energy density for superior cut quality with little dross.
  • Patent-pending shield reduces dross buildup and enables smoother drag cutting for a better cut.

Powermax 65 Machine Torch Offers Maximum Productivity

  • Finish jobs faster with cut speeds one and a half times greater than oxyfuel on 1/2" mild steel.
  • Spend less time on grinding and edge preparation due to superior cut and gouge quality.
  • Easy-to-use for cutting and gouging
  • Drag cut at full output with a patented shield that reduces dross buildup for smoother cutting.
  • Tackle different jobs with multiple, easy-to-use torch styles.

Low Operating Costs

  • Reduce costs with long consumable life and more uptime.
  • High power efficiency lowers energy consumption.

Built to Withstand

  • DuramaxTM torches are designed for high-impact and heat resistance.
  • SpringStartTM technology ensures consistent starting and a more reliable torch.
  • Low maintenance for maximum uptime.

To view a video of this machine:

Powermax 65/85 Setup

Compare among Hypertherm Powermax 65 plasma cutter vs 30xp, 45, 85, 105 and 125.

Hypertherm Powermax 65 Error Codes and Troubleshooting

Additional Powertherm 65 errors and fault codes

Cut Charts for the Powermax65

Shop other Plasma Cutters or Hypertherm welding products and Hypertherm plasma cutters online from the experts at Welders Supply.

Hypertherm Powermax 65 Specifications

Input voltages

200-480 V, 1-PH, 50/60 Hz
200-600 V, 3-PH, 50/60 Hz

Kilowatt output

9 kW

Input current @ 9 kW

200/208/240/480 V, 1-PH 52/50/44/22 A
200/208/240/480/600 V, 3-PH 32/31/27/13/13 A

Output current

20-65 A

Rated output voltage

139 VDC

Duty cycle @ 104° F (40° C)

50% @ 65A, 230-600 V, 1/3-PH
40% @ 65A, 200-208 V, 1/3-PH
100% @ 65A, 230-600 V, 1/3-PH

Open circuit voltage (OCV)

295 VDC

Cut capacity

3/4" (20 mm) at 500 mm/min (20 ipm) or
1" (25 mm) at 250 mm/min (10 ipm)

Cuttable metals

Mild steel, stainless steel, aluminum

Dimensions with handles

D: 19.7"
W: 9.2"
H: 17.9"

Weight w/ 25' torch

64 lbs

Gas supply

Clean, dry, oil-free air or nitrogen

Recommended gas inlet flow rate/pressure

Cutting: 400 scfh, 6.7 scfm @85 psi
Gouging: 450 scfh, 7.5 scfm @ 70 psi

Input power cable length

10'

Power supply type

Inverter - OGBT

Engine drive requirement

15 kW for full 65 A output

Certifications

CSA-certified for use in the Americas and Asia, except China

Warranty

Power supplies have a 3-year warranty and torches a 1-year warranty

Hypertherm Powermax 65 Plasma Cutter

Hypertherm Powermax 65 at work

Hypertherm Powermax Demo (includes 30, 45, 65, 85, 105)



Product Questions and Answers


Q - Can I get the Powermax 65 with a shorter lead? A - Yes, you can get the same package with a 25ft lead. You'll find it here: /P/312/HyperthermPowermax6525ft
Q - Do the consumables for the Powermax 65 work as well for fine cutting work as the ones for the Powermax 45? A - Yes, the shielded consumables for the Powermax 65 cut identically to those used for the Powermax 45. The 65 can also use Hypertherm's FineCut consumables, which operate at 45 amps and less, for precision cutting of 1/8” and thinner plate.
Q - Can the Duramax machine torch be converted from a long torch to a short one? A - Yes, the operator's manual for the Powermax 65 has detailed directions for converting the long torch to a mini torch. It can be done in about 5 minutes.
Q - How much does this weigh? A - With the 50ft torch, it weighs 69 lbs.

How to convert a full-length machine torch to a mini machine torch:

  1. Disconnect torch lead.

    Disconnect the torch lead from the power supply and remove the consumables from the torch.

  2. Unscrew strain relief body.

    Unscrew the strain relief body from the strain relief nut and slide the strain relief body back along the torch lead.

  3. Unscrew strain relief nut.

    Unscrew the strain relief nut from the positioning sleeve and slide the nut back along the torch lead.

  4. Unscrew positioning sleeve.

    Unscrew the positioning sleeve from the coupler.

  5. Unscrew coupler.

    Unscrew the coupler from the mounting sleeve.

  6. Remove three screws.

    Remove the three screws from the consumables end of the mounting sleeve and slide the mounting sleeve off the front of the torch body.
