Hypertherm Powermax 65 (200-600 V CSA) 180° Full-Length Machine Torch, 25’, CPC Port and Voltage Divider with Remote Pendant #083277

Part Number: 083277

DISCONTINUED - Replaced by Powermax 65 SYNC #083348

<h2><strong>Limited Time Offer:&nbsp; Receive additional 1 year extended warranty on Powermax Systems purchased now through August 31, 2021 ($600 Value) &ndash; go to <a href="https://www.hypertherm.com/en-US/support/system-support/product-registration/" target="welder">www.hypertherm.com/registration</a> to register your product and enter promotion code &ldquo;WARRANTY&rdquo;</strong></h2>

$3,450.00
Out of Stock

Call 1-844-682-0205 or CHAT for more options

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

Power supply:

220V Single Phase

220V Single Phase

220V 3 Phase

220V 3 Phase

460V

460V

Cut capacity:

1" and Higher Capacity

1" and Higher Capacity

Hypertherm Powermax 65 #083277 Provides Versatility for Your Welding Needs

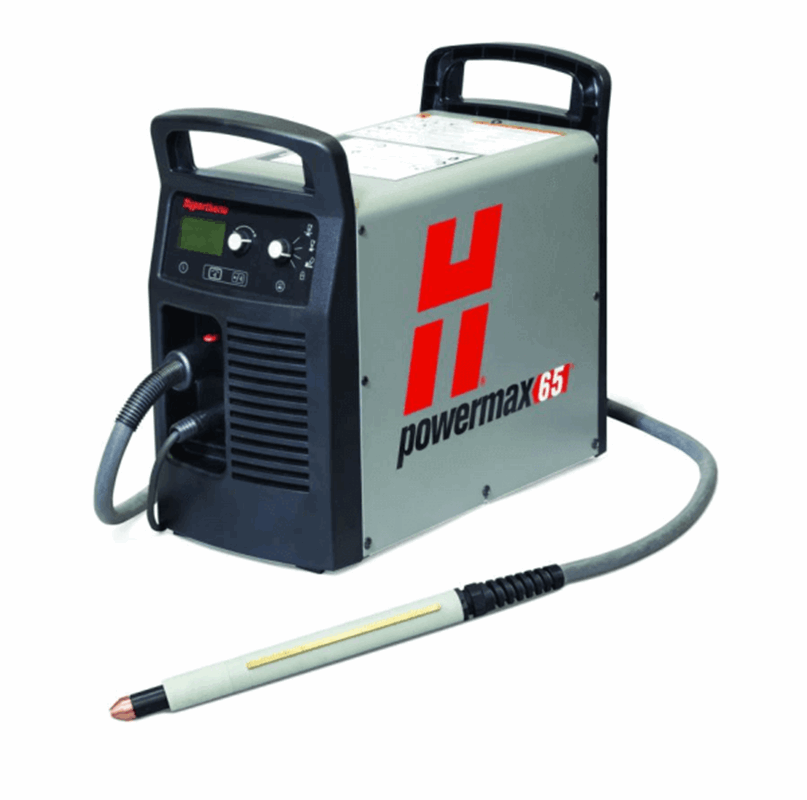

Hypertherm Powermax 65 180° Full-Length Machine Torch, 25’, (200-600 V CSA) CPC Port and Voltage Divider with Remote Pendant #083277

Hypertherm Powermax 65 #083277 product overview videoThe Hypertherm Powermax 65 offers the latest in technological advancements when it comes to plasma cutters, such as the Smart Sense™ which automatically adjusts the gas pressure of the unit in relation to the mode that you have set it to and the torch lead length, automatic detection of the end of the electrodes of life through the power supply itself, and Hypertherm's unparalleled Duramax™ torches. These torches are designed for durability and reliability. Featuring Spring Start™ technology in each and every one of them; this technology eliminates moving parts in the torch and ensures consistent starting of the electrode each and every time. Allowing for several modes of operation to be performed with them, such as handheld mechanical cutting/gouging, or robotic cutting/gouging. All of this comes together to allow for the recommended cutting thickness of metal to be 20mm at 20ipm to a maximum of 25mm at 10ipm mechanically, or 32mm at 5ipm by hand. Each piercing the metal continually and evenly at 16mm. While the gouging of the metal is rated as being at 10.7lbs/hr.; achieving a 3.5mm depth by 6.6mm width groove.

Mechanized Torch Provides Versatility

The Hypertherm Powermax 65 is designed for heavy-duty cutting and gouging. With a 25-foot hand torch and 180° mechanized torch, this plasma cutter offers the versatility for a wide range of jobs.

  • Smart Sense™ automatically adjust gas pressure
  • SpringStart™ for more reliable, consistent starting
  • Variety of Duramax™ torches for hand cutting or gouging, robotic cutting or gouging, portable automation, and X-Y table

HYPERTHERM Powermax 65 CONSUMABLES AND KITS

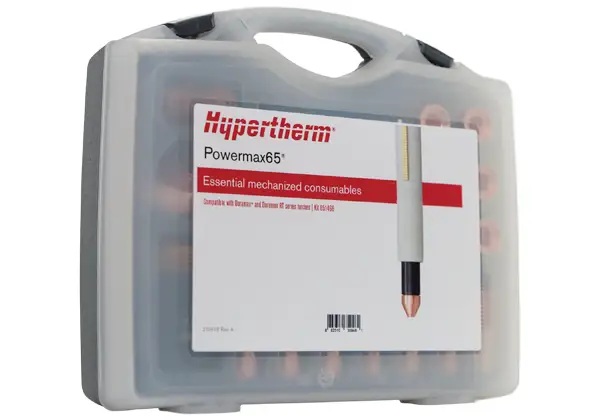

Stock up on consumables with the Powermax 65 handheld consumable kit or Powermax 65 mechanized consumables kit.

Warranty information for Hypertherm products

Register your Hypertherm product on the Hypertherm website

Shop for Hypertherm products, Hypertherm accessories, and safety apparel at Welders Supply.

Specifications

Input voltages CSA 200 – 600 V, 3-PH, 50/60 Hz
Input Current @ 9 kW CSA 200/208/240/480/600 V, 3-PH, 32/31/27/13/13 A
Output current 20 - 65 A
Rated output voltage 139 VDC
Duty cycle @ 40°C (104°F) CSA 50% @ 65 A, 230 – 600 V, 1/3-PH
40% @ 65 A, 200 – 208 V, 1/3-PH
100% @ 46 A, 230 – 600 V, 1/3-PH
Open circuit voltage (OCV) CSA 295 VDC
Gas Supply Clean, dry, oil-free air or nitrogen
Recommended gas inlet
flow rate / pressure
Cutting: 189 l/min (400 scfh; 6.7 scfm) @ 85 psi (5.9 bar)
Gouging: 450 scfh; 212 l/min (7.5 scfm) @ 70 psi (4.8 bar)
Input power cable length 3 m (10')
Power supply type Inverter - IGBT
Cut capacity 3/4"



Engine-driven generator operation

Engine drive rating System output current Performance (arc stretch)
15 kW 65 A Full
12 kW 65 A Limited
12 kW 40 A Full
8 kW 40 A Limited
8 kW 30 A Full



Production cut chart

Material Thickness Current Production cut speed*
inches mm amps ipm mm/min
Mild steel 10 GA 3 65 224 6100
1/4 6 65 116 3240
3/8 10 65 62 1500
1/2 12 65 40 1140
5/8 16 65 26 650
Stainless steel 10GA 3 65 296 8260
1/4 6 65 96 2850
3/8 10 65 52 1250
1/2 12 65 32 920
Aluminum 1/8 3 65 336 8800
1/4 6 65 152 4400
3/8 10 65 68 1650
1/2 12 65 48 1330

Hypertherm Powermax 65 Error Codes and Troubleshooting

Hypertherm Powermax 65 Error Codes Hypertherm Powermax 65 Error Codes

Additional Powertherm 65 errors and fault codes

Cut Charts for the Powermax65

Product Questions and Answers


Q - Do I need to adjust gas pressure with the Powermax 65? A - No, you do not need to adjust gas pressure. Smart Sense technology automatically adjusts gas pressure.
Q - What applications is this machine good for? A - The Hypertherm Powermax 65 is approved for drag cutting, fine feature cutting, max removal gouging, extended reach cutting, flush cutting, mechanized cutting, extended reach gouging, and max control gouging.
Q - What is the CPC port? A - The CPC port is a connection for a machine torch to be used with mechanized tables and systems, such as a CNC table.
Q - Is this all ready to go with a CNC table? A - Yes, this model has the CPC port and machine torch necessary to use with a CNC table, as well as track systems, pipe, or robotic cutting.

How to install a line-disconnect switch:

  1. Determine location.

    Having a line-disconnect switch for each power supply enables the operator to turn off incoming power quickly in an emergency. The switch should be positioned where it is easily accessible.

  2. Hire a licensed electrician.

    Installation must be performed by a licensed electrician and in accordance with national and local codes. The interrupt level of the switch must equal or exceed the continuous rating of the fuses.

  3. Requirements for installation.

    The following steps are required for a safe installation:

    • Isolate the electrical equipment and disconnect all live conductors from incoming supply voltage when in the OFF position.
    • Have one OFF and one ON position clearly marked with O (OFF) and I (ON).
    • Contain a power-operated mechanism that serves as an emergency stop.
    • Have an external operating handle that can be locked in the OFF position.
    • Have appropriate slow-blow fuses installed.
