Hypertherm Powermax 65 Plasma Torch (200-600 V CSA) 25 ft: 75° Hand Held Torch & 180° Full-Length Mechanized Torch, CPC Port and Voltage Divider with Remote Pend #083300

Part Number: 083300

DISCONTINUED - Replaced by Powermax65 SYNC

Out of Stock
Starts at $604.17/month with

Call 844-682-0205 or CHAT for more options

Cut capacity:

3/4" Capacity

3/4" Capacity

Plasma torch:

Handheld

Handheld

Mechanized

Mechanized

Power supply:

220V Single Phase

220V Single Phase

220V 3 Phase

220V 3 Phase

460V

460V

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

  •  Lightweight, portable power supplyLightweight and Portable

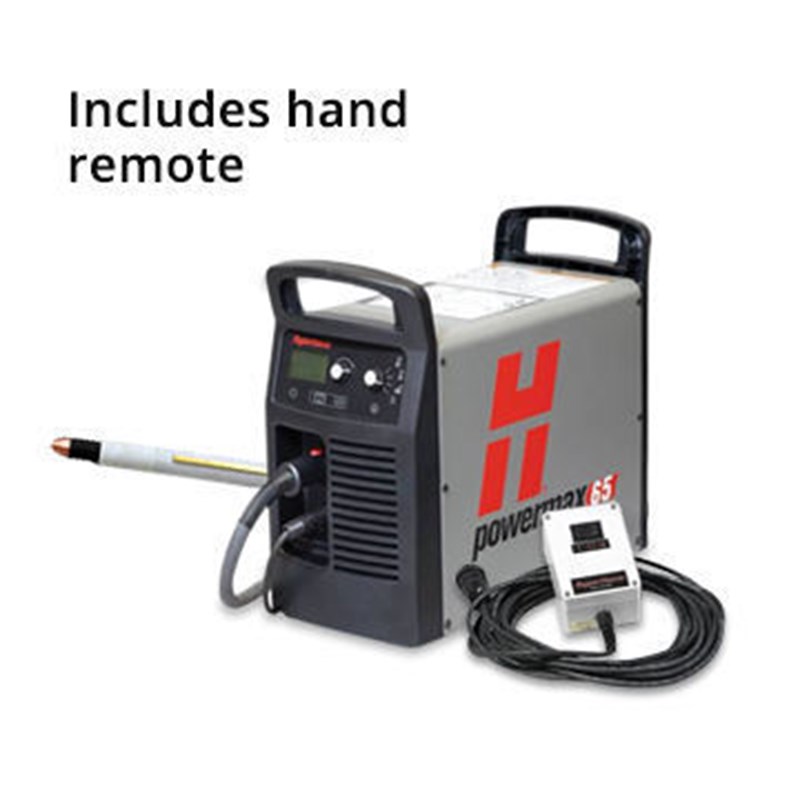

  • Includes voltage divider & remoteVoltage Divider with Remote

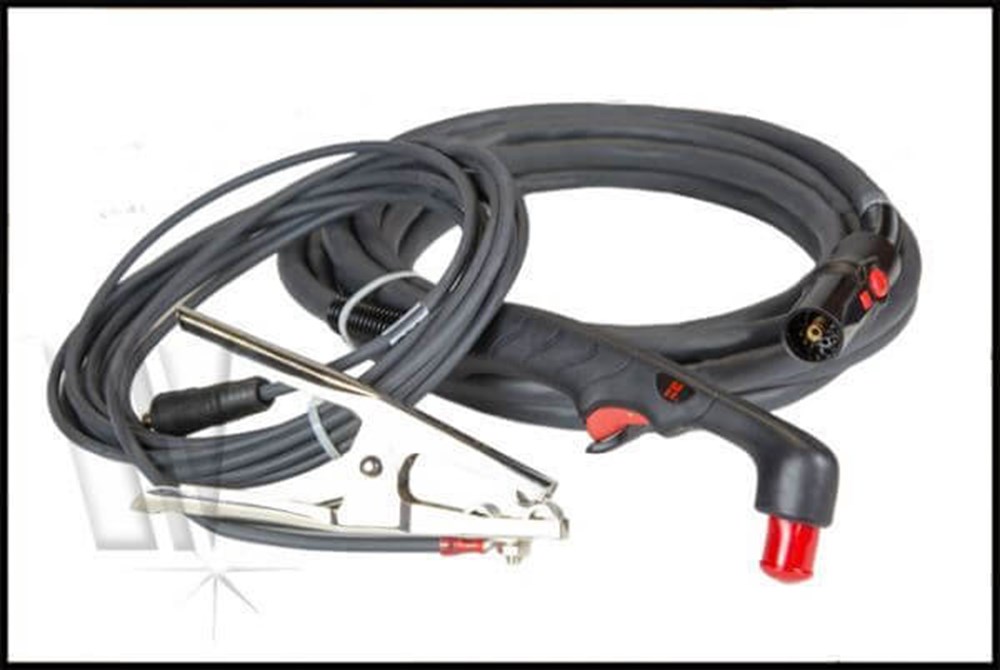

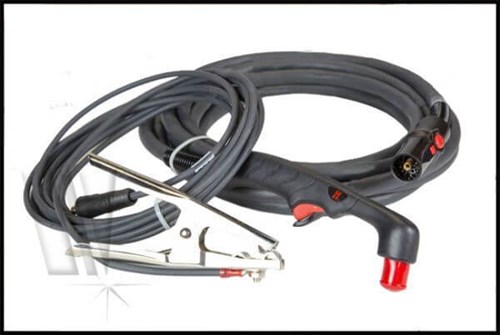

  • 25ft torch leads included25' Leads
  • CPC port for mechanized cuttingCPC Port
  • Hypertherm trade-in systemHypertherm Trade-In System

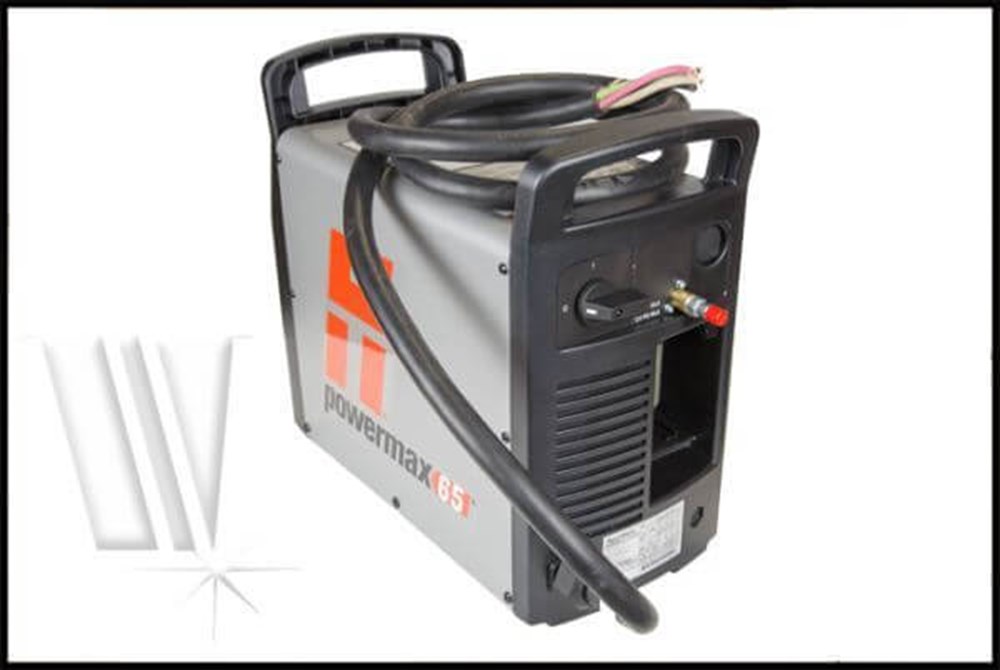

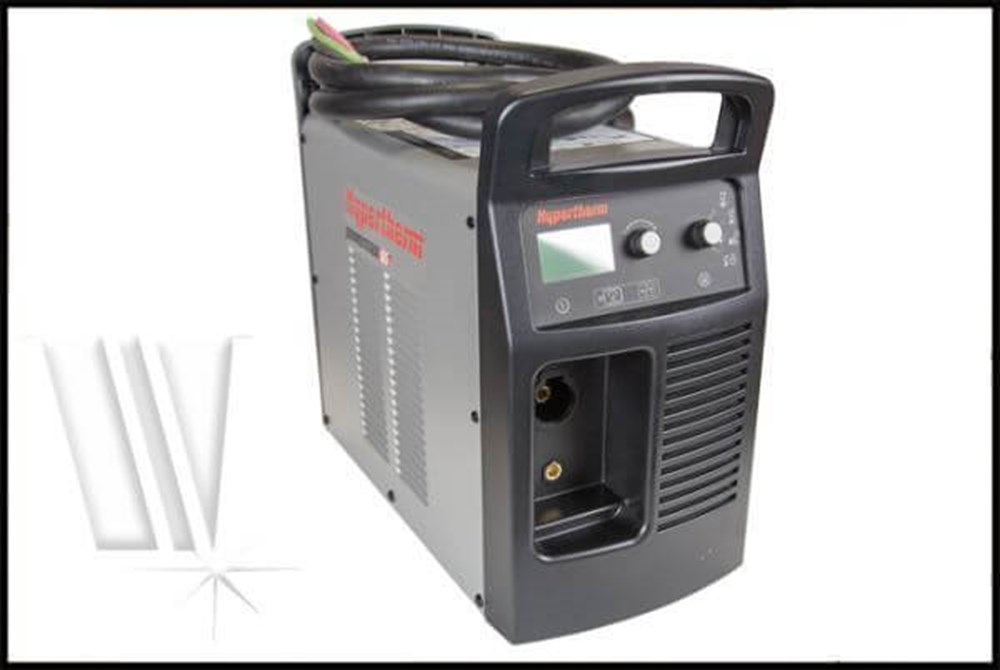

Hypertherm Powermax 65 Plasma Torch #083300

Hypertherm Powermax 65 Student RebateHypertherm Powermax 65 Trade-Ins

Hypertherm Powermax 65 #083300 product overview videoThe Hypertherm Powermax 65 (#083300) is designed for heavy-duty cutting and gouging. With a 25-foot hand torch and 180° mechanized torch, this plasma cutter offers ample versatility for a wide range of manual, automated and semi-automated jobs. Its features enhance its functionality and control capabilities, making it highly versatile and compatible for any number of jobs.

    • Smart Sense™ automatically adjusts gas pressure
    • SpringStart™ for more reliable, consistent starting
    • Variety of Duramax™ torches for hand cutting or gouging, robotic cutting or gouging, portable automation, and X-Y table use.

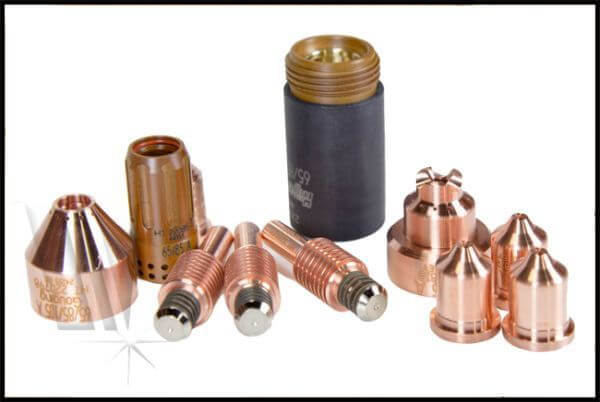

Hypertherm Powermax 65 Consumables, Kits, and Accessories:

Stock up on consumables with the Powermax 65 handheld consumable kit or Powermax 65 mechanized consumables kit, or just order what you need:

Customize or upgrade your Powermax 65 with our compatible Hypertherm accessories:

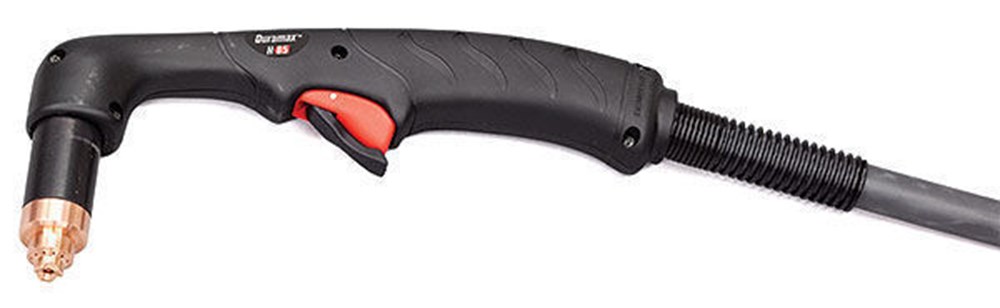

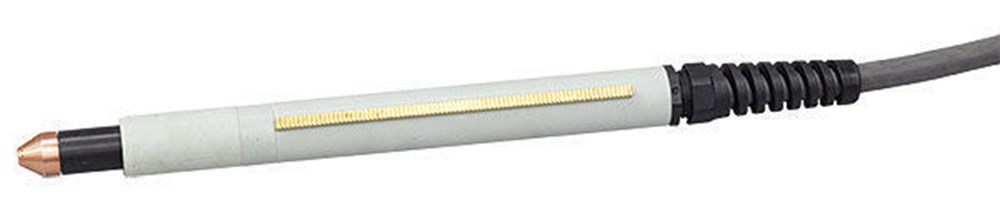

Torches compatible with the Powermax 65:

View more Hypertherm Powermax Plasma cuttersView all Hypertherm Plasma Cutter Torches

Hypertherm Makes Work Smarter

Smart Sense ™ technology automatically adjusts the gas pressure when hand welding. This pressure can be manually adjusted for specialized work. SpringStart ™ technology makes starting extra reliable.

Hypertherm Automation for Bulk Welding and CNC Machining

Hypertherm machine torches are compatible with a variety of automated systems for mass-produced cutting, gouging, and piercing. Thanks to its remote operation feature, the Powermax 65 is also compatible with semi-automated systems. CNC (computer numerical control) and THC (torch height controller) machines can communicate with the Powermax 65's power source for fully automated work. Each torch is easily attached with universal mounting brackets.

Follow all operating guides for recommended height, power, and speed adjustments.

Warranty information for Hypertherm products

Register your Hypertherm product on the Hypertherm website


Hypertherm Powermax 65 Error Codes and Troubleshooting

Additional Powertherm 65 errors and fault codes

Cut Charts for the Powermax65


Shop for Hypertherm products, Hypertherm accessories, and safety apparel at Welders Supply.

Hypertherm Powermax 65 General Specifications

Input Voltages

  • 200 – 600 V, 3-PH, 50/60 Hz

Input Current @ 9kW

  • 200/208/240/480 V, 1-PH, 52/50/44/22 A
  • 200/208/240/480/600 V, 3-PH, 32/31/27/13/13 A

Output Current

  • 20 - 65 A

Rated Output Voltage

  • 139 VDC

Duty Cycle

  • 50% @ 65 A, 230 – 600 V, 1/3-PH
  • 40% @ 65 A, 200 – 208 V, 1/3-PH
  • 100% @ 46 A, 230 – 600 V, 1/3-PH

Open Circuit Voltage

  • CSA: 295 VDC

Gas Supply

  • Clean, dry, oil-free air or nitrogen

Recommended Gas Inlet Flow Rate / Pressure

  • Cutting: 189 l/min (400 scfh; 6.7 scfm) @ 85 psi (5.9 bar)
  • Gouging: 450 scfh; 212 l/min (7.5 scfm) @ 70 psi (4.8 bar)

Input Power Cable Length

  • 3 m (10')

Power Supply Type

  • Inverter - IGBT

Cut Capacity

  • 3/4"



Engine-Driven Generator Operation

Engine drive rating: 15 kW System output current: 65 A - Performance (arc stretch): Full
Engine drive rating: 12 kW

System output current: 65 A - Performance (arc stretch): Limited
System output current: 40 A - Performance (arc stretch): Full

Engine drive rating: 8 kW

System output current: 40 A - Performance (arc stretch): Limited
System output current: 30 A - Performance (arc stretch): Full





Production Cut Speeds (Current: 65 amps)

Mild Steel

10 GA (3mm) - 224 ipm (6100 mm/min)
1/4" (6 mm) - 116 ipm (3240 mm/min)
3/8" (10 mm) - 62 ipm (1500 mm/min)
1/2" (12mm) - 40 ipm (1140 mm/min)
5/8" (16 mm) - 26 ipm (650 mm/min)

Stainless Steel

10 GA (3 mm) - 296 ipm (8260 mm/min)
1/4" (6 mm) - 96 ipm (2850 mm/min)
3/8" (10 mm) - 52 ipm (1250 mm/min)
1/2" (12 mm) - 32 ipm (920 mm/min)

Aluminum

1/8" (3 mm) - 336 ipm (8800 mm/min)
1/4" (6 mm) - 152 ipm (4400 mm/min)
3/8" (10 mm) - 68 ipm (1650 mm/min)
1/2" (12 mm) - 48 ipm (1330 mm/min)

SHIPPING DIMENSIONS

Height: 17.90 Inches
Width: 9.20 Inches
Length: 19.70 Inches
Weight: 64 Lb(s) 0 Oz

Product Questions and Answers


Q - Can this machine be used for removing spot and tack welds? A - No. For work like this, done at very low output, we'd recommend the Powermax 45 XP.
Q - Where are Hypertherm machines made? A - All Hypertherm products are made in the United States
Q - Are the Duramax Hyamp torches compatible with the Powermax 65? A - Yes, the Hyamp Mini Machine 180-degree, Machine 180-degree, Long 45- and 90-degree, and Hand 15- and 85-degree torches are all compatible with the Powermax 65.
Q - Will the Duramax 180 machine torch that comes with this package work for cutting fine details? A - Yes, this is one of the torches Hypertherm recommends for fine feature cutting.

How to set up machine torch:

  1. Refer to manufacturer's instructions for your specific torch.

    Because the Powermax is compatible with a wide variety of cutting tables, track burners, pipe bevelers, and so on, please refer to manufacturer's instructions.

  2. Ensure the torch and table are set up correctly.

    Use a square to align the torch at right angles to the workpiece in two dimensions.

  3. Clean, check and tune.

    The torch may travel more smoothly if you clean, check and tune the cutting table's rails and drive system.

  4. Ensure torch does not touch the workpiece during cutting.

    Contact with the workpiece can damage the shield and nozzle and affect the cut surface.

Have a question about this product? Submit your question using the form below

Related Products

Hypertherm Leather Cutting Gloves #127169
Hypertherm Leather Cutting Gloves
$27.50

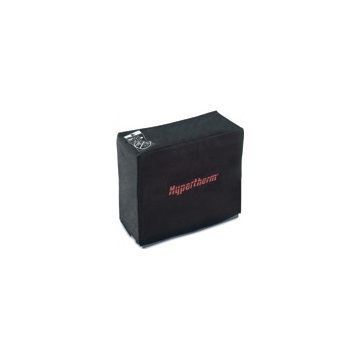

Hypertherm Powermax 65/85 Cover #127301
