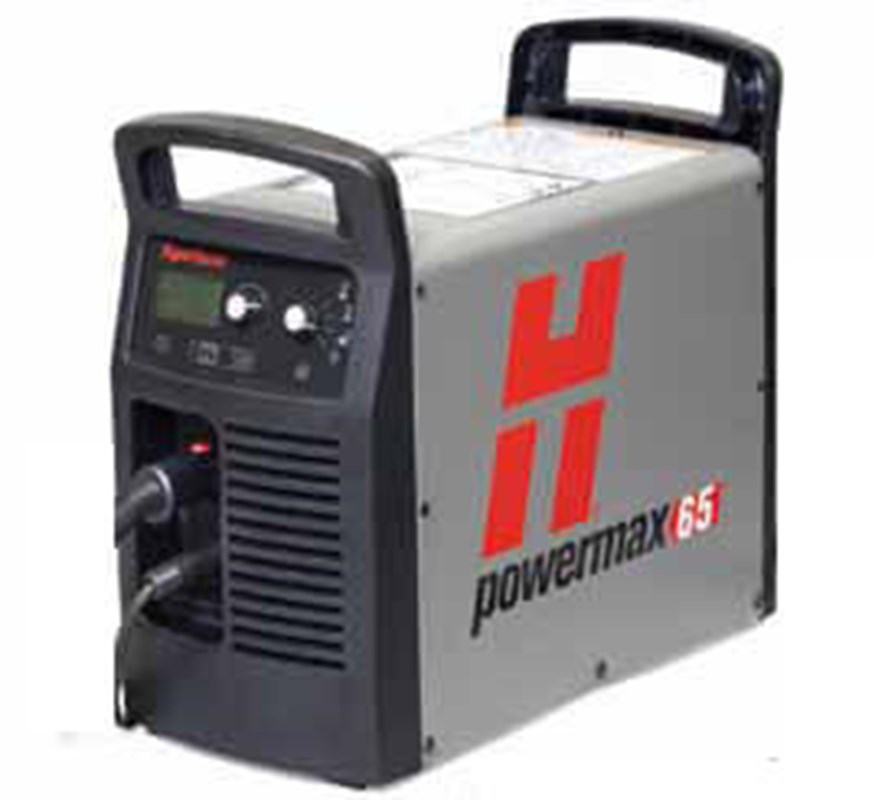

Hypertherm Powermax 65 200-600V Power Supply CPC Port - 083266

Part Number: 083266

DISCONTINUED - Replaced by the Powermax 65 SYNC #083372

Out of Stock

Call 844-682-0205 or CHAT for more options

Cut capacity:

3/4" Capacity

3/4" Capacity

Plasma torch:

Power Supply Only

Power Supply Only

Power supply:

220V Single Phase

220V Single Phase

220V 3 Phase

220V 3 Phase

460V

460V

  • 3/4 inch cut capacity plasma cutter3/4" Cut Capacity
  • Portable plasma cutterLightweight and Portable
  • Power supply only - No torch includedPower Supply Only
  • CPC port for CNC plasma cuttingCPC Port
  • Hypertherm 3 year warranty3-Year Power Warranty
  • Student rebate availableFirst Time Student Rebate

Hypertherm Powermax65 Plasma Cutters #083266 Machine Torch Has Power Supply Advantages



Hypertherm Powermax 65 With CNC-compatible CPC Port #083266 (Power Supply Only - NO TORCH)

Hypertherm's latest plasma cutting mechanized machine

Hypertherm Powermax 65 #083271 product overview videoThe Hypertherm Powermax65 brings you the greatest 3/4" cutting capacity in its class backed by Smart Sense technology to automatically adjust gas pressure, while Duramax™ torch styles give you incredible versatility and let you customize your machine perfectly for your precise job.

View the Hypertherm Powermax 65 accessories: Duramax torchretaining cap, swirl ring, electrode, shield deflector, parts kit and more!

Key power supply advantages of Hypertherm Powermax65

  • Smart Sense technology automatically adjusts the gas pressure according to cutting mode and torch lead length for optimal performance.
  • Boost Conditioner™ circuit (on CSA models) improves performance on low-line voltage, motor generators, and fluctuating input power.
  • FastConnect™ torches, optional CNC interface, and four work lead styles increase versatility for handheld and mechanized use.
  • A simplified control panel with an LCD screen makes for easy operation.

Key torch advantages of Hypertherm Powermax65

  • Available 15° and 75° Duramax series hand torches enable operators to easily select the right tool for the job. The handle is more heat resistant and performs at least five times longer in high impact tests than previous torches.
  • Standard and short-barreled Duramax series machine torches allow a wide variety of mechanized applications with X-Y tables, track systems, pipe and robotic cutting systems.
  • Conical Flow nozzle increases arc energy density for superior cut quality with little dross.
  • Patent-pending shield reduces dross buildup and enables smoother drag cutting for a better cut.

Powermax65 Machine Torch Offers Maximum Productivity

  • Finish jobs faster with cut speeds one and a half times greater than oxyfuel on 1/2" mild steel.
  • Spend less time on grinding and edge preparation due to superior cut and gouge quality.
  • Easy-to-use for cutting and gouging
  • Drag cut at full output with a patented shield that reduces dross buildup for smoother cutting.
  • Tackle different jobs with multiple, easy-to-use torch styles.

Low Operating Costs

  • Reduce costs with a long consumable life and more uptime.
  • High power efficiency lowers energy consumption.

Built to Withstand

  • DuramaxTM torches are designed for high-impact and heat resistance.
  • SpringStartTM technology ensures consistent starting and a more reliable torch.
  • Low maintenance for maximum uptime.

To view a video of this machine:

Powermax 65/85 Setup

Compare among Hypertherm Powermax 65 plasma cutter vs 30xp, 45, 85, 105 and 125.

Shop other Plasma Cutters or Hypertherm welding products online from the experts at Welders Supply.

Specifications

Input voltages CSA 200 – 600 V, 3-PH, 50/60 Hz
Input Current @ 9 kW CSA 200/208/240/480/600 V, 3-PH, 32/31/27/13/13 A
Output current 20 - 65 A
Rated output voltage 139 VDC
Duty cycle @ 40°C (104°F) CSA 50% @ 65 A, 230 – 600 V, 1/3-PH
40% @ 65 A, 200 – 208 V, 1/3-PH
100% @ 46 A, 230 – 600 V, 1/3-PH
Open circuit voltage (OCV) CSA 295 VDC
Gas Supply Clean, dry, oil-free air or nitrogen
Recommended gas inlet
flow rate / pressure
Cutting: 189 l/min (400 scfh; 6.7 scfm) @ 85 psi (5.9 bar)
Gouging: 450 scfh; 212 l/min (7.5 scfm) @ 70 psi (4.8 bar)
Input power cable length 3 m (10')
Power supply type Inverter - IGBT



Engine-driven generator operation

Engine drive rating System output current Performance (arc stretch)
15 kW 65 A Full
12 kW 65 A Limited
12 kW 40 A Full
8 kW 40 A Limited
8 kW 30 A Full



Production cut chart

Material Thickness Current Production cut speed*
inches mm amps ipm mm/min
Mild steel 10 GA 3 65 224 6100
1/4 6 65 116 3240
3/8 10 65 62 1500
1/2 12 65 40 1140
5/8 16 65 26 650
Stainless steel 10GA 3 65 296 8260
1/4 6 65 96 2850
3/8 10 65 52 1250
1/2 12 65 32 920
Aluminum 1/8 3 65 336 8800
1/4 6 65 152 4400
3/8 10 65 68 1650
1/2 12 65 48 1330

Hypertherm Powermax 65 Error Codes and Troubleshooting

Hypertherm Powermax 65 Error Codes Hypertherm Powermax 65 Error Codes

Additional Powertherm 65 errors and fault codes

Cut Charts for the Powermax65

SHIPPING DIMENSIONS

Height: 17.90 Inches
Width: 9.20 Inches
Length: 19.70 Inches
Weight: 64 Lb(s) 0 Oz

Product Questions and Answers


Q - Does this come with a torch? A - No, this is just the power supply.
Q - What's the max severance? A - 1 1/4" hand cutting at 5 ipm.
Q - Does this plasma cutter work with mechanized applications? A - Yes, it includes the CPC port, but it does not come with a machine torch, which would be necessary for this application.
Q - Can I use nitrogen with this plasma cutter? A - You can use nitrogen or compressed air, so long it is clean, oil-free, and dry.

Have a question about this product? Submit your question using the form below
