Miller Dynasty 210 DX (120-480 V) #907686
Part Number: 907686
Welding type:
TIG
Stick
Power supply:
110V
220V Single Phase
220V 3 Phase
460V
Material type:
Mild Steel
Stainless Steel
Documents
Videos
3-Year Power Warranty
Stick Welding
TIG Welding
Multi-Phase

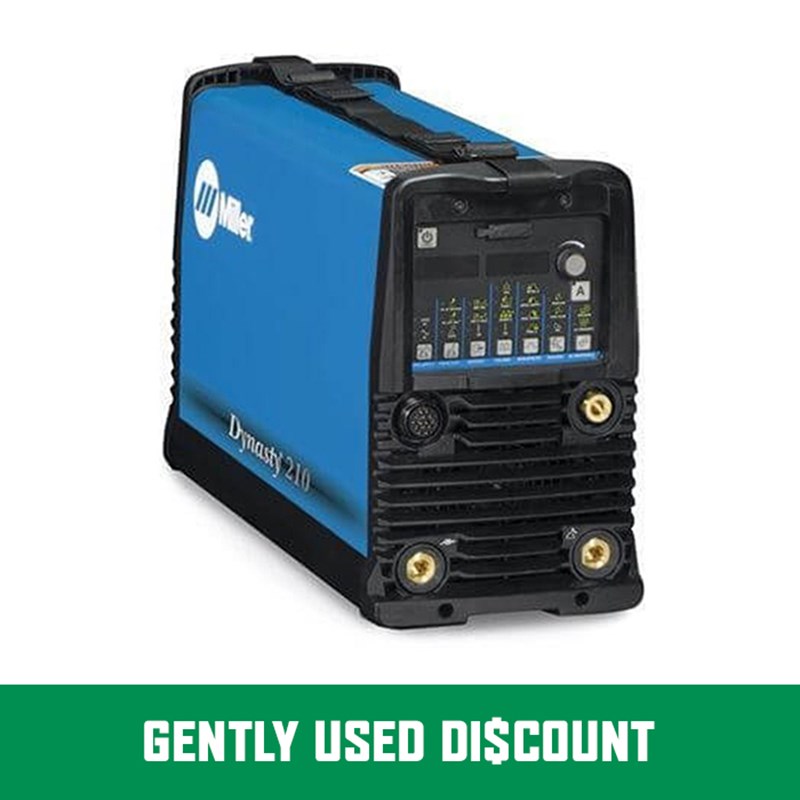

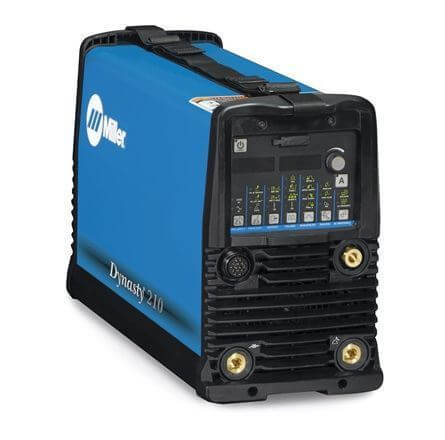

Miller Dynasty 210 DX TIG-Stick Welder Part #907686
The Dynasty 210 DX combines advanced inverter technology with Miller's Auto-Line technology to create the most flexible AC/DC TIG/Stick power supply in the welding industry. Extended AC TIG frequency controls let you choose between four advanced TIG arc waveforms. Although compact and lightweight (just 47 lbs), it can weld up to 1/4" aluminum and 1/4" steel, and with Miller's Autoline you can connect to 120 V to 480 V single phase or three phase input power with no manual linking required. A memory card expansion slot allows for expandability.
WHAT'S INCLUDED
- Dynasty® 210 DX
- 8 ft. (2.4 m) primary cord
- Adjustable shoulder strap
- Quick Reference Guide
- (2) 50 mm Dinse style connectors
Processes
- Pulsed TIG (GTAW-P)
- Stick (SMAW)
- TIG (GTAW)
- TIG AC (GTAW-AC)
- TIG DC (GTAW-DC)
- Aluminum Welding
- Air Carbon Arc Cutting and Gouging (CAC-A)
For the best prices on Miller welding equipment and other MIG, TIG and Stick welders, shop Welders Supply online.
| Welding Mode | TIG (GTAW) | Stick (SMAW) | |||||
| Input Power | 208 - 480 V | 120 V | 208 - 480 V | 120 V | |||
| Welding Amperage Range |
2 - 210 A (AC) 1 - 210 A (DC) |
2 - 210 A (AC) 1 - 210 A (DC) |
5 - 210 A | 5 - 100 A | |||
| Rated Output |
210 A at 18.4 V, 60% duty cycle |
125 A at 15 V, 60% duty cycle |
160 A at 26.4 V, 60% duty cycle |
90 A at 23.6 V, 60% duty cycle |
|||
| Phase | 3-phase | 1-phase | 1-phase | 3-phase | 1-phase | 1-phase | |
|
Amps Input at Rated Load Output, 50/60Hz
|
120 V |
--- | --- | 26 | --- | --- | 28 |
| 208 V | 16 | 28 | --- | 17 | 29 | --- | |
| 240 V | 14 | 24 | --- | 15 | 25 | --- | |
| 400 V | 9 | 14 | --- | 9 | 15 | --- | |
| 480 V | 7 | 12 | --- | 7 | 12 | --- | |
| KVA | 6.0 | 5.8 | 3.2 | 6.1 | 6.0 | 3.3 | |
| KW | 5.8 | 5.8 | 3.1 | 5.8 | 6.0 | 3.3 | |
| Max. Open-Circuit Voltage |
80 VDC (11 VDC) |
||||||
| Dimensions |
H: 13.6 in. (346 mm) W: 8.6 in. (219 mm) D: 22.5 in. (569 mm) |
||||||
| Net Weight |
47 lb. (21.3 kg) 50lb. (22.7 kg) with CPS |
||||||
General Specifications |
|
| Title | Dynasty® 210 DX 120-480 V |
| Industries Interests | Aerospace Auto / Cycle (Racing, Customizing, Restoring) Construction DIY / Home Hobbyist Farm and Ranch Heavy Equipment Manufacturing Infrastructure Manufacturing Metal Art / Sculptures Railcar Shipbuilding Boat / Yacht High Purity Processing |
| Portability | Handle(s) Running Gear / Cart (Optional) Shoulder Strap |
| Input Voltage | 110/115/120 V 208 V 220/230/240 V 380/400 V 460/480 V |
| Weldable Metals | Aluminum Mild Steel Specialty Metals Stainless Steel |
| Warranty | Miller's True Blue Warranty |
| Material Thickness | Steel: 0.002 in. (0.05 mm) - 1/4 in. (6.4 mm) Aluminum: 0.012 in. (0.3 mm) - 1/4 in. (6.4 mm) |
SHIPPING DIMENSIONS |
|
| Height: | 17.00 Inches |
| Width: | 13.00 Inches |
| Length: | 27.00 Inches |
| Weight: | 53 Lb(s) 0 Oz |
Accessories
Consumables
Manufacturer Reviews
I own a small fab shop and needed a reliable tig welder. I was hesitant at first due to the price but I knew in the long run this was the right choice. I can't afford to have a welder broke down and waiting for parts overseas like you would with the Chinese brands. I've used the dynasty for years at a shop I worked at. Over five hundred hours of weld time on it and never let us down. These are exceptional machines and you won't be disappointed at all!
Product Questions and Answers
Q - What is the difference between this and the 210?
A - The 210 is the base model, with essential TIG and Stick functions. The 210 DX offers full AC features like advanced waveforms and wide ranges of balance and frequency.
Q - If I want to run multiple Miller Dynasty 210 DX in the same shop, will the wireless foot petals interfere with one another?
A - No, the wireless foot pedals for the Miller Dynasty 210 DX are synced to each specific machine.
How to access the User Setup Menu:
- Locate menu button.
Press and hold Menu button for approximately 2 seconds to access machine configuration menus.
- Cycle through options.
Use the Menu button to cycle through parameters that can be set.
- Adjust parameters.
Rotate the encoder to adjust parameter settings.
- Exit menu.
Press and hold Menu button until Menu Off is displayed.
Have a question about this product? Submit your question using the form below
