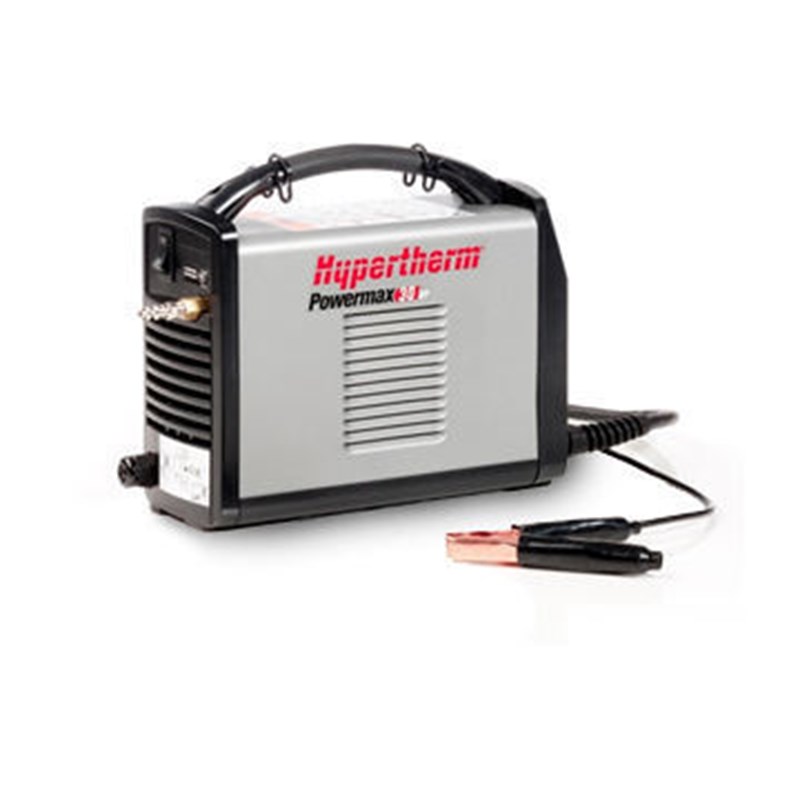

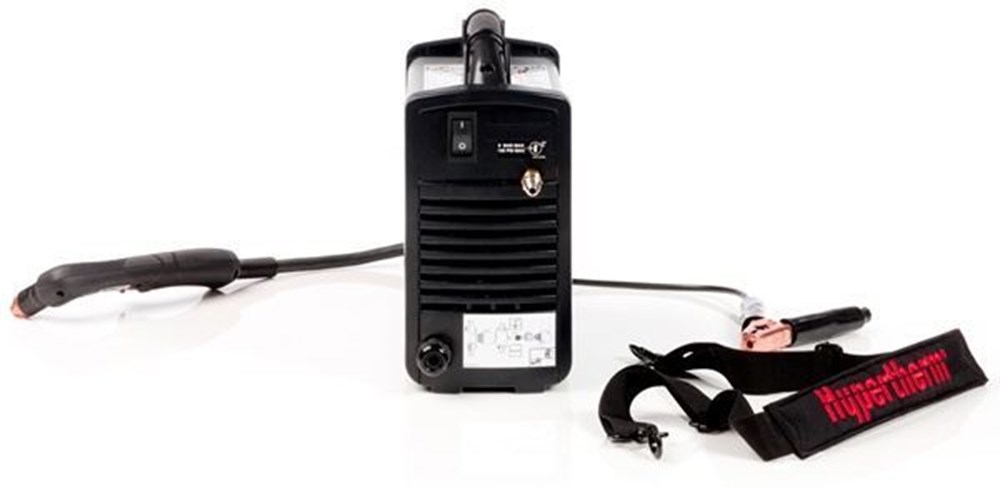

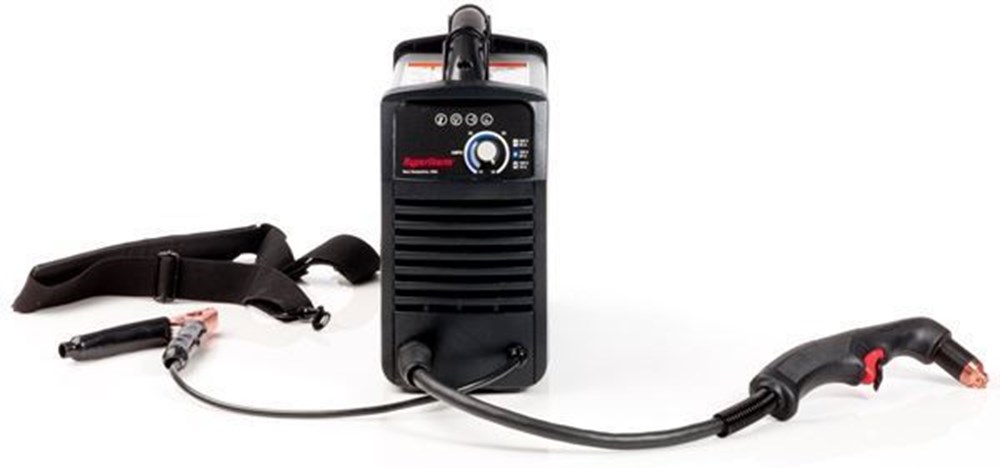

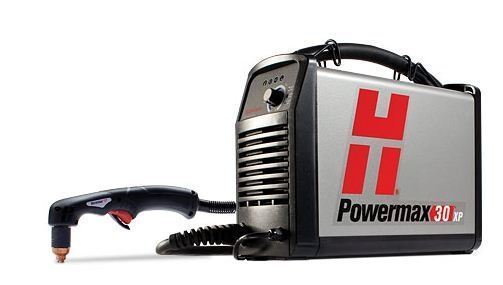

Hypertherm Powermax 30XP Plasma Cutting Machine #088079
Hypertherm has taken their already impressive Hypertherm Powermax 30XP Plasma Cutter and elevated its cutting capabilities to new heights. This exceptional cutting tool has consistently proven its worth for electrically conductive metals, and now, Hypertherm has enhanced its performance even further. With a portable design, this plasma cutter boasts a remarkable "two-in-one" feature that combines high-power capability, enabling the cutting of thick metals up to 5/8" or 16mm, along with Hypertherm's state-of-the-art FineCut technology, ensuring precision and finesse when working with thin metals.
Features:
- 50% increase in cutting power
- 2-in-1 design 120 or 240 V compatible
- Longer lasting
- Higher heat and impact tolerance
Could this portable plasma-cutting machine get any better or easier? Sure!
The Hypertherm Powermax 30XP Plasma Cutter from Welders Supply is a lightweight tool with a durable carrying case for system and gear protection. Hypertherm's patented consumables last longer and offer 70% more efficiency, lowering costs.
The included Duramax LT Torch ensures operator comfort with its ergonomic design and resilience to heat and impact. The 15' lead is rugged and features strain relief on both ends for protection in demanding environments.
Get cutting with Hypertherm accessories and consumables—Electrodes, Nozzles, Retaining Caps and more!
You want to make sure that your product works the way it should and Hypertherm Warranty can help you there. Be sure to register your Hypertherm Product.
Compare the Hypertherm Powermax 30 XP vs. Thermal Dynamics Cutmaster 42, the Hypertherm Powermax 30 XP vs. Miller Spectrum 375, or the Hypertherm Powermax 30xp vs 45, 65, 85, 105 and 125.

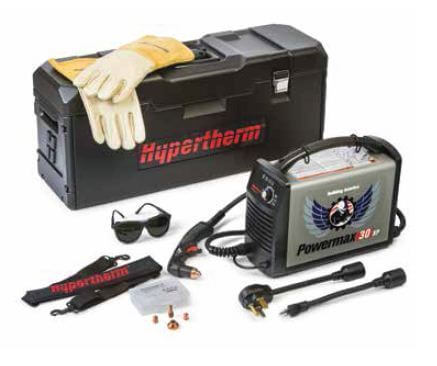

What's Included:
- Power Supply
- 15' Duramax LT hand torch w/ standard consumables
- 15' Work Clamp
- 240V/20A Plug w/ adapters for 120V/15A and 240V/20A circuits
- Operators Manual
- Safety Manuals

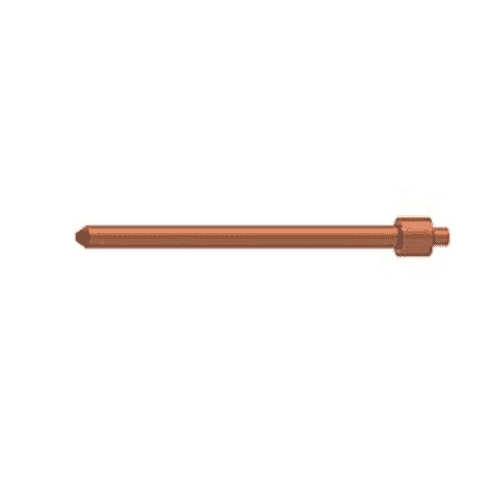

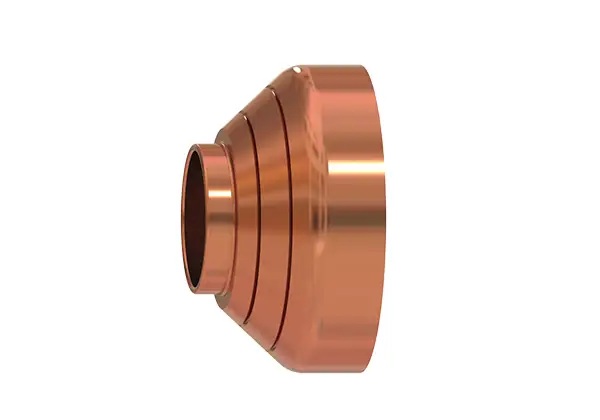

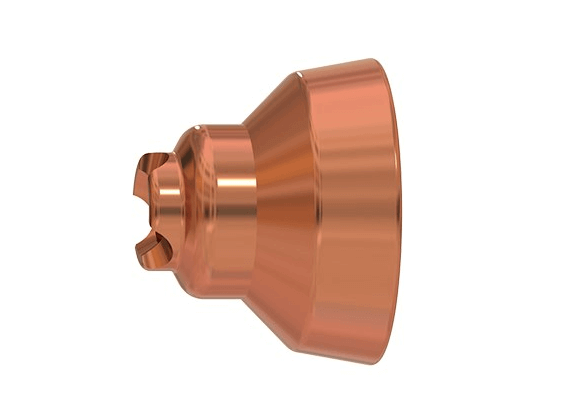

- Consumable kit w/ 1 standard nozzle, 1 electrode, 1 FineCut nozzle, and 1 FineCut deflector

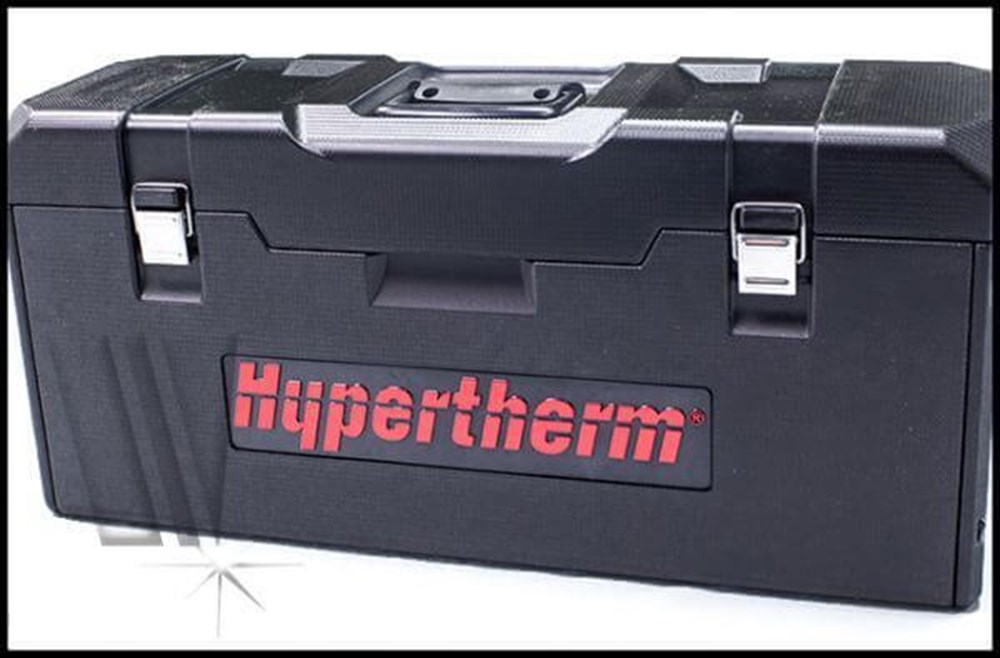

- Plastic Carrying Case w/ Strap
- Cutting Glasses
- Welding Gloves
HYPERTHERM Powermax 30 CONSUMABLES AND KITS

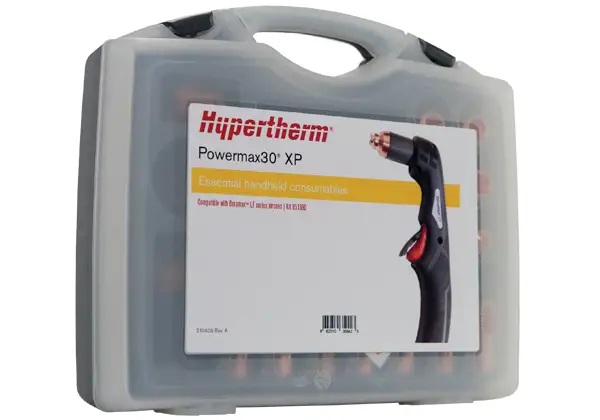

Stock up on consumables with the Powermax 30 handheld CSA consumable kit or Powermax 30 XP essential handheld consumables kit.
See all Hypertherm Products or shop all Plasma Cutters and Consumable Parts, Kits and Accessories at the lowest price from Welders Supply.
Specifications | |
---|---|
Input voltages | 120-240 V, 1-PH, 50/60 Hz |
Input curent @ 3.8 kW | 120-240 V, 1-PH, 25-18.8 A |
Output current | 15-30 A |
Rated output voltage | 125 VDC |
Duty cycle @ 40° C (104° F) | 35%, 240 V |
20%, 120 V | |
Open circuit voltage (0CV) | 256 VDC |
Dimensions with handles | 14.0" D; 5.5" W; 11.5" H |
Weight w/ 15' torch | 21.4 lbs |
Gas supply | Clean, dry, oil-free air or nitrogen |
Recommended gas inlet flow rate/pressure | 4 scfm @ 80 psi |
Input power cable length | 10' |
Power supply type |
Inverter - 1GBT |
Cuttable metal |
Aluminum Mild Steel Stainless Steel |
Cut capacity |
1/2" 3/8" 1/4" |
Engine drive requirement | 5.5 kW for full 30 A output |
Certifications | CSA-certified for use in the Americas and Asia, except China |
Warranty | Power supply: 3-year |
Torch: 1-year |
Powermax system requirements:
- AC power source (fixed or generator)
- Compressed air – shop air, portable air compressor, or bottled air (nitrogen is often used for stainless steel) – no explosive oxyfuel (excluding Powermax30 AIR system)
- Safety equipment – including shaded glasses or face shield, gloves, protective clothing
- Proper ventilation
SHIPPING DIMENSIONS |
|
Height: | 11.50 Inches |
Width: | 5.50 Inches |
Length: | 14.00 Inches |
Weight: | 21 Lb(s) 6 Oz |
