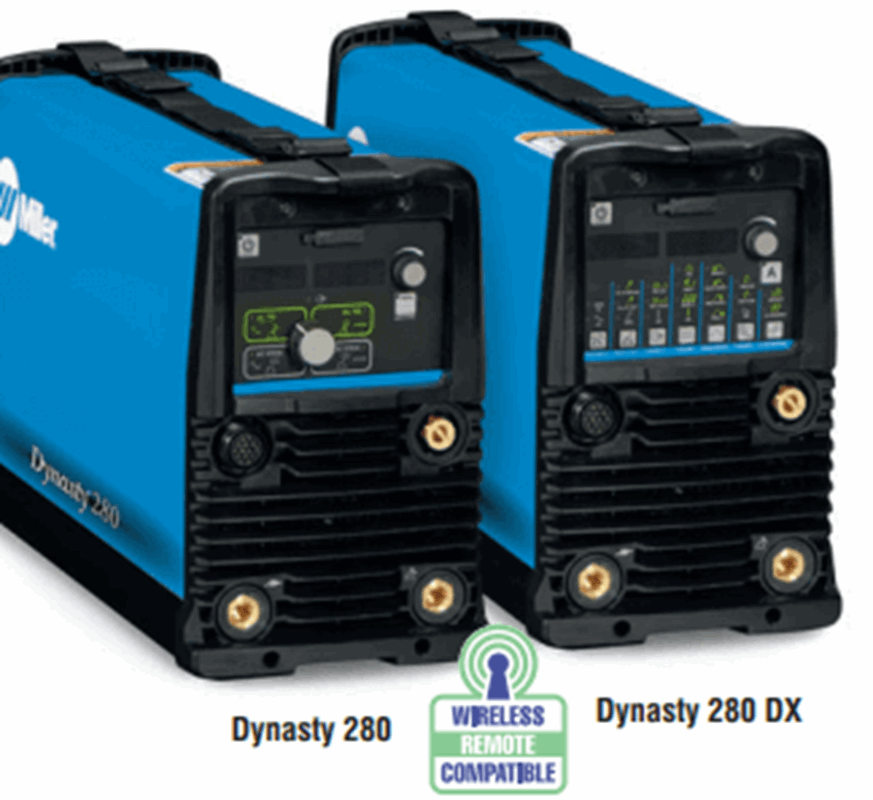

Miller Dynasty 280 DX (Auto-Line 208-575), CPS, VS #907514007

Part Number: 907514007

UPC: 715959661560

1 Review

REPLACED BY #907819

Miller Dynasty 280 DX (Auto-Line 208-575), CPS, VS #907514007

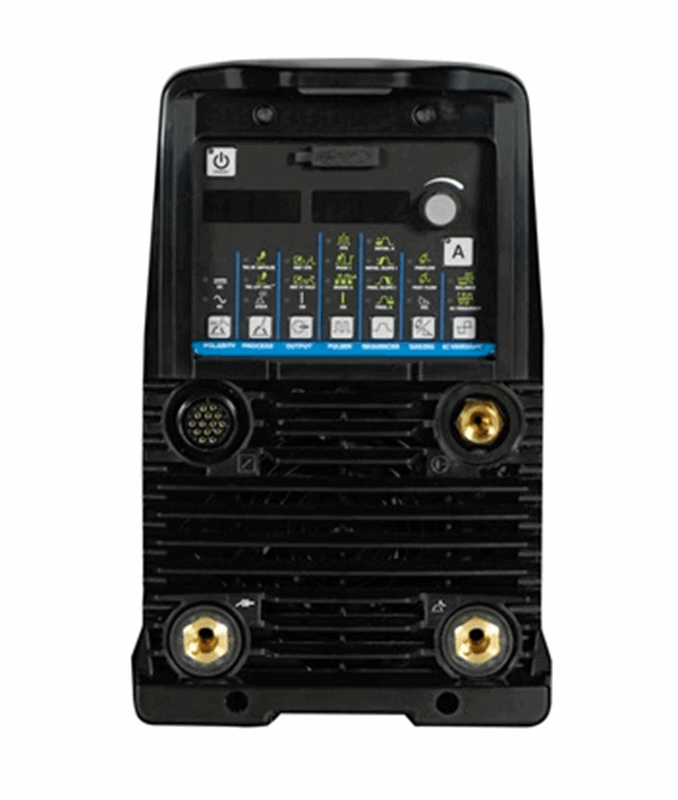

Front View Miller Dynasty 280 DX (Auto-Line 208-575), CPS, VS #907514007

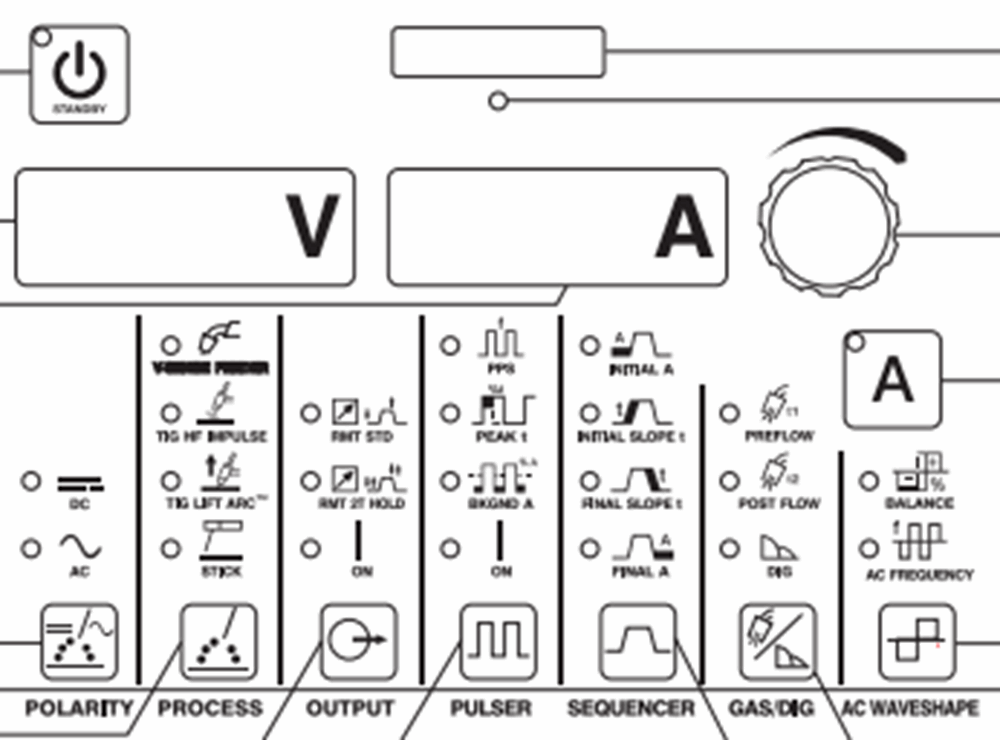

Control Panel Miller Dynasty 280 DX (Auto-Line 208-575), CPS, VS #907514007

Miller Dynasty 280 DX (Auto-Line 208-575), CPS, VS #907514007

Part Number: 907514007

UPC: 715959661560

1 Review

This Item Has Been Discontinued and has been replaced by Dynasty® 300 Multiprocess Welder #907819 - Level up today!

Features
Specs
Documents
Videos
Accessories
Consumables
Reviews
FAQS

MIG Welding
Stick Welding
TIG Welding
Multi-Phase
220V
460V
3-Year Power Warranty

Included with the Dynasty 280 DX, CPS Multiprocess Welder #907514007

Dynasty 280 DX Multiprocess
8 ft. (2.4 m) Primary Cord
Adjustable Shoulder Strap
(2) 50 mm Dinse-style Connectors
(2) Dinse/Tweco Adapters (042465)
Quick Reference Guide

MIG

CV output of the power source gives this unit MIG process capabilities when paired with a SuitCase® X-TREME™ 8VS (or other voltage-sensing feeder).

Auto-Line™ Power Management Technology

Allows for any input voltage hookup (208–575 V) with no manual linking, providing convenience in any job setting. Ideal solution for dirty or unreliable power.

Blue Lightning™

High-frequency (HF) arc starter for non-contact arc initiation. Provides more consistent arc starts and greater reliability compared to traditional HF arc starters.

Fan-On-Demand™

The cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled through the machine.

Cooler-On-Demand™

feature operates the auxiliary cooling system only when needed, reducing noise, energy use, and airborne contaminants pulled through the cooler.

Pro-Set™

Eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience, and confidence of preset controls. Simply select the feature and adjust until Pro-Set appears on the display.

Not included:

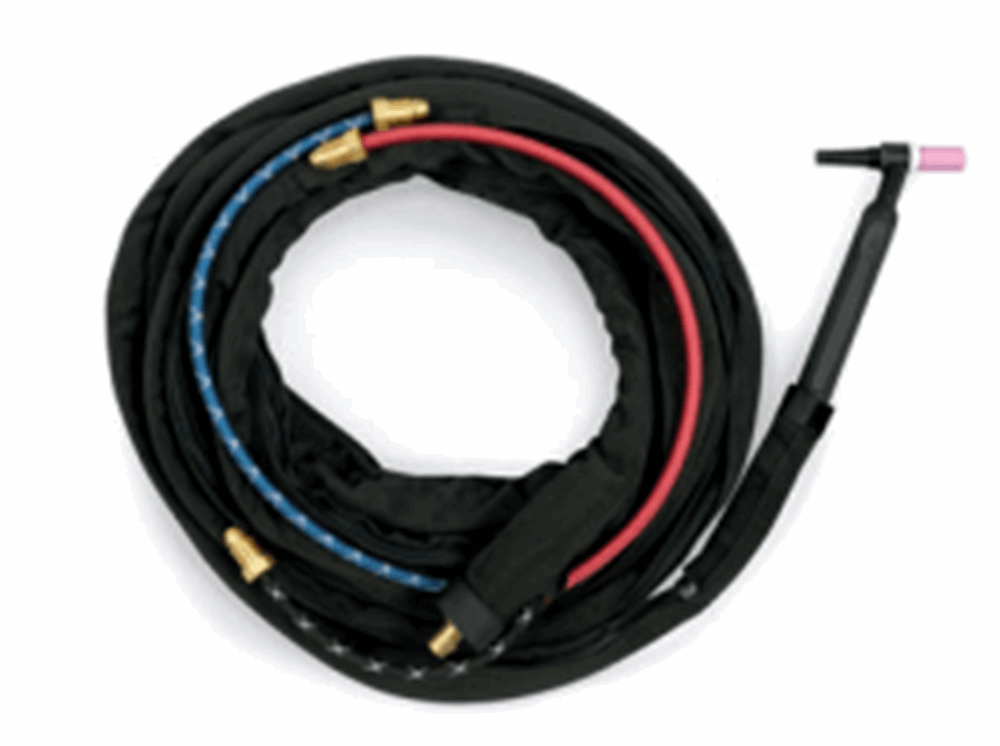

TIG torch
TIG torch adapter
TIG remote finger/foot control
Work cables

View all TIG welders, Miller welding machines, and all welding machine accessories for more great deals!

Other Versions of the Miller Dynasty 280 DX:

Miller Dynasty 280 DX, CPS Multiprocess General Specifications
Product Name	Dynasty® 280 DX, CPS Multiprocess
Industries Interests	Construction Education / Training Infrastructure Maintenance and Repair - Field Operations Mechanical Contracting Pipe Fabrication / Construction Shipbuilding Work / Service Trucks
Weldable Metals	Aluminum Specialty Metals Stainless Steel Steel
Carbon Diameter	3/16 in (4.8 mm)
Input Voltage	208 V 220/230/240 V 380/400 V 460/480 V 575 V
Input Phase	1- and 3-Phase
Input Hz	50 / 60 Hz
Current Type	AC / DC
Max Open Circuit Voltage	60 VDC
Net Width	8.6 in
Net Height	13.6 in
Net Length	22.5 in
Net Weight	55 lbs
Warranty	3 Years
Portability	Running Gear / Cart (Optional) Strap
Weld Output	CC / CV
