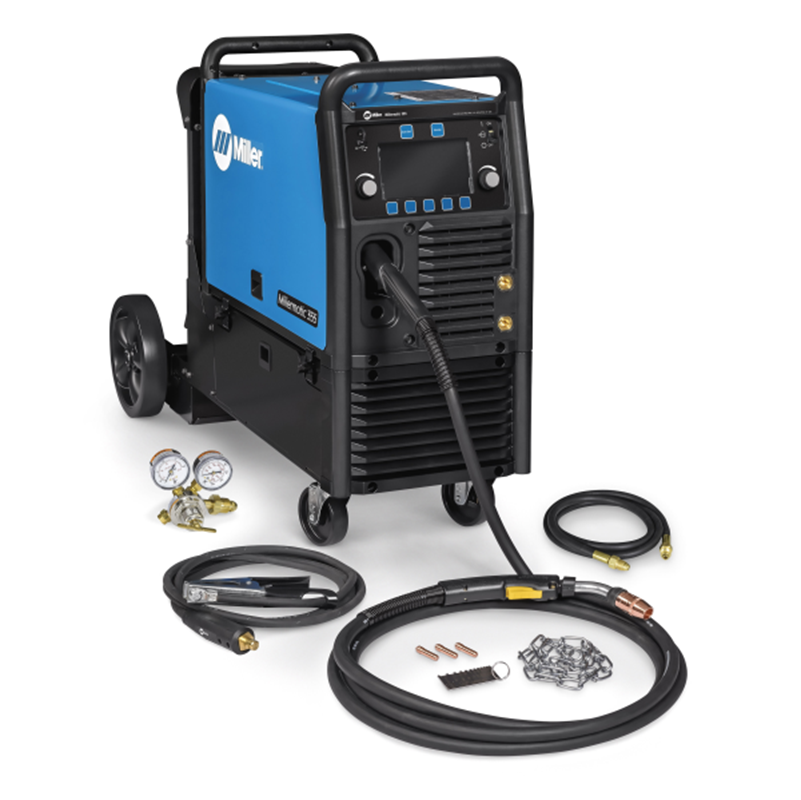

Millermatic® 355 MIG/Pulsed MIG Welder 208/240/575V W/EZ-Latch Running Gear 951926
Easy to use machine to increase efficiency and productivity for manufacturing and fabrication users. 7" Color LCD screen featuring Auto-Set™ Elite, Electronic Parameter chart, and Trigger Program Select. This all-in-one welder connects to any North American input power. Welds up to 1/2” aluminum, stainless and mild steel.
- Power source with 9 ft. (2.7 m) industrial power cord
- 15 ft. (4.5 m) 300-amp Bernard BTB MIG gun with Bernard AccuLock S consumables for .035/.045 in. (0.9/1.2 mm) wire
- 10 ft. (3 m) work cable with clamp and 50 mm Dinse-style connector
- Flow gauge regulator and gas hose for argon or AR/CO2 mix
- .035/.045 in. (0.9/1.2 mm) reversible drive rolls
- Extra .035 and .045 in. (0.9 and 1.2 mm) contact tips
- Material Thickness Gauge
- EZ-Latch™ Running Gear
- Chain to secure gas cylinder
- Shielding gas and safety equipment not included.
- Welding wire
- Push-Pull Gun (for welding aluminum)
- Spool Gun (for welding aluminum)
- Flux cored drive rolls (for welding with flux cored wire [FCAW])
- Personal safety products (helmet, gloves)
Features of the Millermatic 355

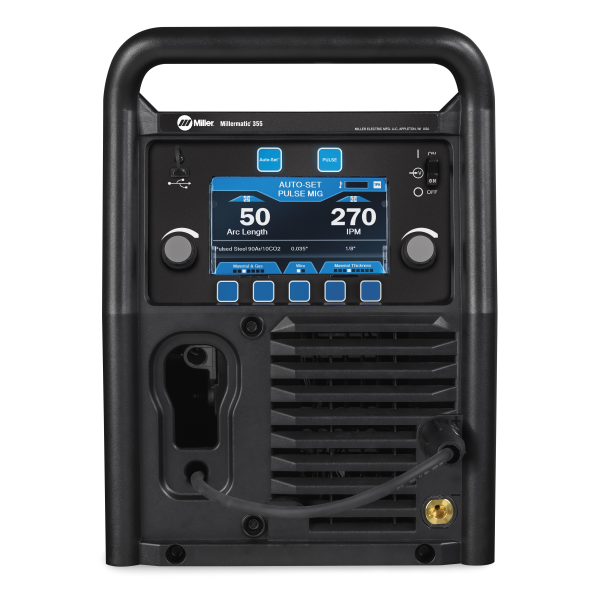

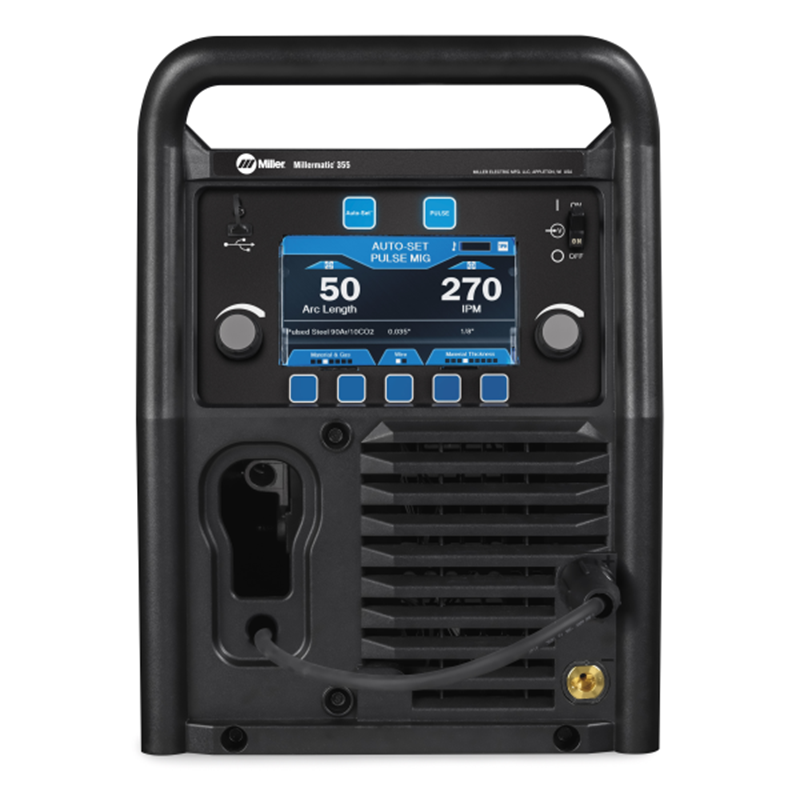

Easy-to-understand interface - 7-inch color LCD display ensures proper machine setup and parameter selection, reducing setup time and increasing weld time
Pulsed MIG welding delivers higher quality - Lower heat input for less distortion on thin materials, less spatter minimizes post weld grinding and rework allowing more welding time. Perform welding applications that couldn’t be done in the past.
Auto-Set™ Elite - offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels.
Program mode allows easy save and recall of favorite weld settings. - Deliver more productivity, consistent quality by welders of all skill levels by using prequalified weld settings. Minimize supervisor need to intervene.
Trigger Program Select - Increases productivity by eliminating the need to go back to the machine to change weld settings. Simply tap gun trigger to select the program.
Versatility - Capabilities include MIG, pulsed MIG and flux-cored welding.
Bernard BTB Gun 300 A MIG gun with AccuLock™ S consumables - AccuLock liner loads from the front and locks at the front and back to insure proper alignment for flawless wire feed path. New rubber overmold and ball -and-socket handle design improves grip and reduces welder fatigue. New Industrial Bernard AccuLock™ S contact tips provide superior Spray and Pulsed MIG arc performance.
Portability - Machine only weighs 99 lb - Weight is reduced by more than 40 percent compared to the Millermatic 350P.

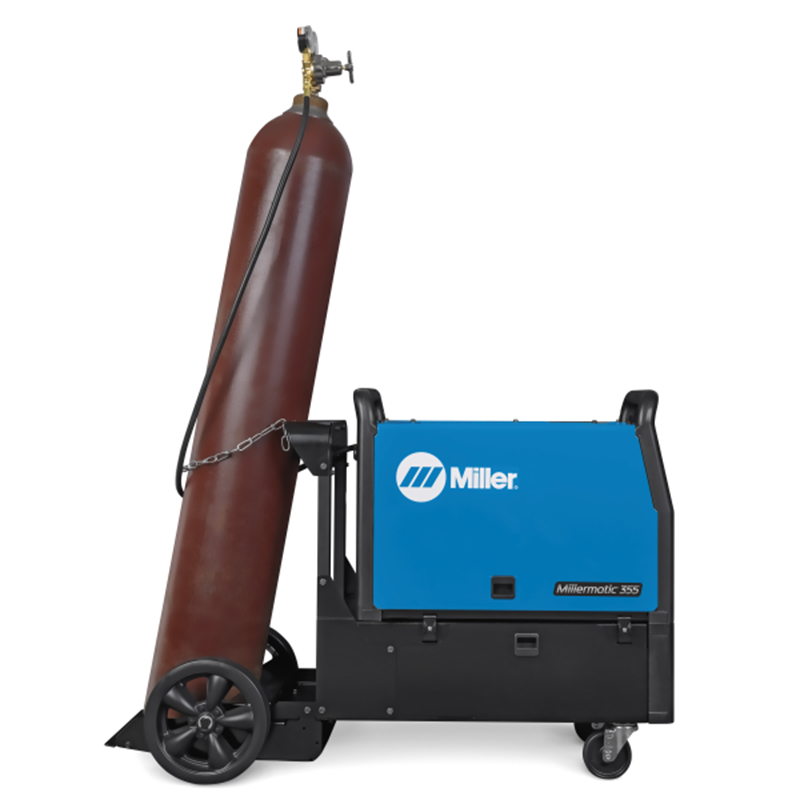

EZ-Latch™ running gear - Operators no longer need to use lift truck to load machine and running gear into the truck. Latches secure machine to running gear. Simply loosen the latch retaining knob and rotate latches to disengage machine from running gear for easy portability.

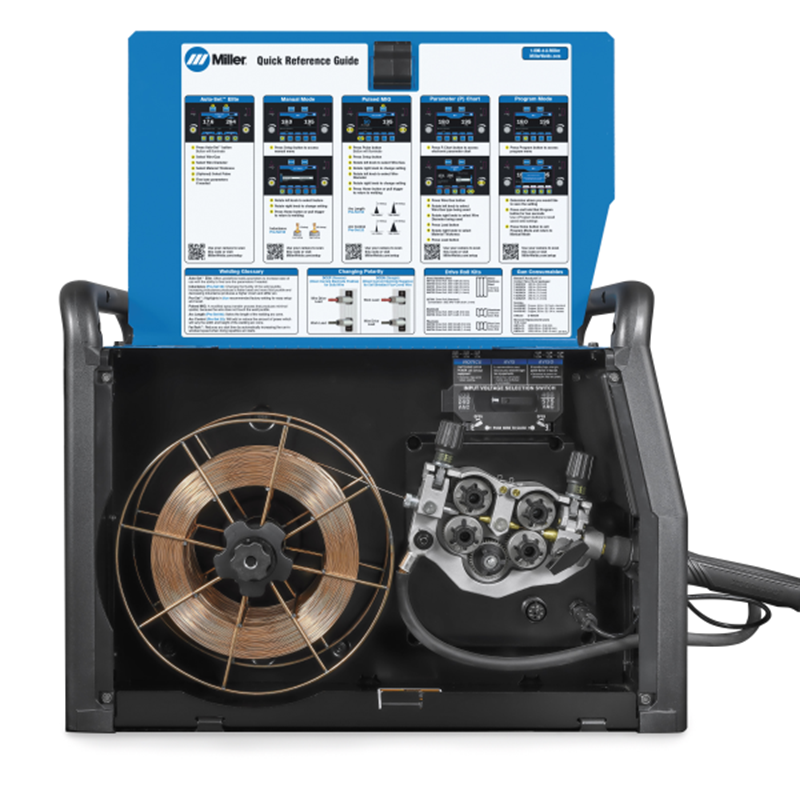

Input Voltage Selection Switch - Provides versatility to utilize any single- or three-phase North American power (208, 240, 460, 575 V). Location in the wire drive compartment provides the ability to manually switch input voltage. An error will display if wrong input
Generator Compatible - The Millermatic 355 will be able to operate and provide full output when powered by generators with 19000 Watt (19K) output or higher. Limited output will occur when used with smaller generators.
View all our entire selection of welding machines including Multi-Process Welders available at Welders Supply Company.
Other versions of the Millermatic 355:
- MIG (GMAW)
- Pulsed MIG (GMAW-P)
|Millermatic® 355 W/EZ-Latch Running Gear|
|Industries Interests||Commercial Truck and Trailer
Construction / Fabrication
Education / Training
Maintenance and Repair - In Plant
|Max Open Circuit Voltage||
|Wire Feed Speed||
|Spool Size||Up to 12 in.|
|Portability||Running Gear / Cart (Standard)|
|Net Width||13.75 in.|
|Net Height||32 in|
|Net Length||45 in|
|Net Weight||99 lbs|
|Weight:||99 Lb(s) 0 Oz|
