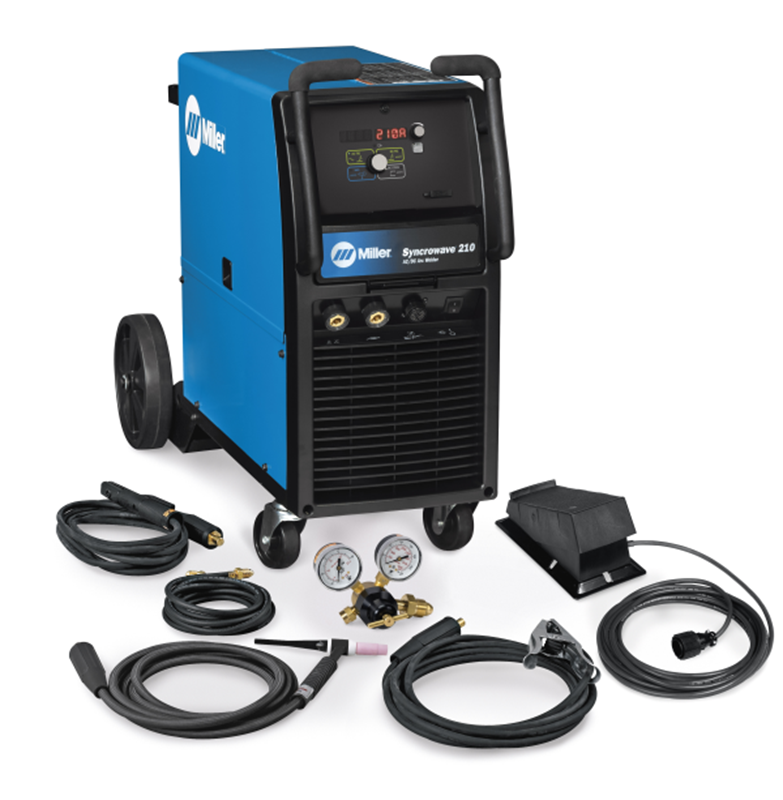

Syncrowave® 210 TIG Package #907596
WHAT'S INCLUDED
- Syncrowave 210
- 10 ft. (3 m) primary cord with MVP™ plugs for 120 V (219261) and 240 V (219258)

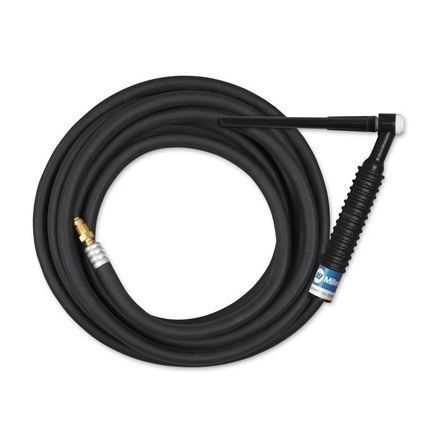

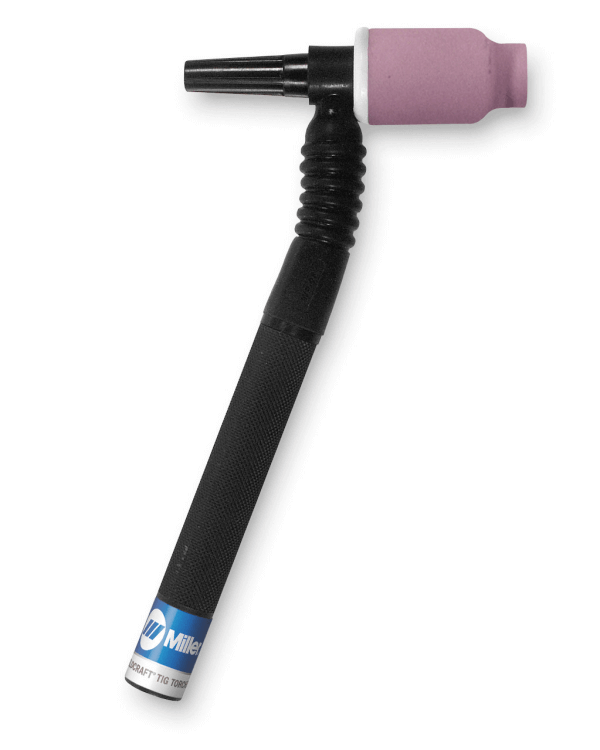

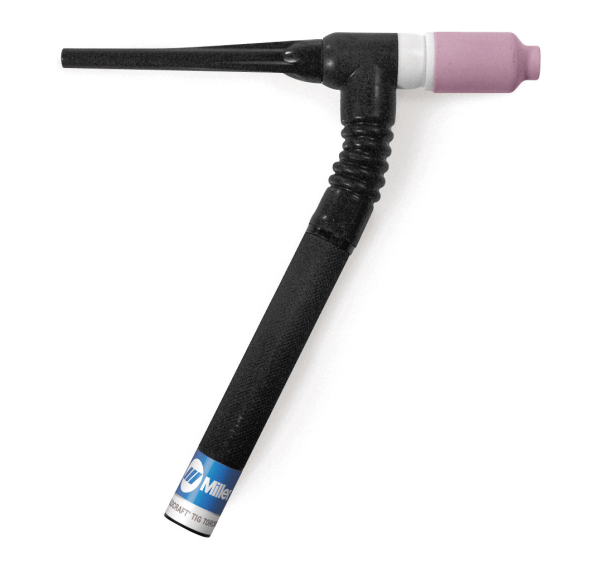

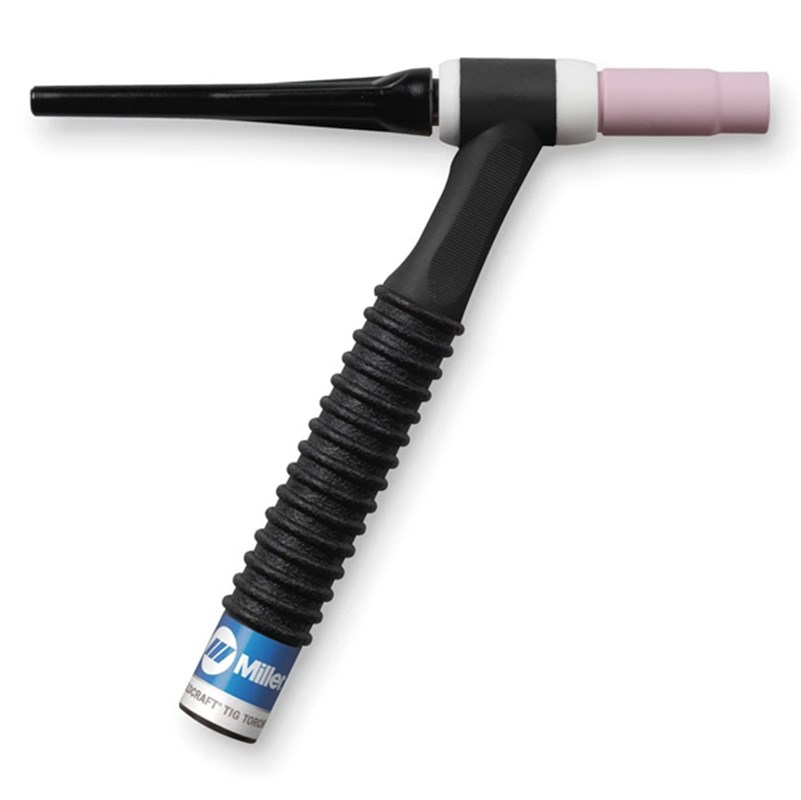

- 12 ft. (3.8 m) Weldcraft™ A-150 TIG torch with Dinse style connector
- 12 ft. (3.8 m) work cable with clamp and Dinse style connector

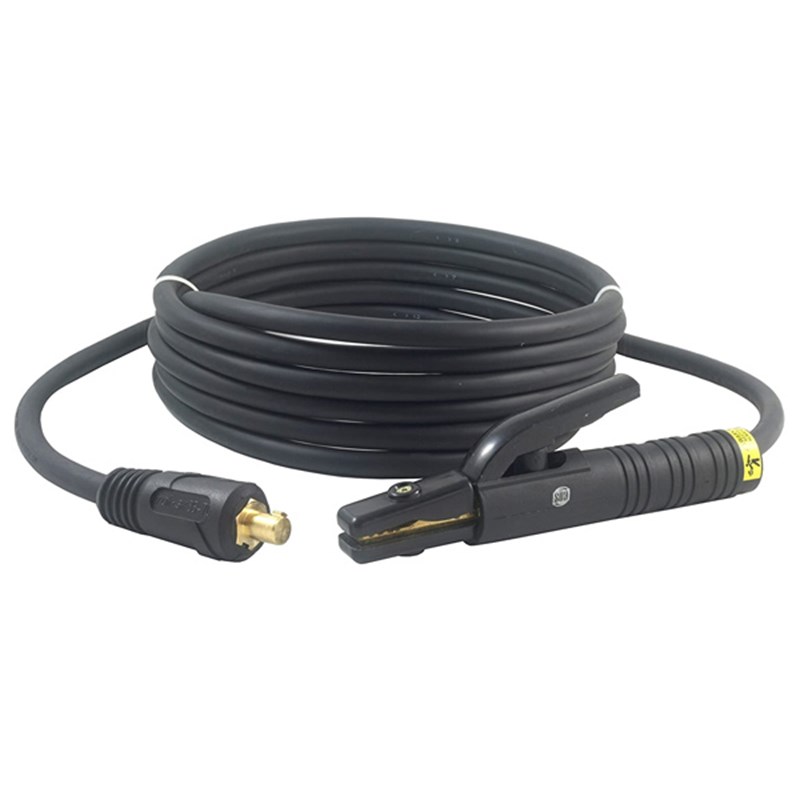

- 12 ft. (3.8 m) stick electrode holder with Dinse style connector
- RFCS-14 HD remote foot control

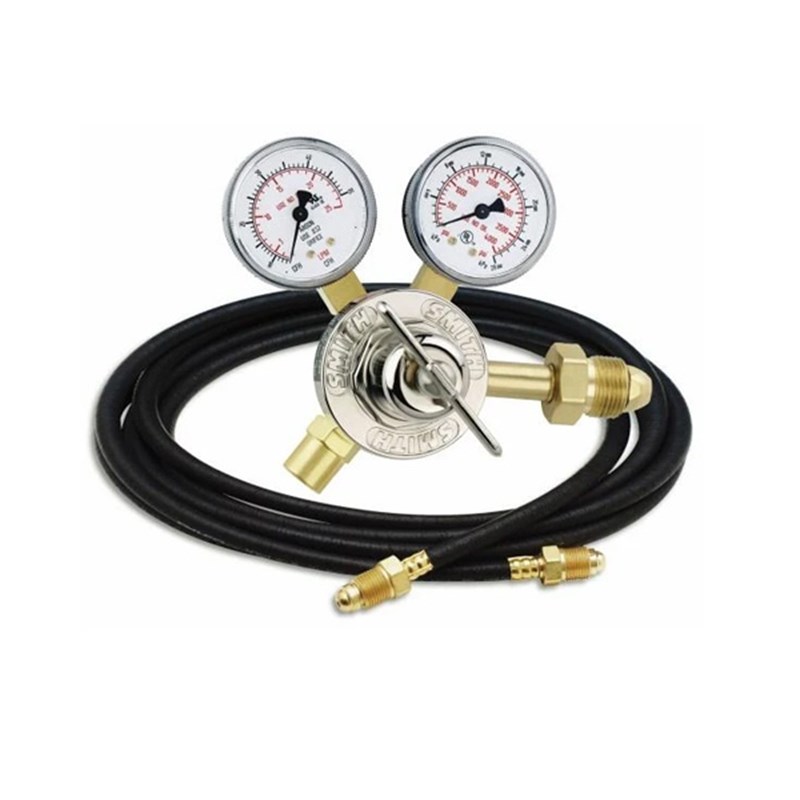

- Regulator/flow gauge and gas hose
- Quick Reference Guide
Easy to use.
1. Turn power on.
2. Select process: AC TIG, DC TIG,
DC stick or MIG (spool gun).
3. Set amperage or voltage
based on material thickness.
Then weld! It’s easy as 1,2,3.
Pro-Set™ (TIG) eliminates the
guesswork when setting
weld parameters. Use
Pro-Set when you want the
speed, convenience and
confidence of preset controls.
Simply select the feature and adjust
until Pro-Set appears on the display.
AC balance (TIG) control provides
adjustable oxide removal which is
essential for creating the highest quality
aluminum welds.
Pulse (TIG). Pulsing can increase puddle
agitation, arc stability and travel speeds
while reducing heat input and distortion.
Auto-Set™ (MIG) automatically sets your
welder to the proper parameters. Simply
set the wire size, material thickness, and
shielding gas, and you’re ready to weld.
DIG (stick) control allows the arc character -
istics to be changed for specific applications
and electrodes. Lower the DIG setting for
smooth running electrodes like E7018 and
increase the DIG setting for stiffer, more
penetrating electrodes like E6010.
Multi-voltage plug (MVP™\)
allows for connection to
120 or 240-volt receptacles
without tools by choosing the
plug that fits the receptacle and
connecting it to the power cord.
Fan-On-Demand™ power source cooling system operates
only when needed, reducing noise, energy use and the
amount of contaminants pulled though the machine.
Update and expand. Front panel memory
card data port provides the ability to easily
update software and expand product features.
Visit MillerWelds.com/TIGSoftware for the
latest software updates and expansions.
Low power draw. Inverter-based power
source provides full welding output from
240 volts while drawing less than 30 amps
Title | Syncrowave® 210 TIG Package |
---|---|
Industries Interests | Racing / Customizing / Restoring Construction DIY / Home Hobbyist Farm and Ranch Infrastructure Manufacturing Metal Art / Sculptures Boat / Yacht High Purity Processing |
Material Thickness | Steel: 0.020 in. (0.5 mm) - 1/4 in. (6.4 mm) Aluminum: 0.020 in. (0.5 mm) - 1/4 in. (6.4 mm) |
Weldable Metals | Aluminum Steel Stainless Steel |
Input Voltage | 110/115/120 V 208 V 220/230/240 V |
Input Phase | 1-Phase |
Input Hz | 50 / 60 Hz |
Current Type | AC / DC |
Max Open Circuit Voltage | 47 VDC |
Amperage Min | 5 A |
Amperage Max | 210 A |
Portability | Running Gear / Cart (Standard) |
Weld Output | CC |
Net Width | 18.5 in |
Net Height | 31.5 in |
Net Length | 43 in |
Net Weight | 133.5 lbs |
Warranty | 3 Years Miller's True Blue Warranty |
SHIPPING DIMENSIONS |
|
Height: | 35.00 Inches |
Width: | 21.00 Inches |
Length: | 45.00 Inches |
Weight: | 171 Lb(s) 0 Oz |
