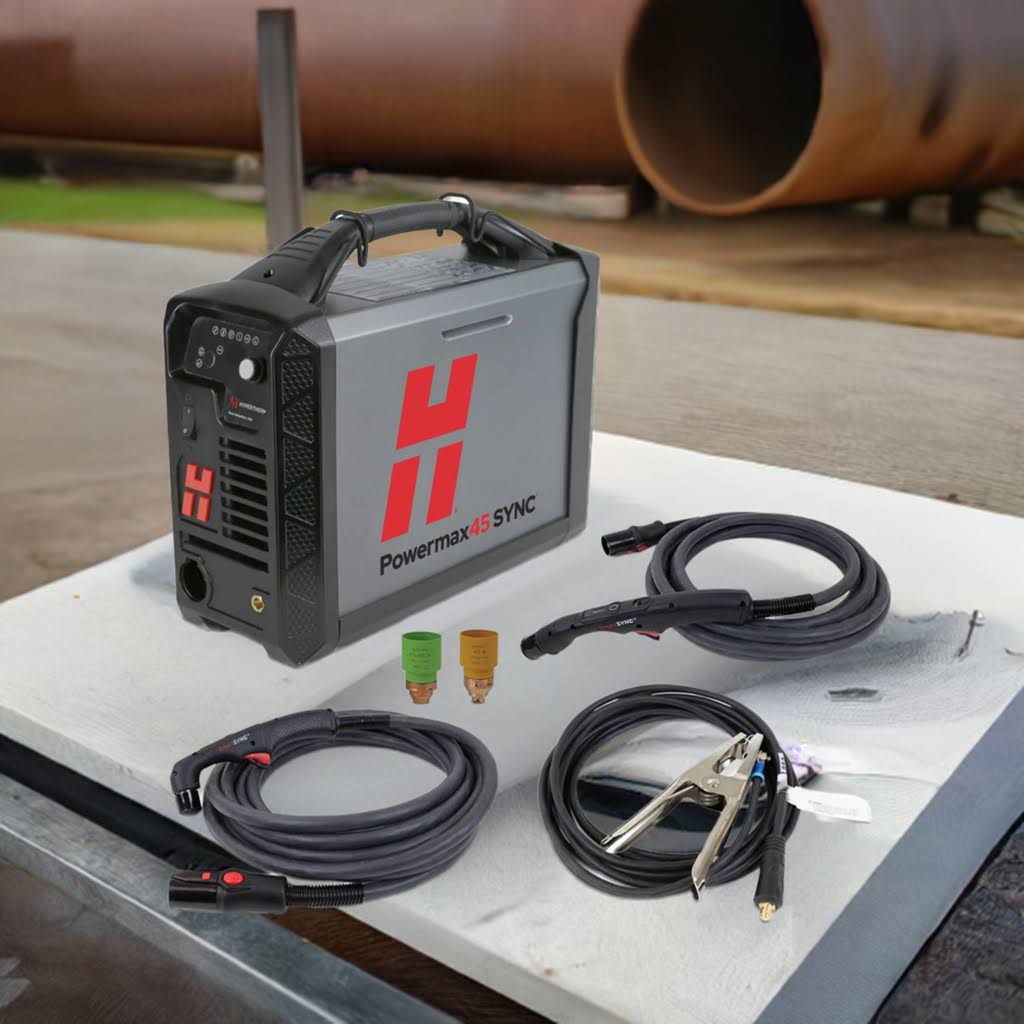

Hypertherm Powermax45 SYNC Plasma Cutter w/ CPC Port, Dual Handheld Torches (75° & 15°), 20ft & 25ft Leads (200-240V 1PH) #088564

Part Number: 088564
UPC: 662310523916
$3,875.00 + Free Shipping

Call 844-682-0205 or CHAT for more options

Plasma torch:

Handheld

Handheld

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

  • torch lead length icon20' & 25' Leads
  • Handheld plasma torch included75° & 15° Hand Torches
  • cpc portCPC Port for Mechanized Cutting
  • 230V power input220-240V Input
  • Single phase input plasma cutter1-Phase Input
  • Hypertherm 3 year warranty3-Year Power Warranty

Powermax45 SYNC Plasma Cutting Machine w/ CPC Port, 75° & 15° Hand Torches, 20ft & 25ft Leads (200-240V 1PH) #088564

Introducing the Hypertherm Powermax45 SYNC plasma cutter - the pinnacle of cutting precision and versatility. Powered by 200-240V input, this cutter is engineered to exceed expectations. With its CPC port, seamlessly integrate additional equipment for enhanced functionality. Experience unparalleled flexibility with dual handheld torches, offering both 75 degree and 15 degree angles for optimal cutting in any scenario. Plus, equipped with both a 20ft and 25ft lead & 20ft work cable, tackle projects of any scale with ease and confidence. Elevate your cutting experience with the Powermax45 SYNC - where precision meets power.

Hypertherm logo

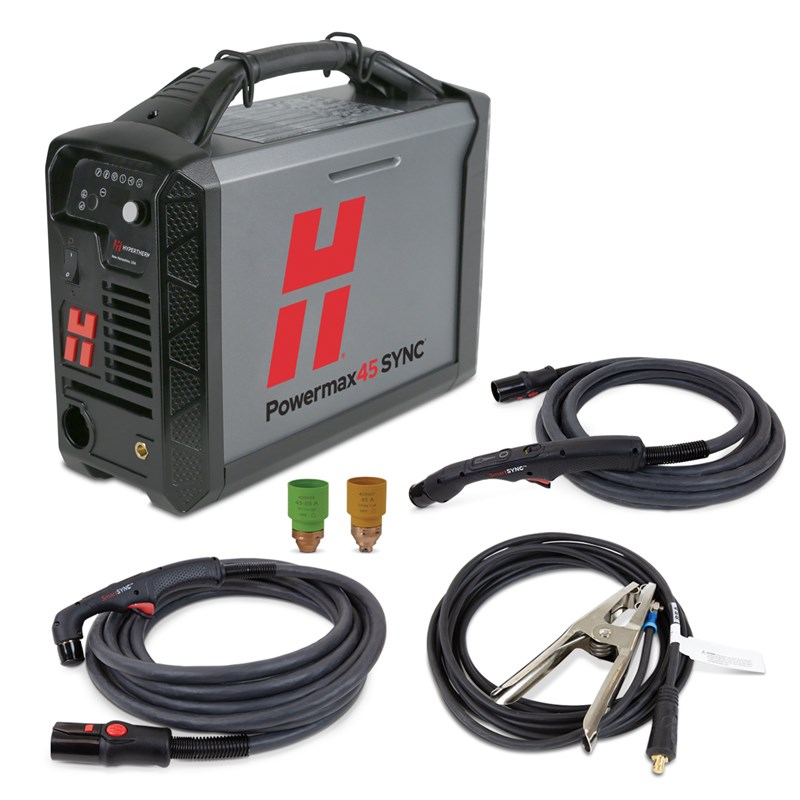

What's Included

  • Powermax45 SYNC power supply
  • 75° handheld SmartSYNC torch w/ 20ft lead
  • 15° handheld SmartSYNC torch w/ 25ft lead
  • 20ft work clamp
  • 10ft power cable
  • (1) 45A Drag Cut SmartSYNC Cartridge
  • (1) 45-85A Max Control SmartSYNC Cartridge
  • Operator and Safety Manuals

Cut Capacity

  • Recommended: 5/8" @ 20 ipm (16mm @ 500 mm/min)
  • Severance (hand cutting): 1 1/8" @ 5 ipm (29mm @ 125 mm/min)
  • Pierce*: 1/2" (12mm)

Max Removal Gouging - Typical Gouge

  • Metal removal rate: 7.5 lbs/hr (3.4kg/hr)
  • Groove profile: 0.12" D x 0.26" W (3.2mm D x 6.8mm W)

*Pierce rating for handheld use or with automatic torch height control.

Powermax45 SYNC 088564 - What's Included

Plasma Cutting Applications:

  • CNC Plasma Cutting: Automated precision for table-based operations, offering flexibility in portable automation and efficiency
  • Manual Plasma Cutting: High-speed hand torch operation for straightforward applications, commonly used for general cutting tasks
  • Precision Plasma Cutting: Designed for detailed cuts with narrow kerf width, minimal dross, and reduced heat-affected zone
  • Bevel Cutting: Enables cutting close to base materials with a 45-degree angle, useful for trimming and finishing
  • Heavy Gouging: For aggressive metal removal with deep gouge profiles and extensive metal washing, ideal for heavy-duty material removal
  • Precision Gouging: Provides controlled metal removal with shallower gouge profiles and light metal washing, suited for detailed gouging tasks
Powermax45 SYNC Cutting Applications

Powermax45 SYNC Benefits:

Streamlined Operations

  • Minimizes training and troubleshooting expenses
  • Reduces downtime during consumable replacements
  • Eliminates wasteful consumable disposal
  • RFID-enabled inventory management optimization

Enhanced Usability

  • Color-coded, laser-marked cartridges prevent mix-ups
  • SmartSYNC RFID technology automates setup
  • Extended consumable lifespan detection
  • Ergonomic torch design for reduced operator fatigue

Optimized Performance

  • Versatile cartridge system for various cutting and gouging applications
  • Improved cut quality and consumable longevity
  • On-torch controls for real-time amperage adjustments

Industrial-Grade Reliability

  • Durable SmartSYNC torches for harsh environments
  • SpringStart™ technology for consistent arc initiation
  • Minimized production interruptions

Fast, Free Shipping & Easy Returns

Your in-stock items ship same or next day from our five distribution hubs in WI and IL via fast UPS Ground. Need special shipping? Just call 1-844-682-0205 - we accommodate any request, including using your shipping accounts. Enjoy hassle-free 14-day returns on new, sealed products. Count on exceptional service backed by industry-leading shipping and return policies. Experience the advantage on your next order!

All Hypertherm Powermax 45 SYNC Models

  Power Supply Only Handheld Torch Included Machine Torch Included
Handheld Only
CPC Port
CPC & Serial Port

Hypertherm Powermax45 SYNC Features

Shop Powermax SYNC plasma cutters and compatible SmartSYNC consumables at the lowest prices online, from Welders Supply.

This product replaces these legacy models:

Powermax45 SYNC Torches & Consumables

Powermax45 SYNC Specs:

Cut Capacity

Recommended 5/8" (16 mm)
@ 20 ipm (500 mm/min)
Severance (hand cutting) 1 1/8" (29 mm)
@ 5 ipm (125 mm/min)
Pierce 1/2" (12 mm)

Input, Output & Operation

Input voltages

CSA
200-440 V, 1-PH, 50/60 Hz
480 V, 3-PH, 50/60 Hz
480 V, 3-PH, 10 A @ 6.9kW

CE
230 V, 1-PH, 33 A
400 V, 3-PH, 10 A

Kilowatt output 6.9kW
Input current 9-45 A
Output current 155 VDC
Rated output voltage

CSA
200-240 V, 1-PH 39/32 A @ 6.5 kW

CE
230 V, 1-PH, 33 A
400 V, 3-PH, 10 A

Duty Cycle @ 104° F

CSA
50% @ 45 A, 200-240 V, 1-PH
60% @ 41 A, 200-240 V, 1-PH
100% @ 32 A, 200-240 V, 1-PH
50% @ 45 A, 480 V, 3-PH
60% @ 41 A, 480 V, 3-PH
100% @ 32 A, 480 V, 3-PH

CE
50% @ 45 A, 230 V, 1-PH
60% @ 41 A, 230 V, 1-PH
100% @ 32 A, 230 V, 1-PH
50% @ 45 A, 400 V, 3-PH
60% @ 41 A, 400 V, 3-PH
100% @ 32 A, 400 V, 3-PH

Open circuit voltage (OCV)

CSA
275 VDC 200-240 V
275 VDC 480 V

CE
265 VDC 400 V

Gas supply Cutting: air (clean, dry and oil-free), nitrogen, F5
Gouging: air (clean, dry and oil-free), nitrogen, F5
Marking: air (clean, dry and oil-free)
Recommended gas inlet flow rate/pressure 400 scfh @ 85 psi (188 l/min @ 5.9 bar)
Input power cable length 10 ft (3 m)
Power supply type Inverter - IGBT
Engine drive requirement 12.5 kVA (10 kW) for full 45 A output
Electrical efficiency 90%
Certifications CSA - certified for use in the Americas and Asia, except China
CE - for use in Europe, Australia, New Zealand, Belarus, Kazakhstan, Serbia, Ukraine, and other countries where accepted.
Also RCM, Ukraine and Serbian. UKCA - Great Britain
Warranty Power supplies have a 3-year warranty and torches a 1-year warranty

SHIPPING DIMENSIONS

Height: 14.00 Inches
Width: 6.80 Inches
Length: 17.40 Inches
Weight: 31 Lb(s) 0 Oz
