Powermax45 SYNC, 25' 180° Machine Torch, CPC Port, Remote (200-240V) #088582
Upgrade your cutting capabilities with the Hypertherm Powermax45 SYNC plasma cutter. Operating at 200-240V, this cutter offers unparalleled precision and efficiency. Seamlessly integrate auxiliary equipment with the CPC port for enhanced functionality. Maneuver with ease using the 180° machine torch, ensuring precise cuts from any angle. With the included remote, enjoy added convenience and control, allowing you to tackle projects with confidence. Plus, with a generous 25ft lead, conquer tasks of any scale with ease. Elevate your cutting experience with the Powermax45 SYNC from Hypertherm.

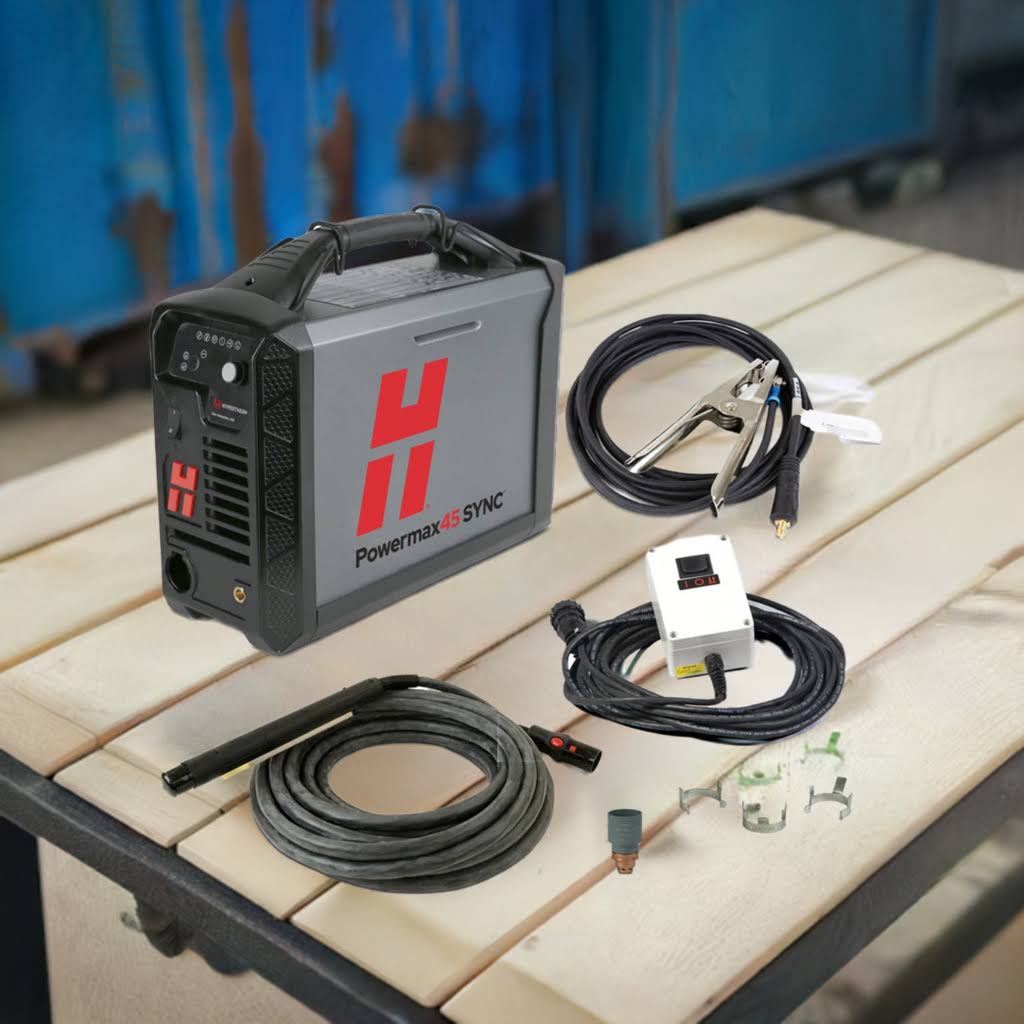

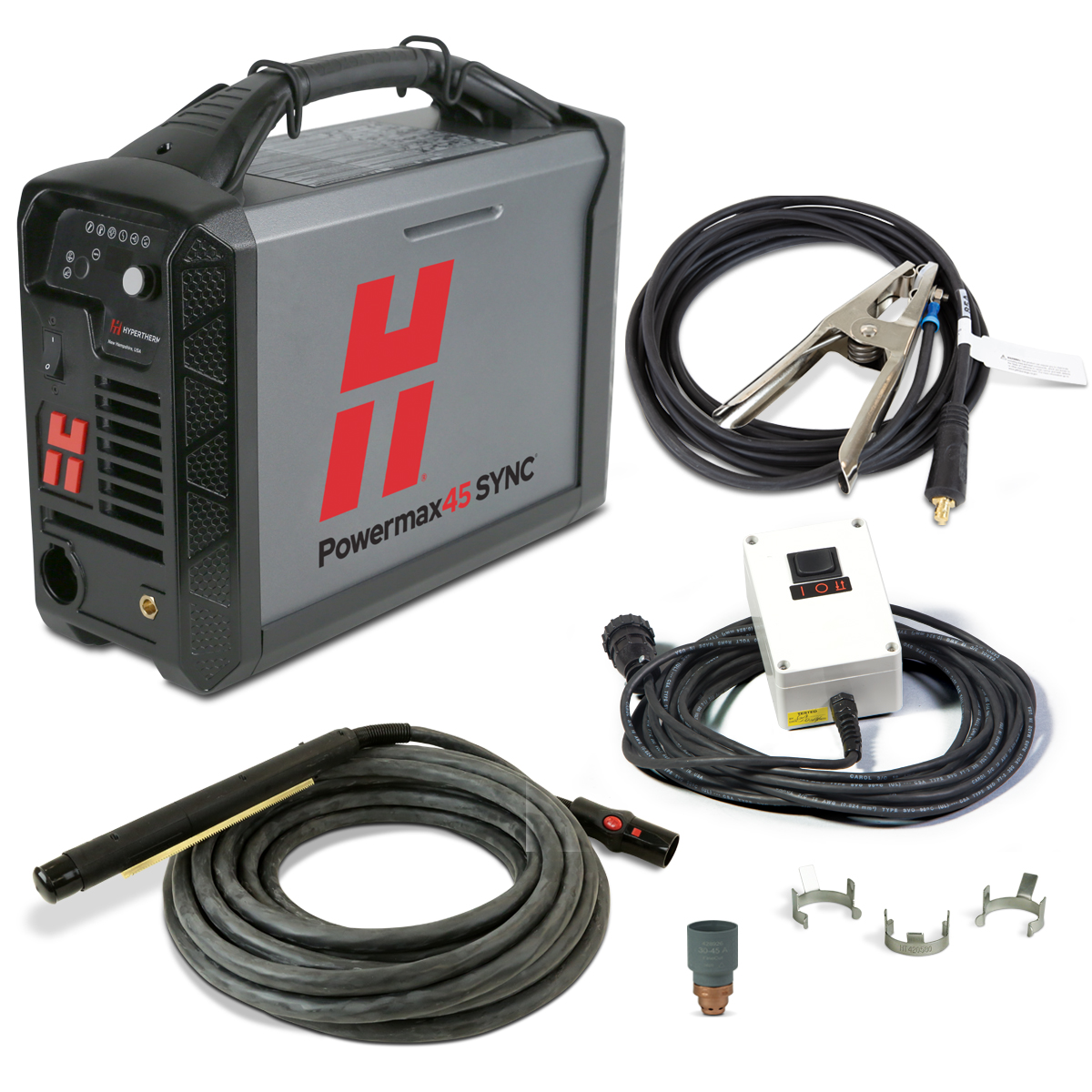

What's Included
- Powermax45 SYNC power supply w/ CPC port
- 180° machanized SmartSYNC torch
- 25ft torch lead
- 25ft work clamp
- 10ft power cable
- (1) Mechanized cutting cartridge
- Remote control
- Operator and Safety Manuals
Cut Capacity
- Recommended: 5/8" @ 20 ipm (16mm @ 500 mm/min)
- Severance (hand cutting): 1 1/8" @ 5 ipm (29mm @ 125 mm/min)
- Pierce*: 1/2" (12mm)
Max Removal Gouging - Typical Gouge
- Metal removal rate: 7.5 lbs/hr (3.4kg/hr)
- Groove profile: 0.12" D x 0.26" W (3.2mm D x 6.8mm W)
*Pierce rating for handheld use or with automatic torch height control.
Plasma Cutting Applications:
- Drag cutting: Keep the torch tip in direct contact with the metal for precise, smooth cuts.
- Bevel cutting: Angle the torch to create beveled edges, ideal for weld preparation and complex joints.
- Gouging: Use the torch to remove excess material or welds by carving grooves into the metal.
- Flush cutting: Cut metal components flush to the surface with minimal standoff, leaving a clean finish.
- Extended reach cutting: Access hard-to-reach areas with a longer torch to cut in tight spaces.
- Fine feature cutting: Execute intricate cuts on thin materials with high precision and minimal heat distortion.
Powermax45 SYNC Benefits:
Simplify Operations
- Reduced Training: Streamlined operation cuts down on training and troubleshooting time.
- Minimized Downtime: Quick consumable changes and elimination of premature disposal reduce downtime.
- Data-Driven Efficiency: Cartridge usage data helps optimize cutting operations and manage inventory.
Easy to Use
- Clear Identification: Laser-marked, color-coded cartridges prevent part mix-ups.
- Automatic Adjustments: RFID-enabled torches auto-set amperage and mode, preventing setup errors.
- End-of-Life Alerts: Automatic detection ensures timely cartridge replacement.
- Reduced Fatigue: Flexible lead reduces operator fatigue, ideal for both manual and robotic use.
Maximize Performance
- Versatile Cartridges: Easily swap between torches and cartridges for various cutting and gouging tasks.
- Extended Lifespan: Optimized cartridge design offers up to double the lifespan for handheld use.
- On-the-Fly Control: Hand torch controls allow quick adjustments without returning to the power supply.
Industry Leading Reliability
- Rugged Design: SmartSYNC torches are built for tough industrial environments.
- Consistent Starting: SpringStart™ technology ensures reliable torch ignition.
- Reduced Downtime: High reliability minimizes production interruptions.
Fast, Free Shipping & Easy Returns
Your in-stock items ship same or next day from our five distribution hubs in WI and IL via fast UPS Ground. Need special shipping? Just call 1-844-682-0205 - we accommodate any request, including using your shipping accounts. Enjoy hassle-free 14-day returns on new, sealed products. Count on exceptional service backed by industry-leading shipping and return policies. Experience the advantage on your next order!
All Hypertherm Powermax 45 SYNC Models | |||
---|---|---|---|
Power Supply Only | Handheld Torch Included | Machine Torch Included | |
Handheld Only | |||
CPC Port |
|
||
CPC & Serial Port |
Shop Powermax SYNC plasma cutters and compatible SmartSYNC consumables at the lowest prices online, from Welders Supply.
This product replaces these legacy models:
- Powermax45 XP w/ 25' 180° Machine Torch, CPC, Remote (220V)
- Powermax45 XP w/ 35' 180° Machine Torch, CPC, Remote (220V)
Powermax45 SYNC Torches & Consumables
Powermax45 SYNC Specs:
Cut Capacity | |
---|---|
Recommended | 5/8" (16 mm) @ 20 ipm (500 mm/min) |
Severance (hand cutting) | 1 1/8" (29 mm) @ 5 ipm (125 mm/min) |
Pierce | 1/2" (12 mm) |
Input, Output & Operation | |
---|---|
Input voltages |
CSA CE |
Kilowatt output | 6.9kW |
Input current | 9-45 A |
Output current | 155 VDC |
Rated output voltage |
CSA CE |
Duty Cycle @ 104° F |
CSA CE |
Open circuit voltage (OCV) |
CSA CE |
Gas supply | Cutting: air (clean, dry and oil-free), nitrogen, F5 Gouging: air (clean, dry and oil-free), nitrogen, F5 Marking: air (clean, dry and oil-free) |
Recommended gas inlet flow rate/pressure | 400 scfh @ 85 psi (188 l/min @ 5.9 bar) |
Input power cable length | 10 ft (3 m) |
Power supply type | Inverter - IGBT |
Engine drive requirement | 12.5 kVA (10 kW) for full 45 A output |
Electrical efficiency | 90% |
Certifications | CSA - certified for use in the Americas and Asia, except China CE - for use in Europe, Australia, New Zealand, Belarus, Kazakhstan, Serbia, Ukraine, and other countries where accepted. Also RCM, Ukraine and Serbian. UKCA - Great Britain |
Warranty | Power supplies have a 3-year warranty and torches a 1-year warranty |
SHIPPING DIMENSIONS |
|
Height: | 14.00 Inches |
Width: | 6.80 Inches |
Length: | 17.40 Inches |
Weight: | 31 Lb(s) 0 Oz |
Powermax45 SYNC PDFs
Powermax SYNC PDFs
- Powermax SYNC Parts Guide
- Powermax SYNC Cut Charts Guide
- Powermax SYNC Mechanized Cutting Guide
- Powermax SYNC Serial Communication Programmer Reference Guide
