Name: Powermax45 SYNC Plasma Cutter w/ CPC Port, Hand & Machine Torches, Remote (200-240V 1PH) #088583
Brand: Hypertherm
SKU: HYP088583

20' & 25' Leads
75° & 180° Machine Torches
CPC Port for CNC Tables

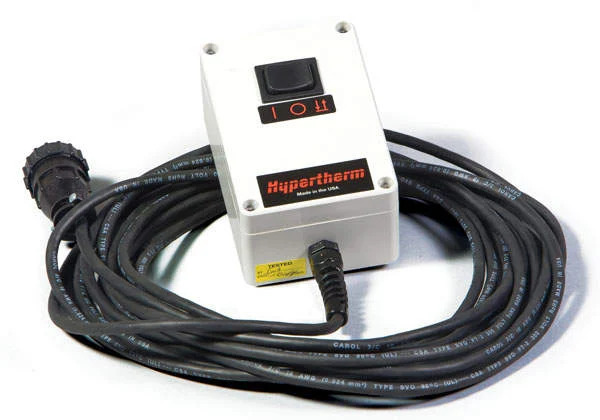

Remote Pendant
220-240V Input
1-Phase Input
3-Year Power Warranty

Powermax45 SYNC Plasma Cutting Machine w/ CPC Port, 75° Hand Torch & 180° Machine Torch, 20ft & 25ft Leads, Remote (200-240V 1PH) #088583

Unleash precision cutting versatility with the Hypertherm Powermax45 SYNC plasma cutter. Powered by 200-240V, this cutter delivers unparalleled performance. Seamlessly integrate auxiliary equipment with the CPC port for enhanced functionality. Enjoy ultimate control with the included remote, allowing you to tackle projects with ease. With both 75° and 180° torch options, adapt to any cutting task effortlessly. Plus, with both a 20ft and 25ft lead, conquer projects of any scale with confidence. Elevate your cutting experience with the Powermax45 SYNC from Hypertherm.

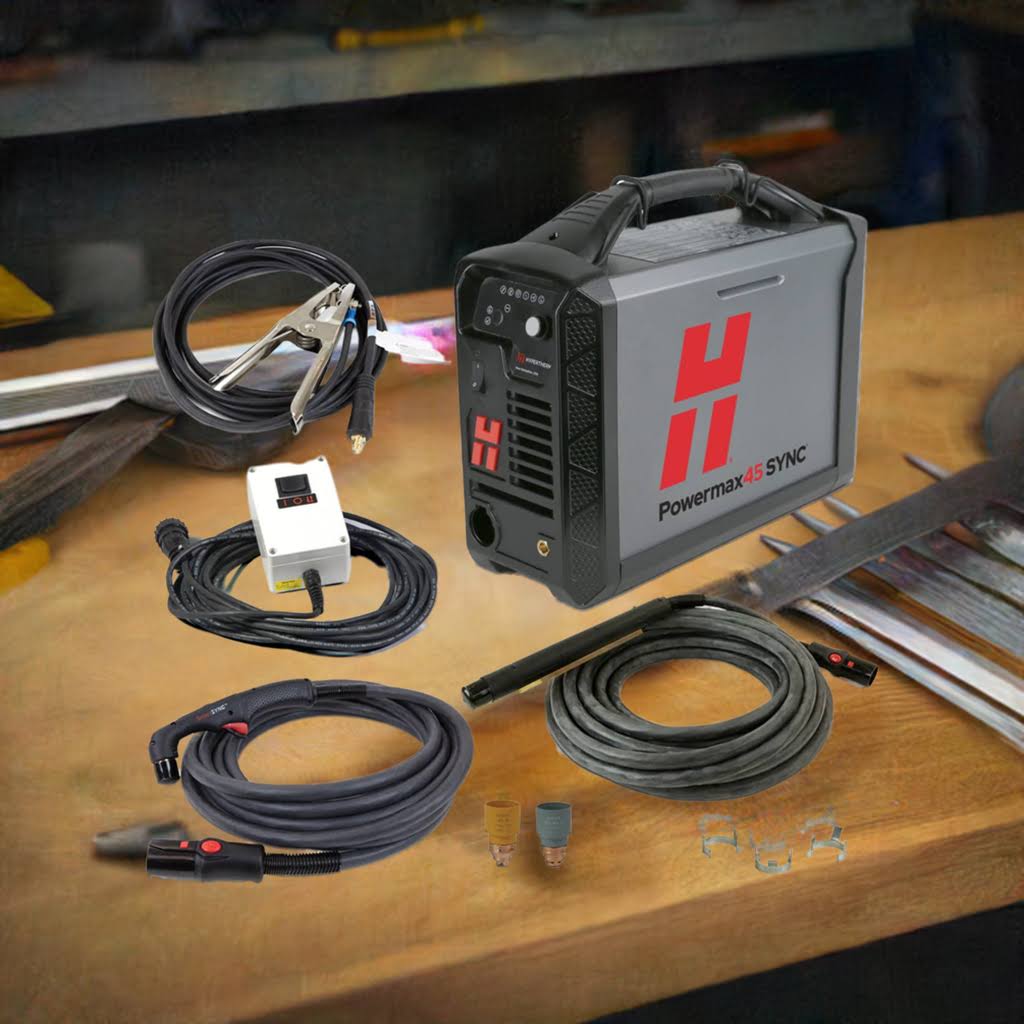

What's Included

Powermax45 SYNC power supply w/ CPC port
180° machanized SmartSYNC torch
75° handheld SmartSYNC torch w/ 20ft lead
10ft power cable
(1) 45A Mechanized Cut Cartridge
(3) Ohmic Rings
Operator and Safety Manuals

Cut Capacity

Recommended: 5/8" @ 20 ipm (16mm @ 500 mm/min)
Severance (hand cutting): 1 1/8" @ 5 ipm (29mm @ 125 mm/min)
Pierce*: 1/2" (12mm)

Max Removal Gouging - Typical Gouge

Metal removal rate: 7.5 lbs/hr (3.4kg/hr)
Groove profile: 0.12" D x 0.26" W (3.2mm D x 6.8mm W)

*Pierce rating for handheld use or with automatic torch height control.

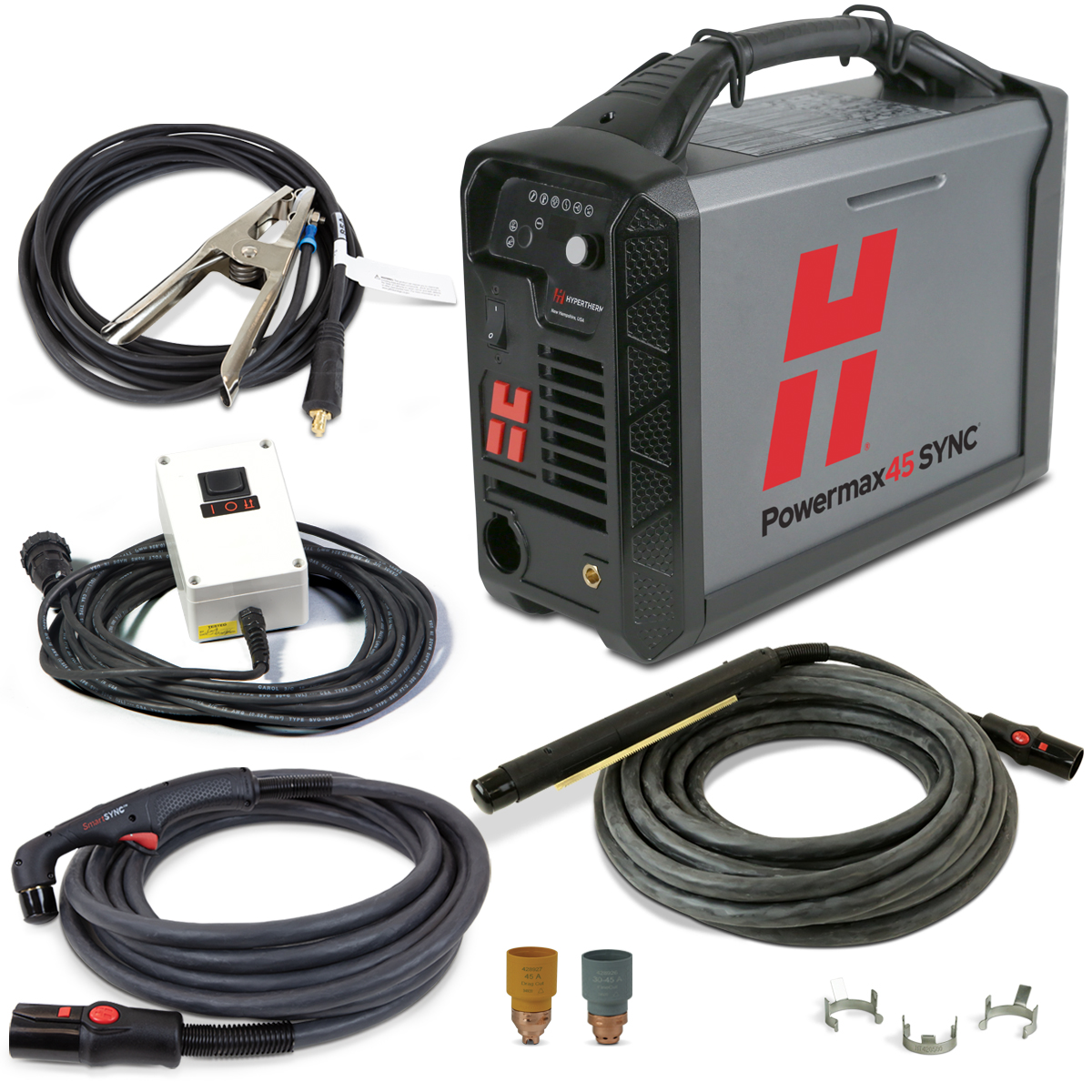

Powermax45 SYNC 088583 - What's Included

Applications:

Drag cutting: Rest the nozzle directly on the workpiece to maintain consistent torch-to-work distance for high-quality, straight cuts.
Bevel cutting: Tilt the torch at a precise angle to create beveled edges for weld preparation or decorative finishes.
Gouging: Remove material using a specialized tip and increased amperage for weld removal, back gouging, or surface preparation.
Flush cutting: Sever attachments or protrusions at their base to produce a smooth, even surface with the main workpiece.
Extended reach cutting: Employ longer torches or robotic systems to access hard-to-reach areas or cut large, complex structures.
Fine feature cutting: Utilize lower amperage and specialized consumables to produce intricate designs or small-diameter holes with minimal kerf.

Powermax45 SYNC Benefits:

Operational Efficiency

Streamlined system: Reduces training and troubleshooting costs
Minimized downtime: Faster consumable changes, reduce premature disposal
Data-driven insights: Optimizes cutting operations and inventory management

User-Friendly Design

Intuitive cartridges: Color-coded and laser-marked for easy identification
SmartSYNC technology: RFID-enabled auto-adjustment of amperage and mode
End-of-life detection: Eliminates guesswork in consumable replacement
Ergonomic design: Flexible torch lead reduces operator fatigue

Performance Enhancement

Versatile application: Easy switching between torch styles and cartridges
Extended lifespan: Up to 5x longer consumable life for handheld cutting
Consistent quality: Maintains cut quality throughout cartridge life
On-torch controls: Allows amperage adjustments and cartridge changes at the torch

Industrial-Grade Reliability

Rugged construction: SmartSYNC torches built for harsh environments
SpringStart™ technology: Ensures consistent arc ignition
Minimal downtime: Industry-leading reliability for continuous production

SmartSYNC Torches

SmartSYNC Consumables

Hypertherm Accessories

Fast, Free Shipping & Easy Returns

Your in-stock items ship same or next day from our five distribution hubs in WI and IL via fast UPS Ground. Need special shipping? Just call 1-844-682-0205 - we accommodate any request, including using your shipping accounts. Enjoy hassle-free 14-day returns on new, sealed products. Count on exceptional service backed by industry-leading shipping and return policies. Experience the advantage on your next order!

All Hypertherm Powermax 45 SYNC Models
	Power Supply Only	Handheld Torch Included	Machine Torch Included
Handheld Only	Power Supply Only (200-240V) #088570 Powermax45 SYNC Power Supply Only (480V) #088573	75° Handheld Torch, 20ft Lead (230V) #088560 75° Handheld Torch, 50ft Lead (230V) #088561
CPC Port	Power Supply w/ CPC Port (200-240V) #088571	CPC Port, 75° Handheld Torch, 20ft Lead (230V) #088562 CPC Port, 75° Handheld Torch, 50ft Lead (230V) #088563 CPC Port, Dual Handheld Torches (75° & 15°), 20ft & 25ft Leads (230V) #088564	CPC Port, 180° Machine Torch, 25ft Lead (230V) #088580 CPC Port, 180° Machine Torch, 50ft Lead (230V) #088581 CPC Port, 180° Machine Torch, 25ft Lead w/ Remote (230V) #088582 CPC Port, 75° & 180° Torches, 20ft & 25ft Leads w/ Remote (230V) #088583
CPC & Serial Port	Power Supply w/ CPC & Serial Port (200-240V) #088572		CPC & Serial Ports, 180° Machine Torch, 25ft Lead (230V) #088584

Hypertherm Powermax45 SYNC Features

Shop Powermax SYNC plasma cutters and compatible SmartSYNC consumables at the lowest prices online, from Welders Supply.

This product replaces these legacy models:

Powermax45 XP w/ 25' 180°M & 75°H Torches (220V) #088123

Powermax45 SYNC Specs:

Cut Capacity
Recommended	5/8" (16 mm) @ 20 ipm (500 mm/min)
Severance (hand cutting)	1 1/8" (29 mm) @ 5 ipm (125 mm/min)
Pierce	1/2" (12 mm)

Input, Output & Operation
Input voltages	CSA 200-440 V, 1-PH, 50/60 Hz 480 V, 3-PH, 50/60 Hz 480 V, 3-PH, 10 A @ 6.9kW CE 230 V, 1-PH, 33 A 400 V, 3-PH, 10 A
Kilowatt output	6.9kW
Input current	9-45 A
Output current	155 VDC
Rated output voltage	CSA 200-240 V, 1-PH 39/32 A @ 6.5 kW CE 230 V, 1-PH, 33 A 400 V, 3-PH, 10 A
Duty Cycle @ 104° F	CSA 50% @ 45 A, 200-240 V, 1-PH 60% @ 41 A, 200-240 V, 1-PH 100% @ 32 A, 200-240 V, 1-PH 50% @ 45 A, 480 V, 3-PH 60% @ 41 A, 480 V, 3-PH 100% @ 32 A, 480 V, 3-PH CE 50% @ 45 A, 230 V, 1-PH 60% @ 41 A, 230 V, 1-PH 100% @ 32 A, 230 V, 1-PH 50% @ 45 A, 400 V, 3-PH 60% @ 41 A, 400 V, 3-PH 100% @ 32 A, 400 V, 3-PH
Open circuit voltage (OCV)	CSA 275 VDC 200-240 V 275 VDC 480 V CE 265 VDC 400 V
Gas supply	Cutting: air (clean, dry and oil-free), nitrogen, F5 Gouging: air (clean, dry and oil-free), nitrogen, F5 Marking: air (clean, dry and oil-free)
Recommended gas inlet flow rate/pressure	400 scfh @ 85 psi (188 l/min @ 5.9 bar)
Input power cable length	10 ft (3 m)
Power supply type	Inverter - IGBT
Engine drive requirement	12.5 kVA (10 kW) for full 45 A output
Electrical efficiency	90%
Certifications	CSA - certified for use in the Americas and Asia, except China CE - for use in Europe, Australia, New Zealand, Belarus, Kazakhstan, Serbia, Ukraine, and other countries where accepted. Also RCM, Ukraine and Serbian. UKCA - Great Britain
Warranty	Power supplies have a 3-year warranty and torches a 1-year warranty

SHIPPING DIMENSIONS
Height:	14.00 Inches
Width:	6.80 Inches
Length:	17.40 Inches
Weight:	31 Lb(s) 0 Oz
